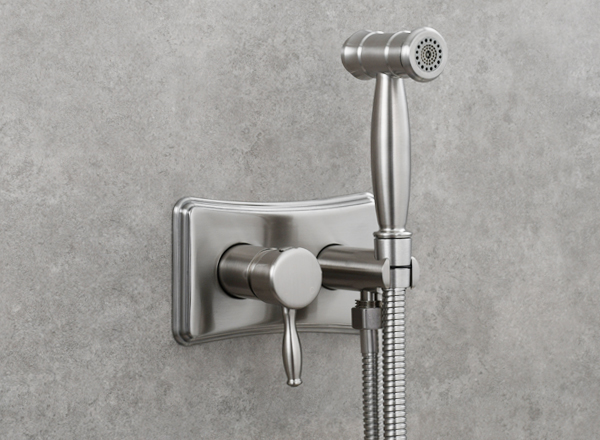

How to Installation Wall mounted Hot&Cold Bidet Sprayer Set WS035F
►Installation Video
►Video of Product Function Display
►Before You Begin
1. Shut off the main water supply.
2. Do not disassemble the main body, as it has been intalled & commissioned correcly & precisely belore loaving the factoary.
3. To avoid the faucet from jamming, Do flush the water pipe before installation.
4. After installation, make sure every joint is safely sealed (NO LEAKAGE).
5. Make sure to connect the hotcold inlet pipe correcty, if standing in front, hot water pipe connecting to the leftand cold water pipe connecting to the down.
6. lt is recommended that installation of the product be done by a professional plumber.
►Cleaning & Maintenance
To keep product clean and shiny follow the instruction below.
1. Flush with clean water and dry with soft cloth only.
2. Do not use any detergent, polisher, sane-cloth, or a scraper.
3. Do not use acid detergent.

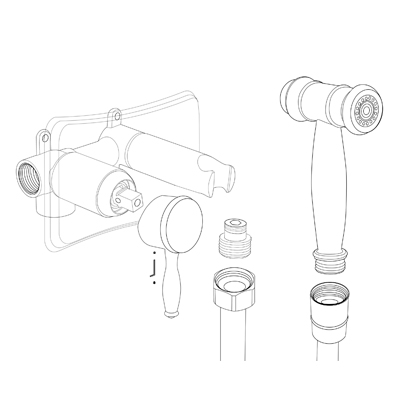

►Installation
1. Position and fix the valve body into the wall. Make sure the valve body is completely level.
2. Connect hot and cold water inlets of the valve body to the main water supply. (Solid copper pipes are recommended for the connection)
3. lnstall the escutcheons onto the valve body against the finished wall.
4. Place the handle and fix the set screw with Allen key, then put on indication button. Apply Teflon tape to the thread of the spout. Then screw the spout into the valve tightly.
Bidet Sprayer Set: https://sanitarya.com/products/ws035cf
1. Position and fix the valve body into the wall. Make sure the valve body is completely level.
2. Connect hot and cold water inlets of the valve body to the main water supply. (Solid copper pipes are recommended for the connection)
3. lnstall the escutcheons onto the valve body against the finished wall.
4. Place the handle and fix the set screw with Allen key, then put on indication button. Apply Teflon tape to the thread of the spout. Then screw the spout into the valve tightly.
Bidet Sprayer Set: https://sanitarya.com/products/ws035cf
