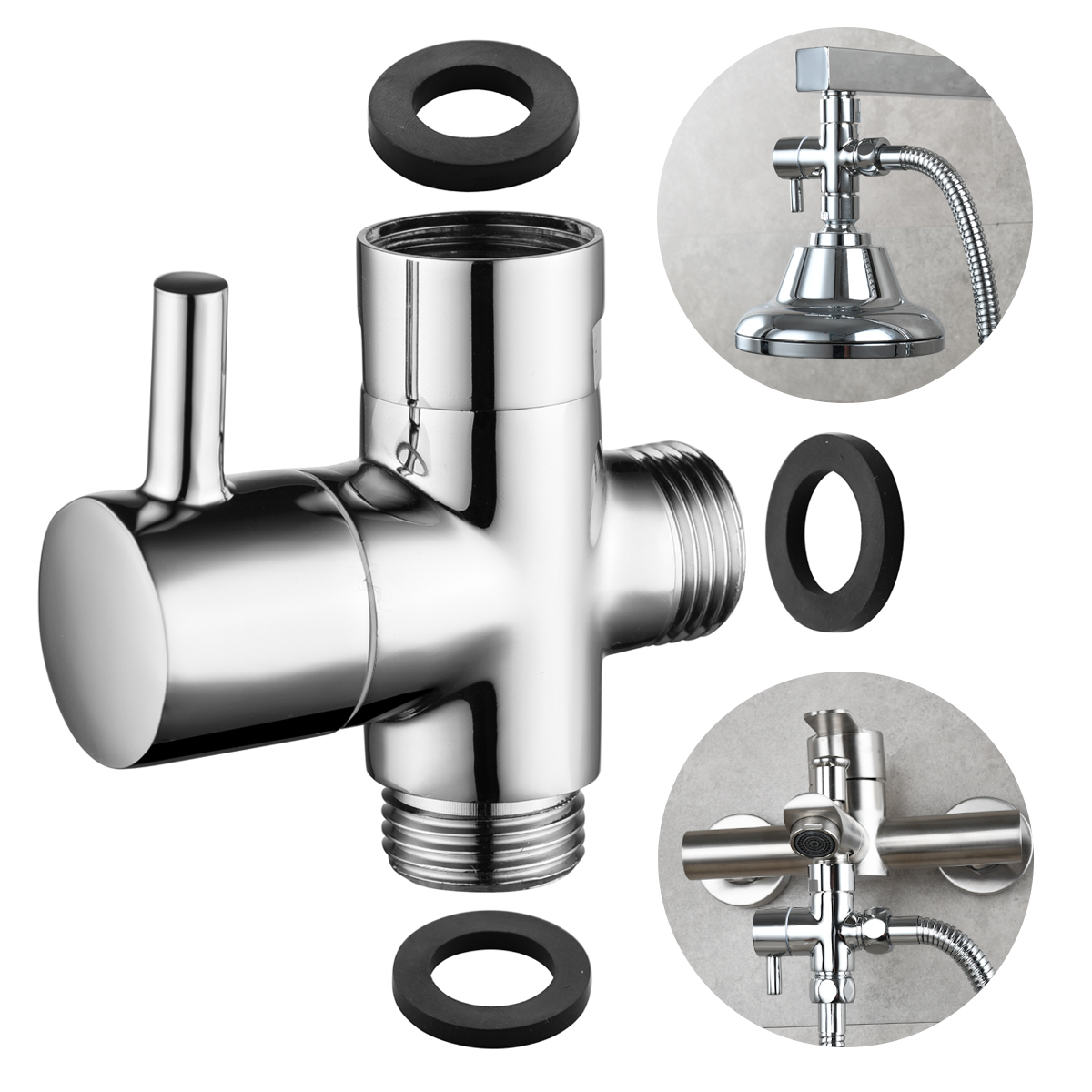

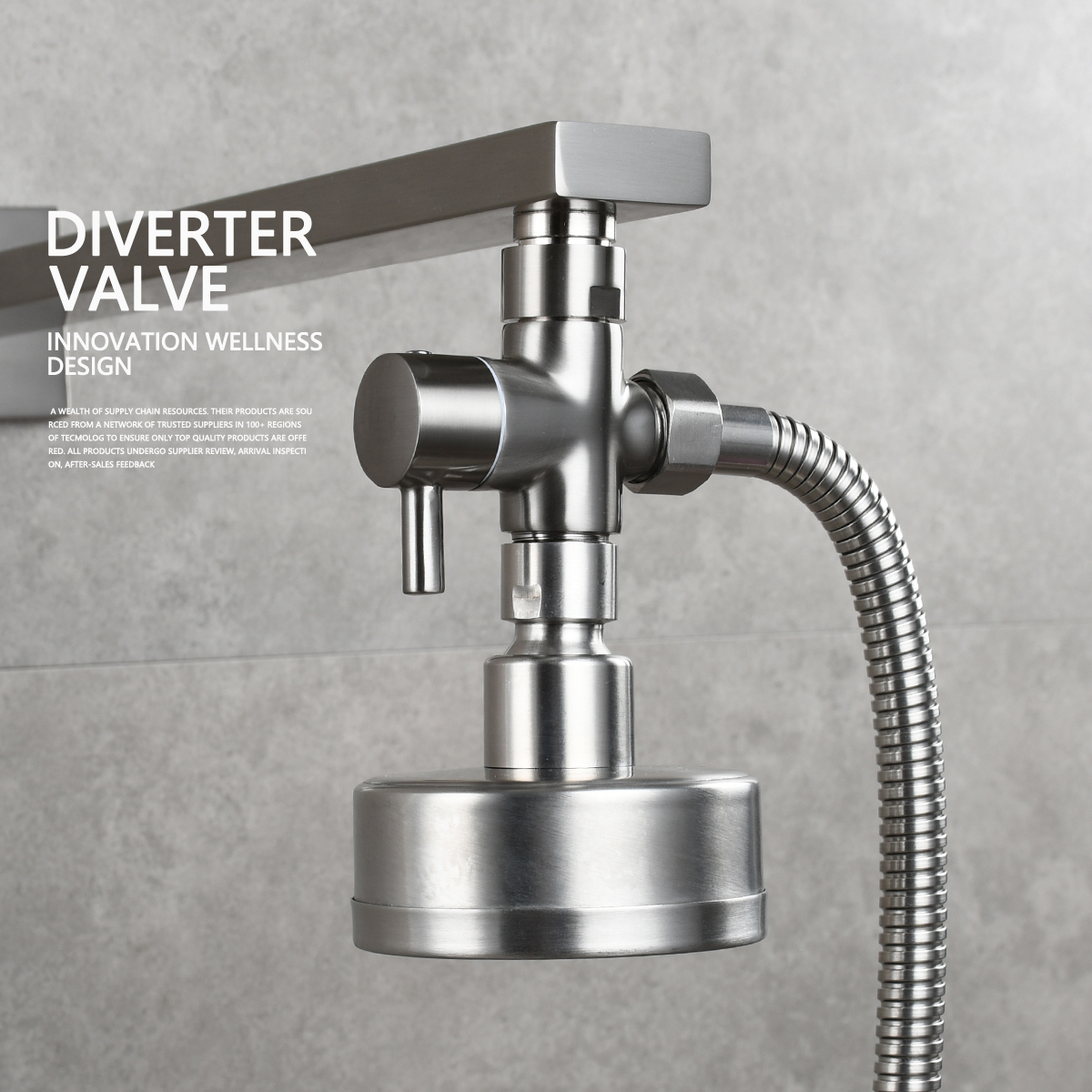

Tecmolog Brass Shower Arm Diverter Valve for Hand Held Showerhead 3 Way Shower Diverter Valve G1/2 DSF007/DSF007NA/DSF007C

DSF007
Brass Shower Head Diverter Valve G1/2
Price:
$7.05
(5% OFF)
Wholesale:
1-9
$7.05
10-49
$6.84
50-99
$6.64
100-999
$6.44
1000+
$4.84
    Please select the information you wantX
  • Style:
    Chorme
    Nickel
    Black
  • Ships From:
    China
    USA
    Canada
    UK
    Germany
    France
    Italy
    Spain
    Japan
    Russia
Quantity:
-
+
(8388607 Piece available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Specification
  • Installation
  • FAQ
  • Reviews(12)
Specifications
Overseas Inventory: USA, Canada, UK, Germany, France, Italy, Spain, Japan, Russia

DSF007_01DSF007_02DSF007_03DSF007_04DSF007_05DSF007_06DSF007_07DSF007_08DSF007_09DSF007_10DSF007_11DSF007_12DSF007_13DSF007_14DSF007_15DSF007_16DSF007_17DSF007_18

Description:

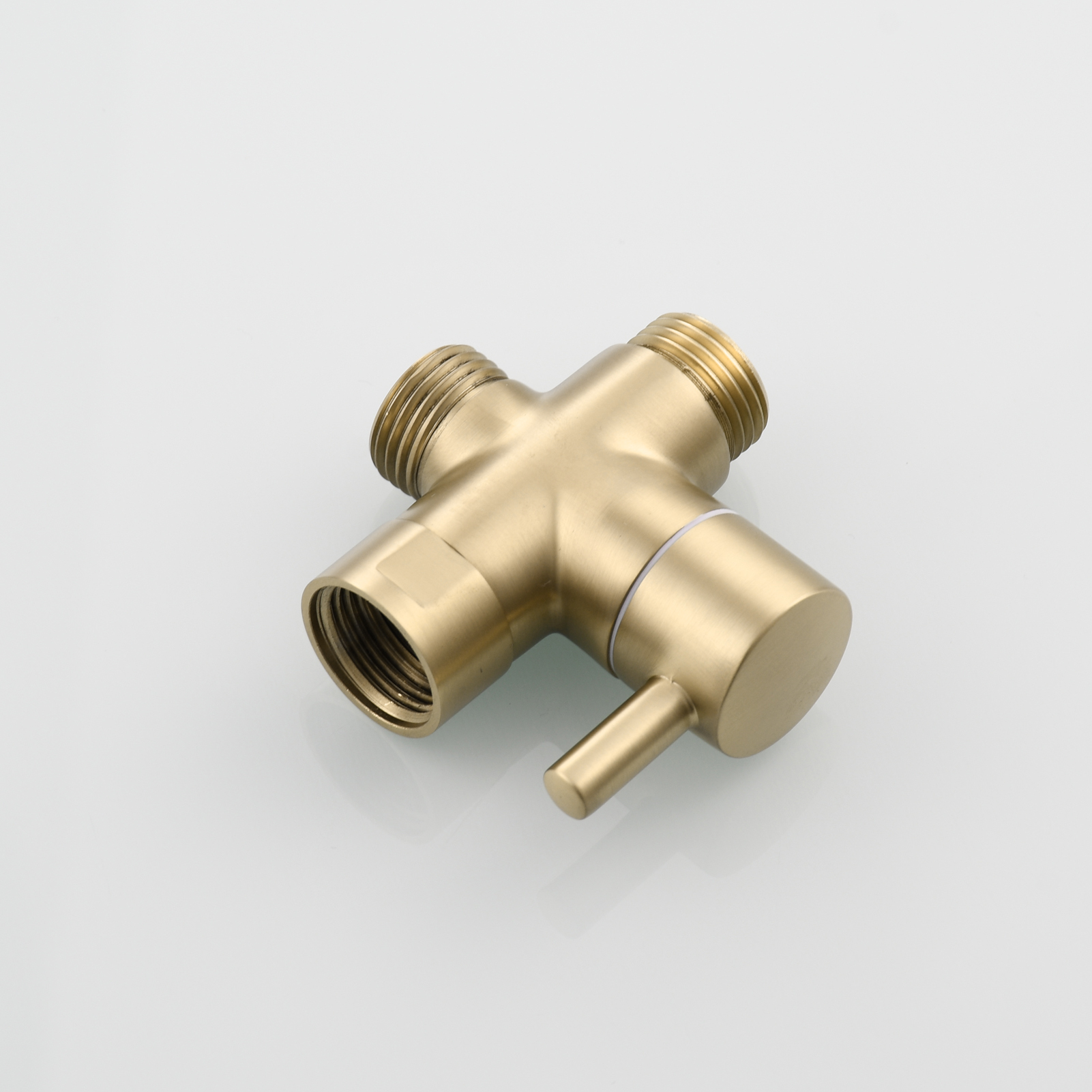

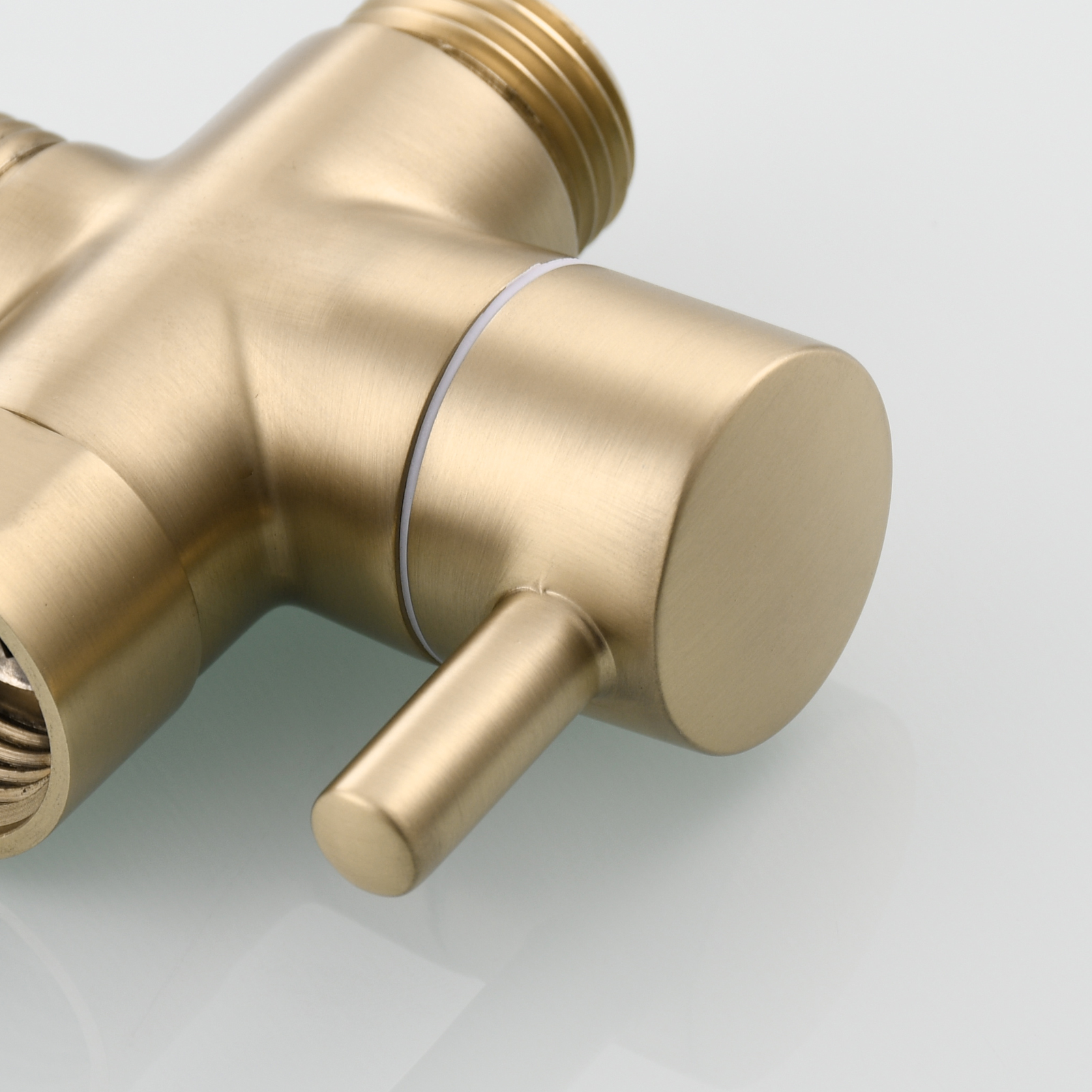

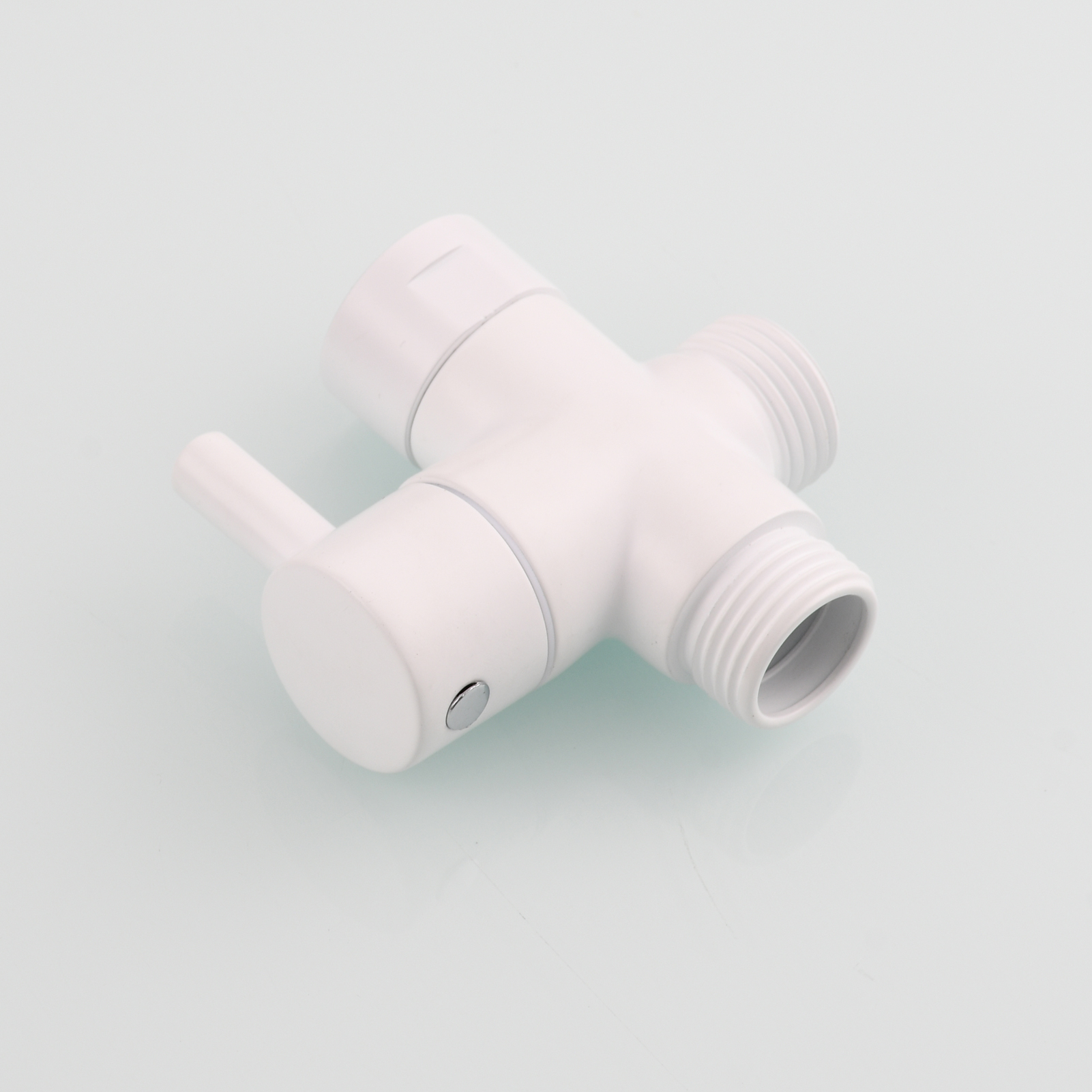

Name: 3 Way Diverter
Material: Brass
Item Weight: 6 ounce (170g)
Water Pressure: 0.6-1.5MPA
Original: Guangdong , China

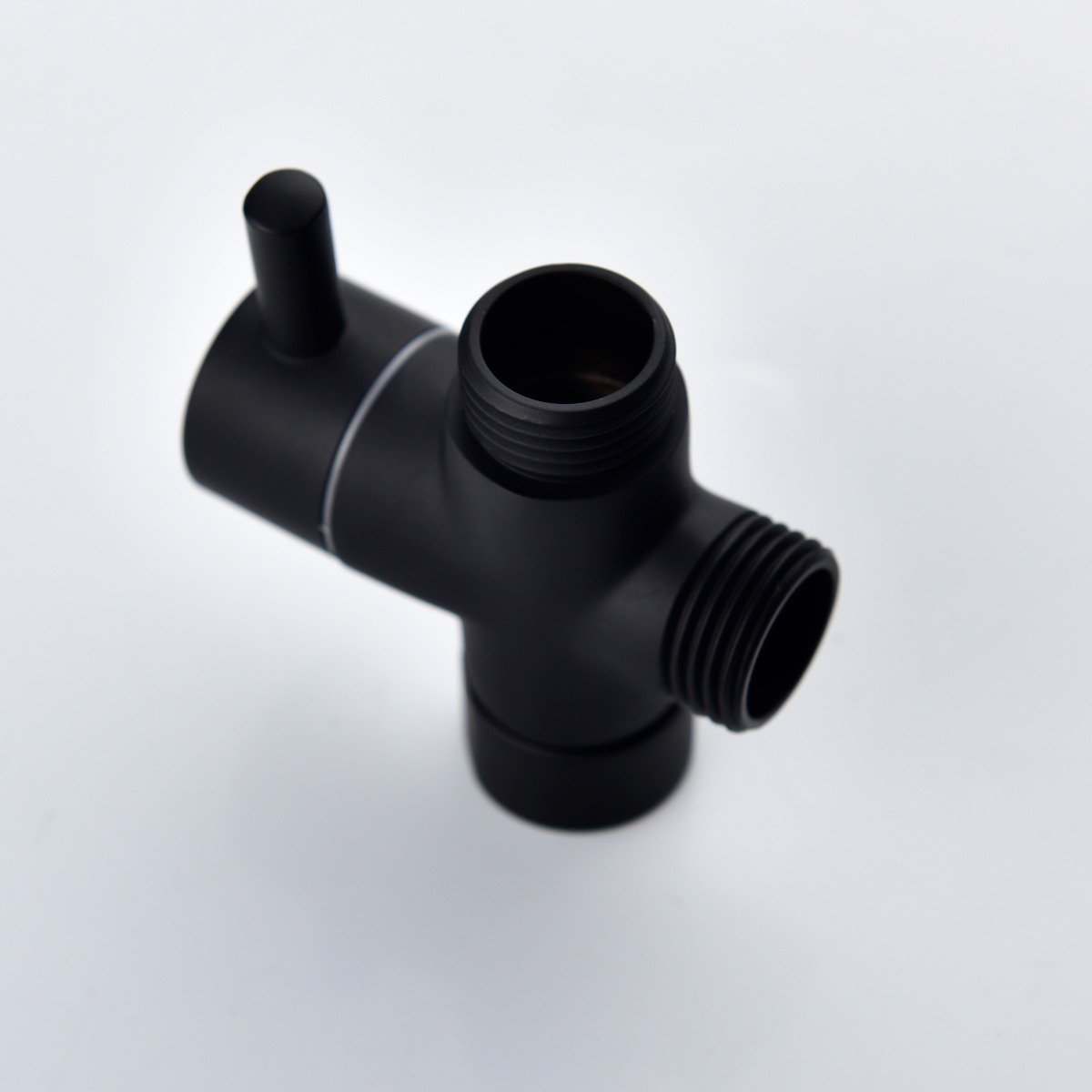

Finish: Chrome, Brushed Nicke, Black
Usage: 3-way diverter valve for bathroom

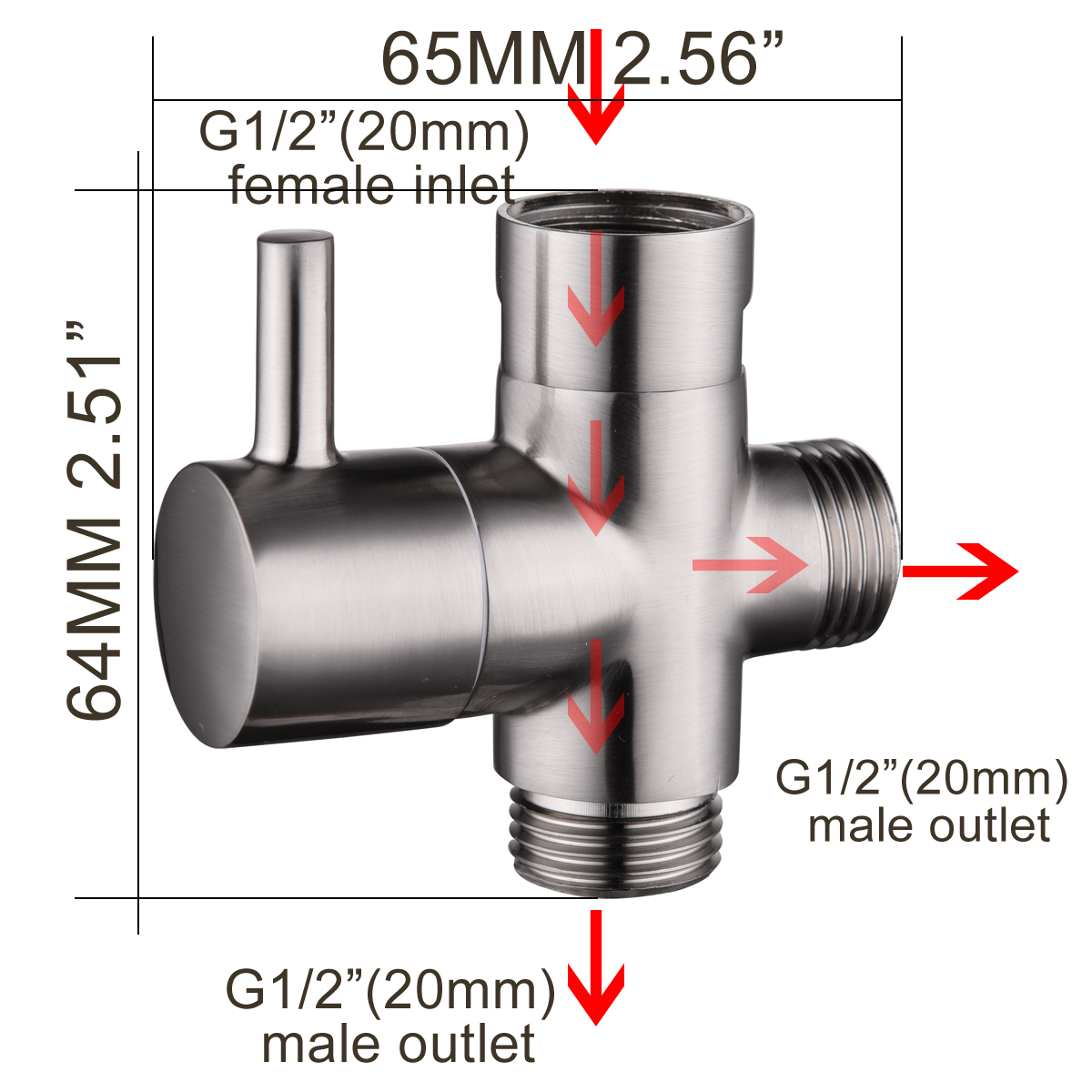

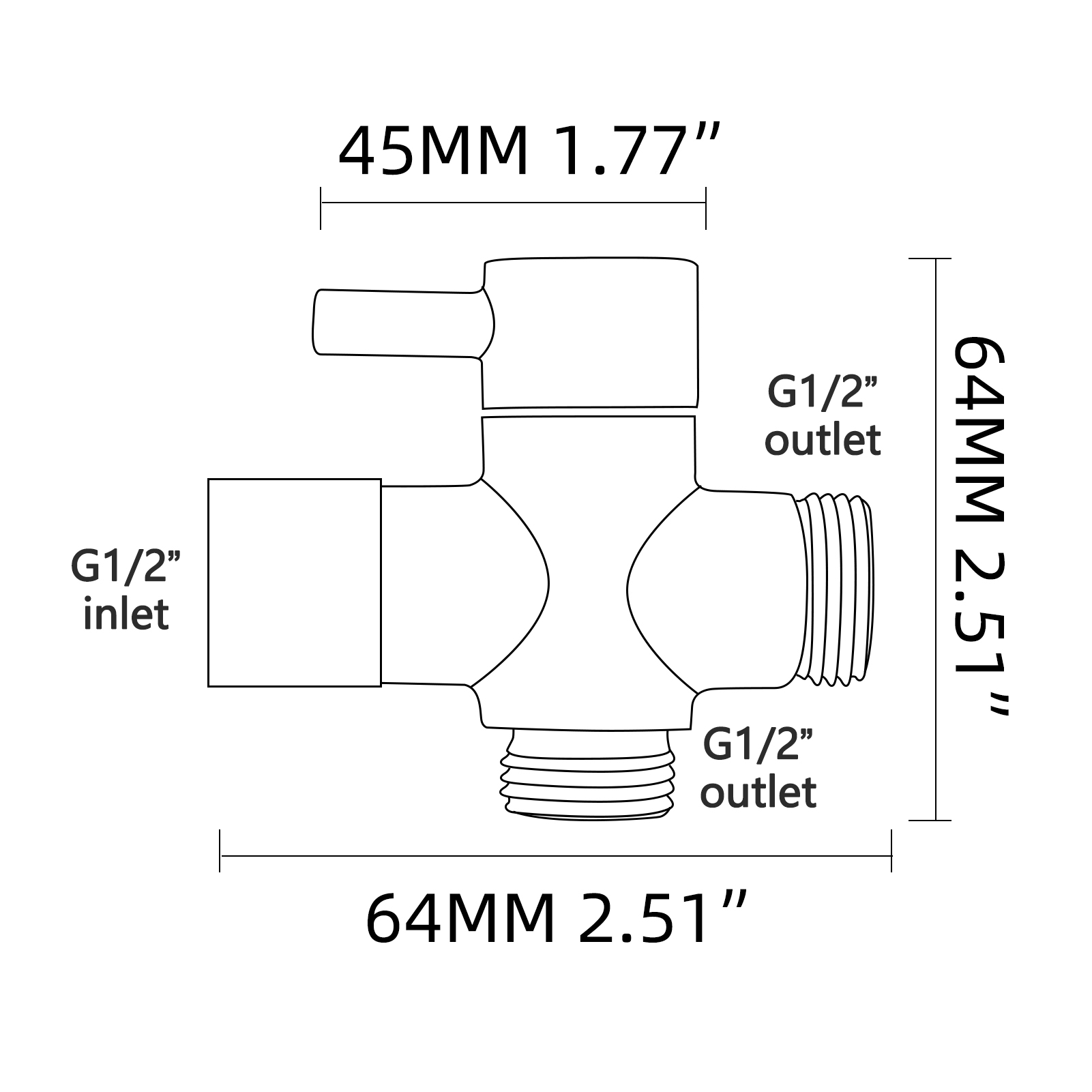

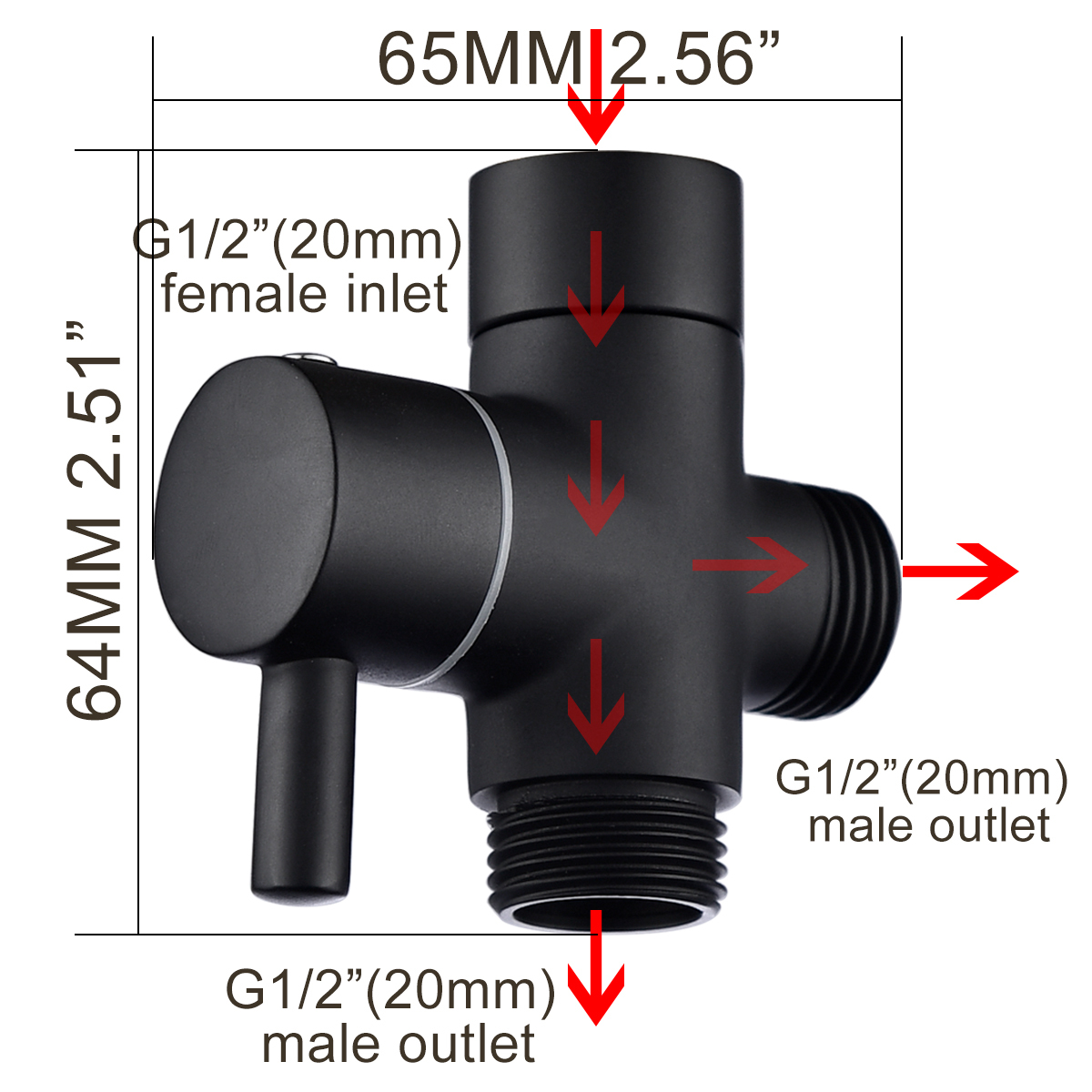

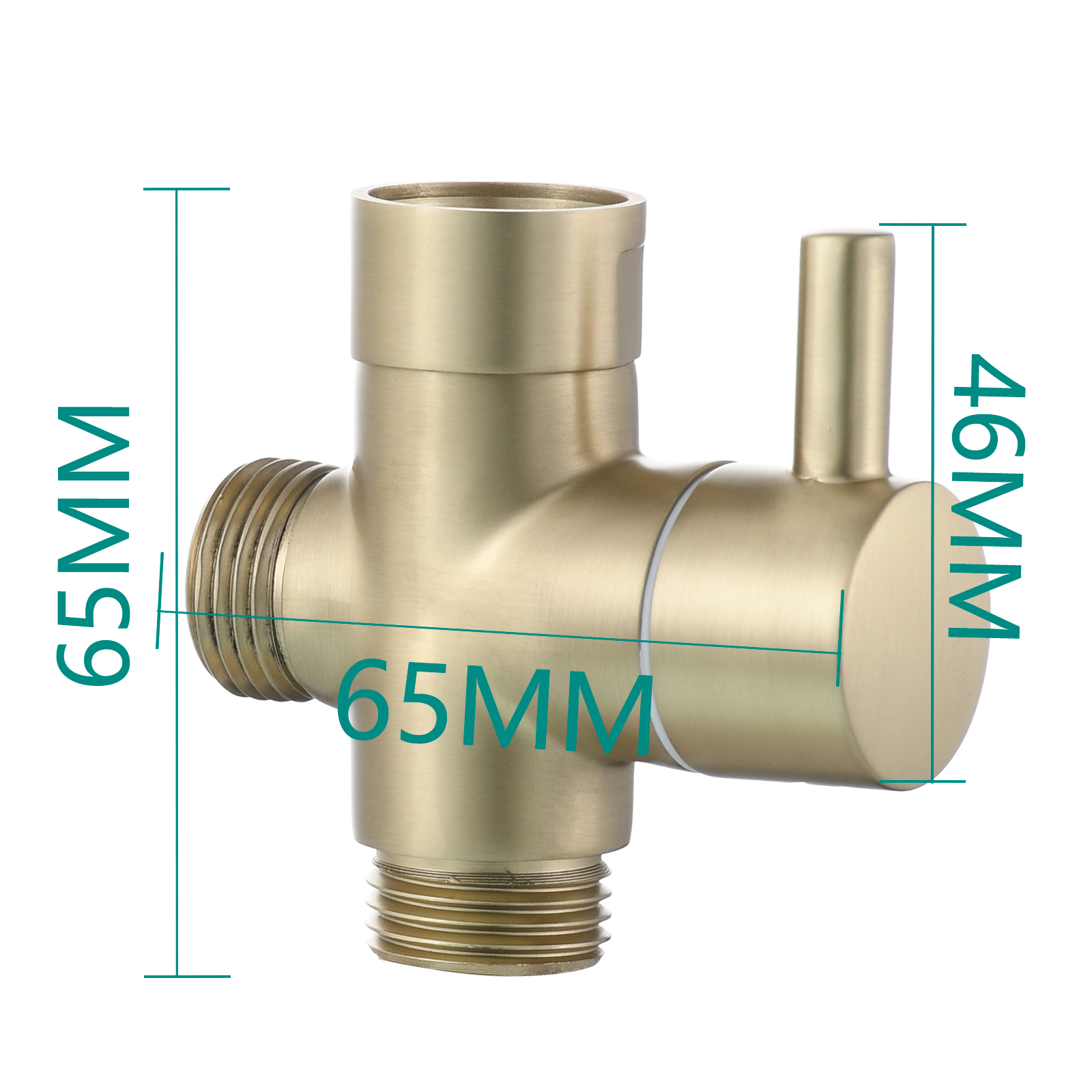

Connection Size: G1/2" female inlet, G1/2" male outlet, G1/2" male outlet

Feature:
The water flows to either branch or both branches, or act as an off valve
Valve body is constructed from high quality brass, ensuring quality and longevity
Standard 1/2-Inch IPS female inlet and 1/2-Inch male outlet connections, straight threads
Shut-off Valve gives ability to turn off or adjust the water flow coming into the showerhead
The T-adapter is made by strong brass with beautiful finish, for smooth and reliable operation

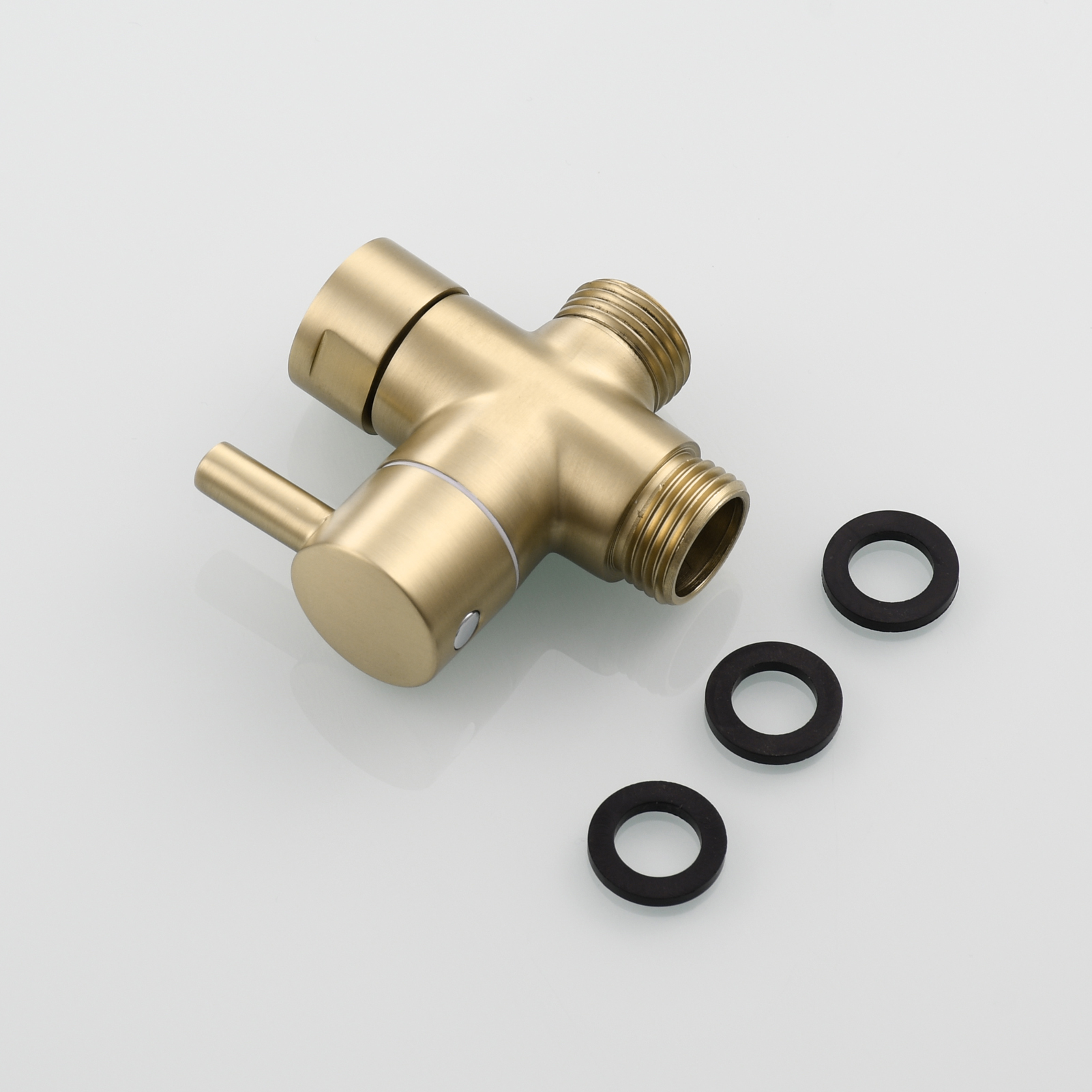

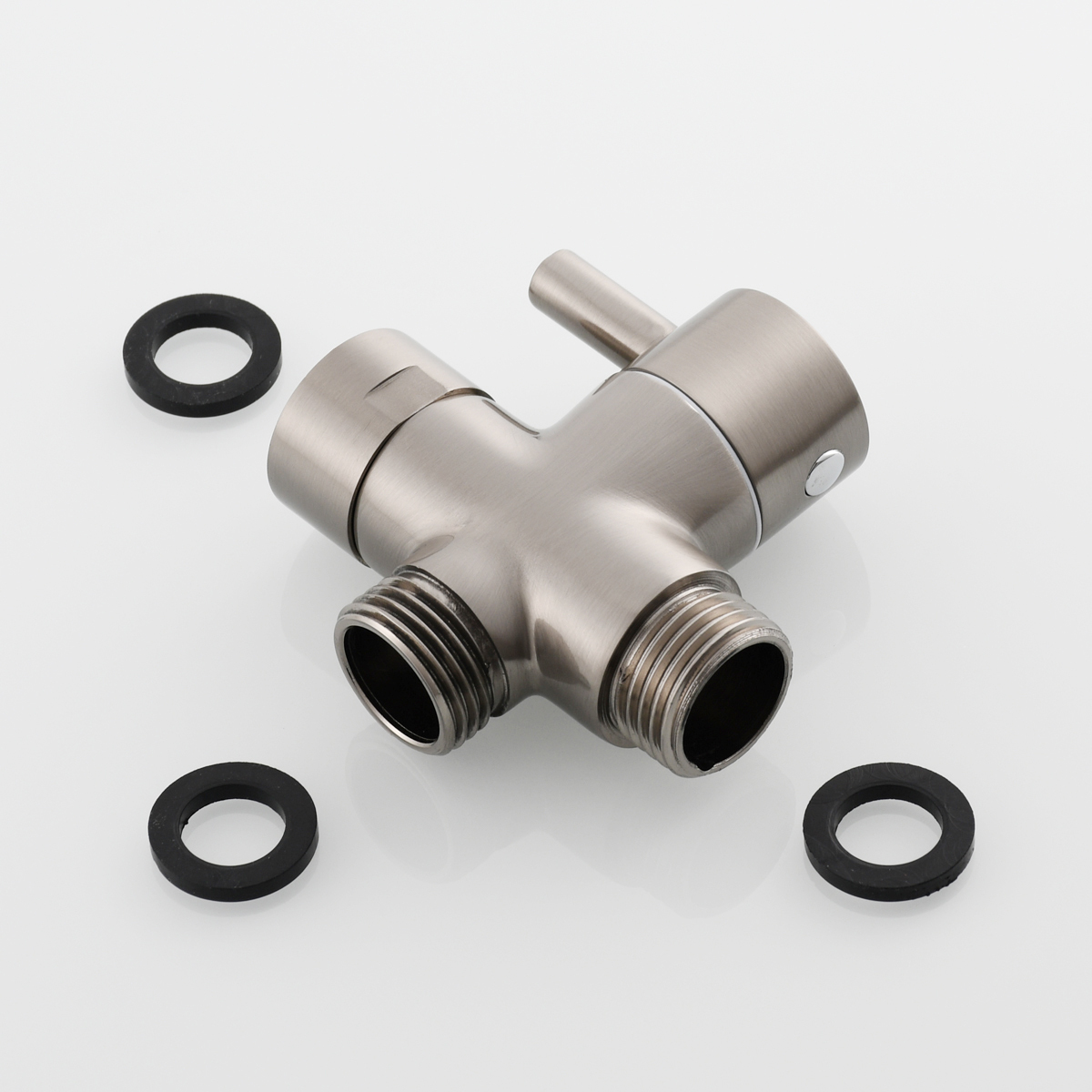

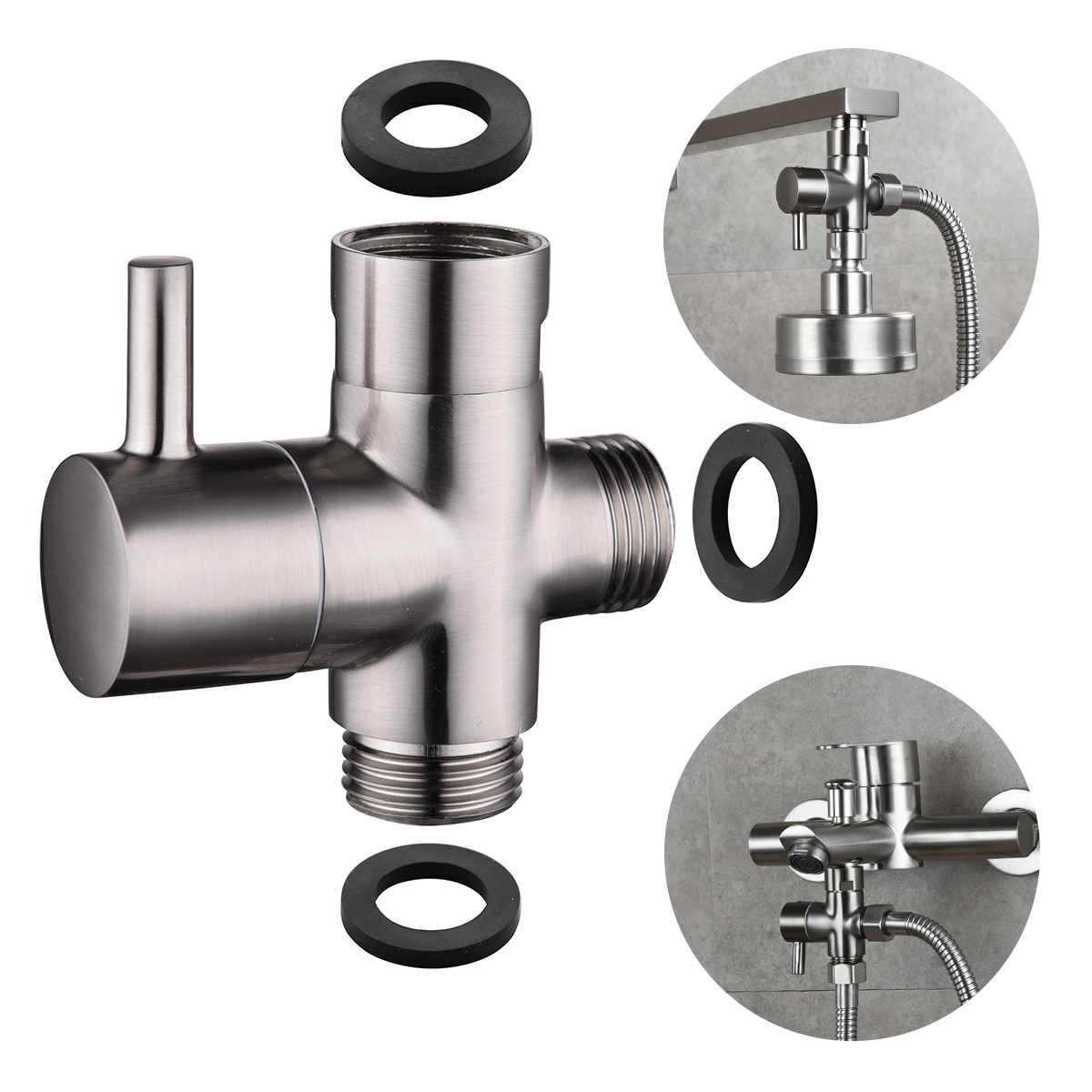

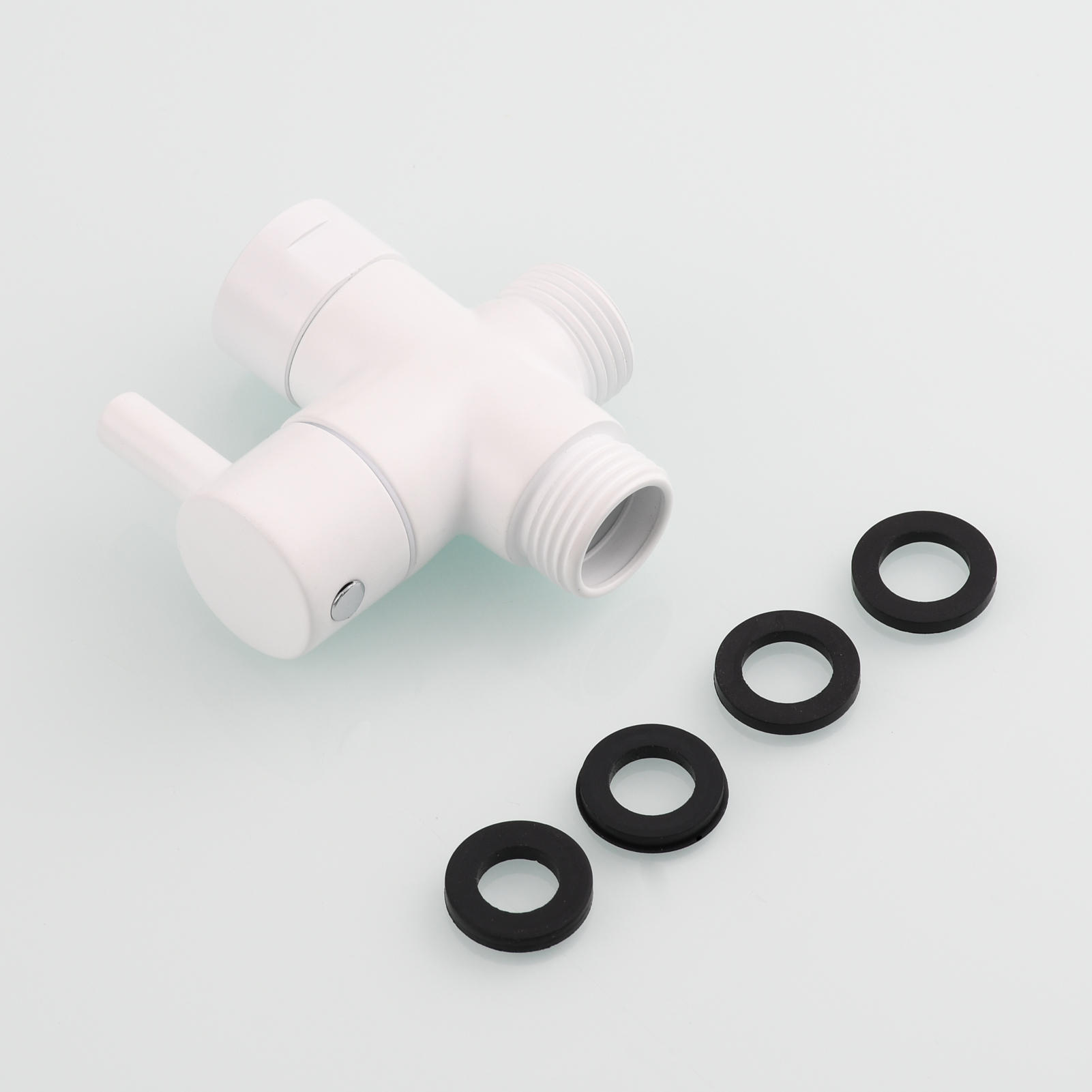

Package Details

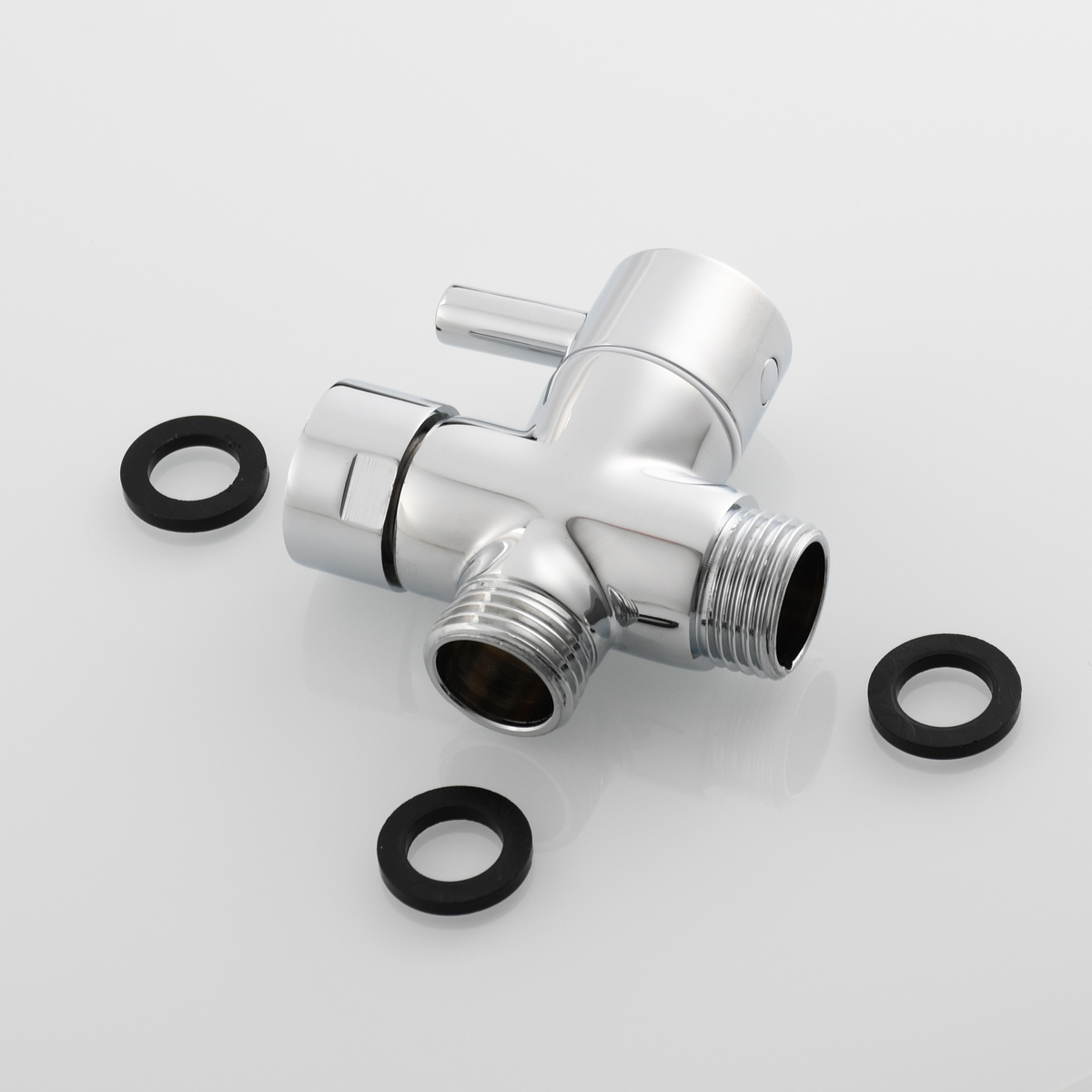

1 x Diverter Valve
1 x Rubber Washer

How to Install a T Valve




►Installation Video




►Buyer Show






Separate or Simultaneous Flow
1/2" Female Thread Inlet, 1/2" Male Thread Outlet
1. Remove the shower head.
2. Wrap the threads fitting into it with teflon tape and put rubber washers in the diverter valve.

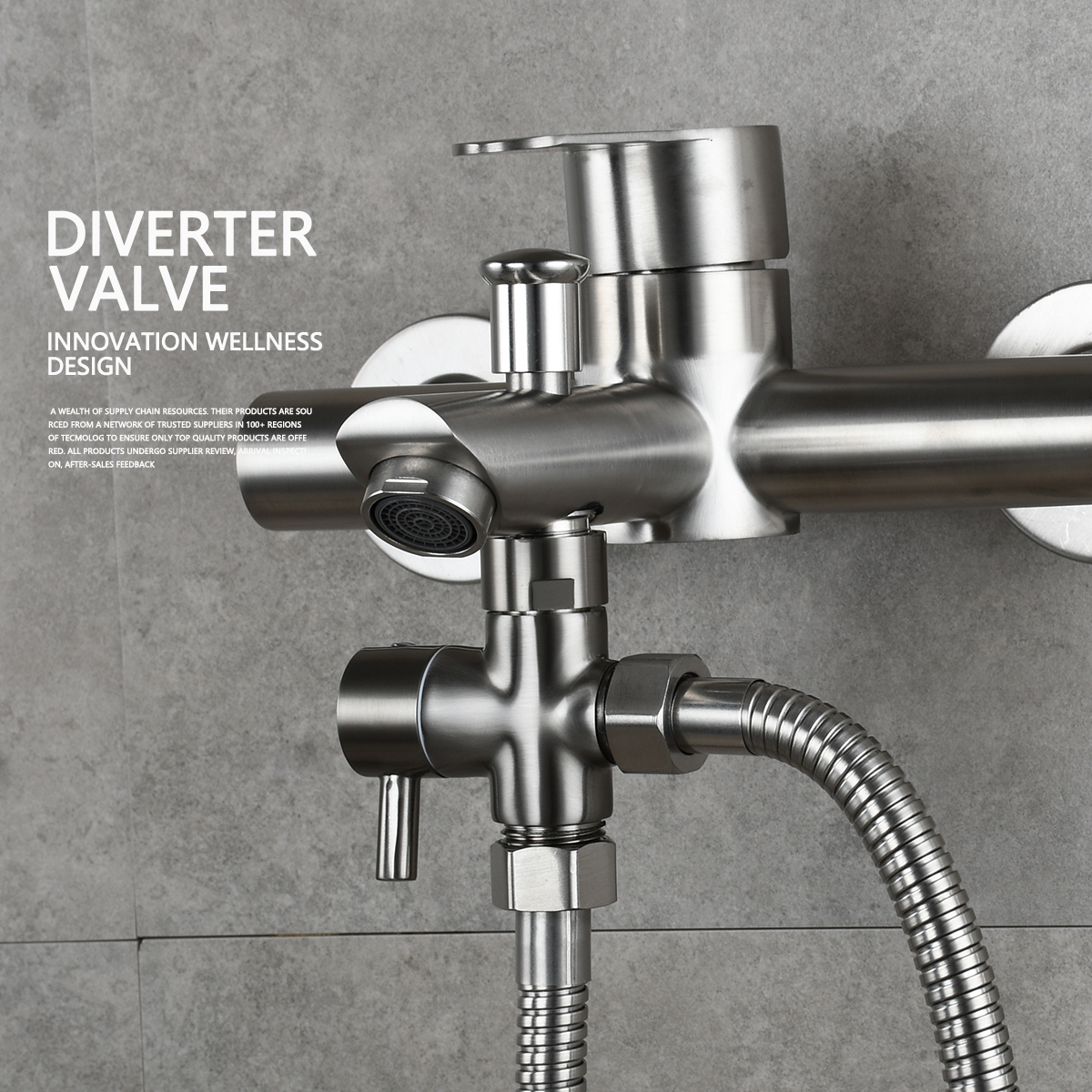

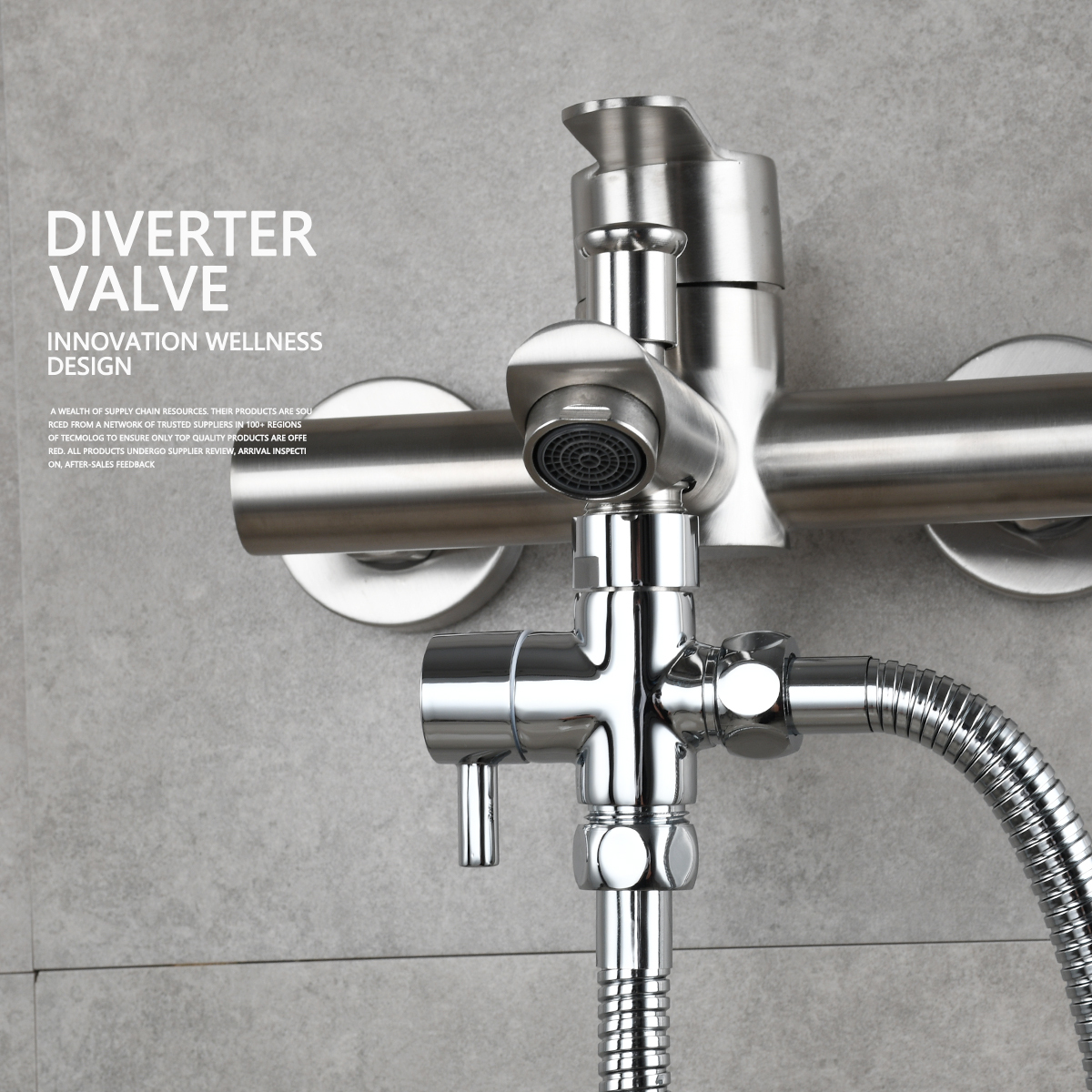

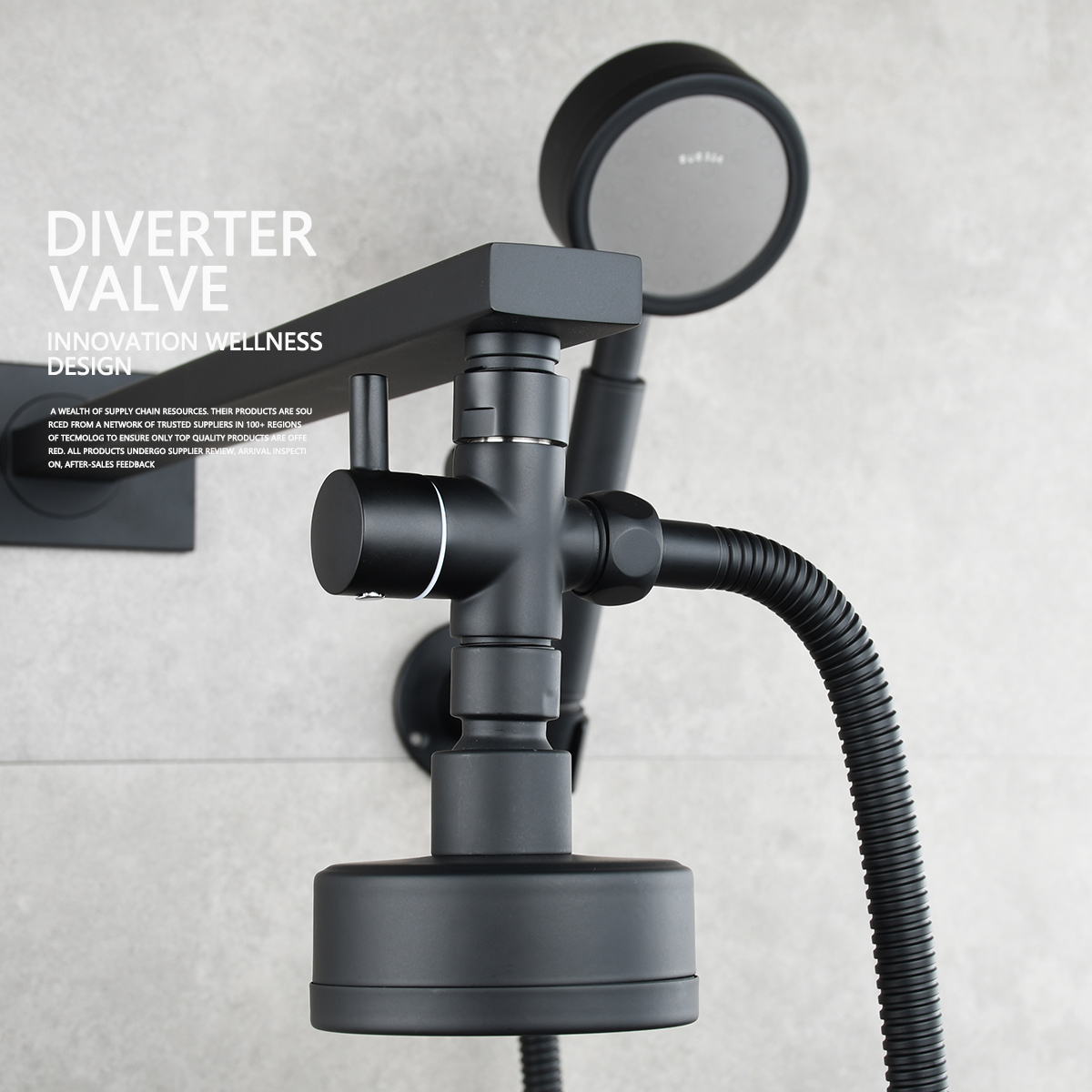

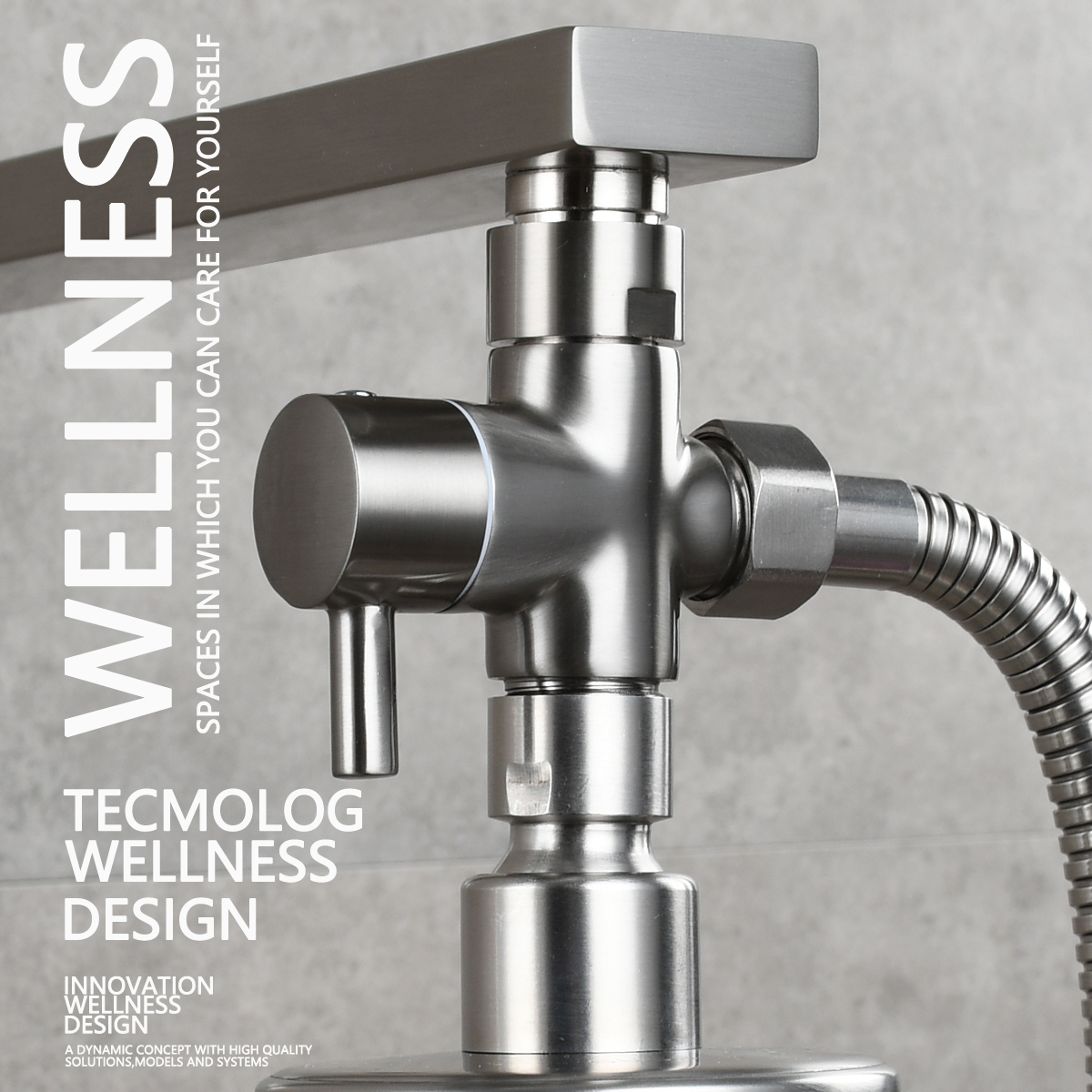

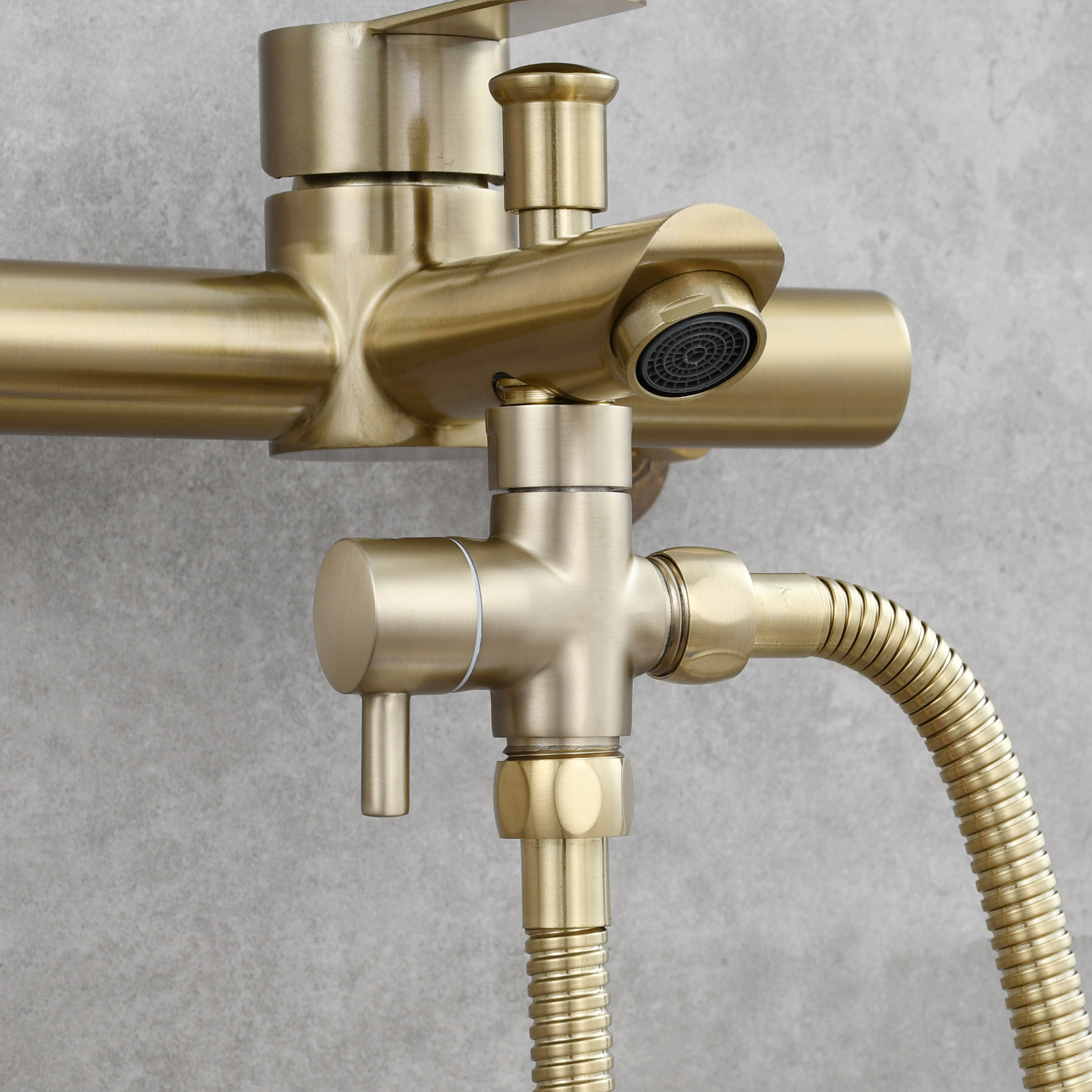

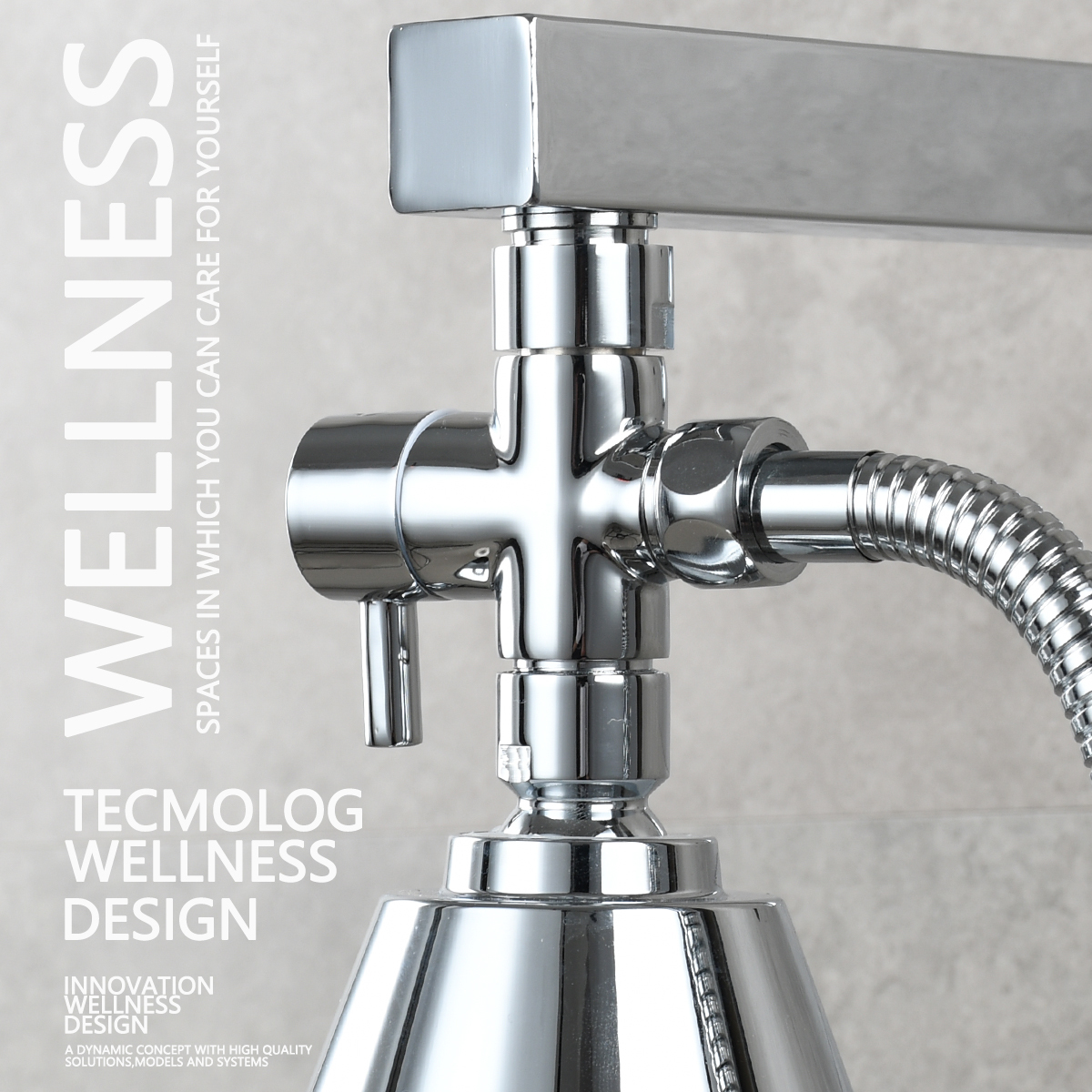

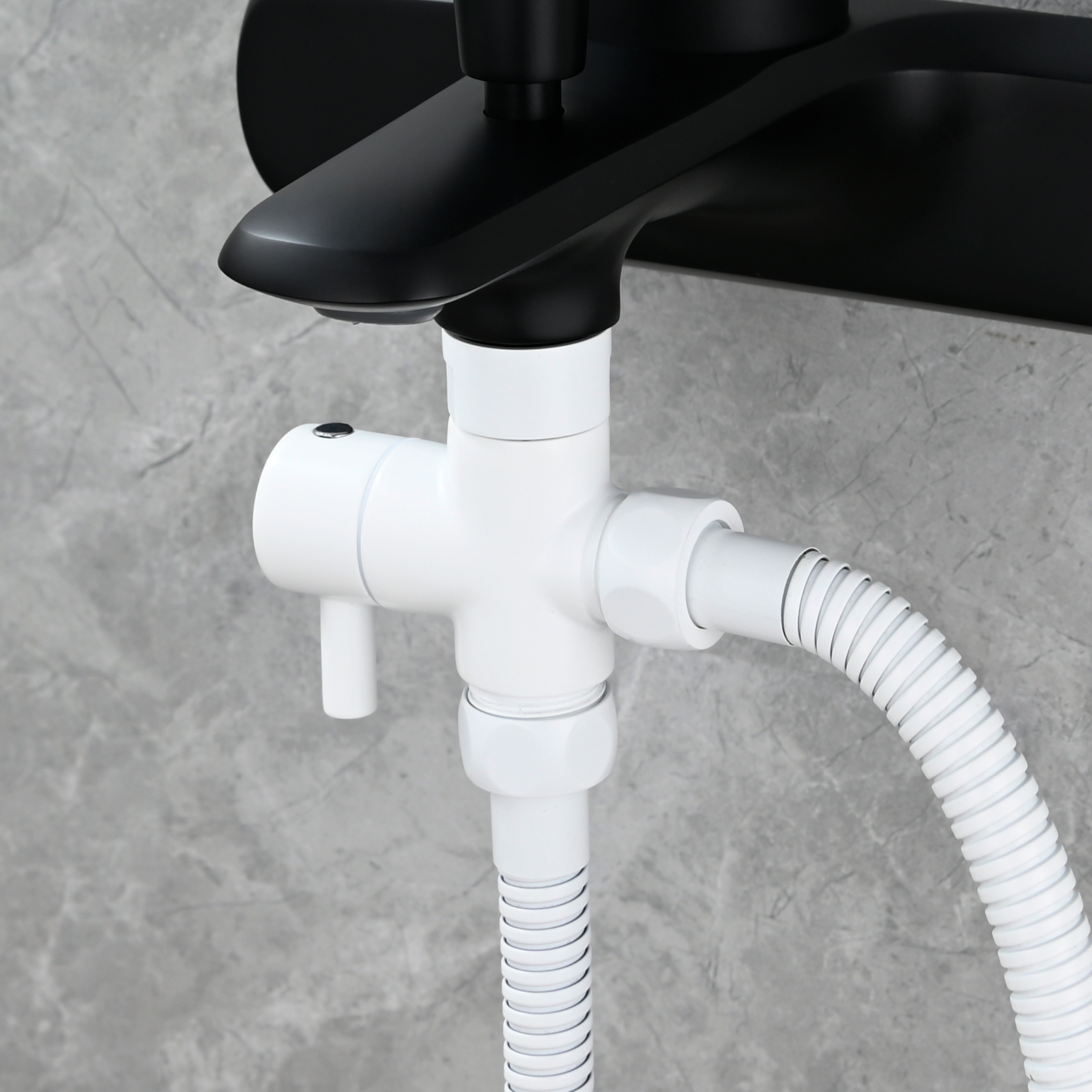

3. Screw in 3-way diverter valve to shower arm/bathtub faucet outlet.
4. Attach the shower head and shower hose to both of male thread outlets.

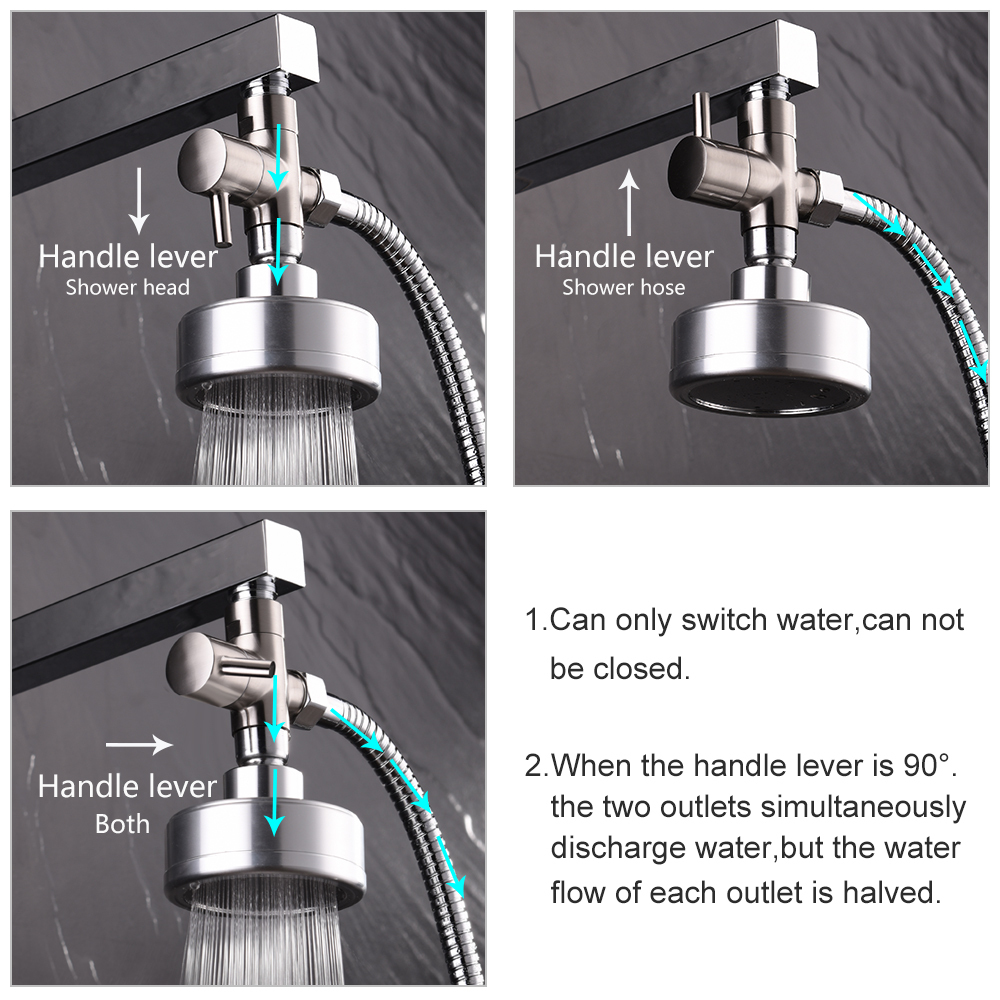

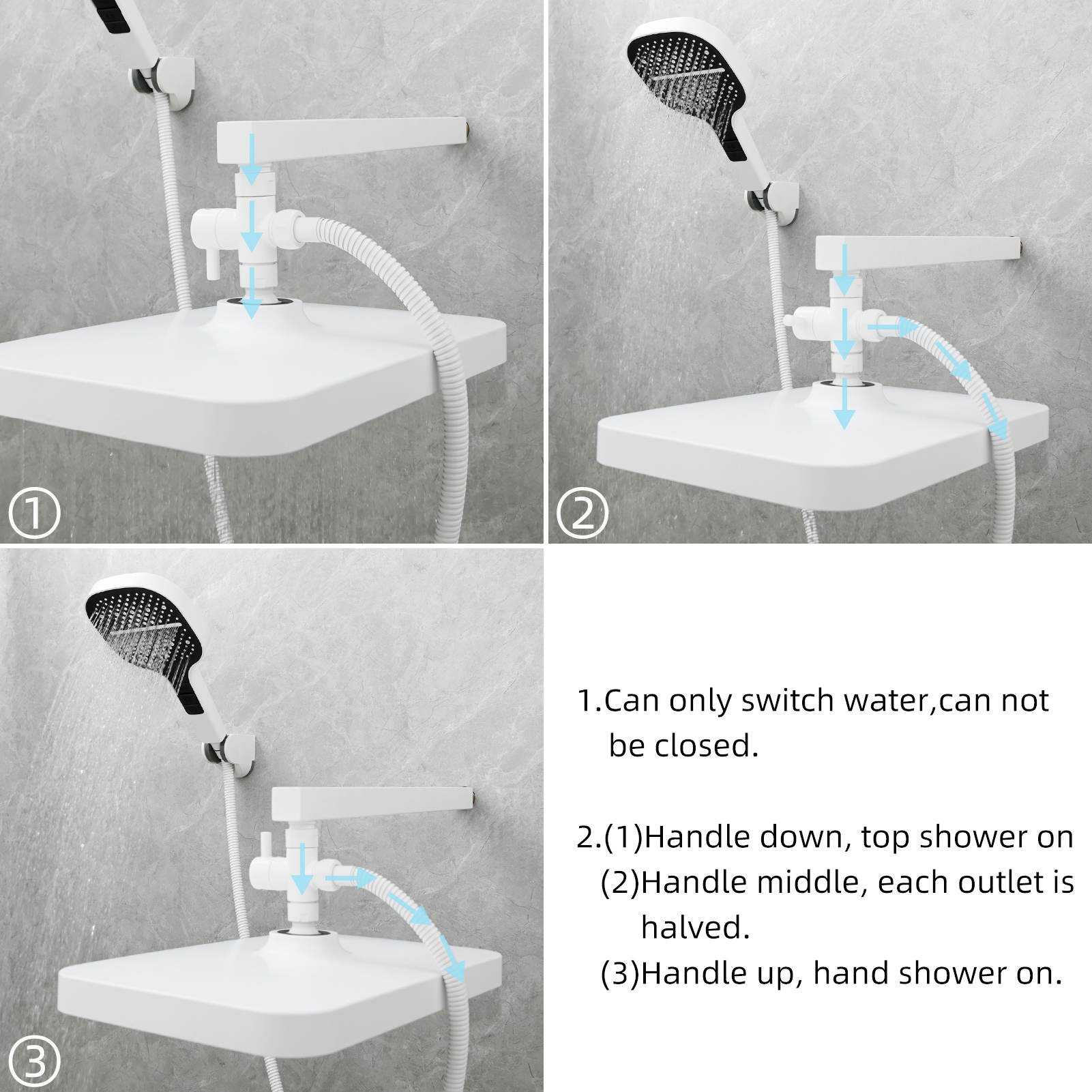

1. Can only switch water,can not be closed.
2. When the handle lever is 90°.the two outlets simultaneously discharge water,but the water flow of each outlet is halved.



1. Question:
In the description it says "quarter turn of the handle", but the handle makes half a turn- how come?
    Answer:
The flow control allows the splinter to go from full flow out one side of the diverter, to the 1/4 turn being both output streams flowing and if you continue to rotate the handle to 180 degrees the water is coming out the opposing outlet while the primary is shut off. So by default 100/0 then at 90 degrees it's 50/50 and finally at 180 it's 0/100





2. Question:
Is this valve full bore, i.e. inner diameter 10m or there abouts?
    Answer:
bore is 10mm-(female inlet15mm) same for( male all so 15mm)hope that help you?



3. Question:
Does this come with washers
    Answer:
yes,with 3 washeres



4. Question:
i have a cheapy from china that i havnt used yet...mine feels like plastic coated in chrome...is this lightweight or does it feel metal? cheers
    Answer:
This is decent for the price, not cheapy or plasticy seems much more like an expensive kind you that you find in diy Store for more than double price.



5. Question:
Is this valve full bore, i.e. inner diameter 10m or there abouts?
    Answer:
bore is 10mm-(female inlet15mm) same for( male all so 15mm)hope that help you?



6. Question:
Hello, When the valve is turning does it open both valves or one at a time ?
    Answer:
You have a choice of opening one ir both valves.



7. Question:
Can you show me the picture of the two output hole directly?
    Answer:
Mine is fitted but a standard flexible shower hose will fit the two threaded ends while the other end fits the water supply



8. Question:
Does the collar on the inlet spin freely or do you have to turn the full valve to tighten it?
    Answer:
you tighten it? if don't it will leak



9. Question:
What size is the flow hole through the body of diverter. Last one I bought reduced pipe size from approx 10 mm diameter to only 3mm diameter, no good.
    Answer:
I’ve fitted this so can’t dismantle to measure but from memory the internal bore dimension doesn’t dramatically reduce. Mine is fitted to a bath tap and further feeds two shower heads and works fine. Nice smooth tap.
