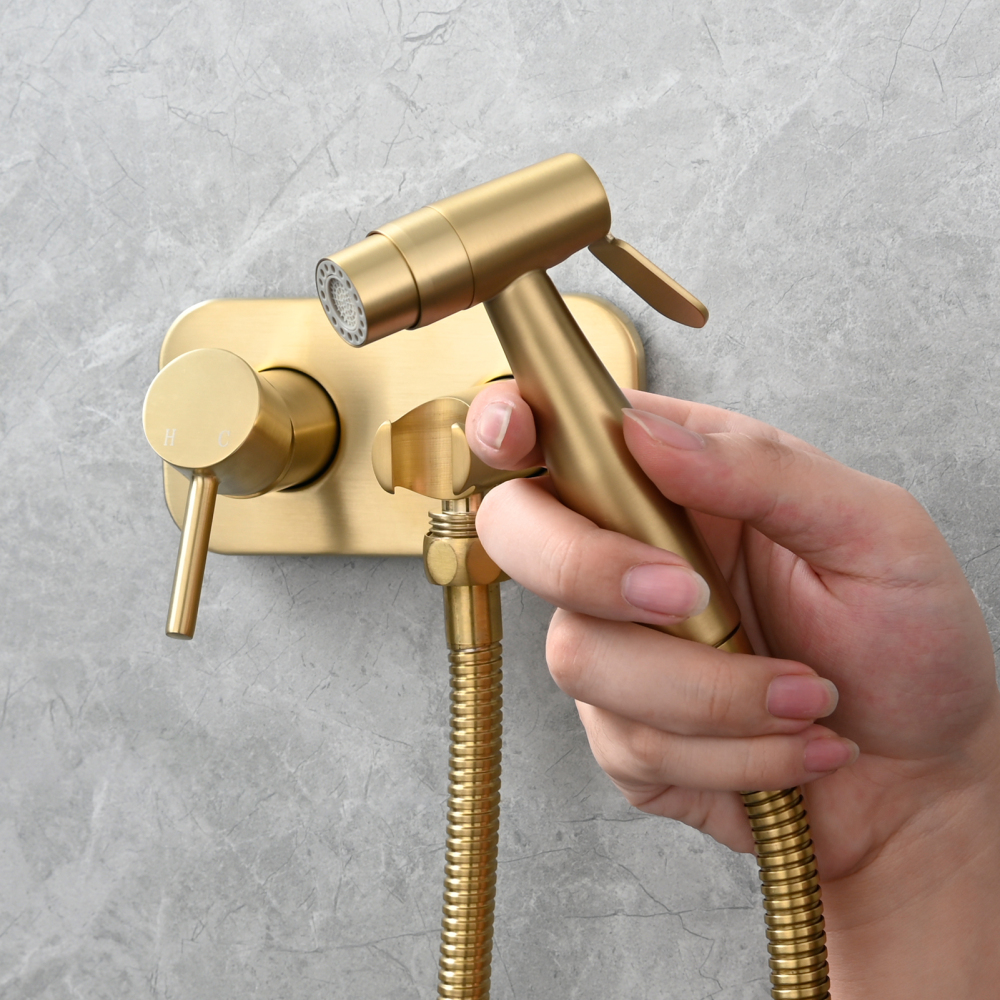

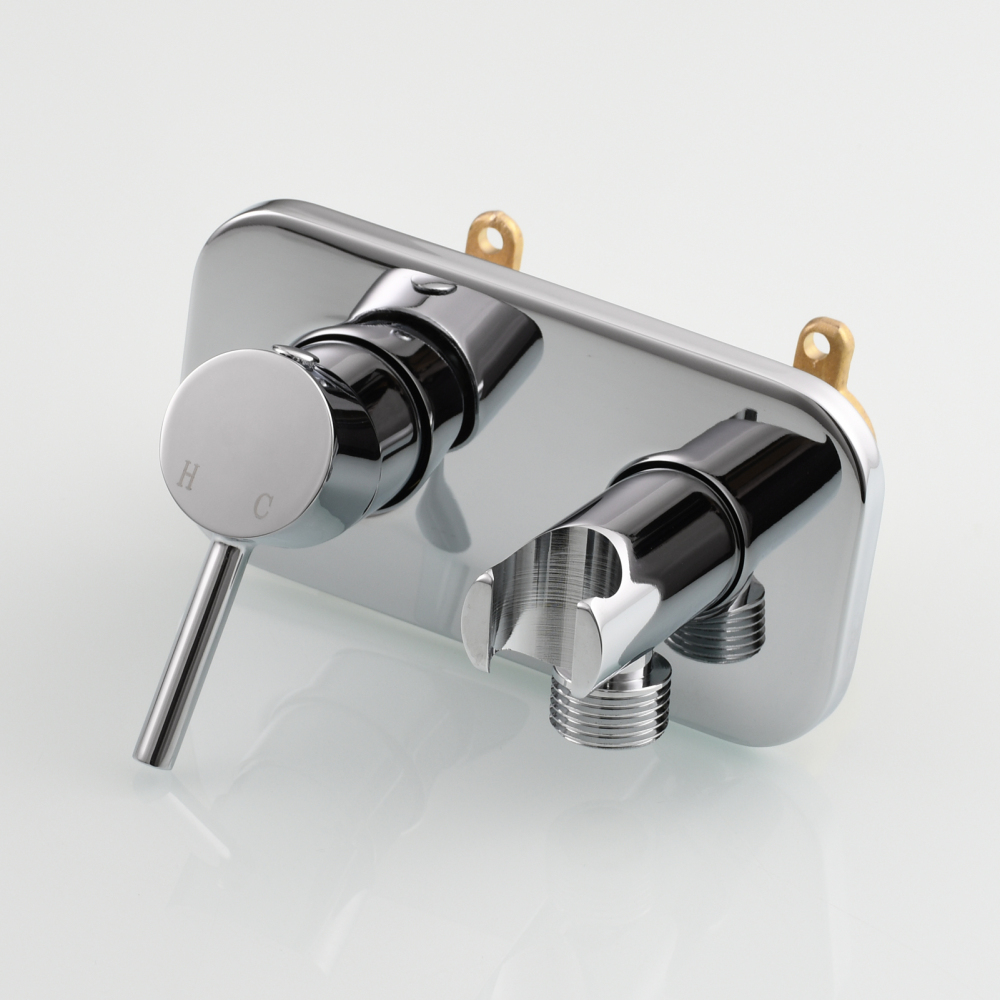

Tecmolog Stainless Steel Bathroom Bidet Sprayer Set, Hot and Cold Concealed Bidet Sprayer Kit for Toilet, Brushed Nickel/Black, WS024F9/WS024CF3

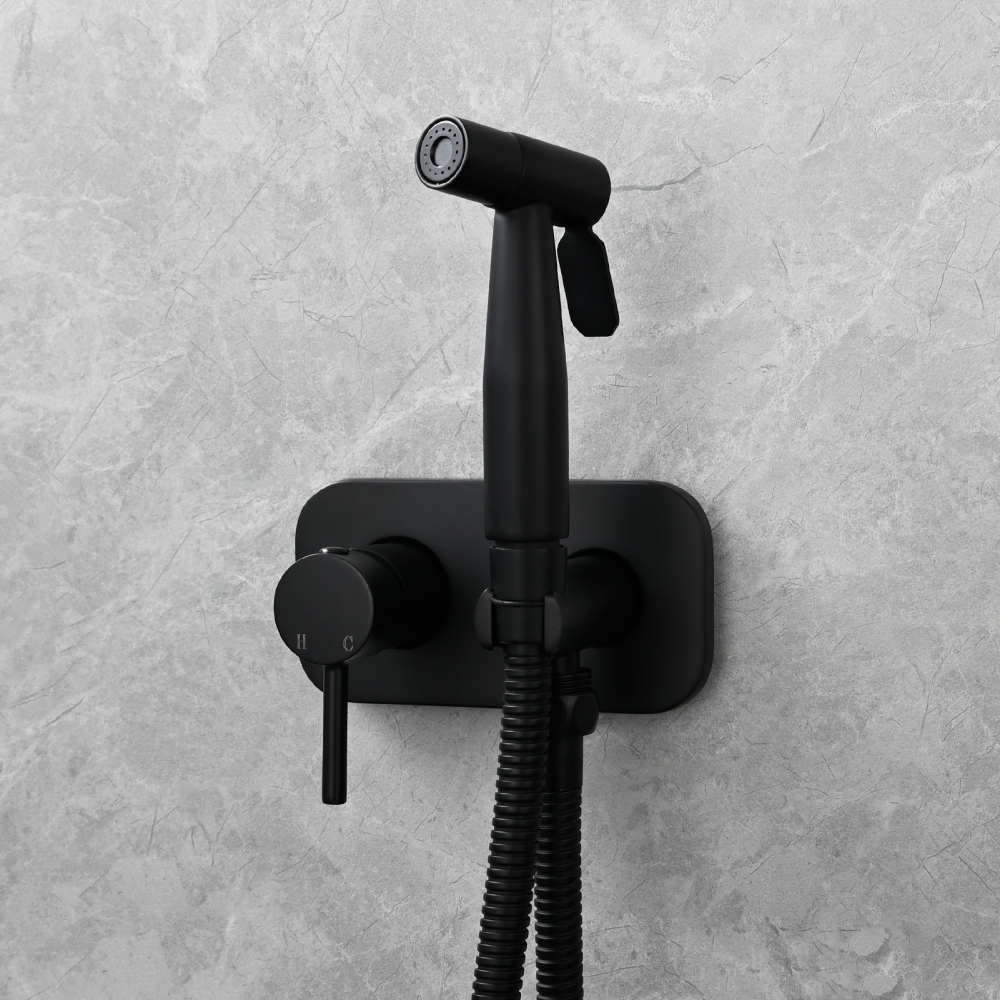

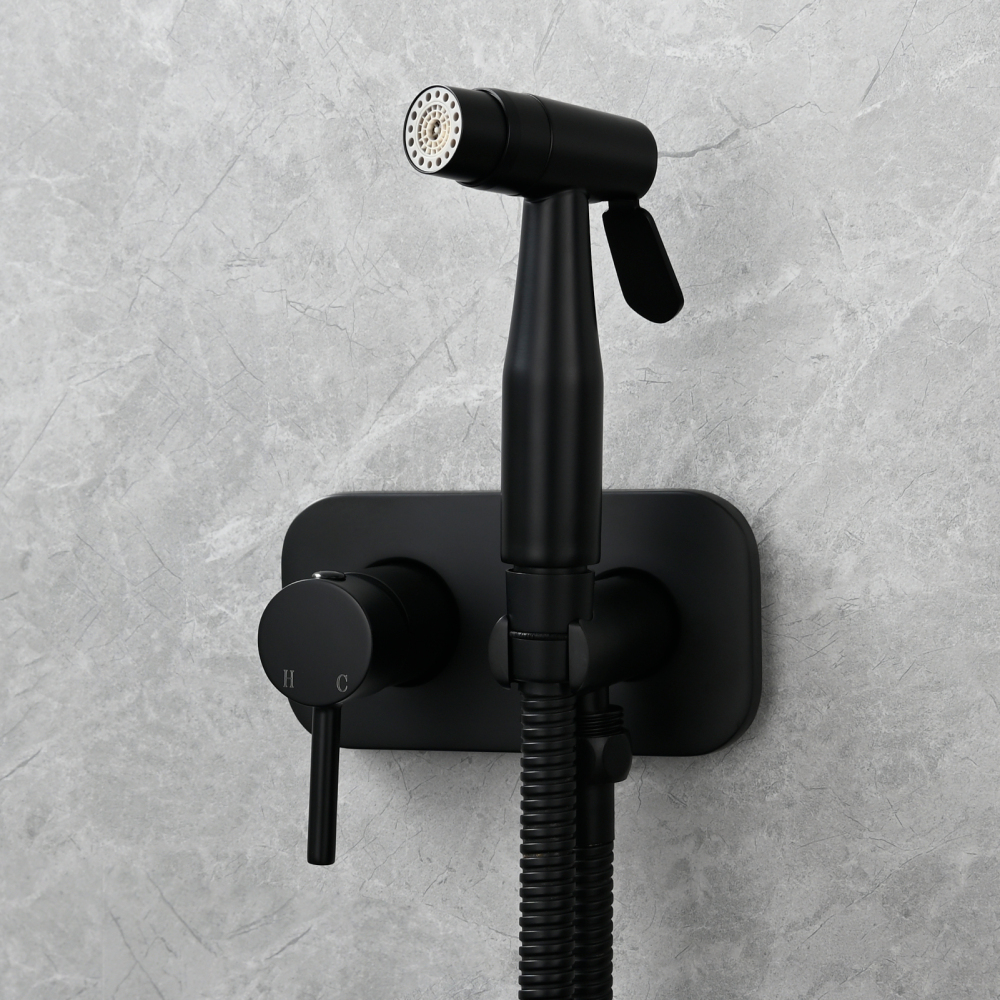

Two colors are available: brushed nickel and black.
Used for cleaning after going to the toilet, bathroom cleaning, pet cleaning, etc.
  • Style:
  • Ships From:
(8388606 Piece available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Specification
  • Dropshipping
  • Installation
  • Reviews

Five Highlights:

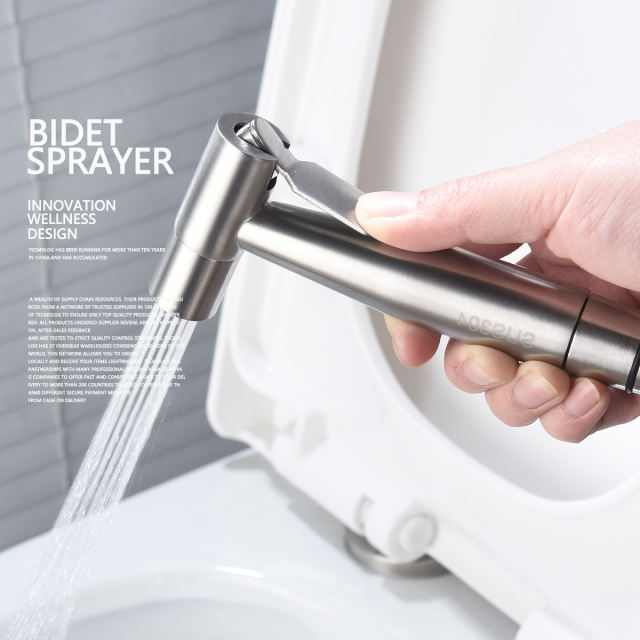

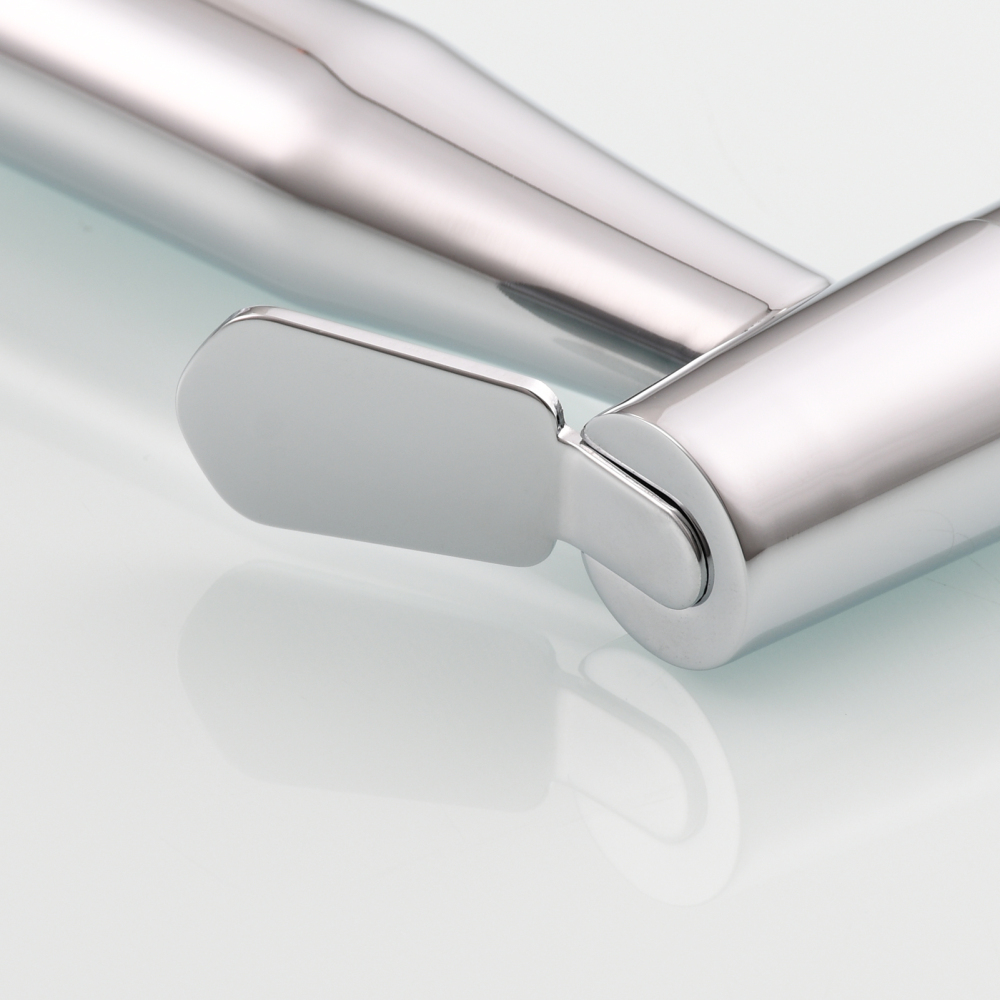

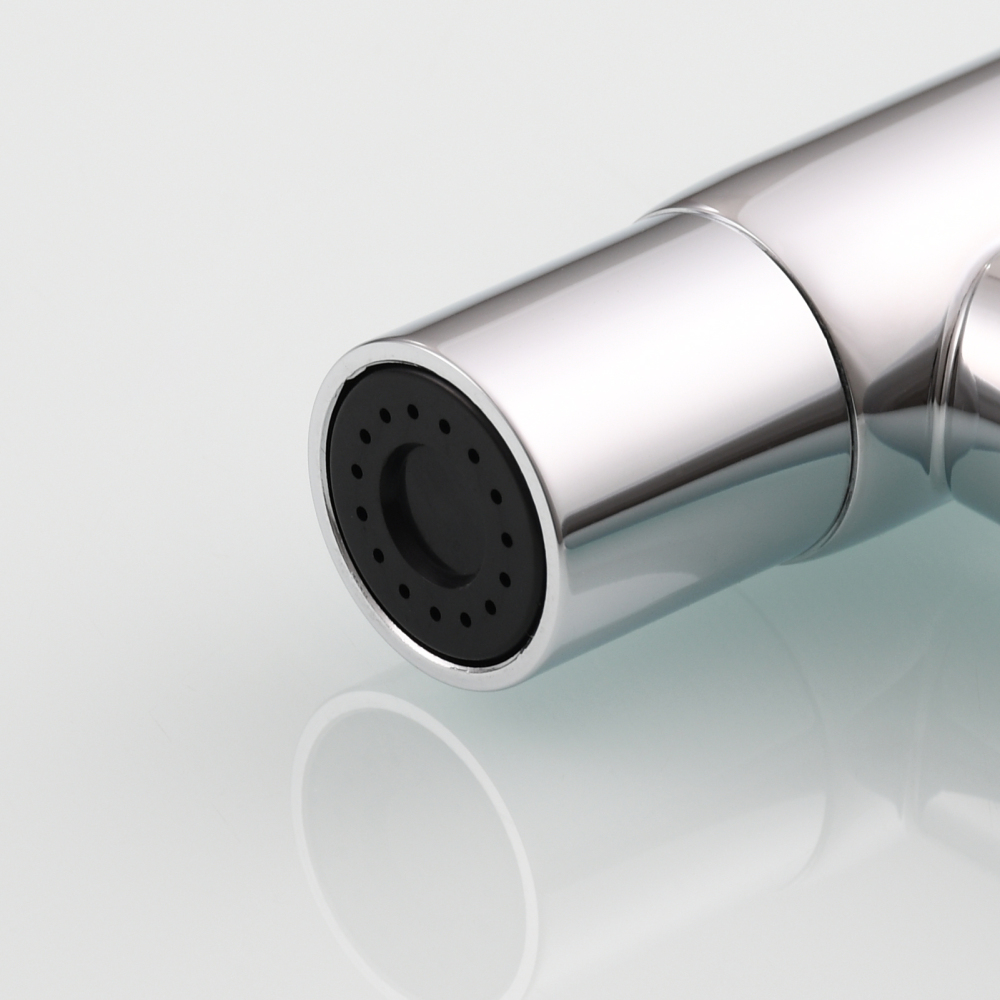

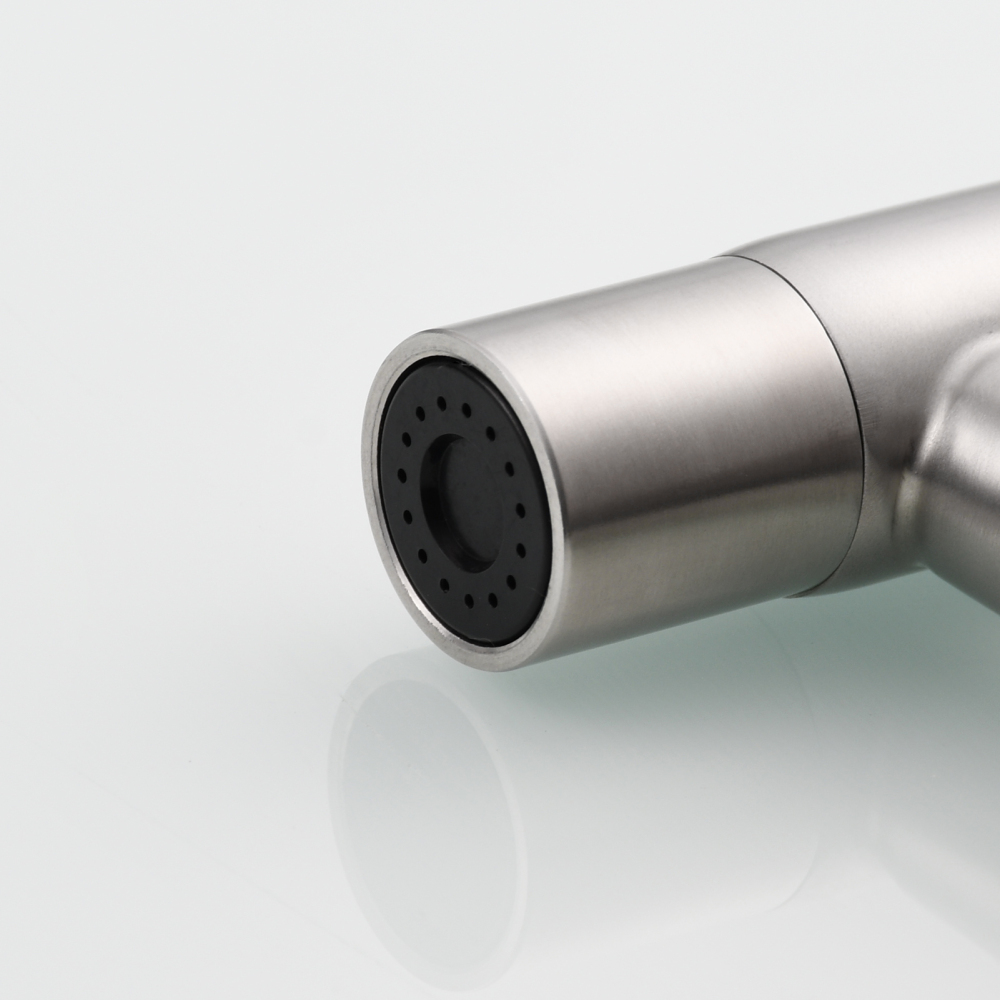

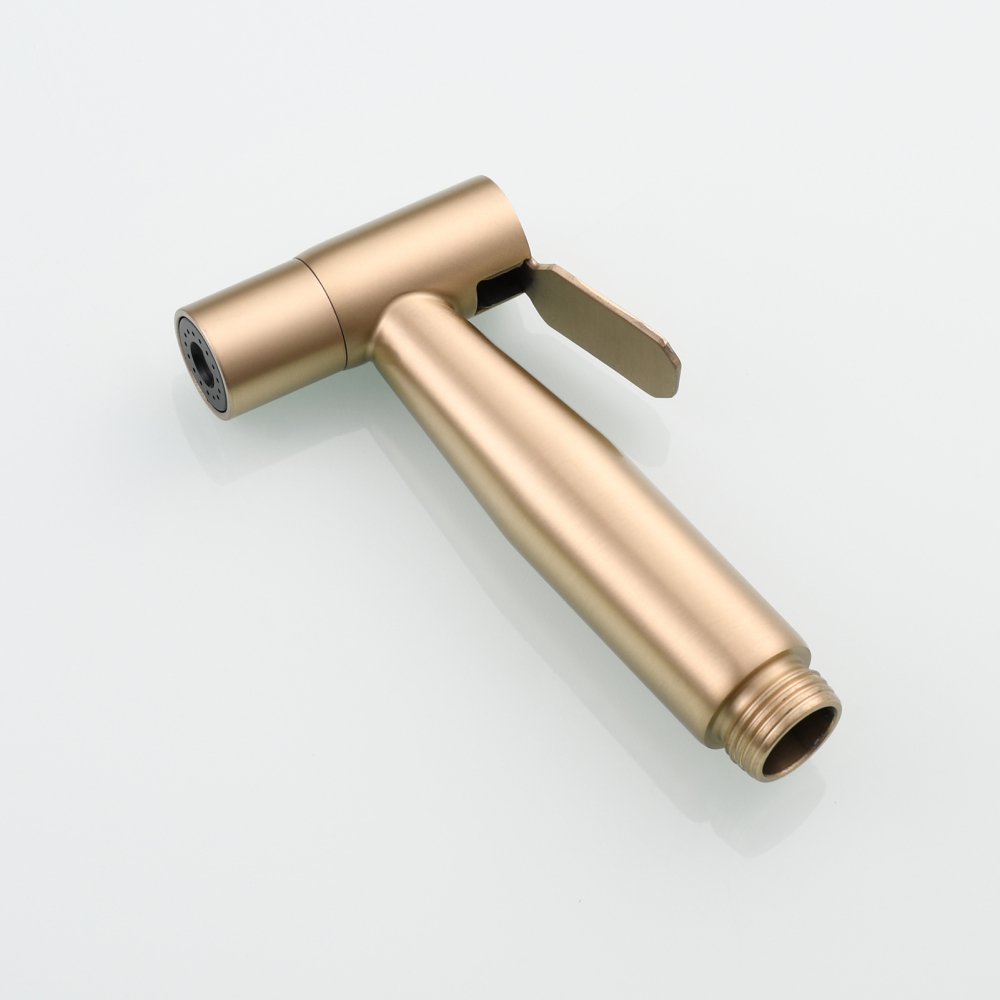

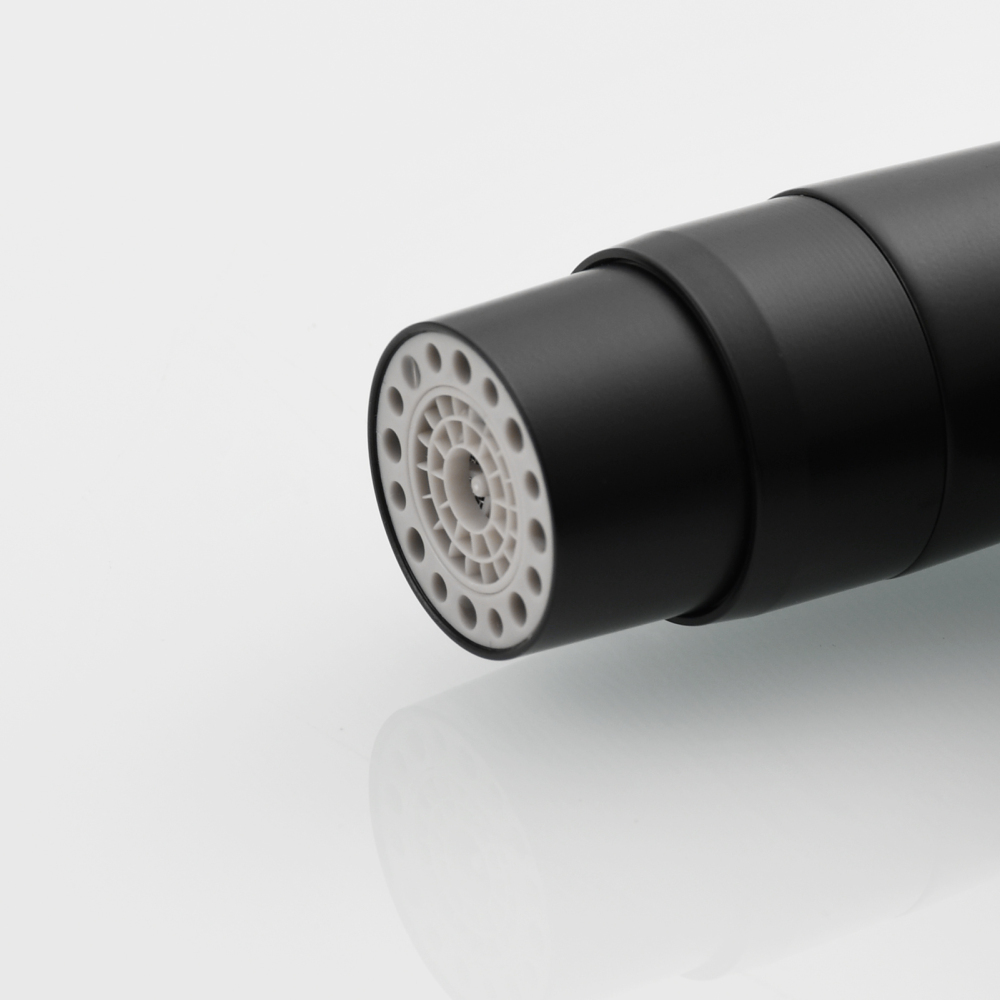

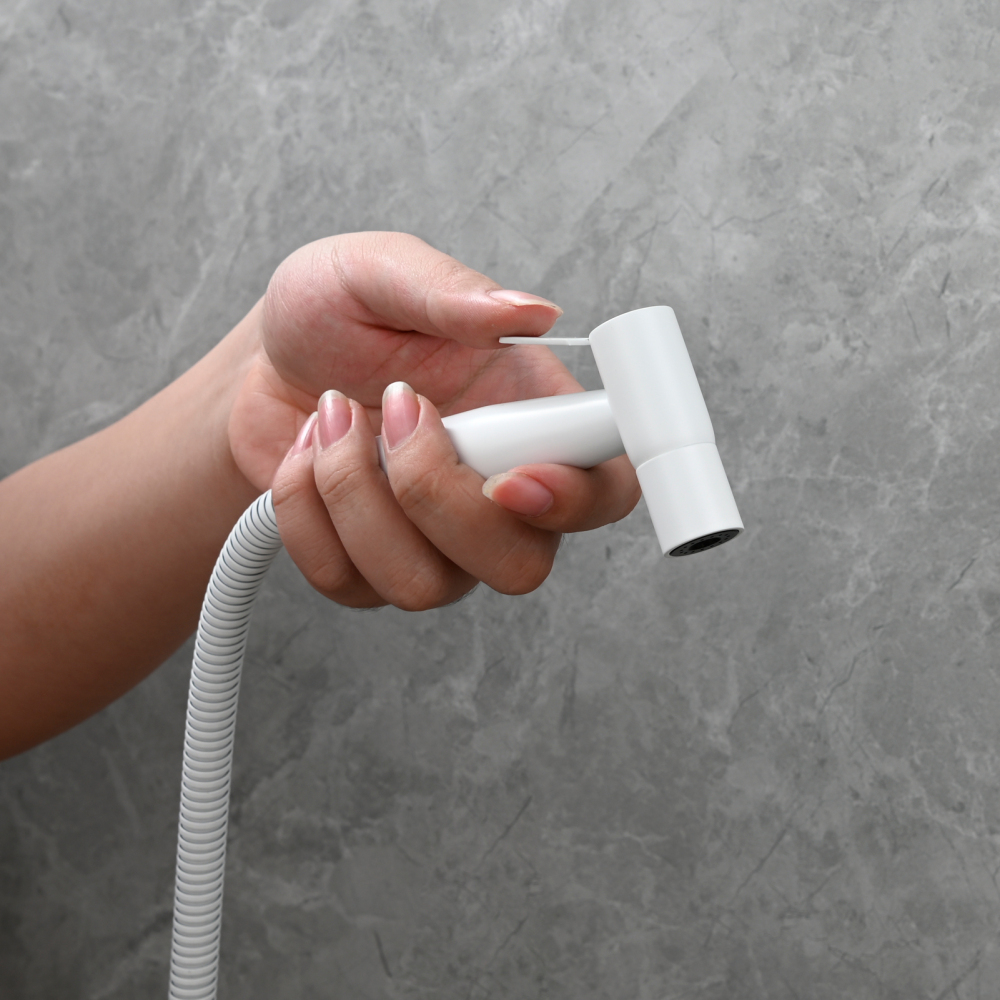

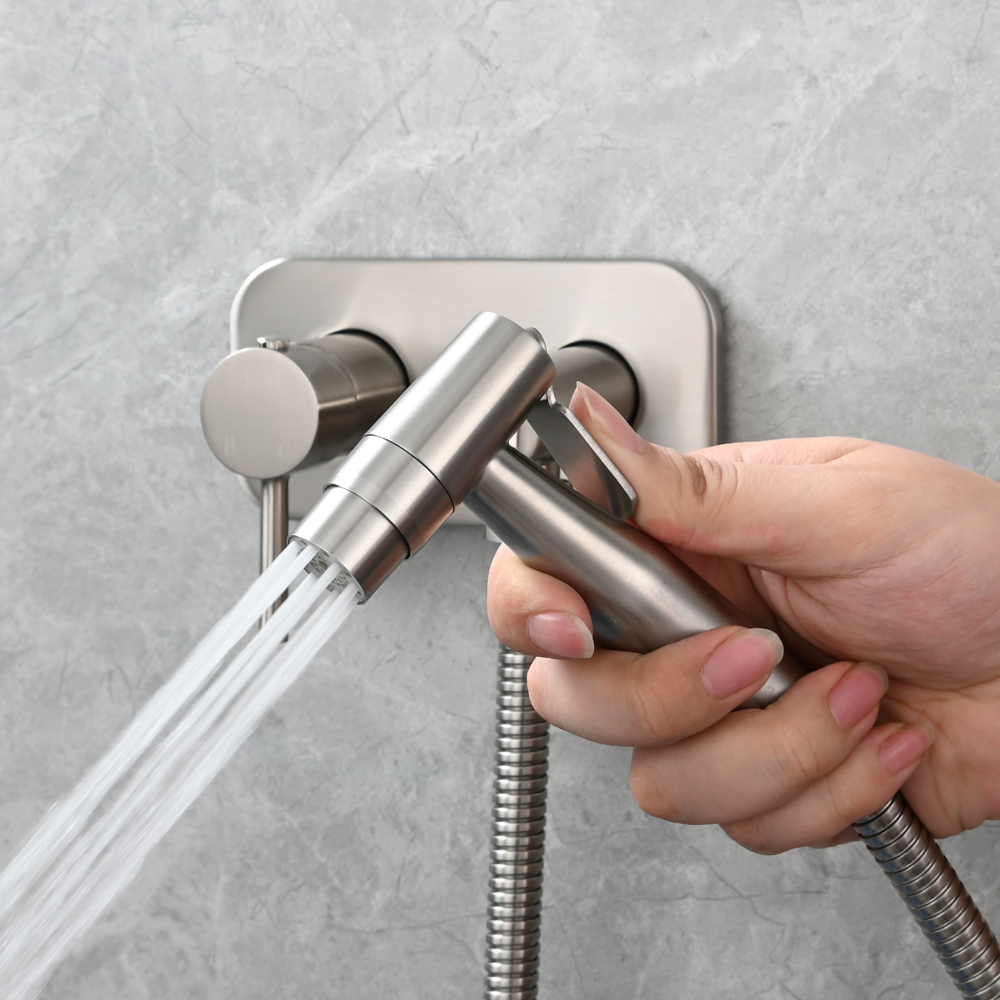

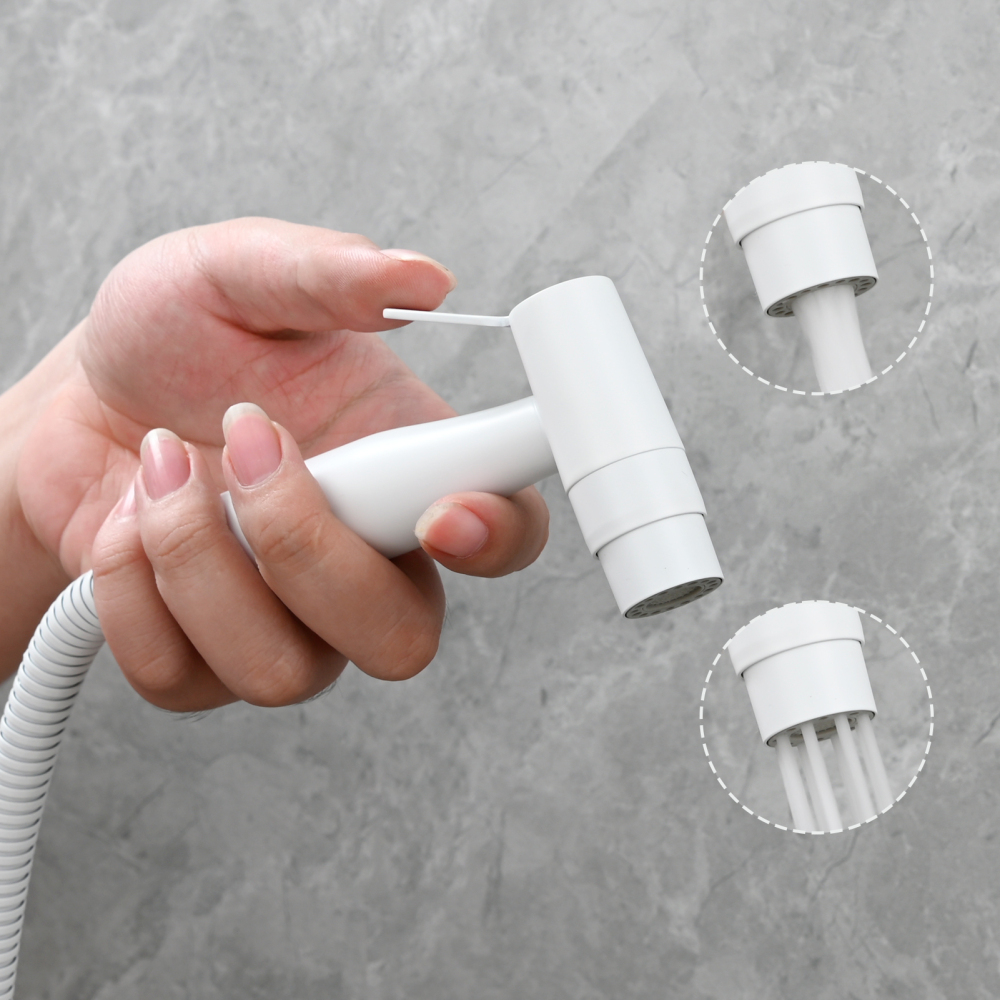

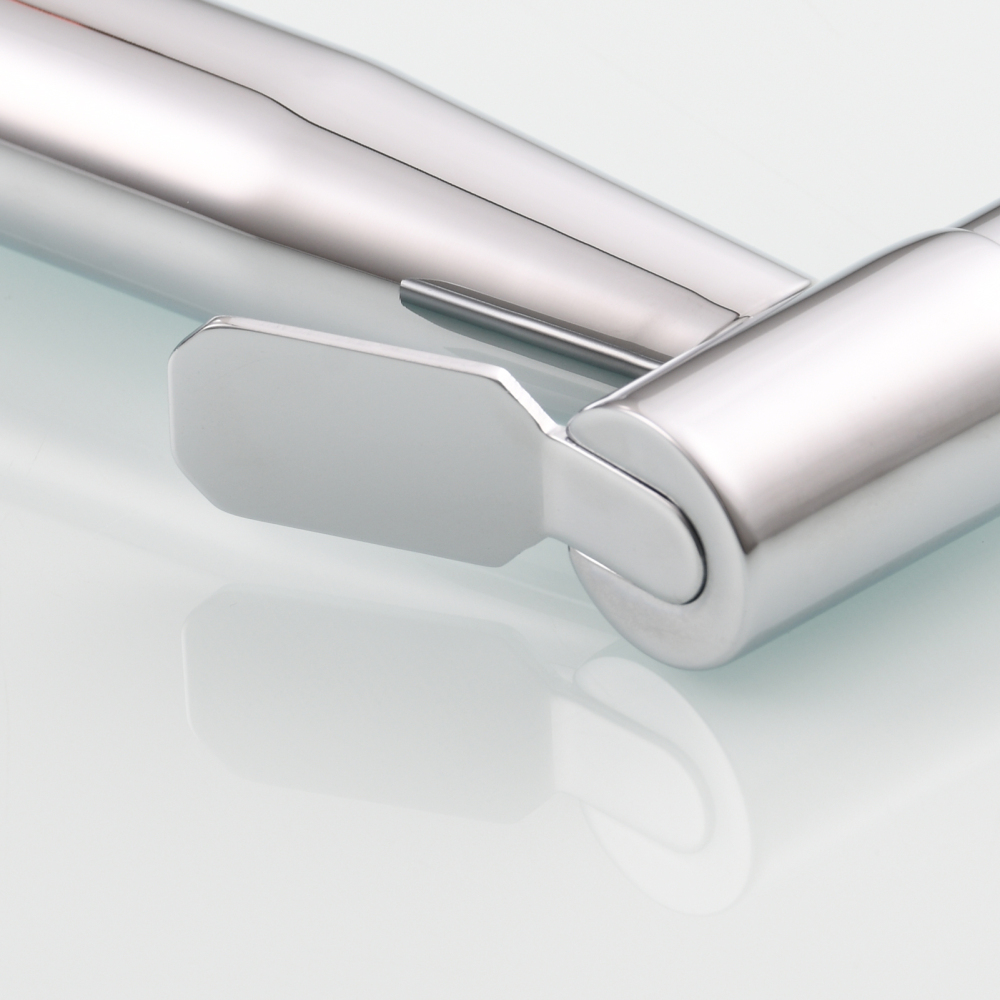

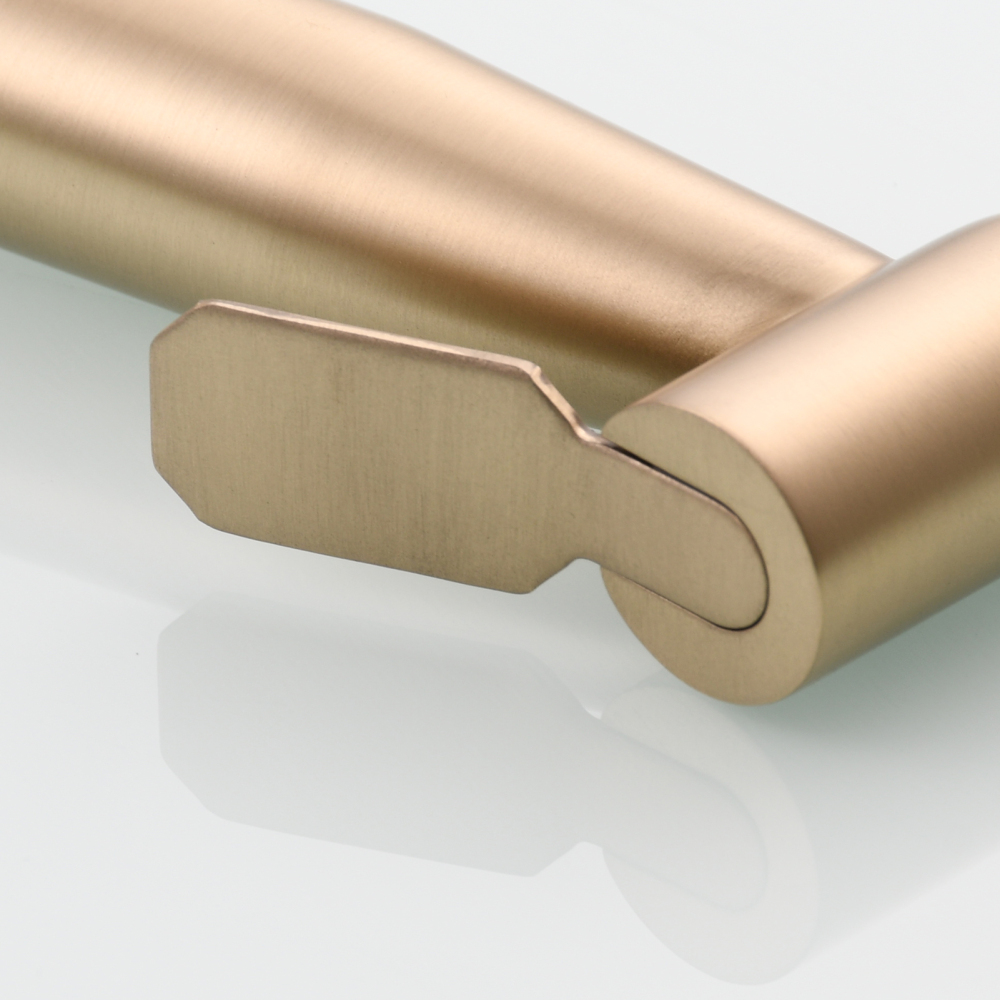

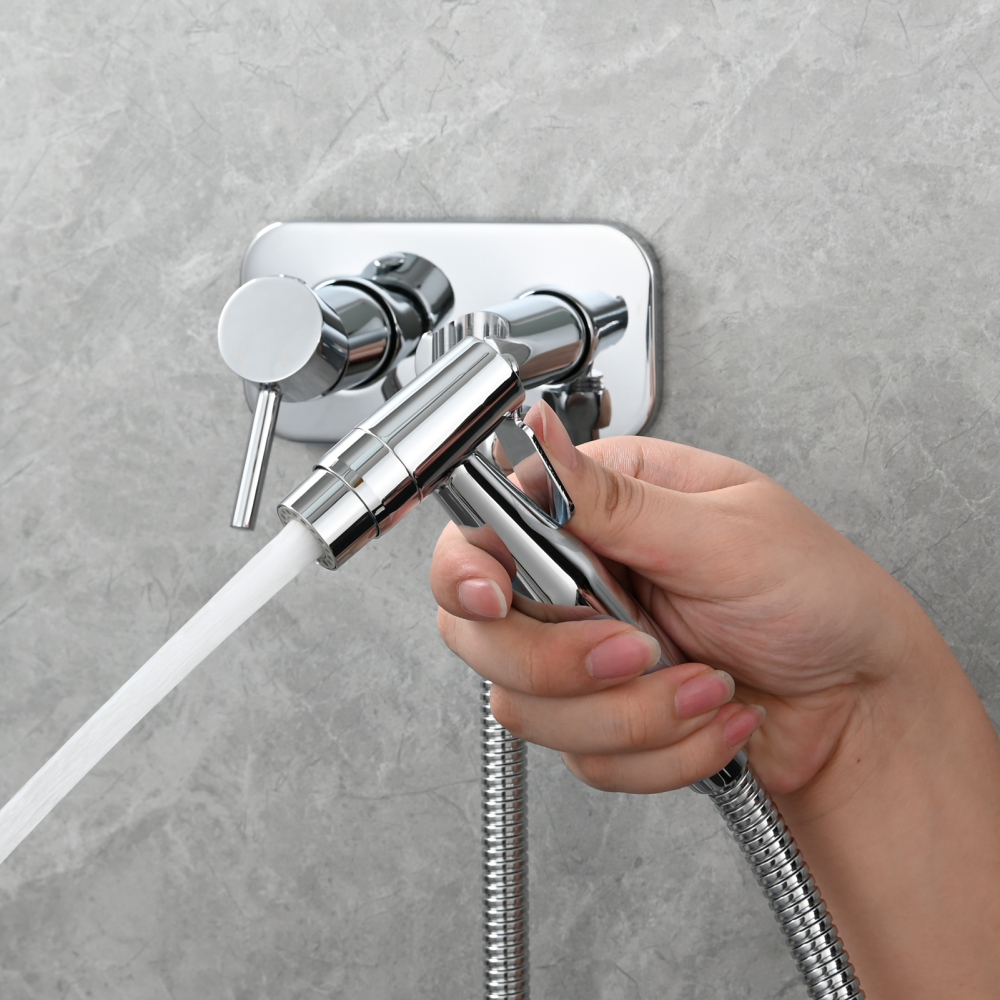

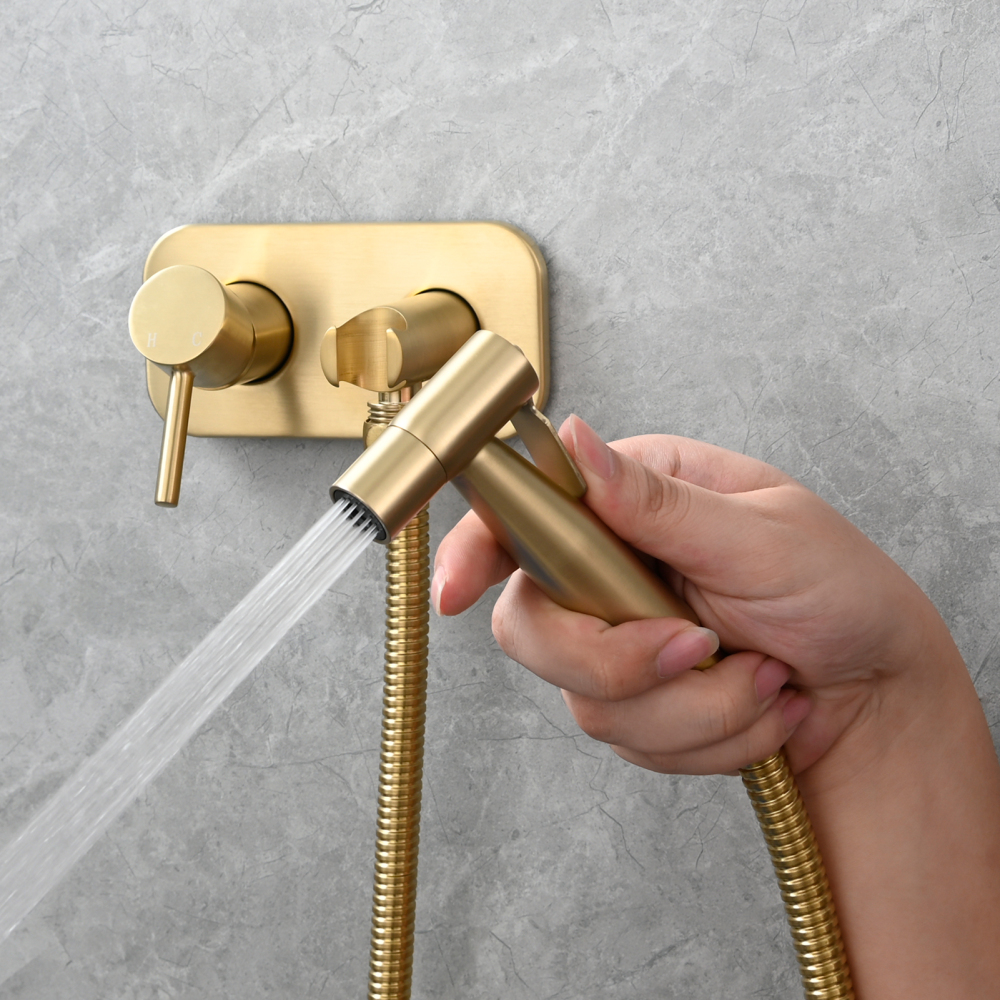

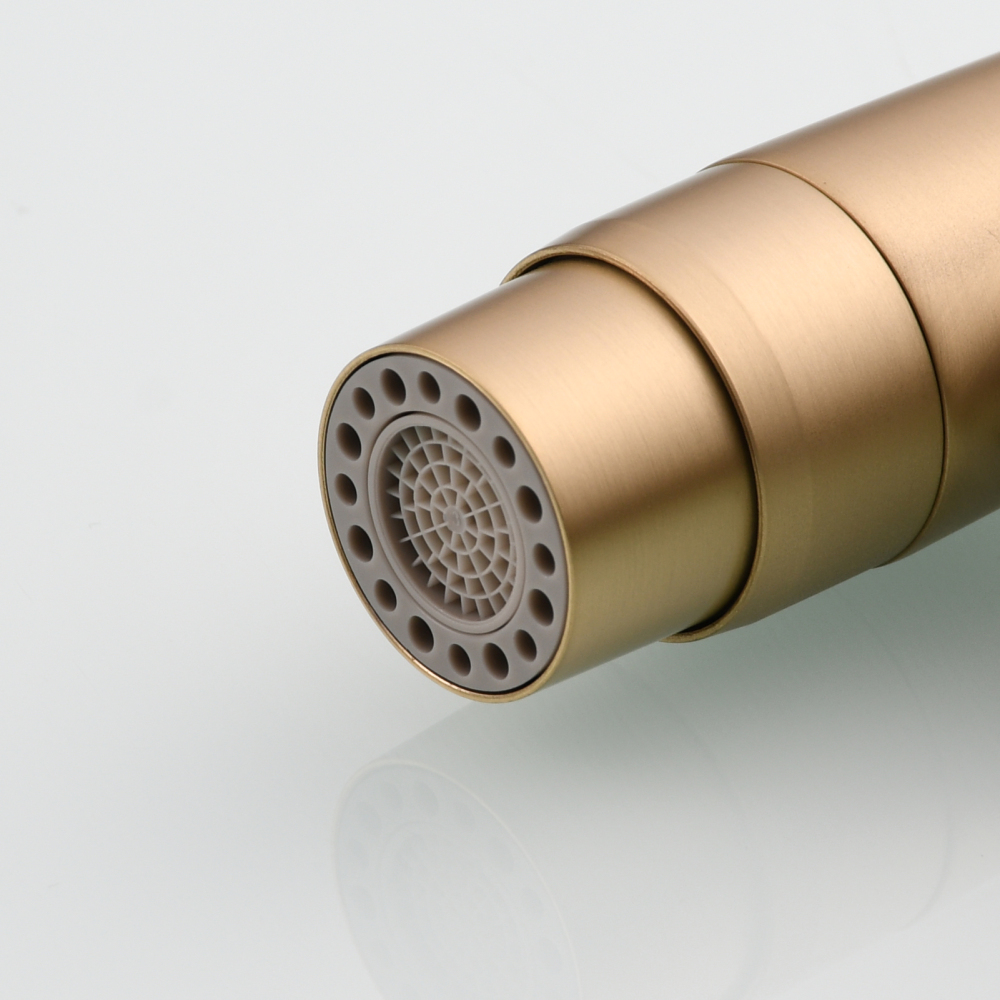

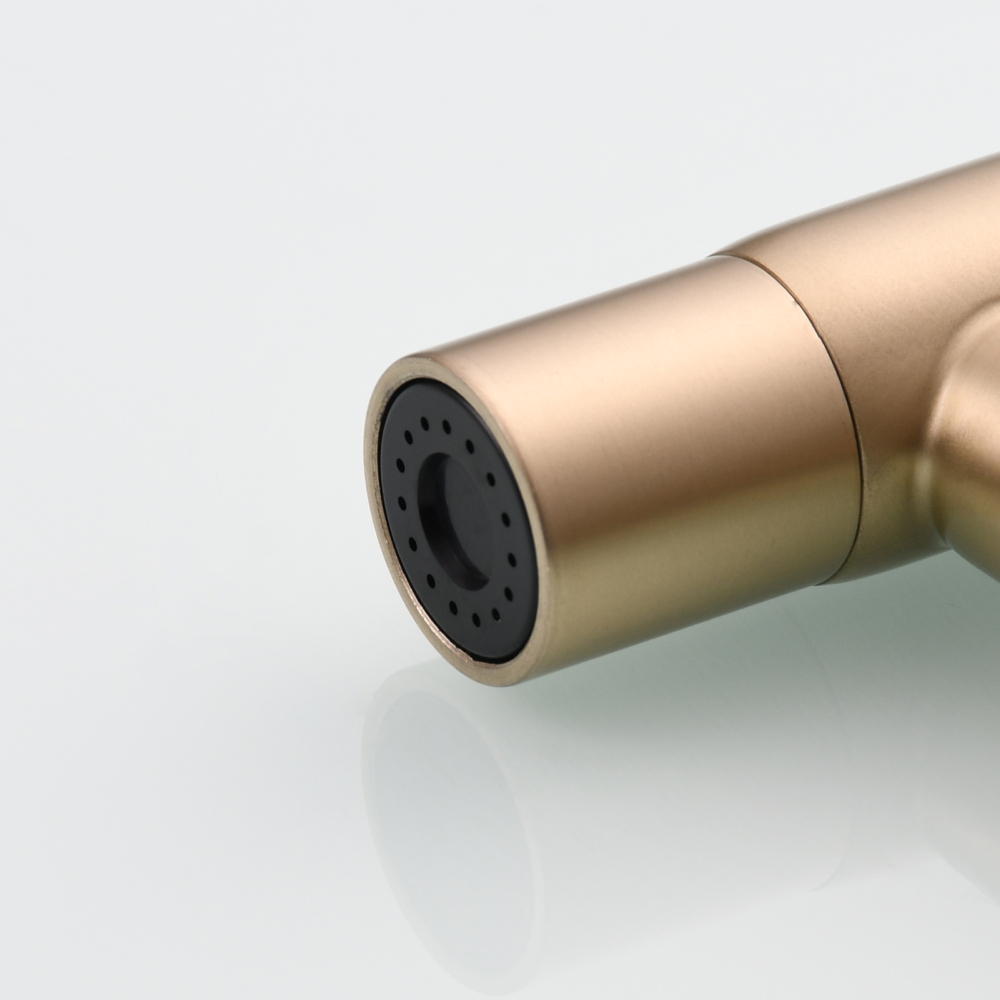

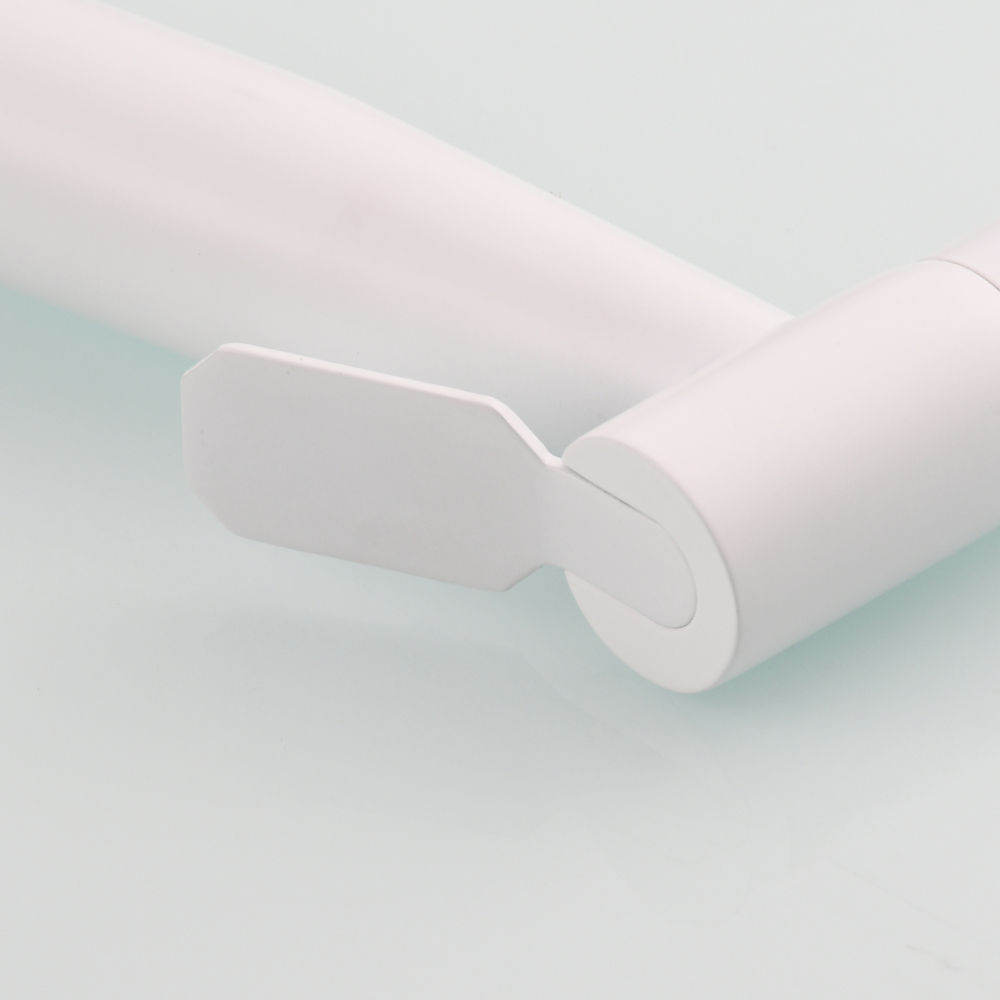

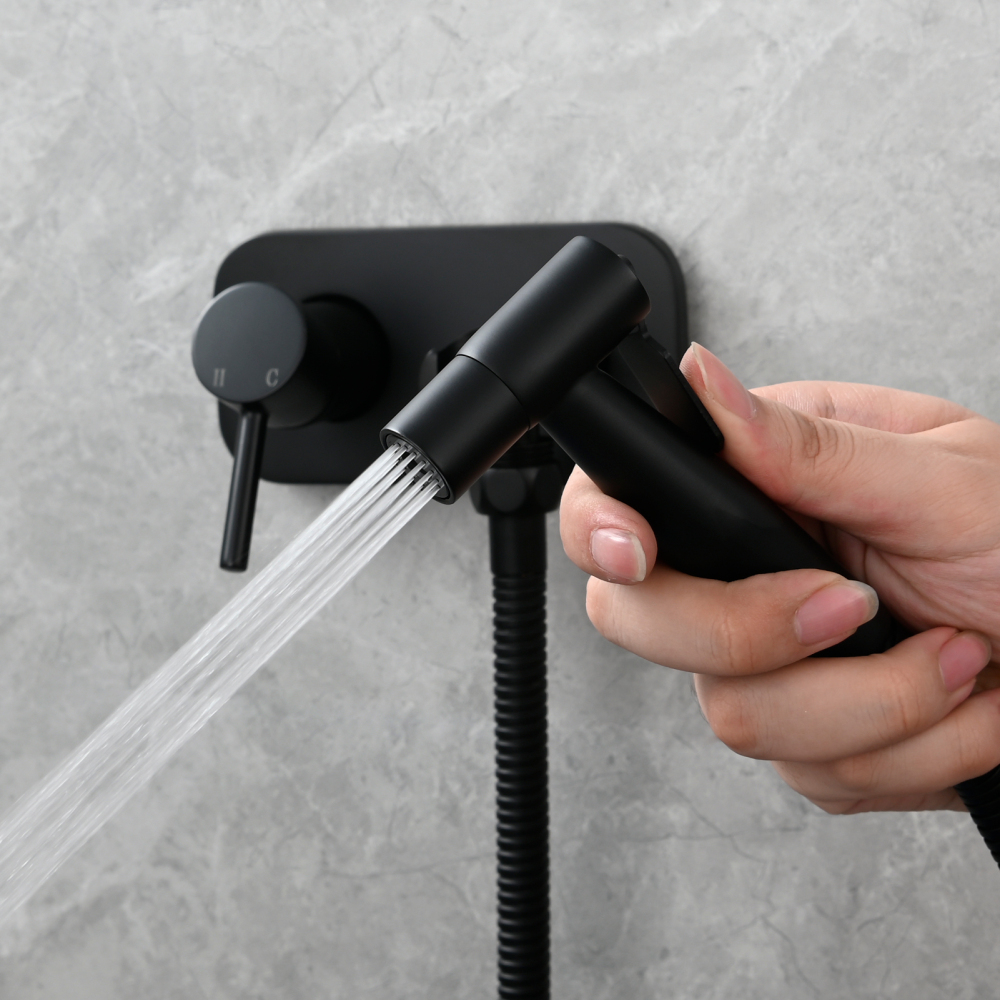

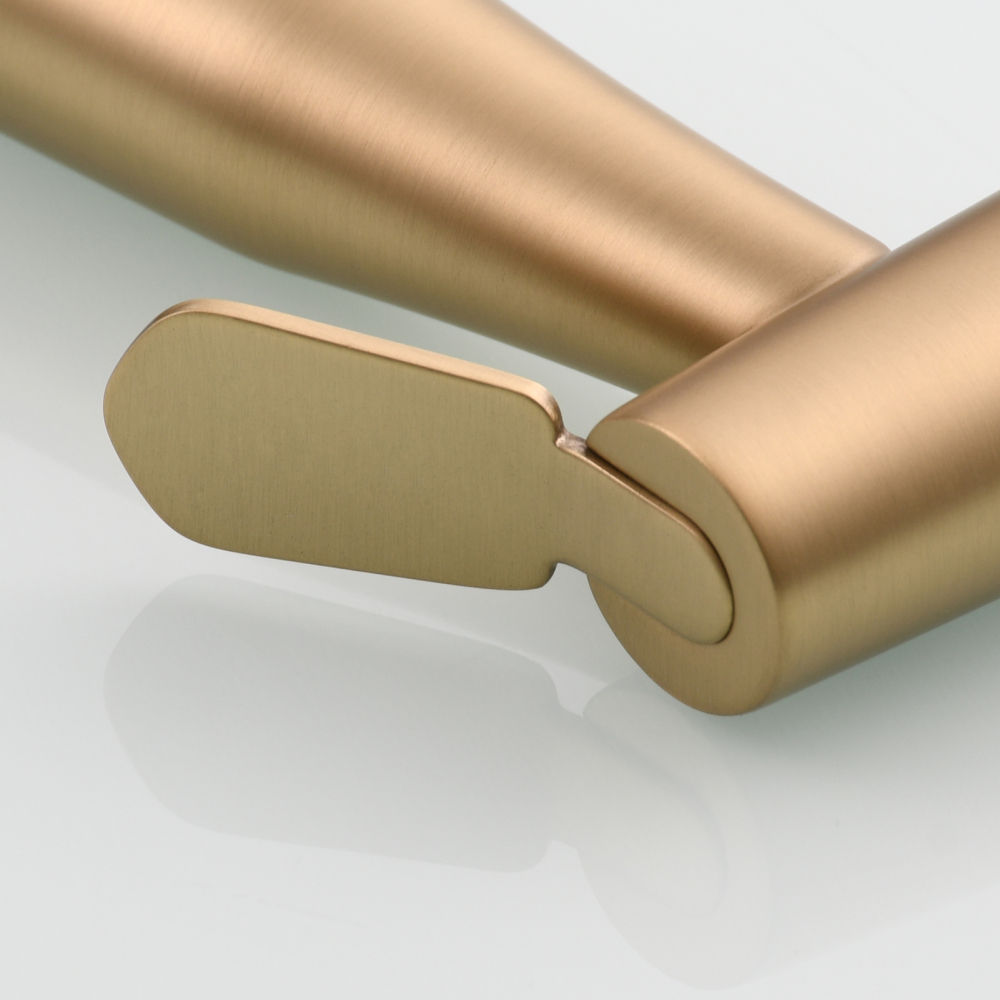

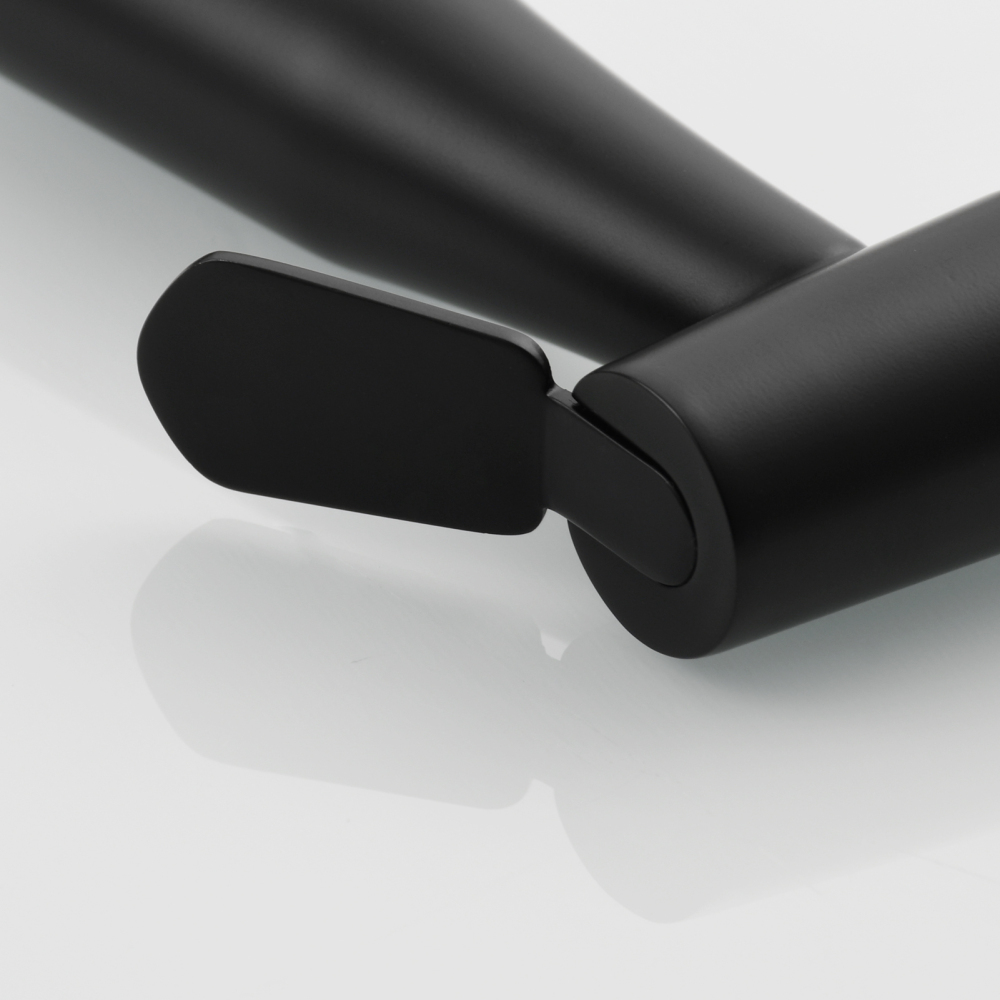

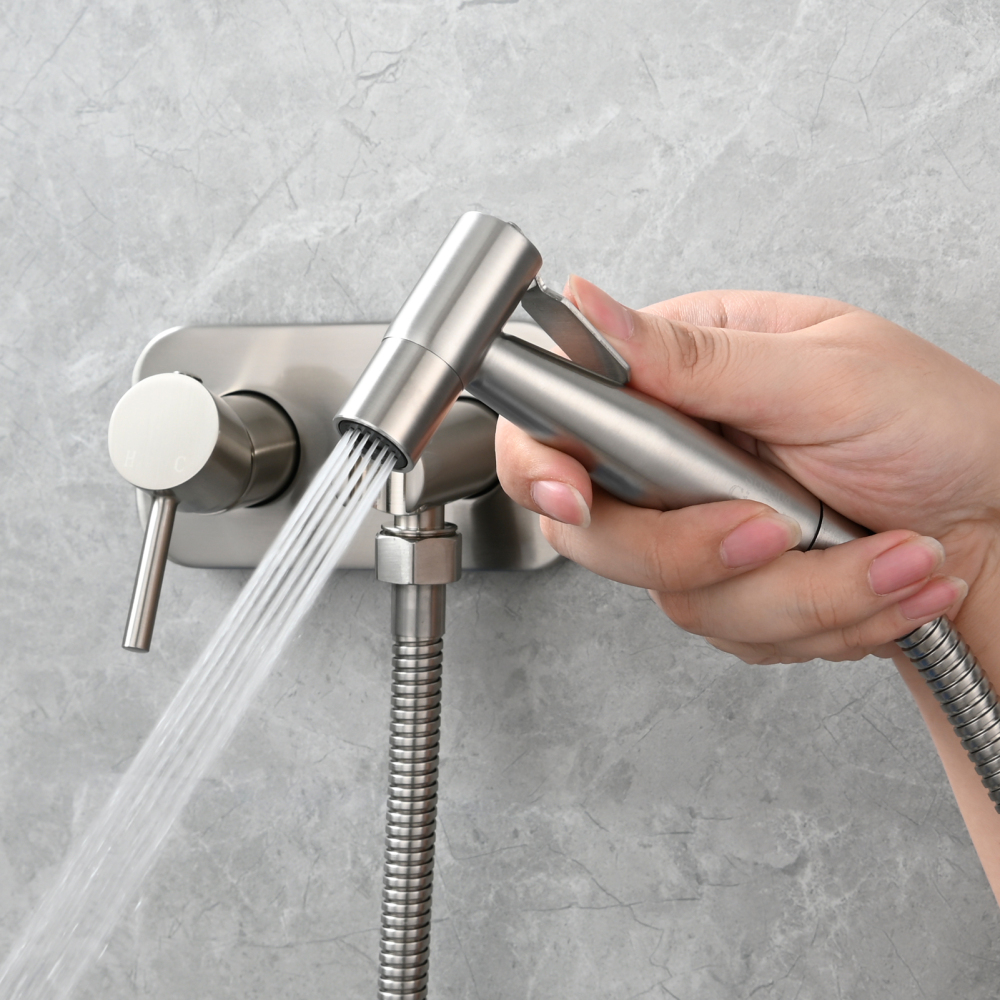

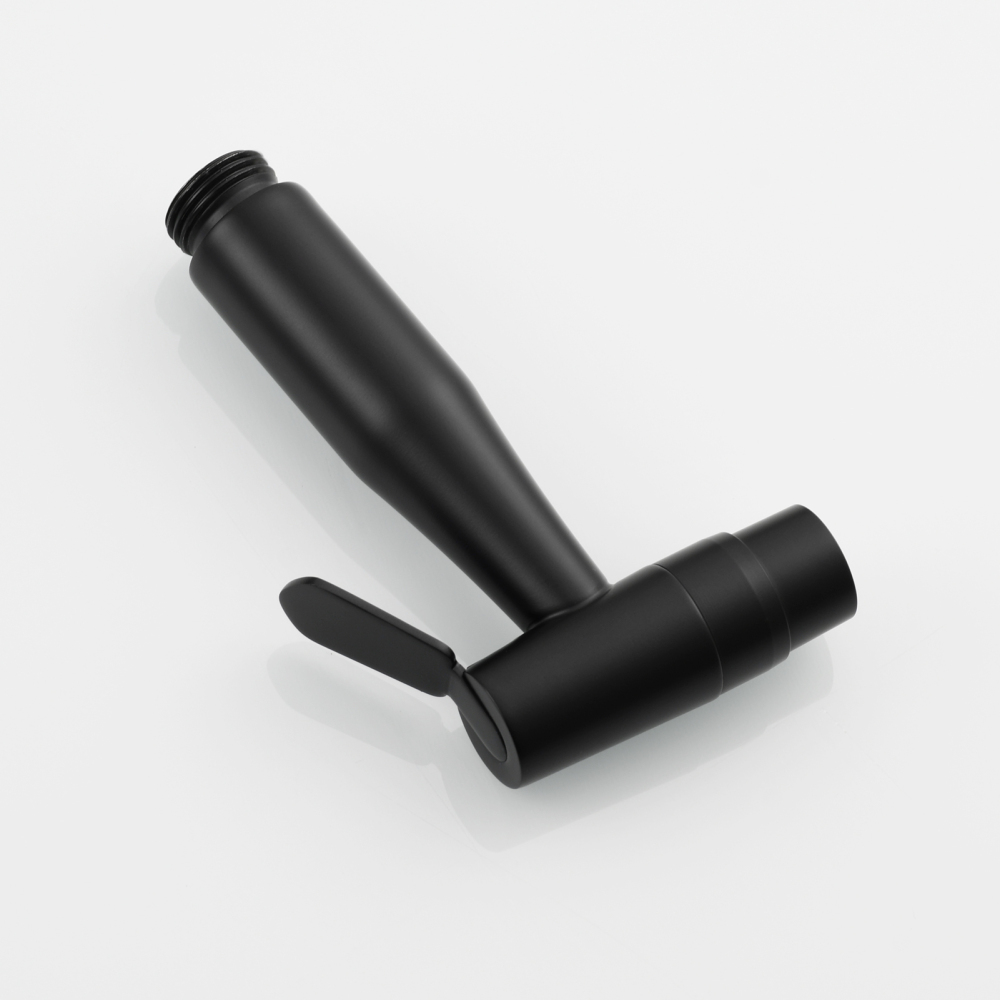

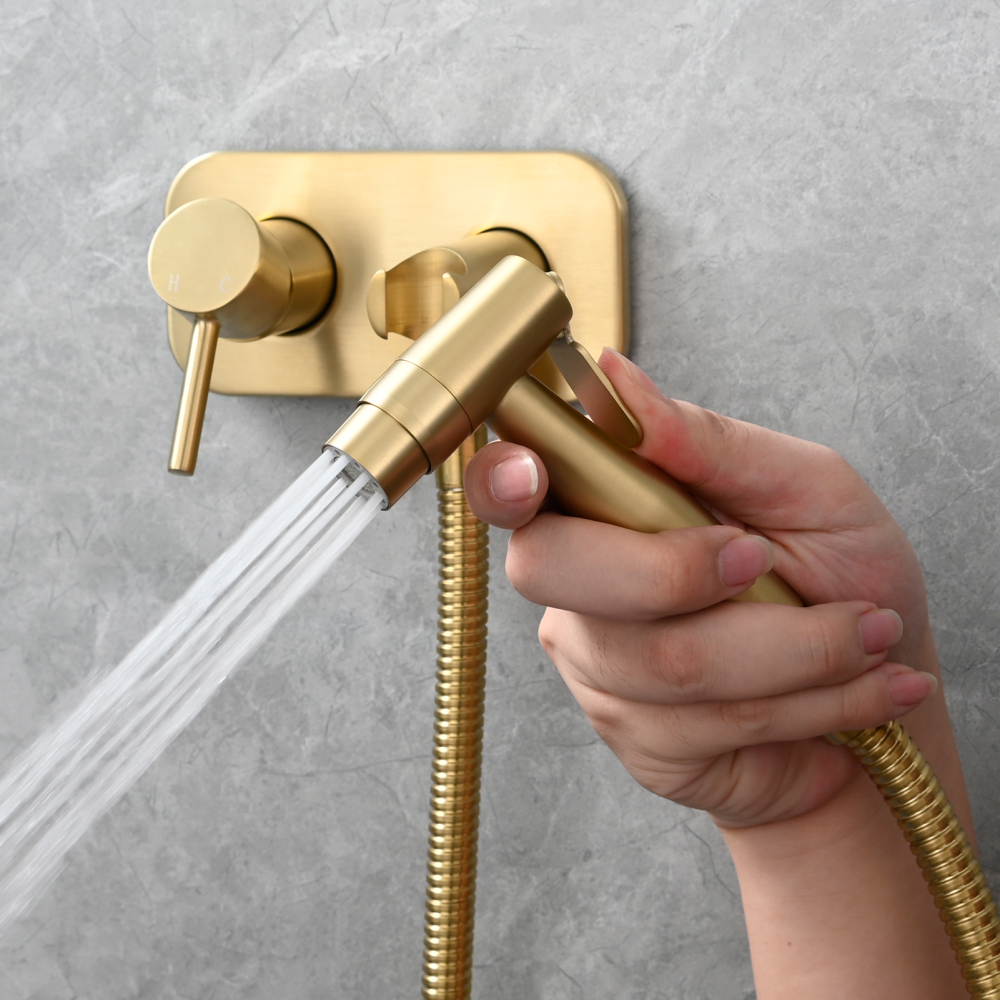

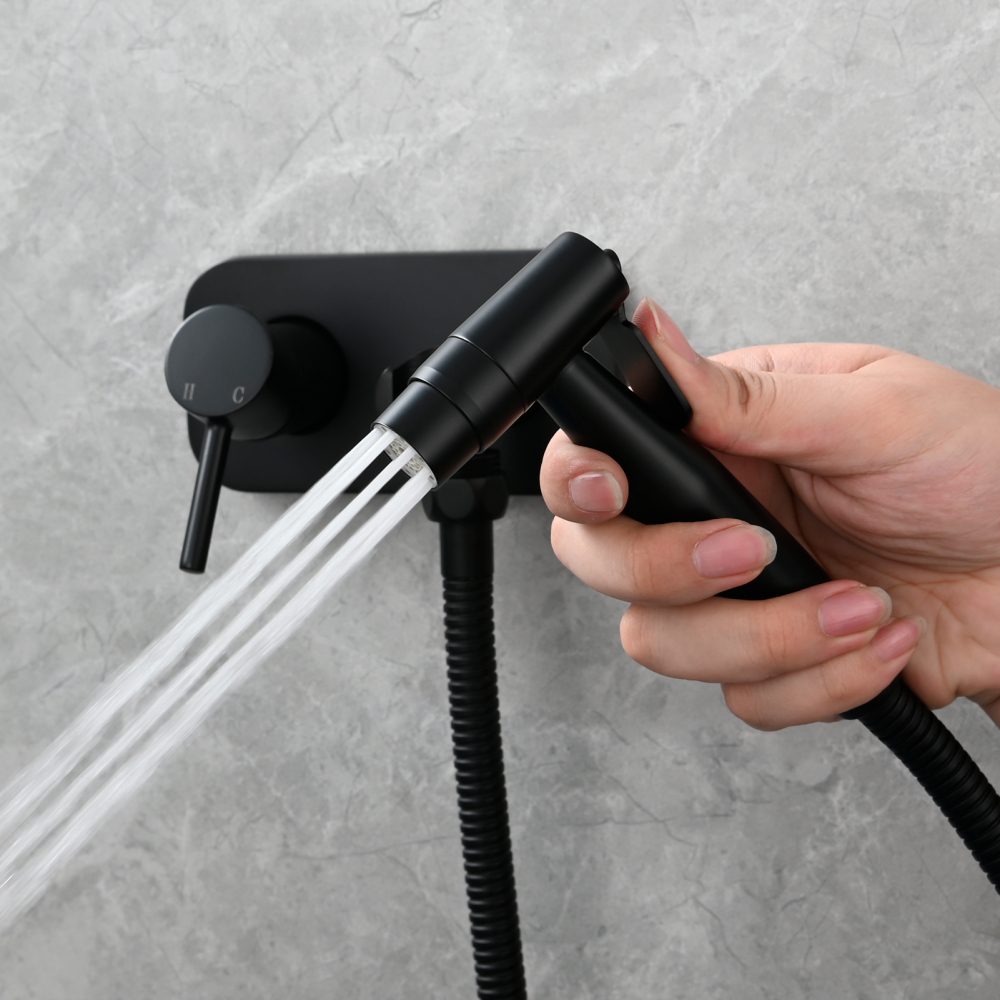

Portable Bidet Sprayer: This sprayer has enough pressure and puts out enough water to rinse the bathroom, and you can control the flow of the water by how hard you press the trigger.

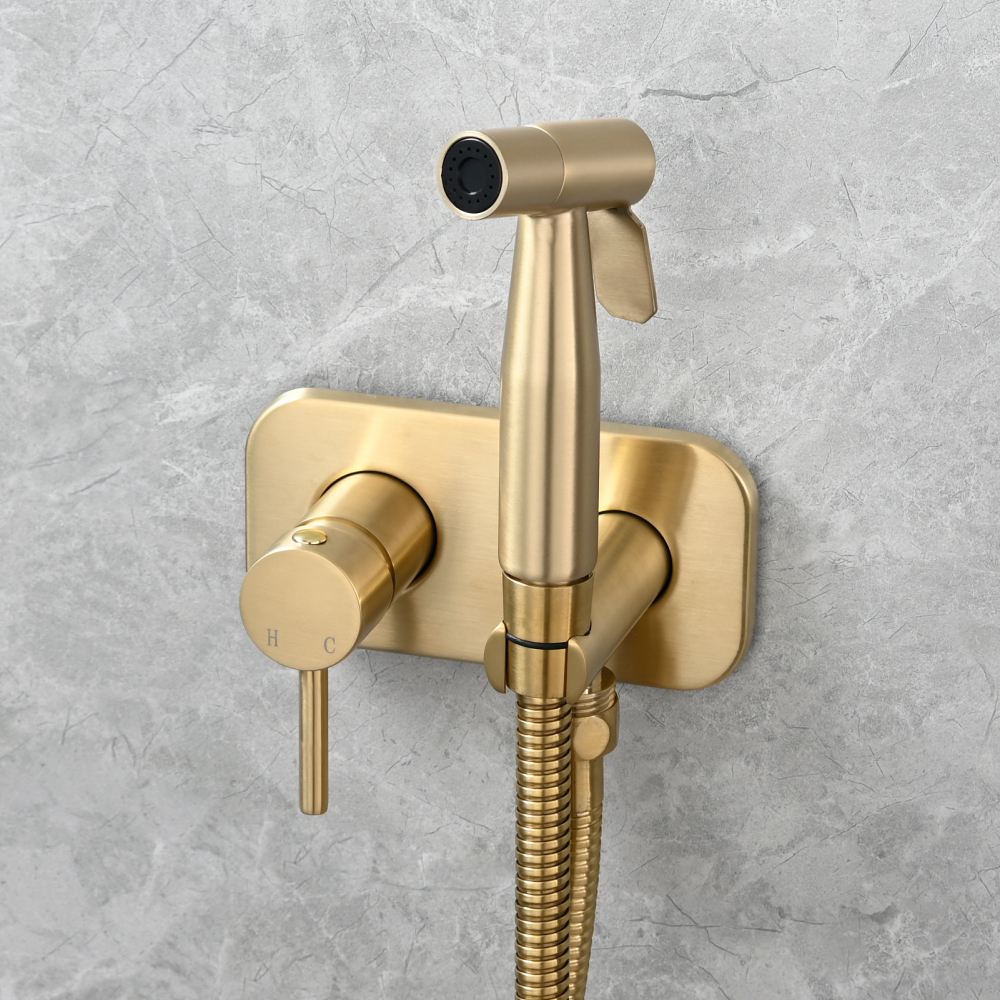

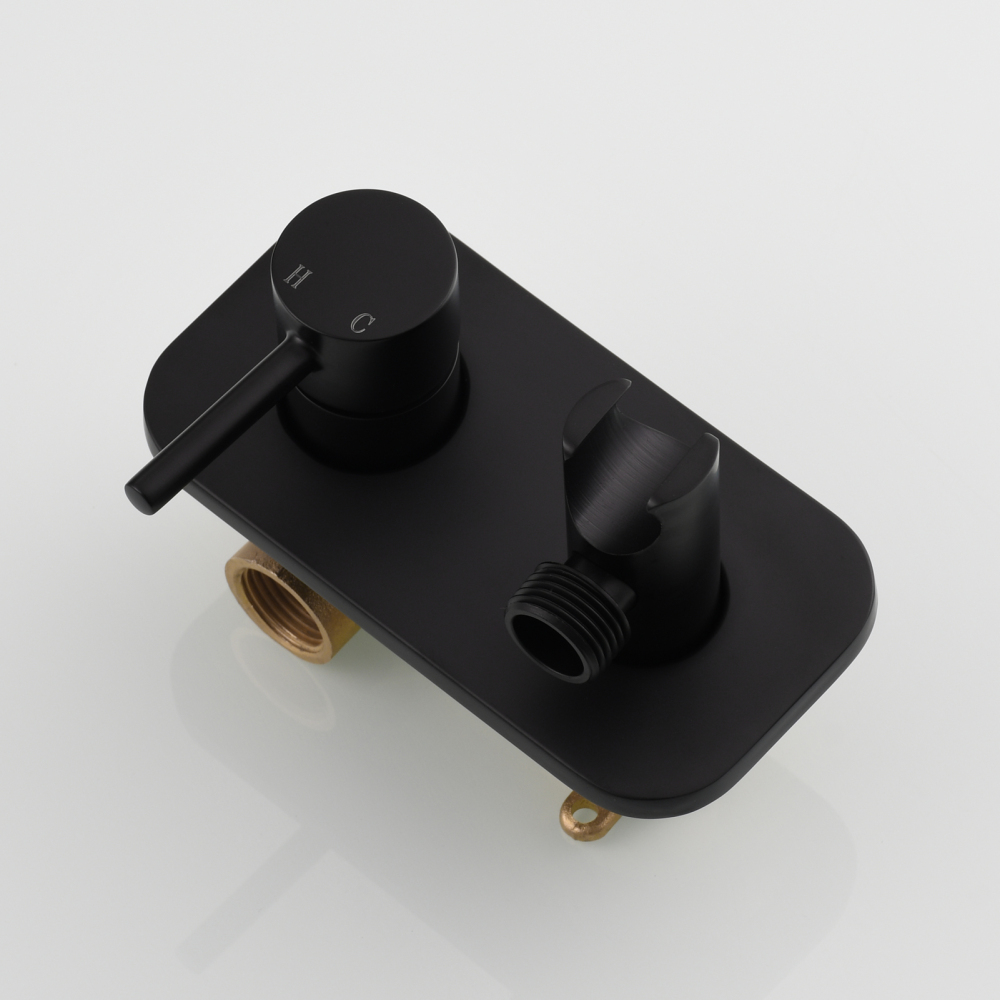

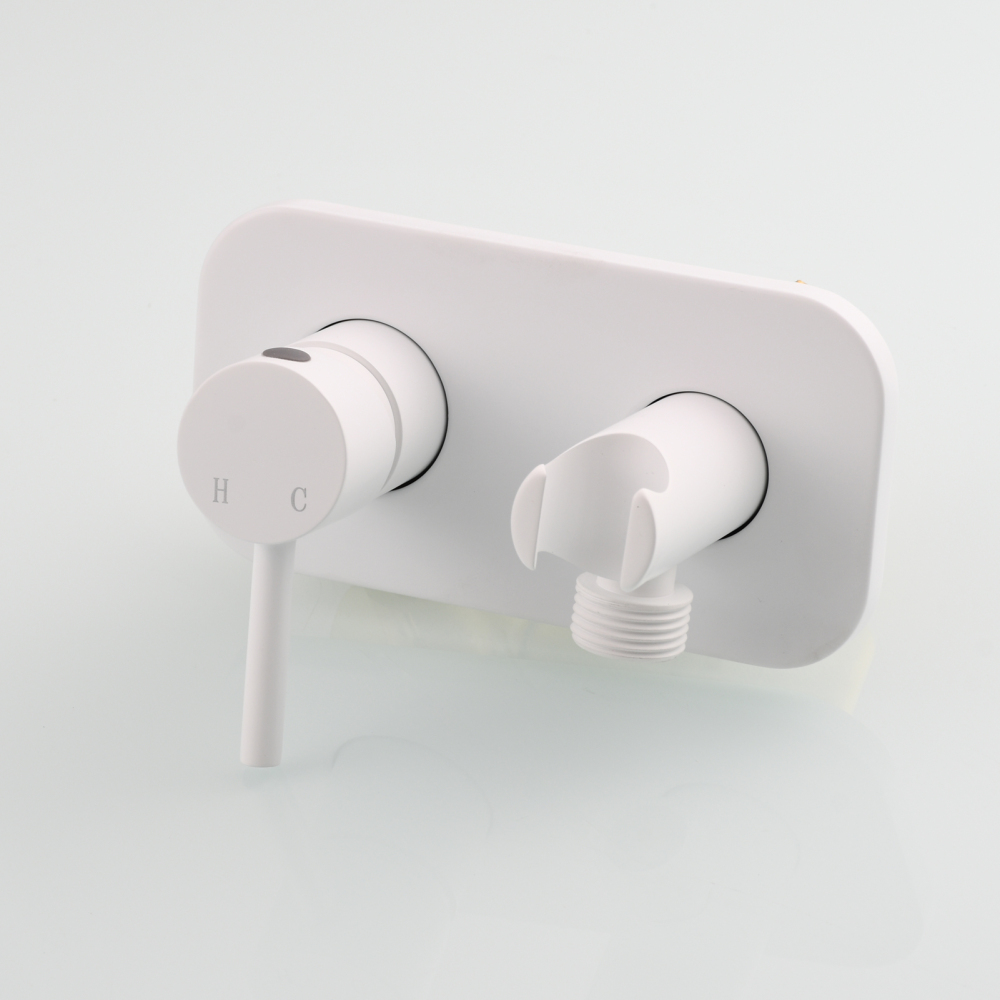

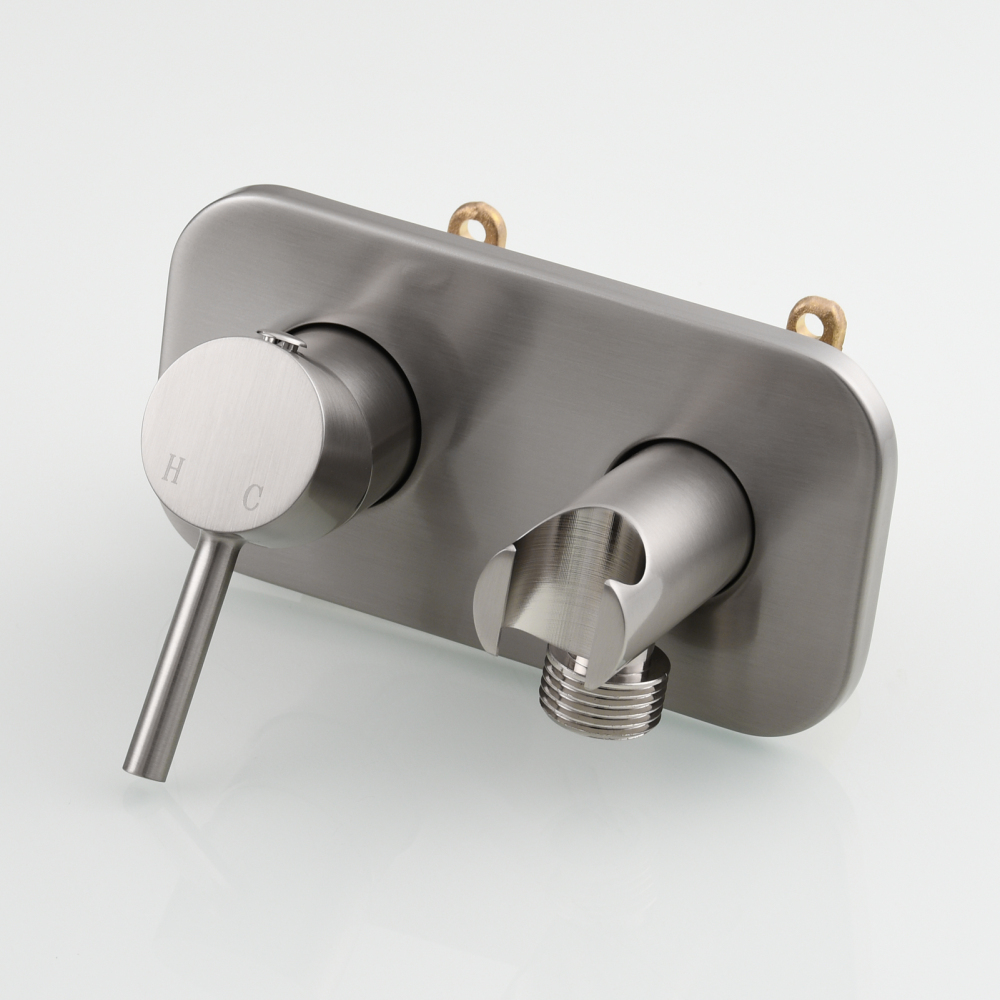

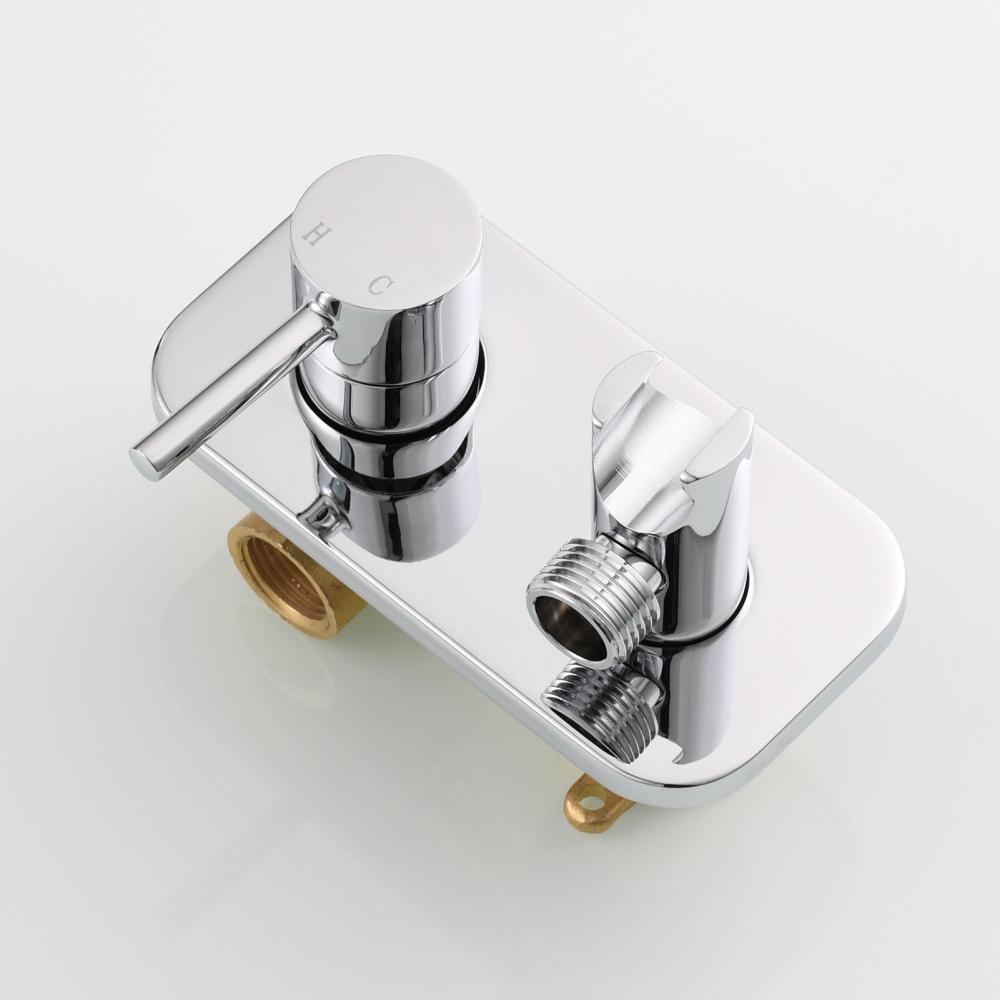

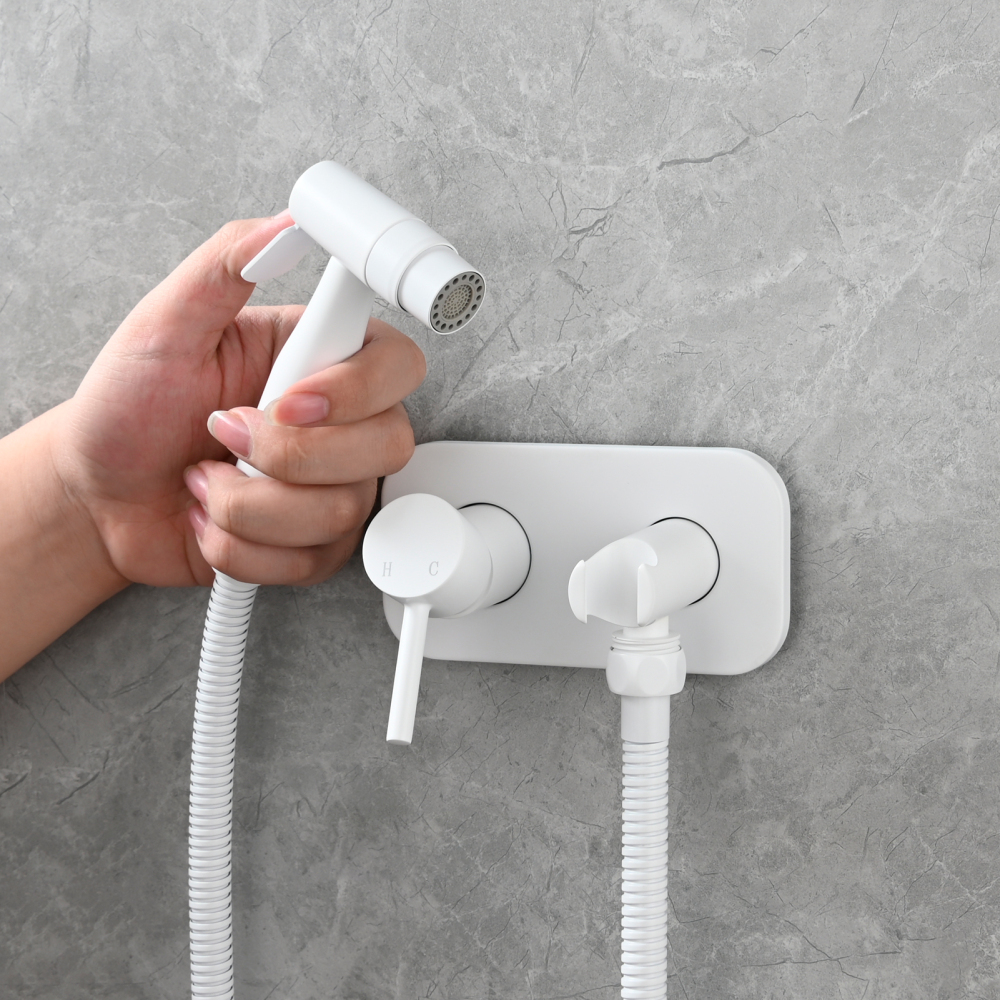

Single Handle with H and C Word: Clarity hot and cold water logo, reminding you of preventing scalding injuries at all time .

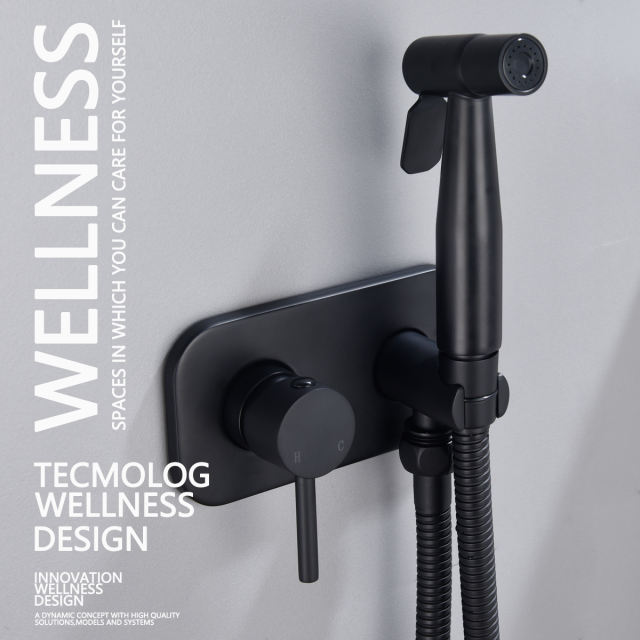

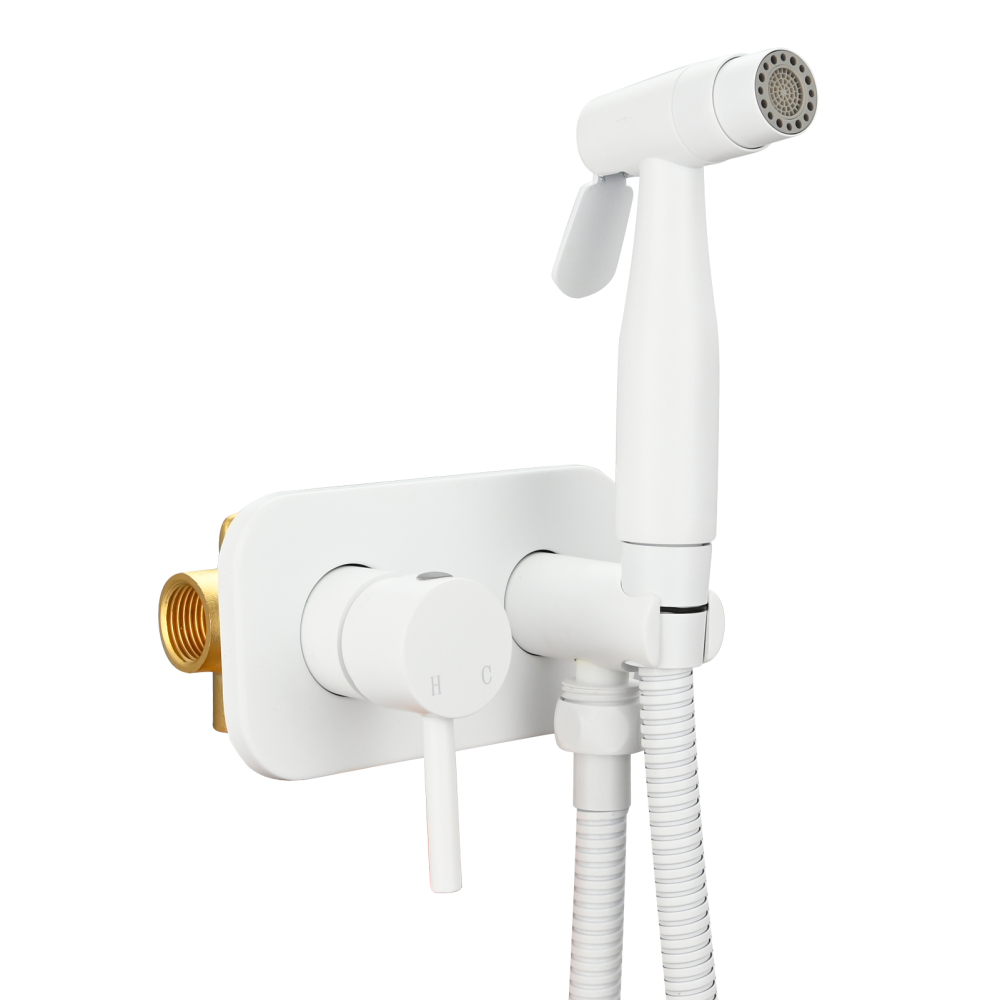

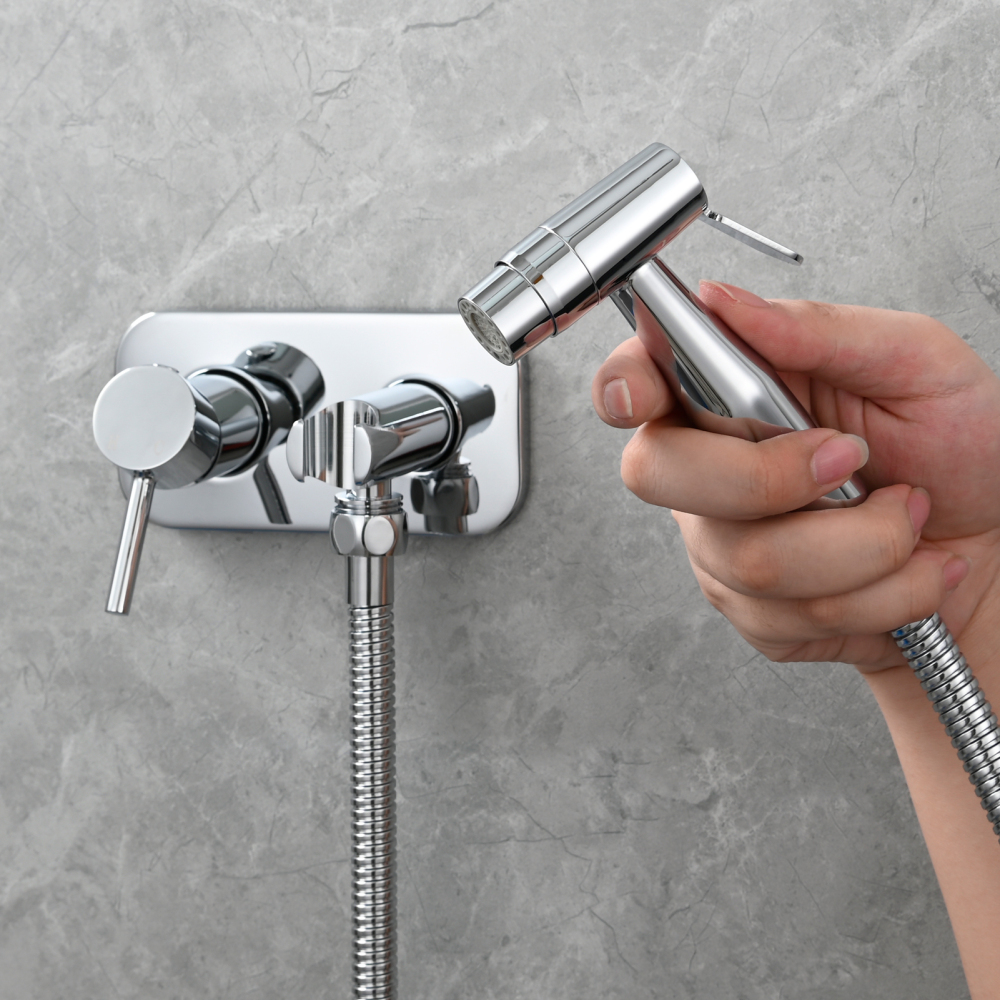

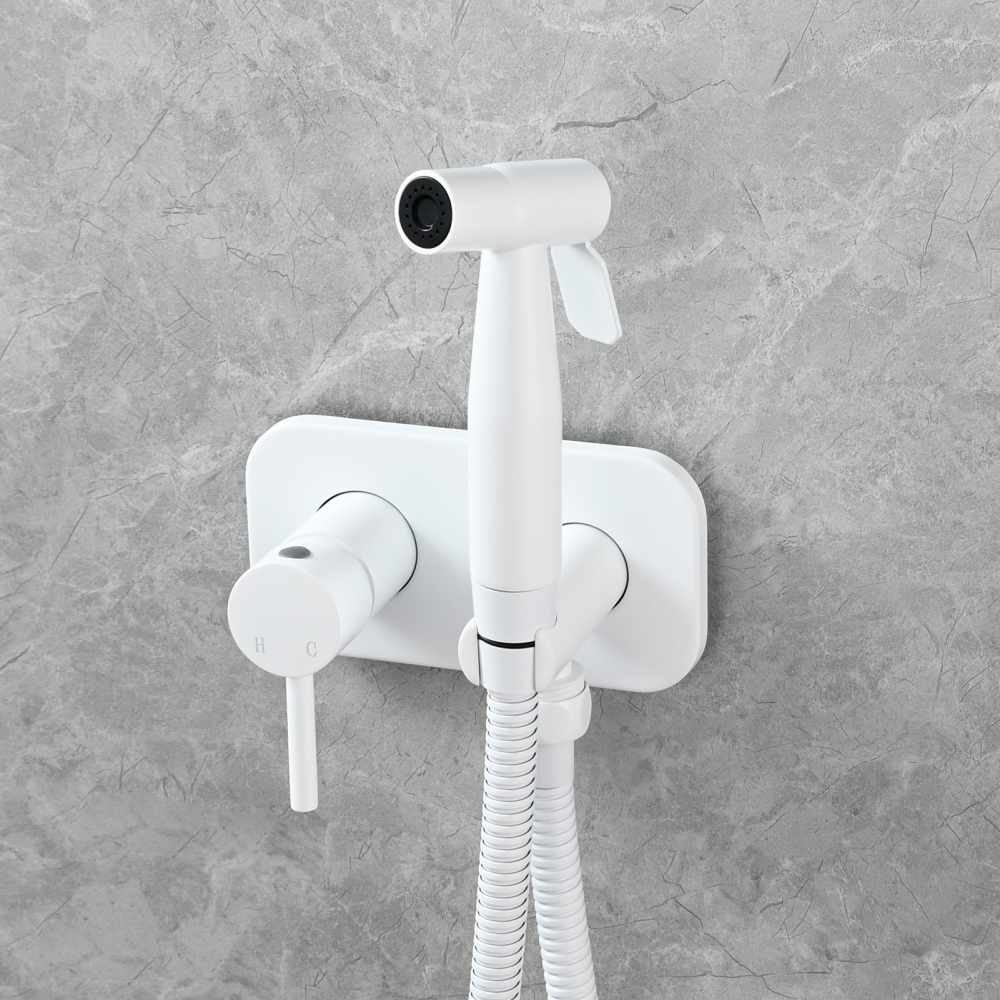

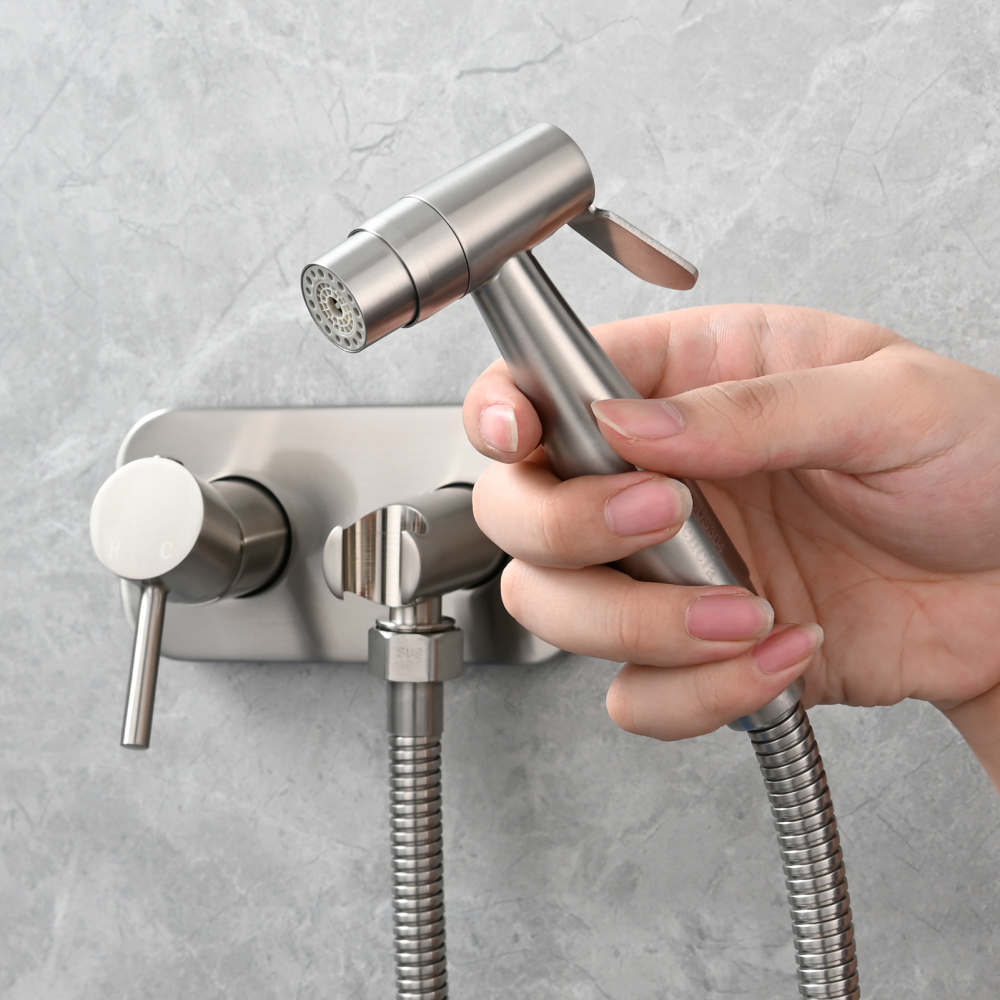

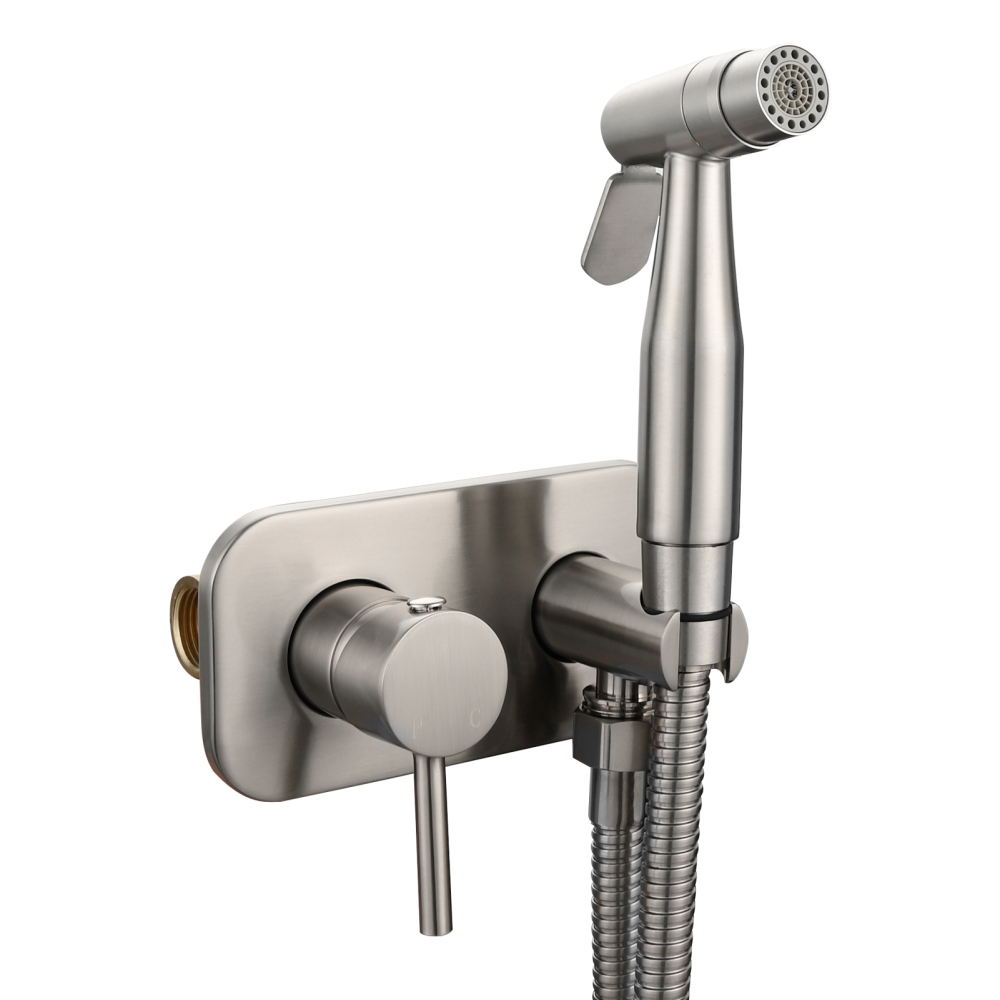

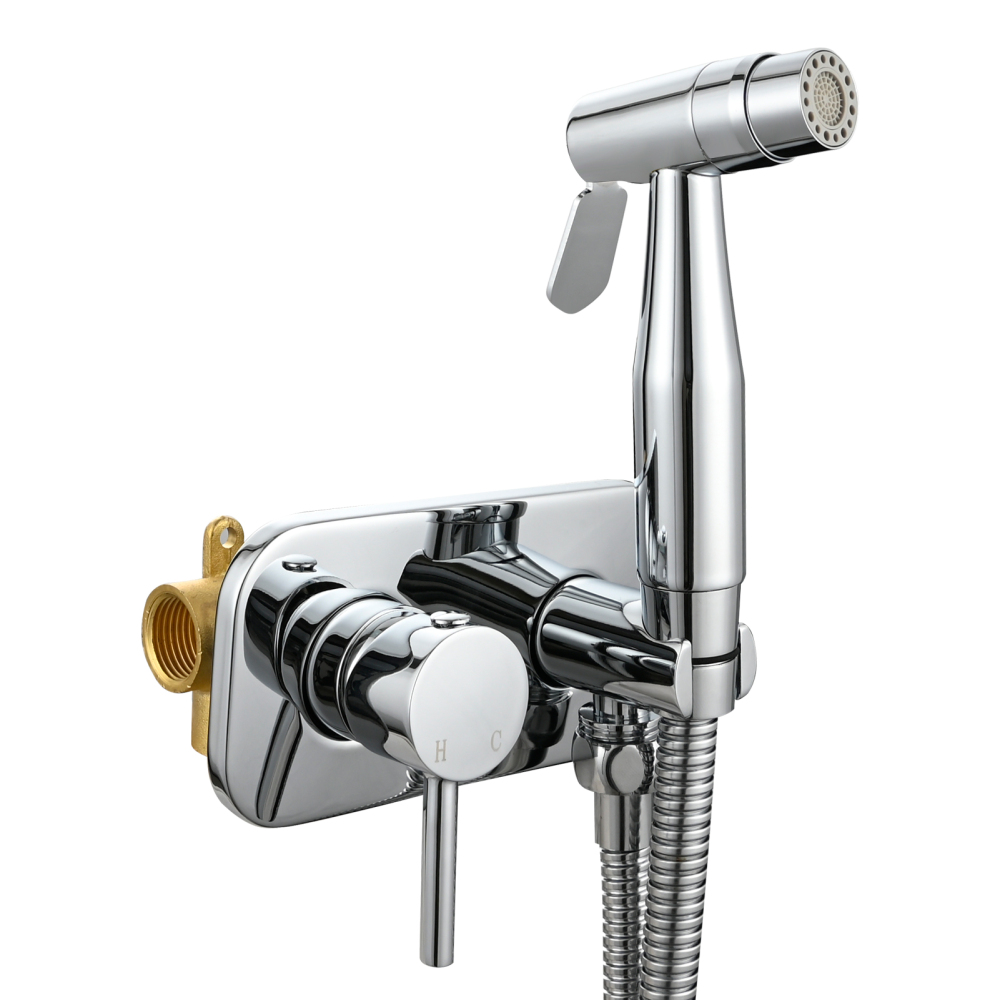

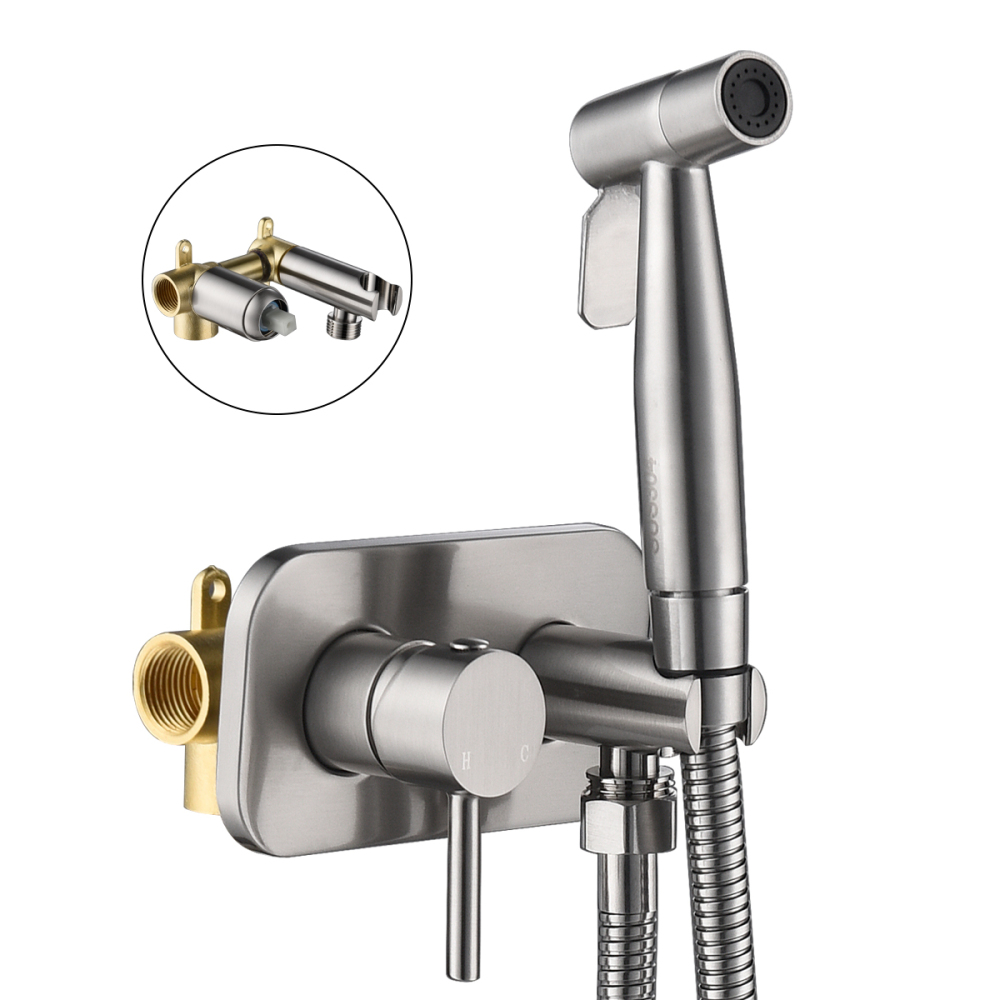

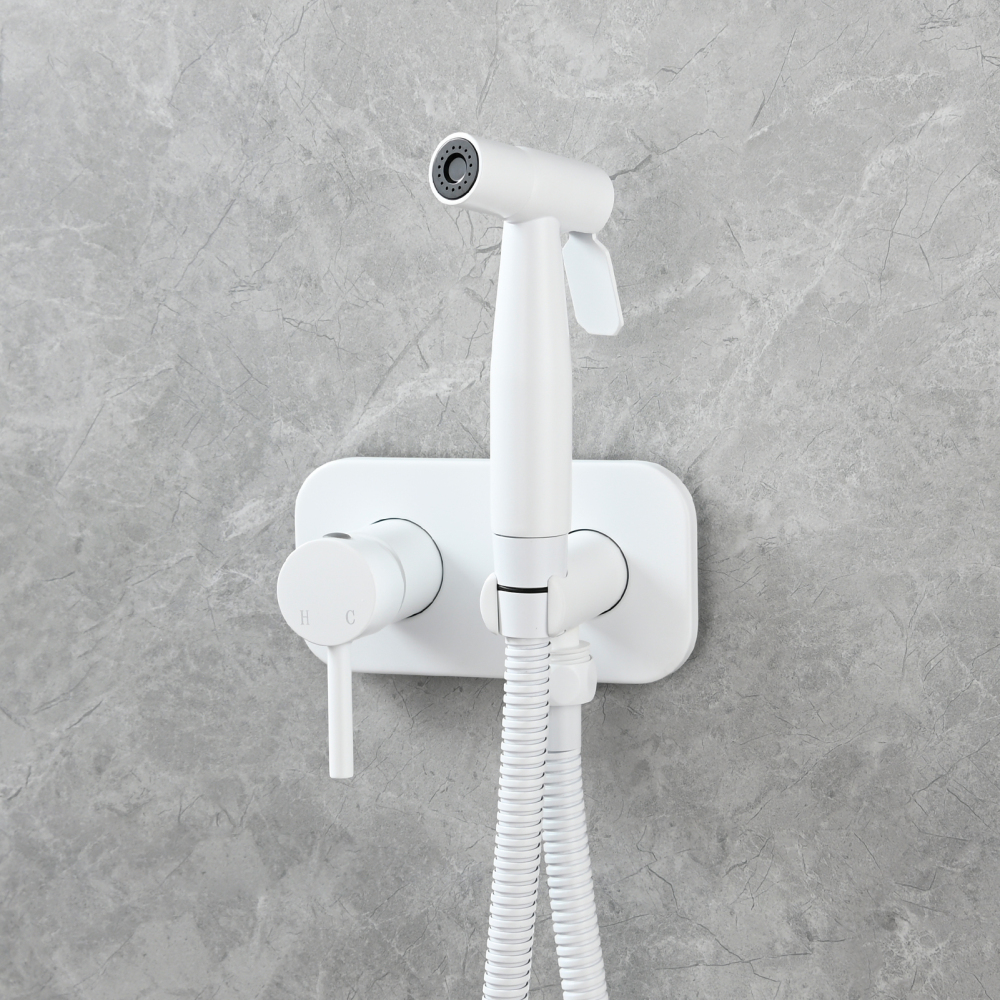

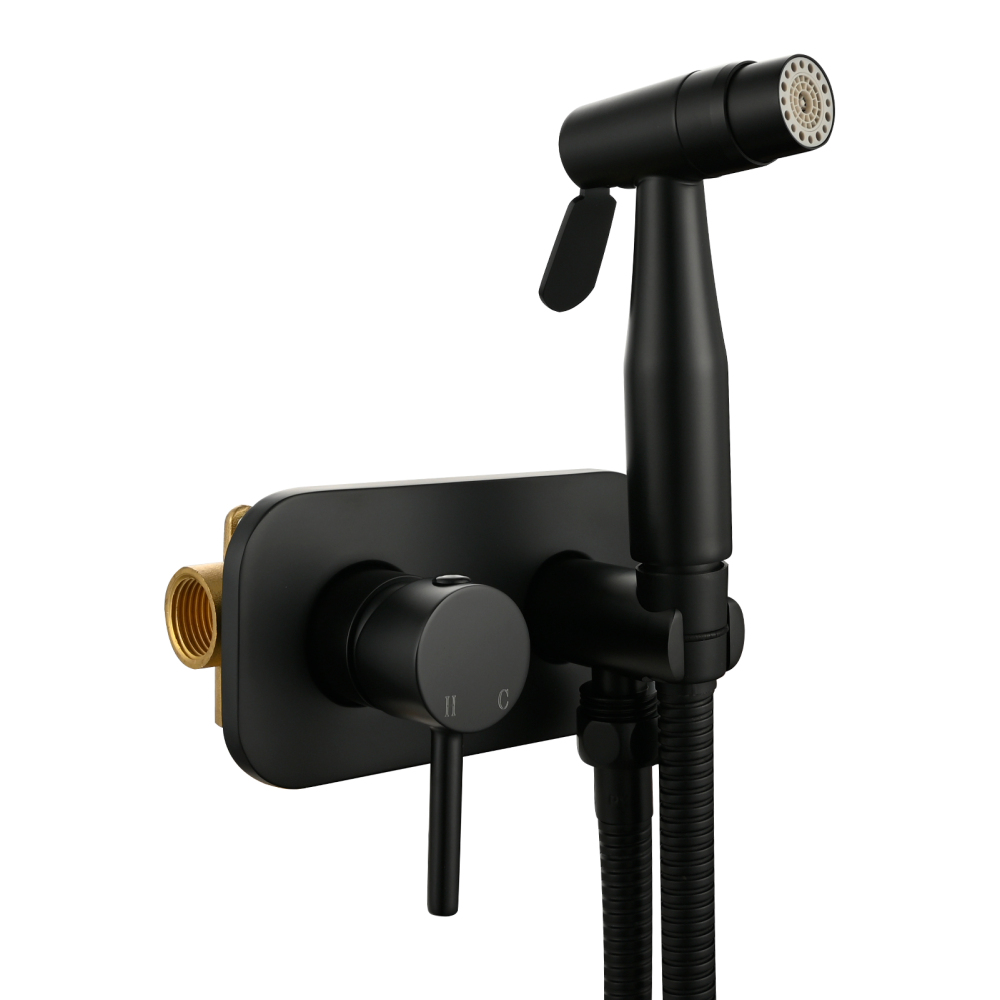

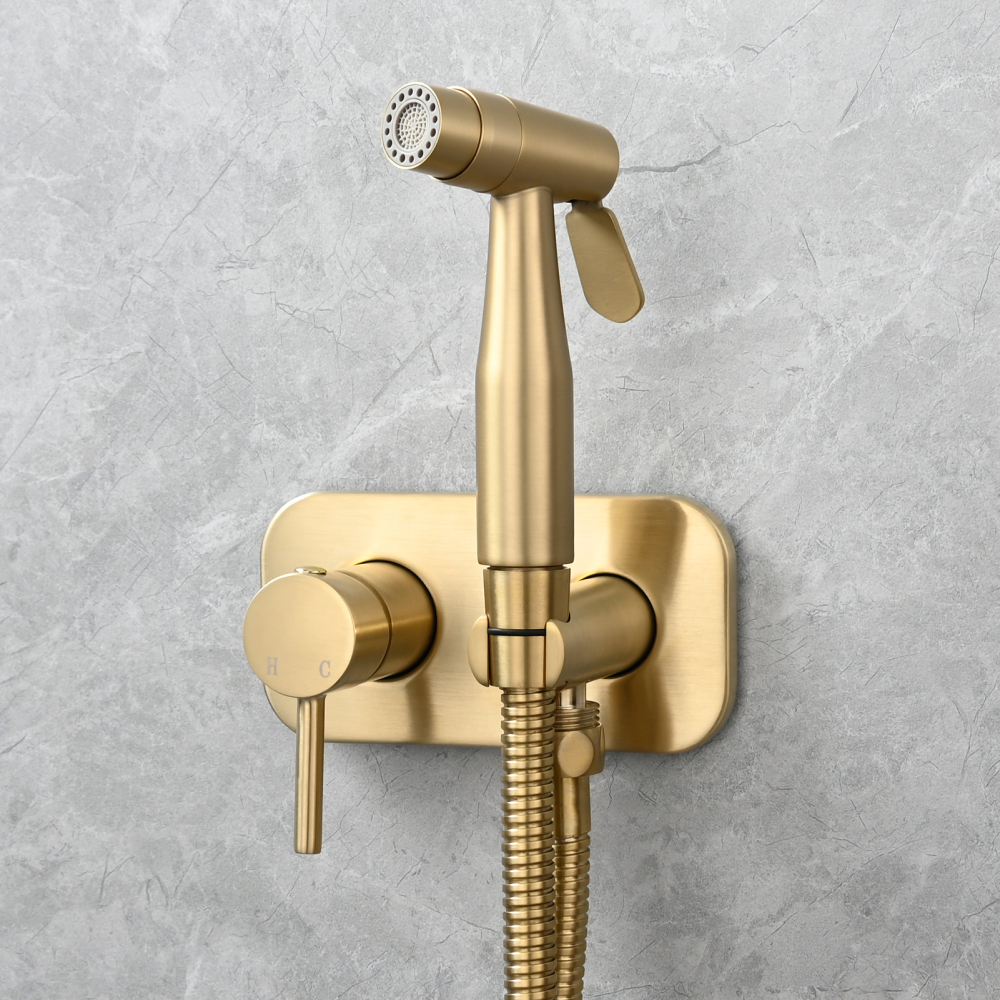

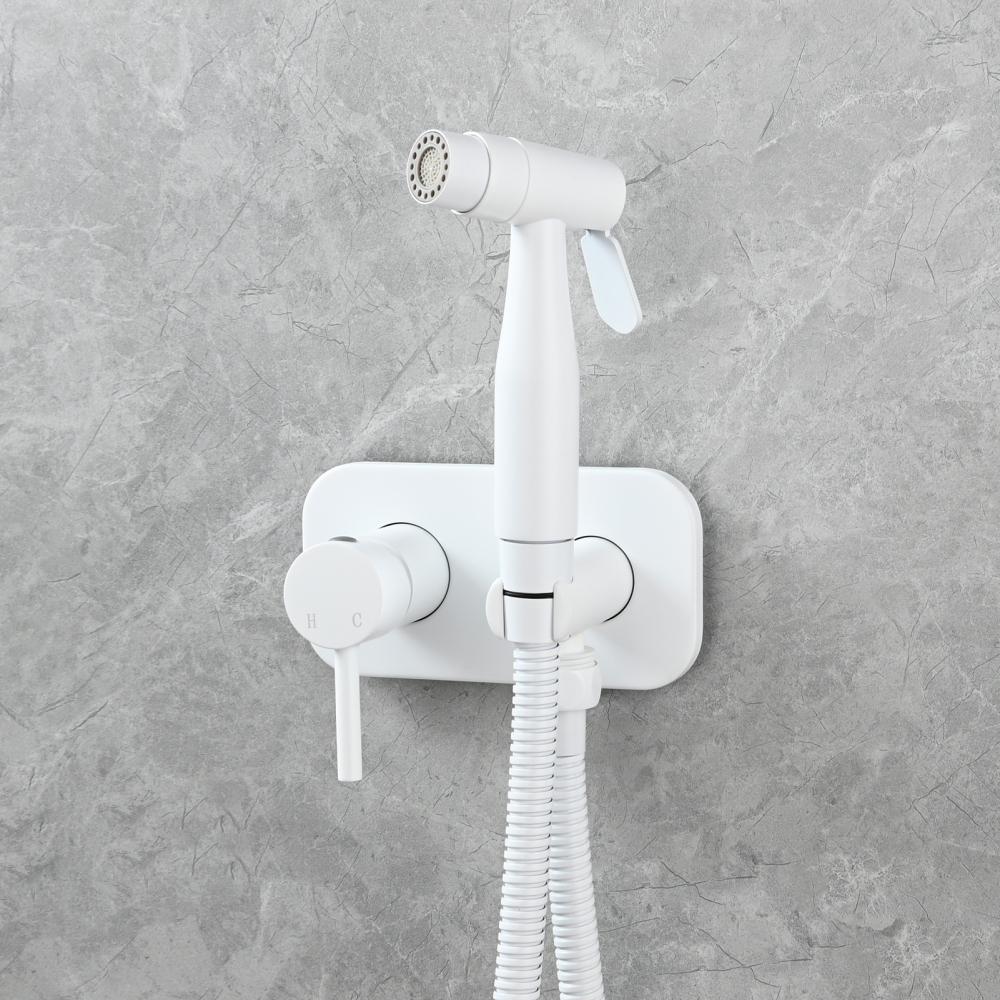

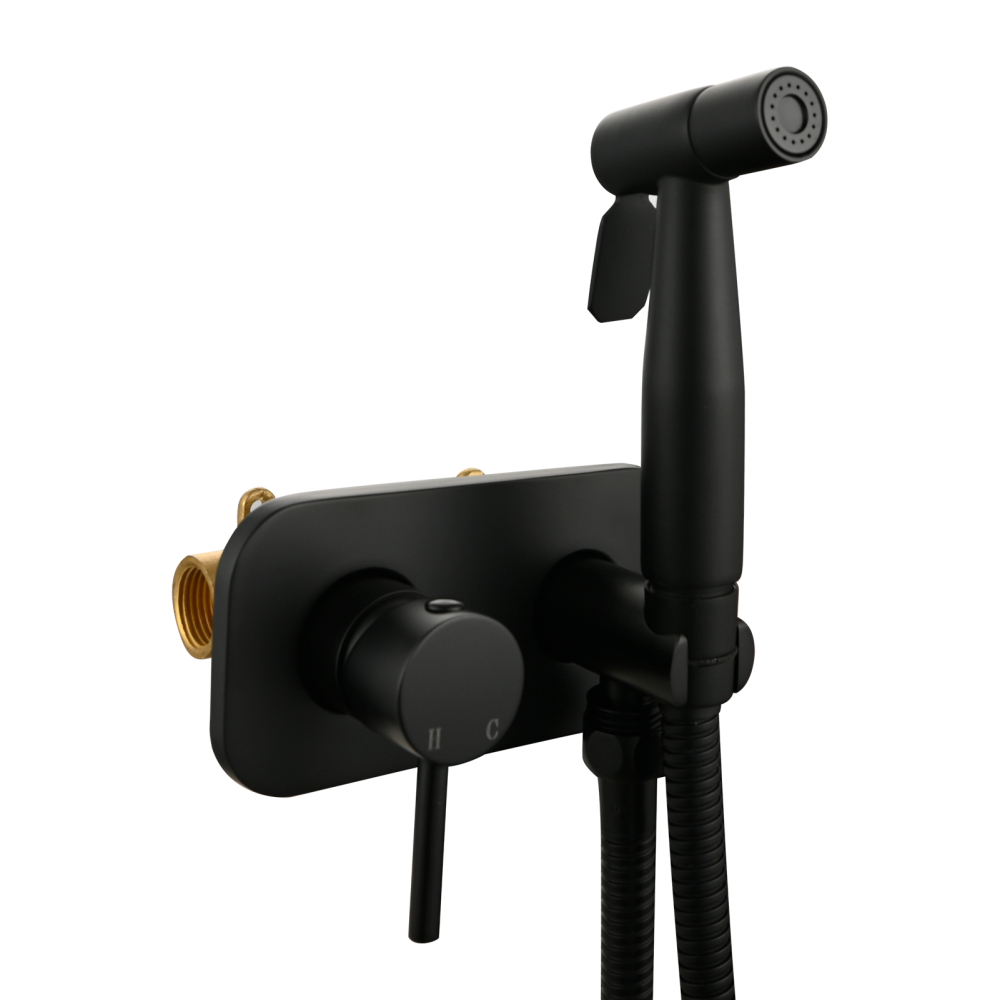

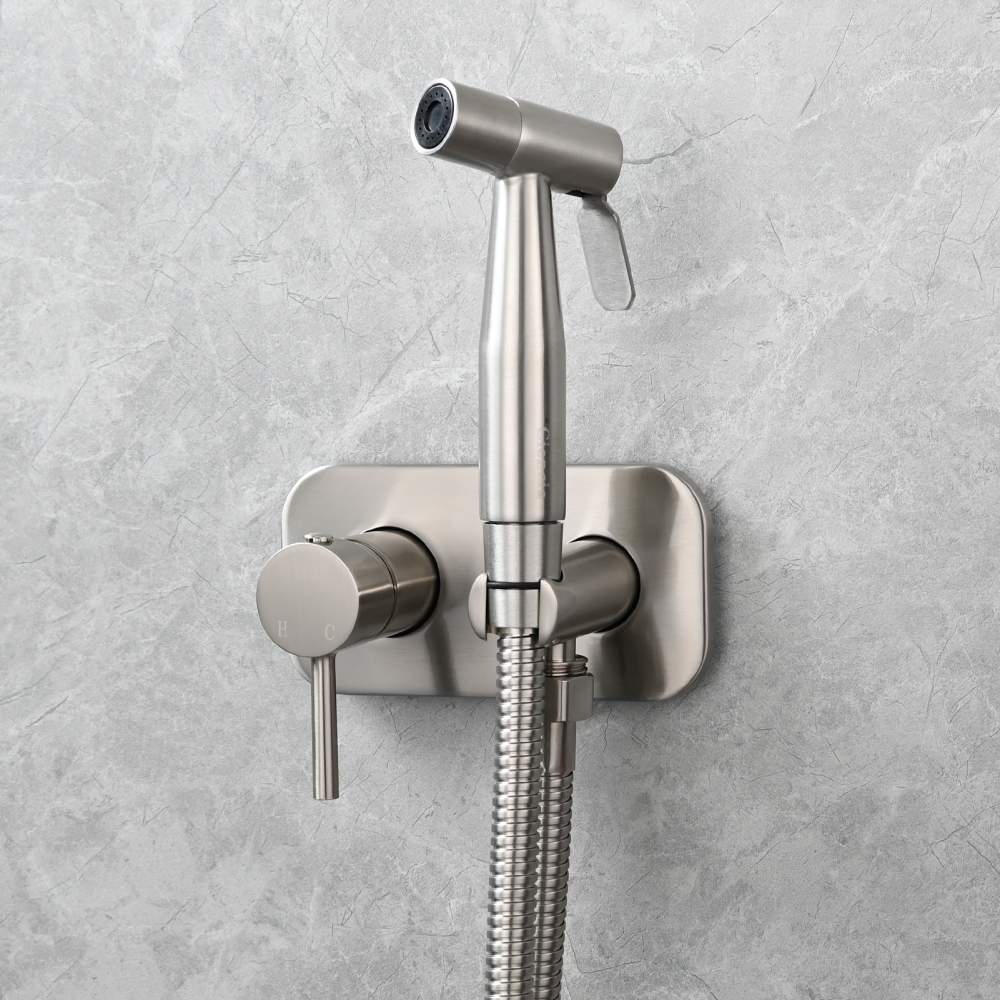

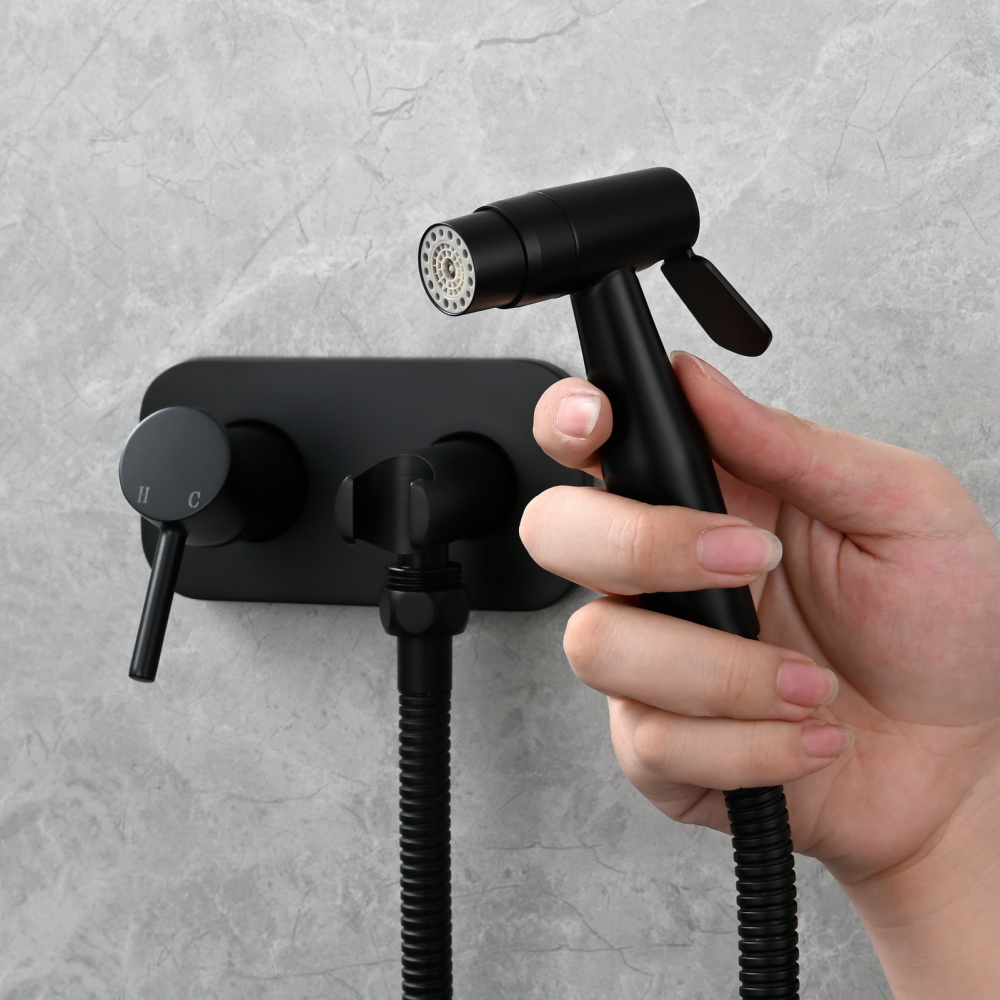

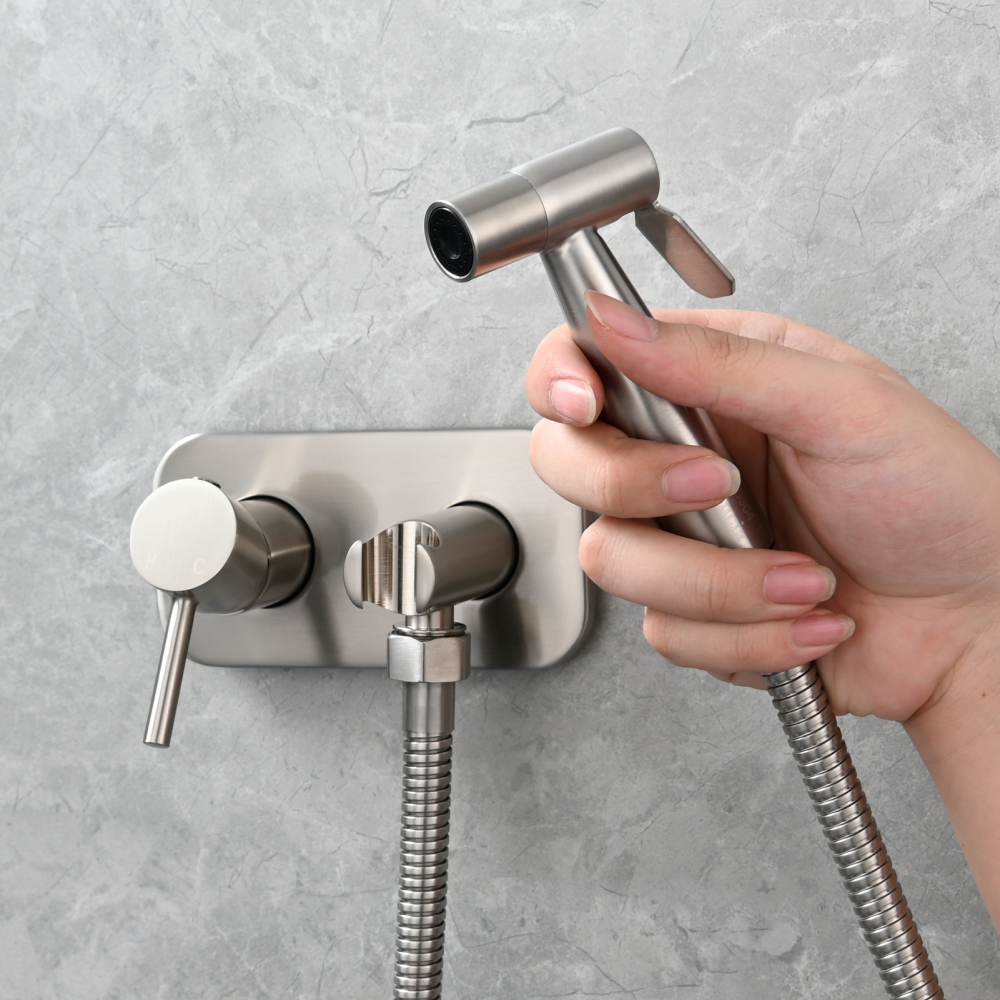

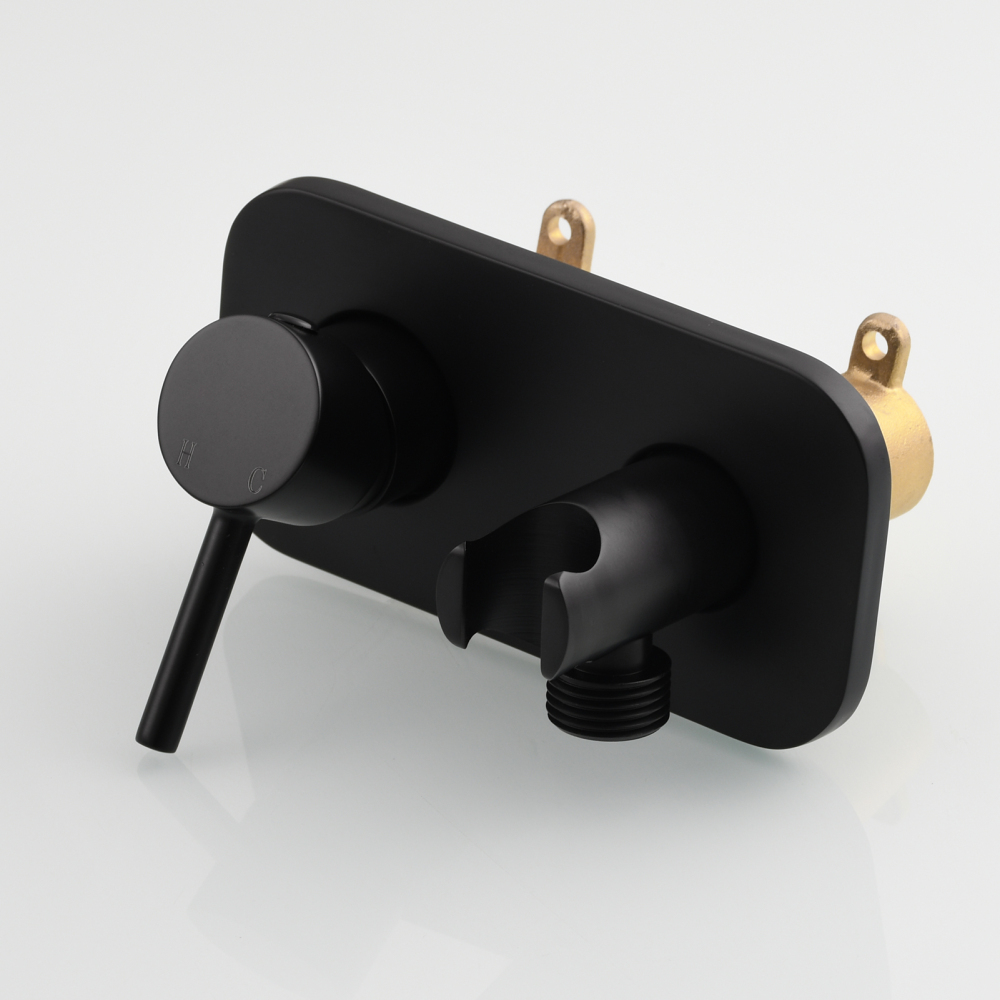

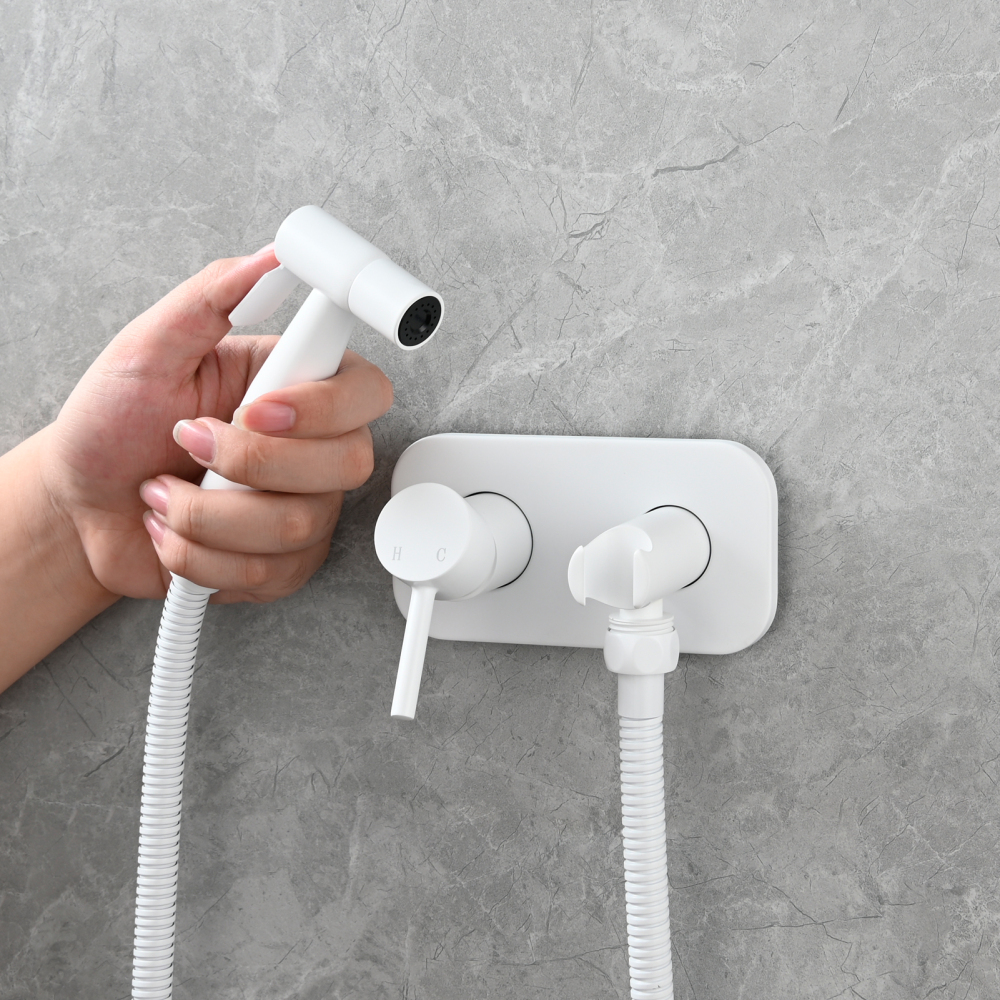

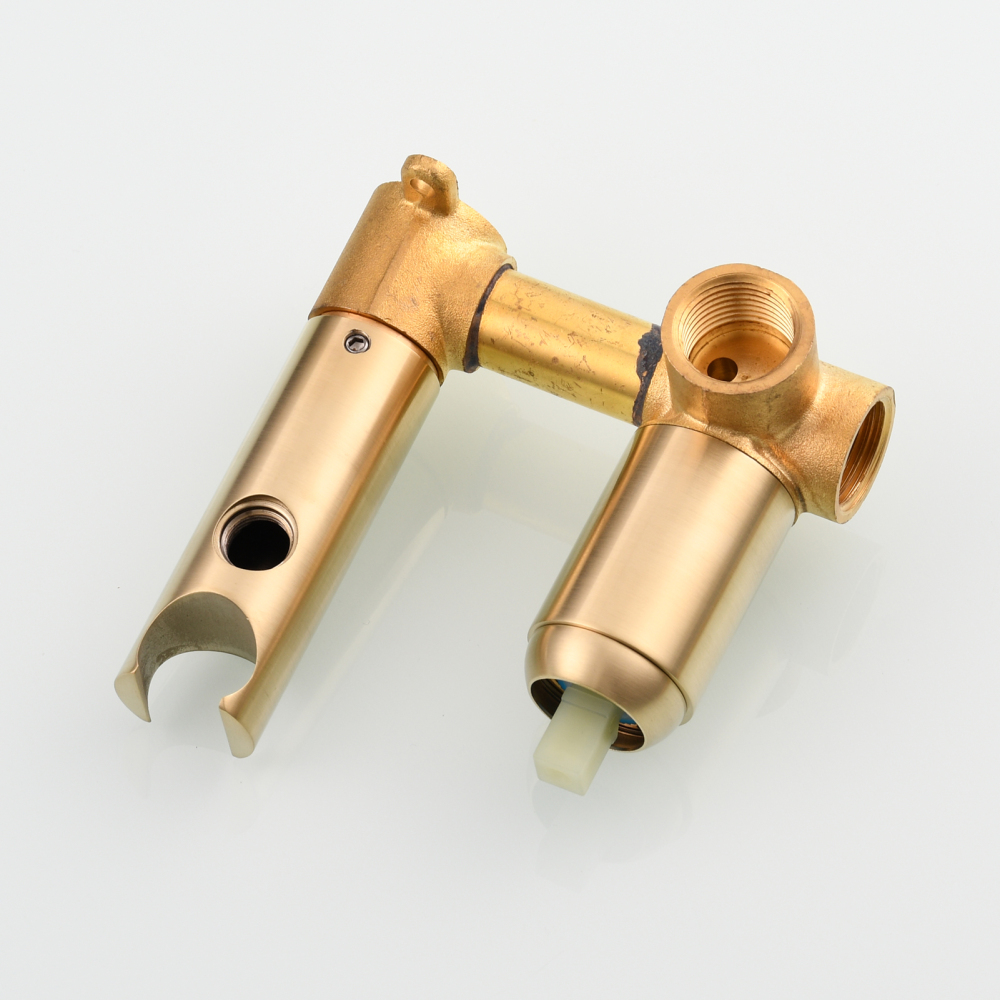

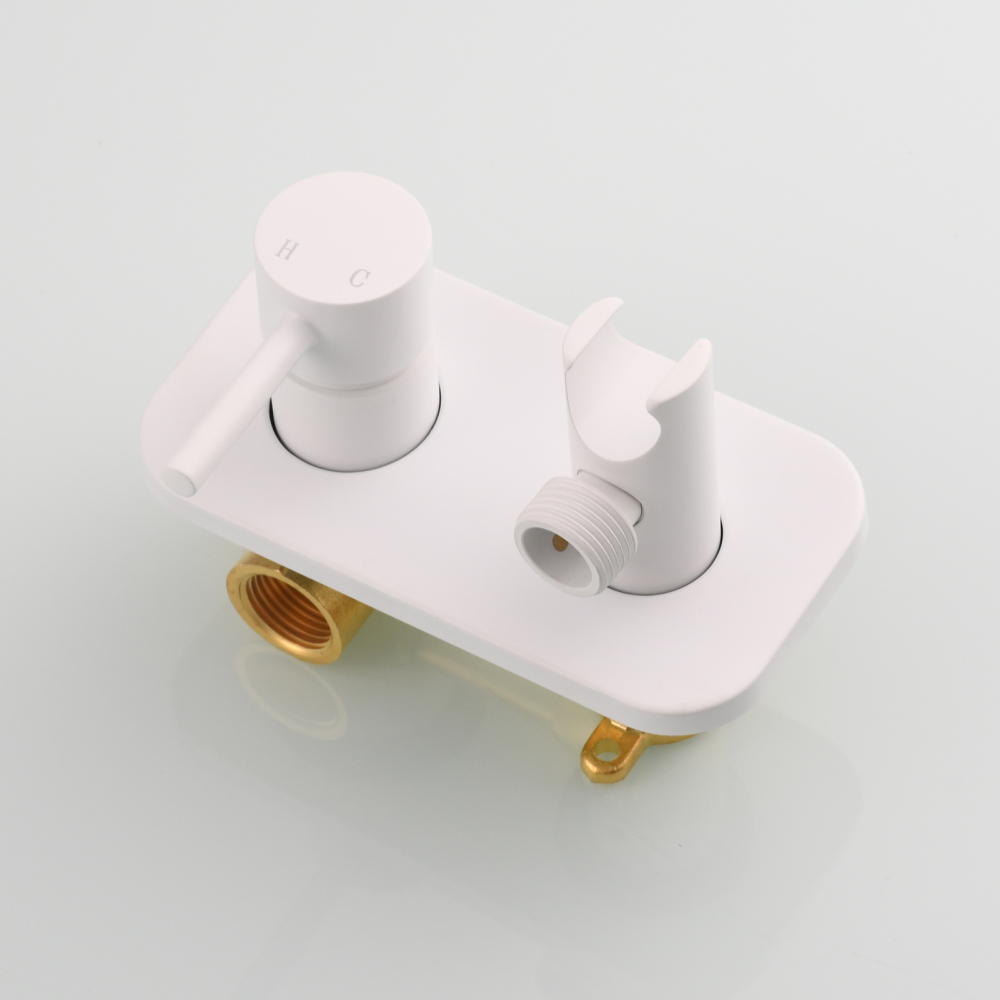

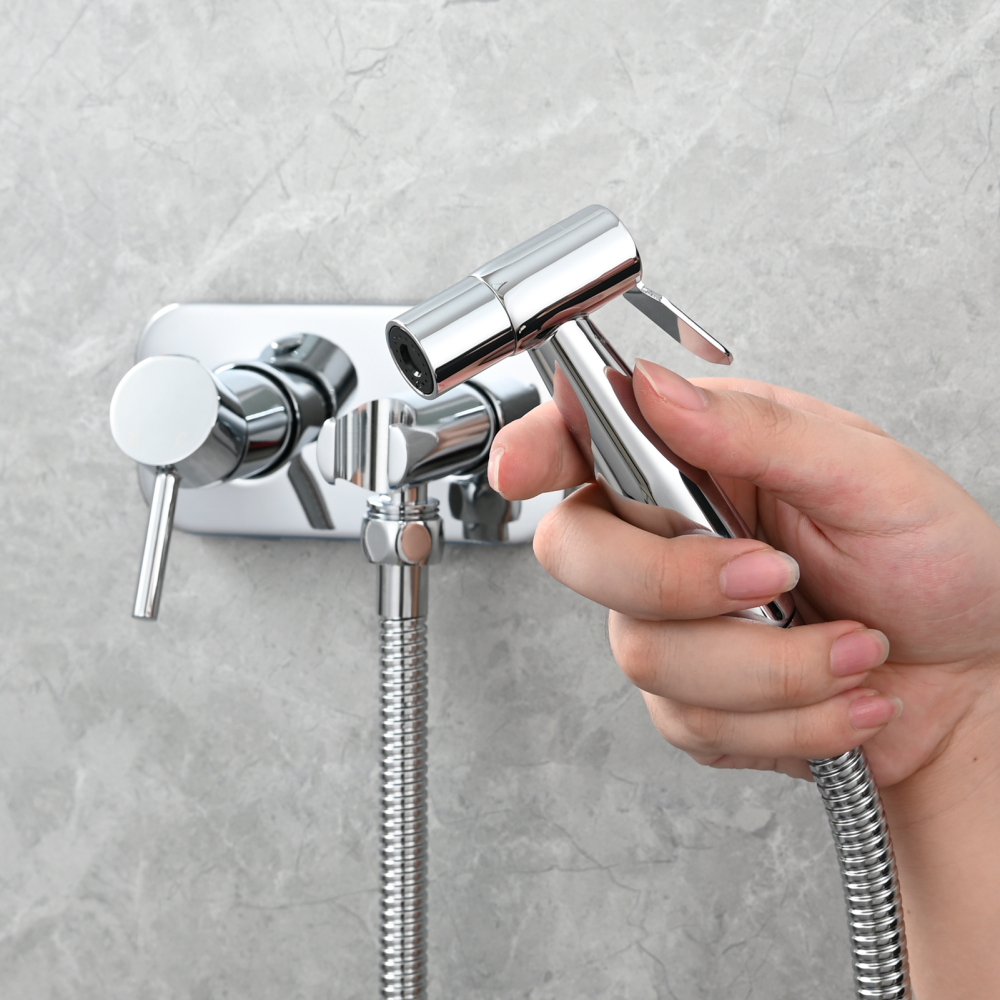

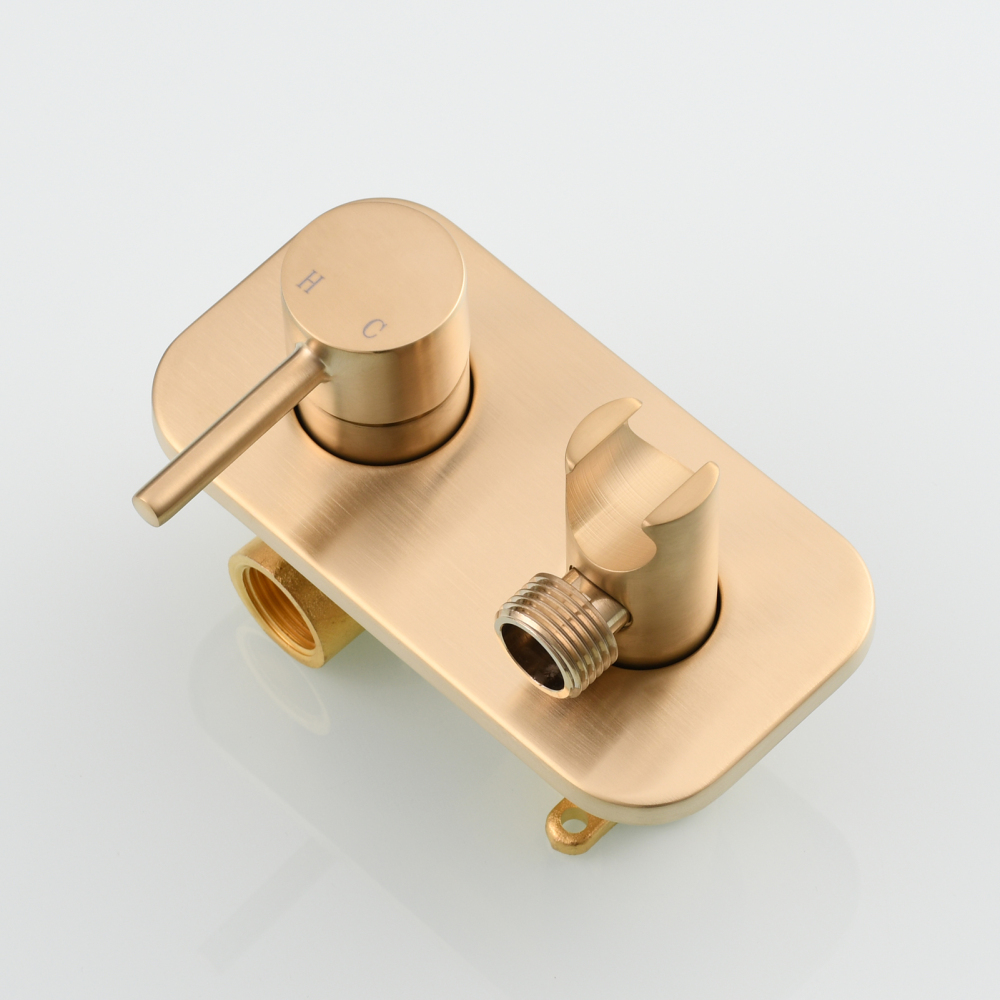

Concealed Bidet Spray Set: Toilet bidet sprayer set with hot and cold mixing valve, in wall mounted, space saving and integrated design.

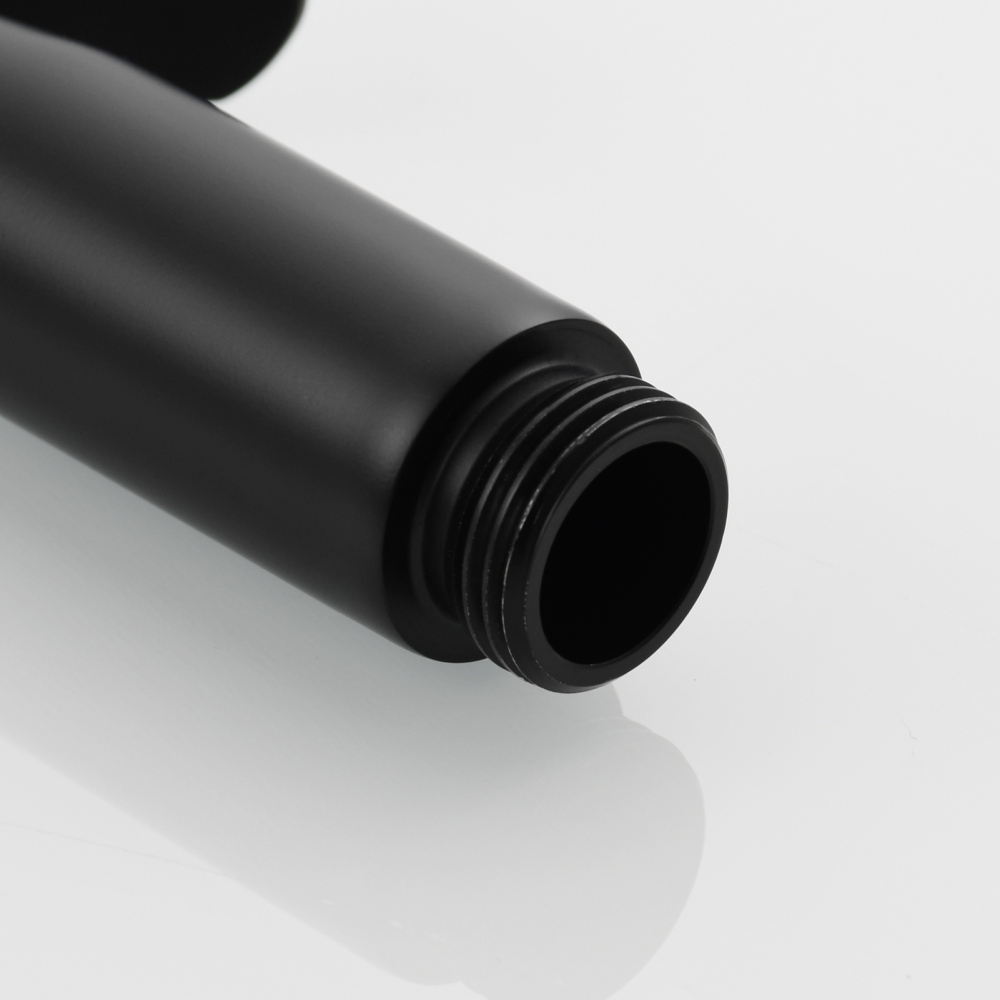

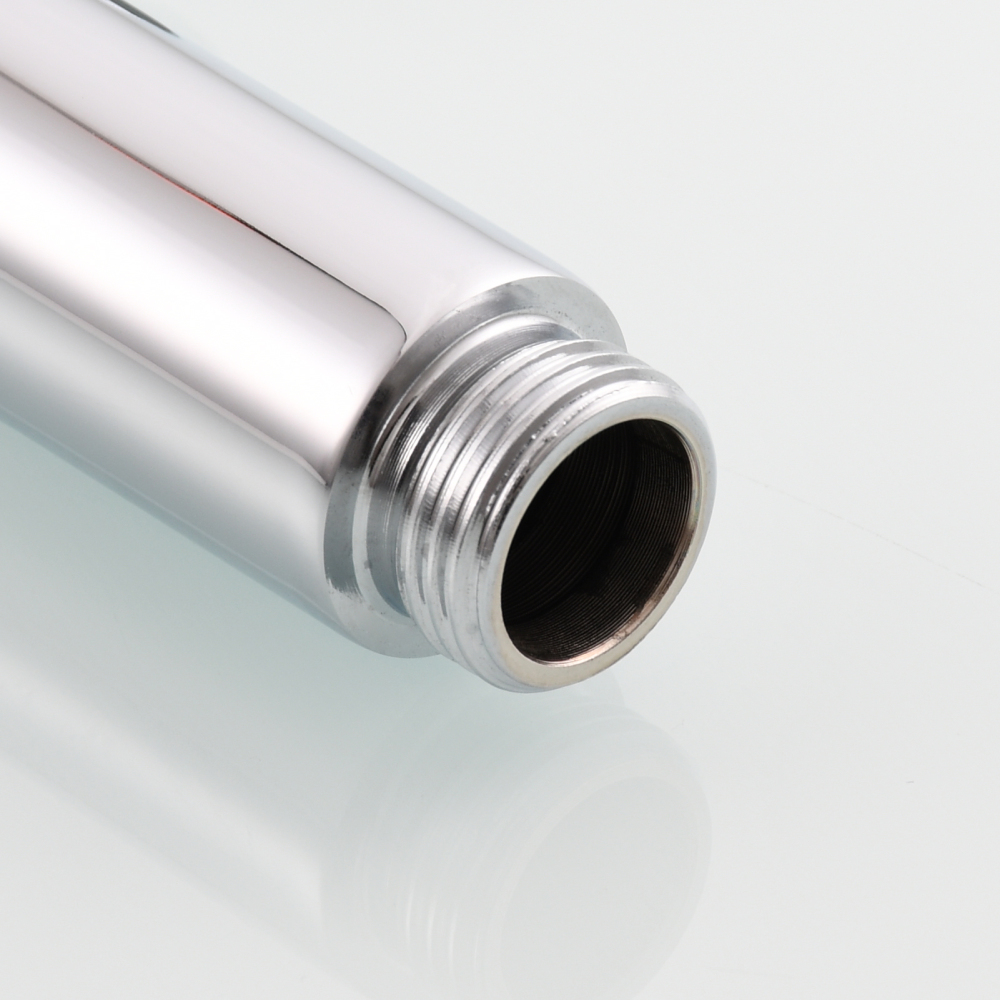

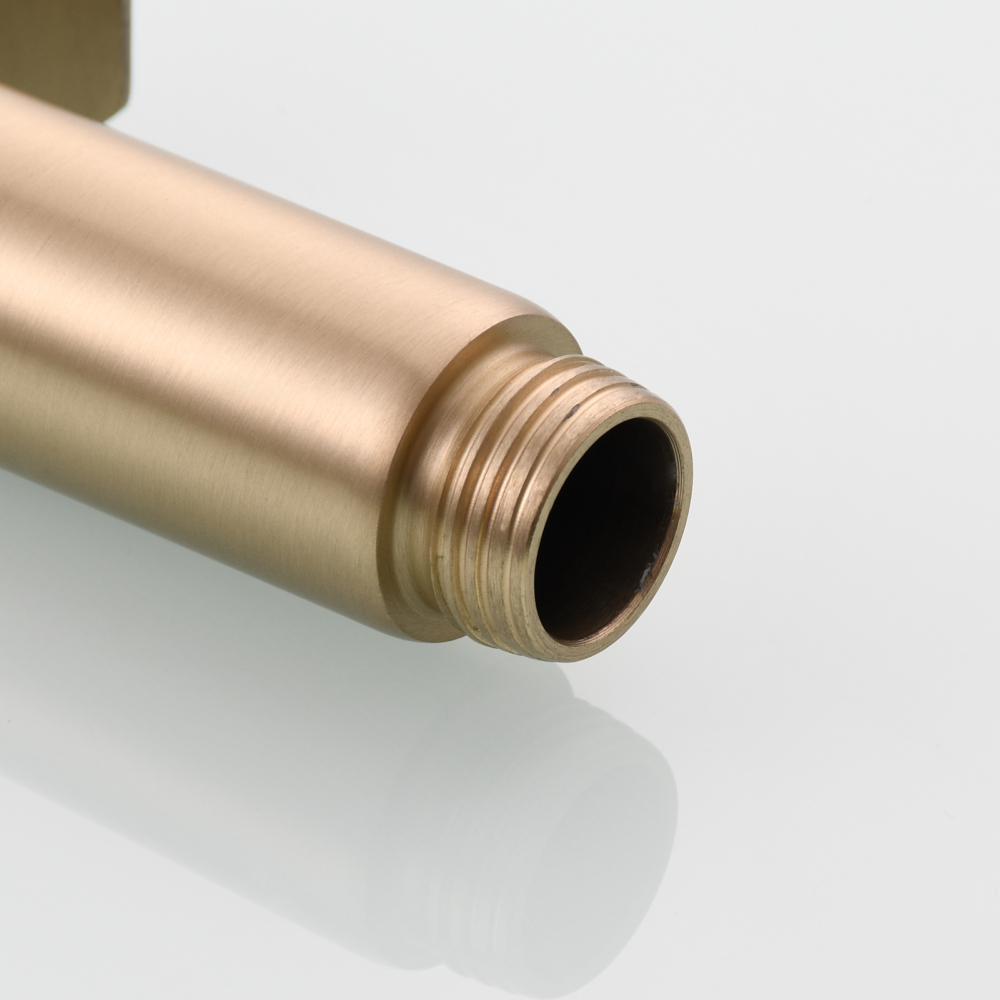

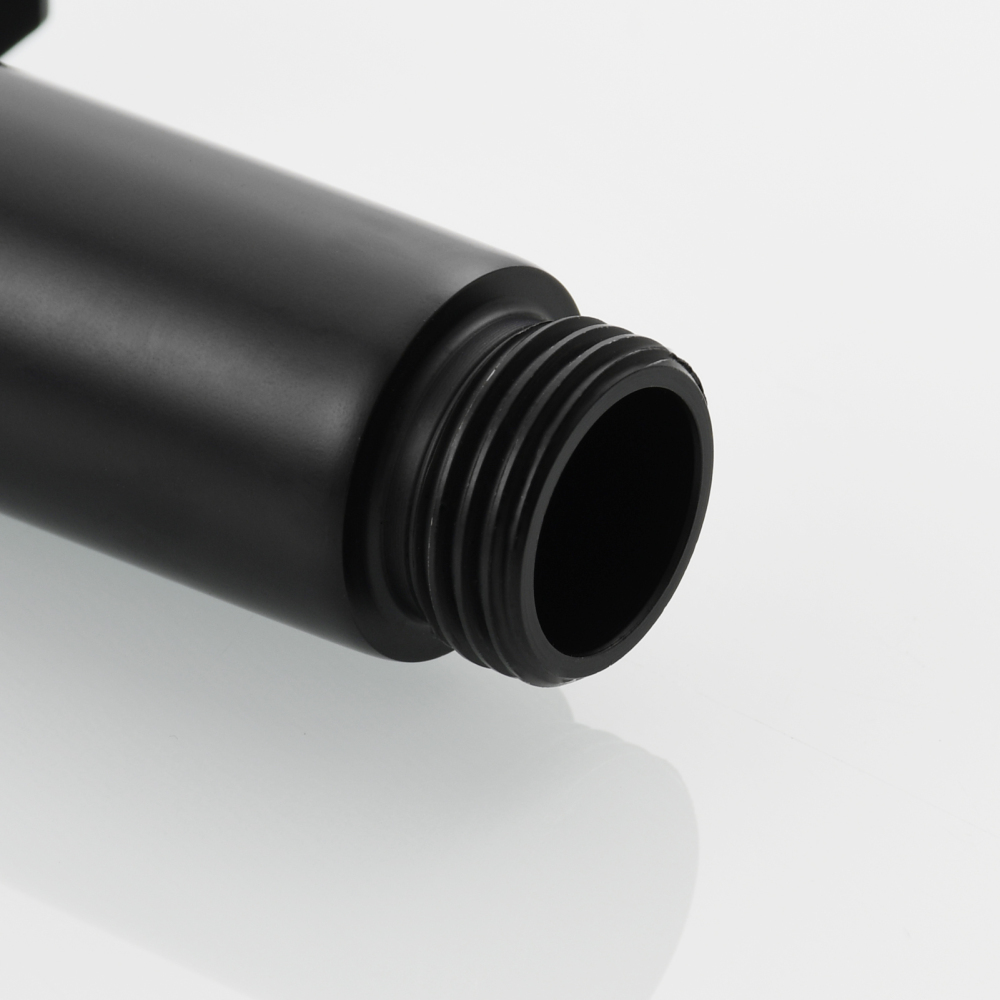

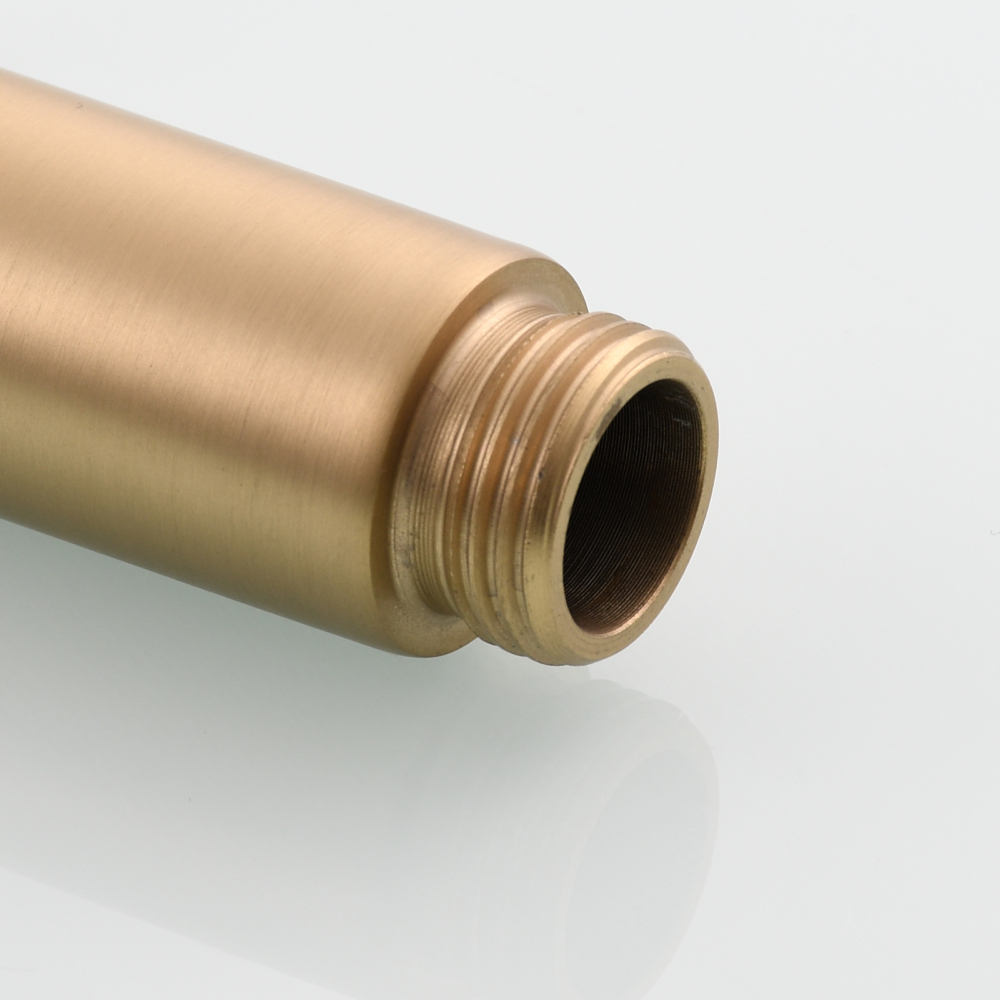

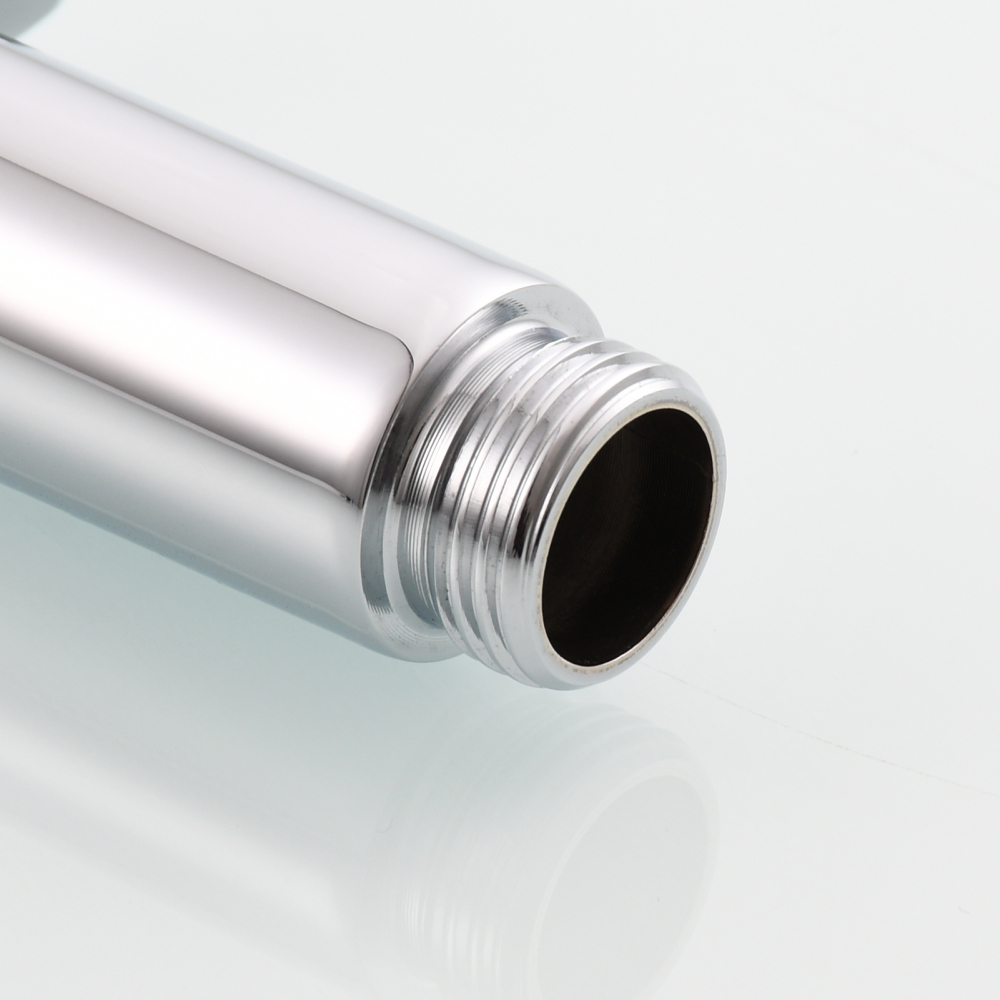

Standard 1/2" Female Connector: Bidet shower tap water pipe thread is standard 1/2" connector, suit for most water lines and easy to install.

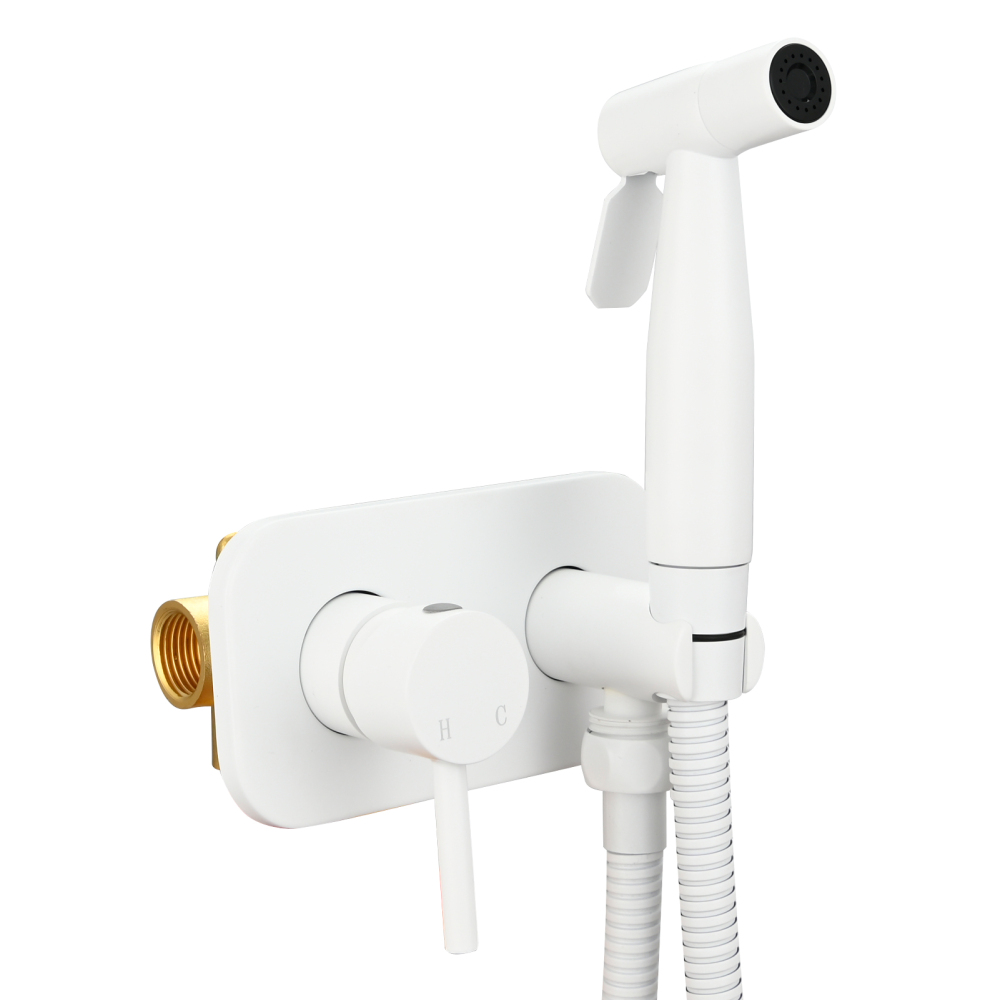

Handheld Sprayer Complete Set: Perfect solution for daily personal hygiene, and even can be used for shattaf, muslim shower, baby cloth diaper sprayer set in toilet, dog shower and so on.

Product Specification
Name: Toilet Bidet Sprayer Set Hot and Cold Water
Toilet Sprayer Material: SUS304 Stainless Steel
Finish: Brushed Nickel/Black
Bidet Sprayer Set Shipping Weight: 1.2kg
Water Pressure: 0.6-0.9MPA

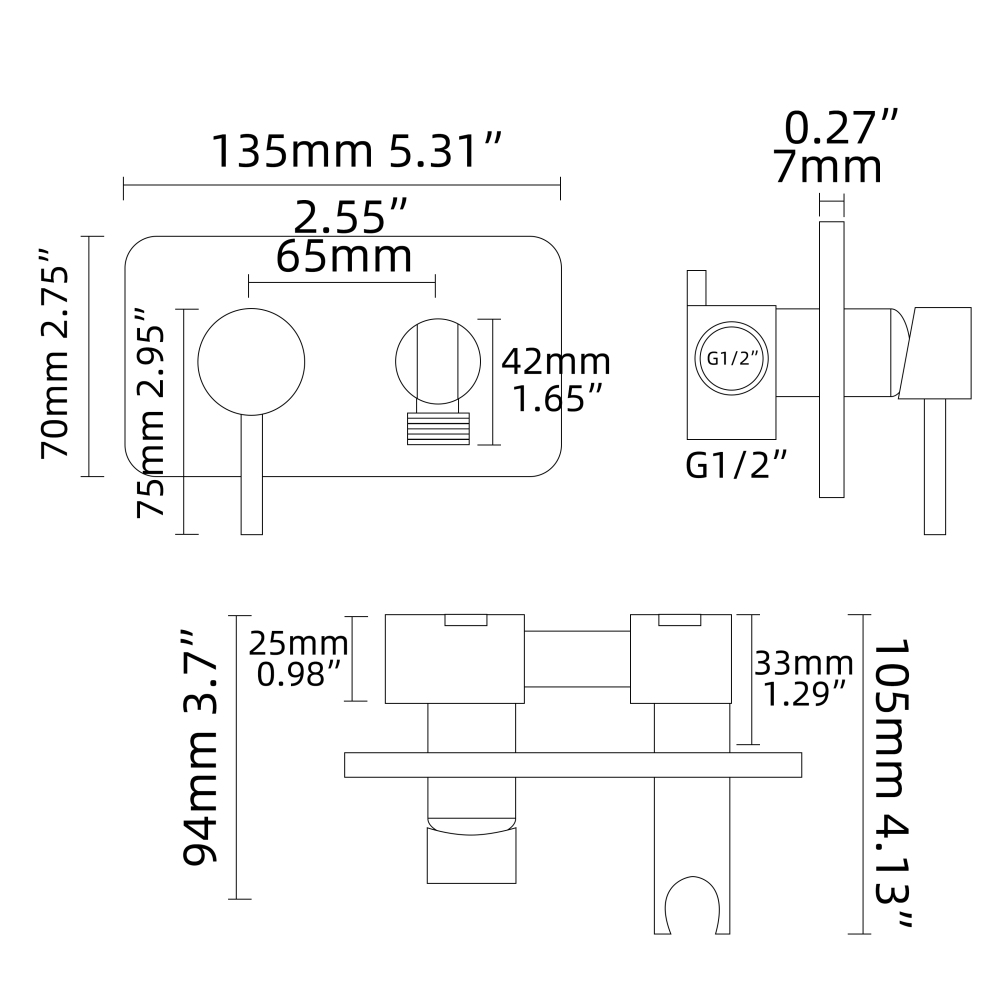

Screw Thread Diameter: G1/2 (about 20mm)

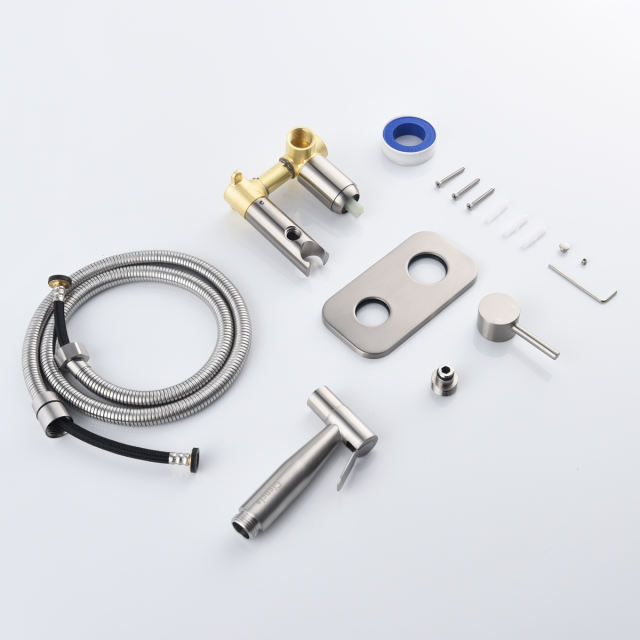

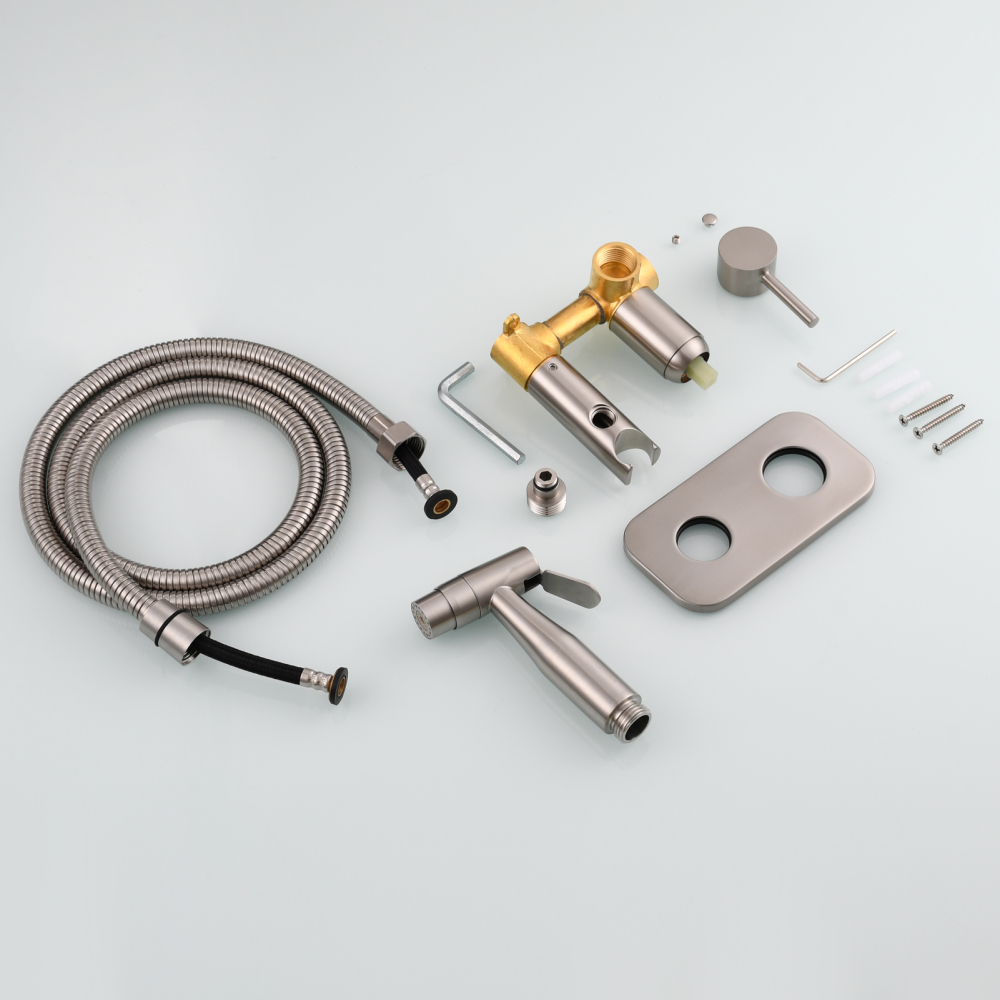

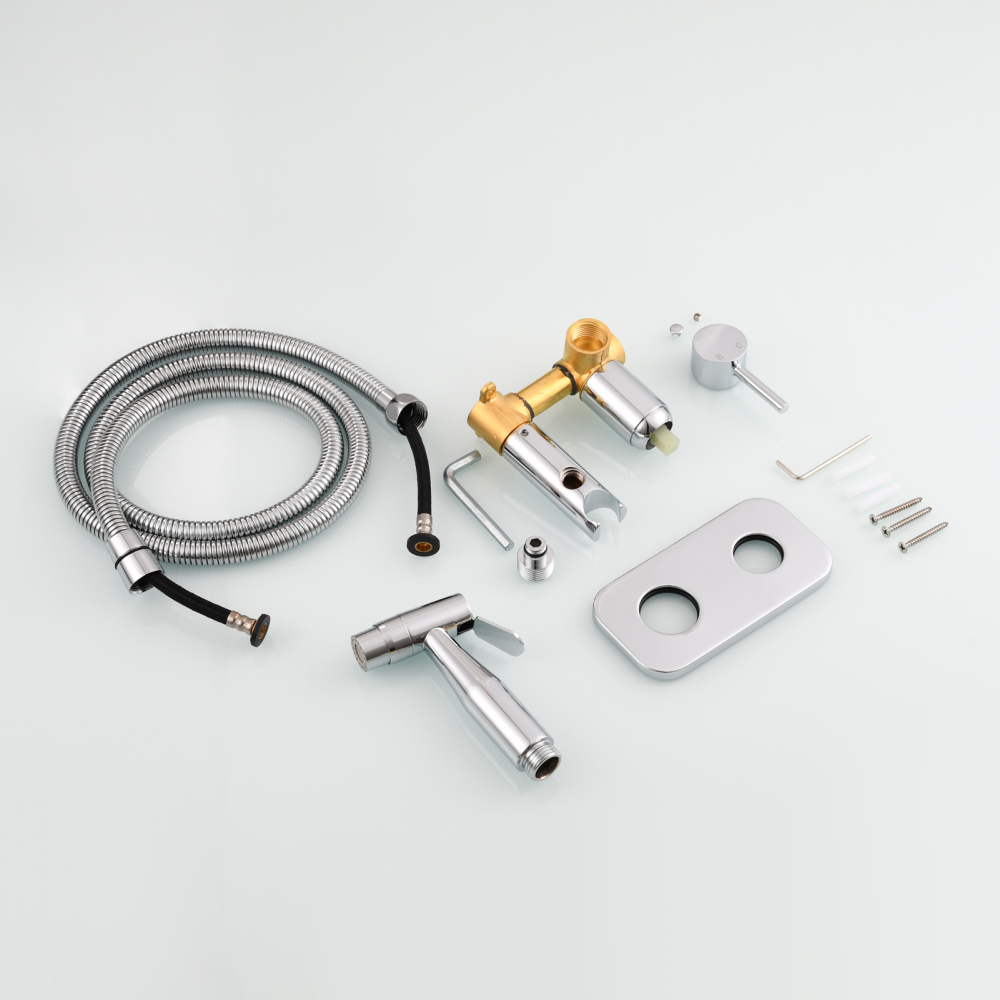

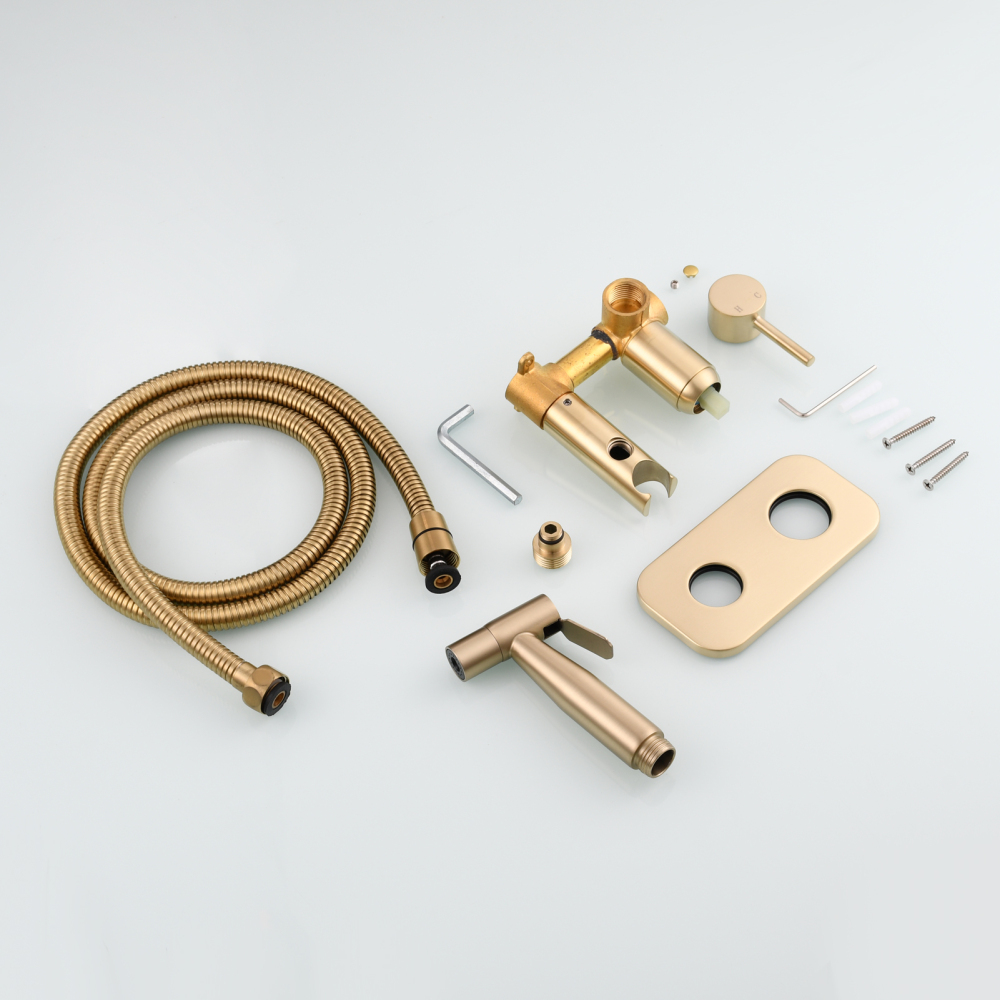

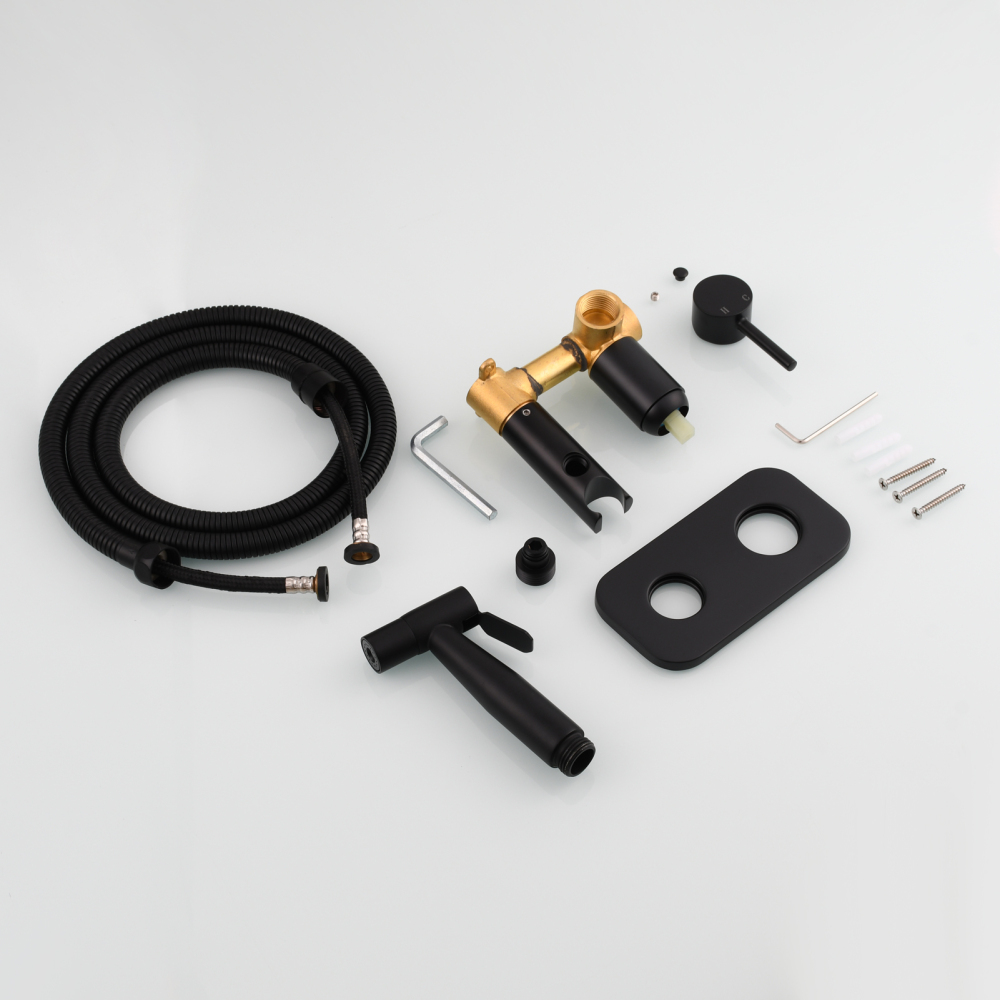

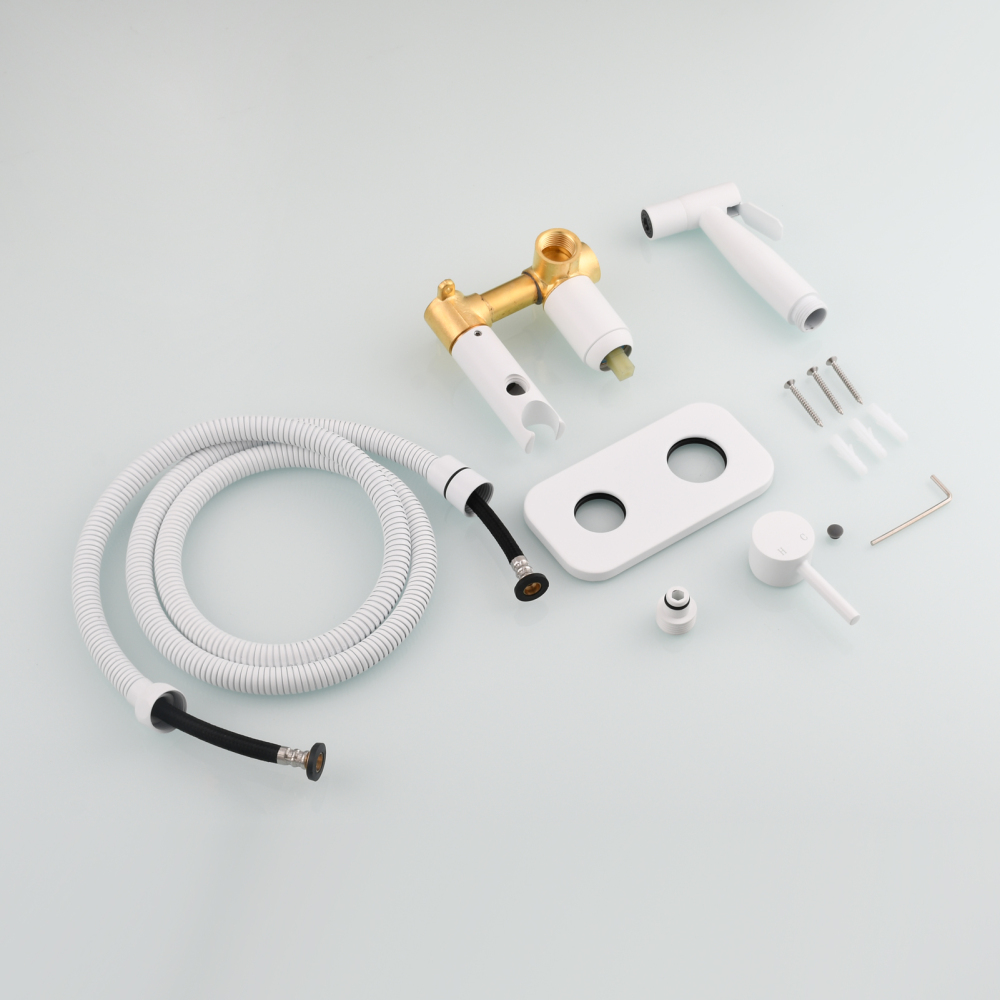

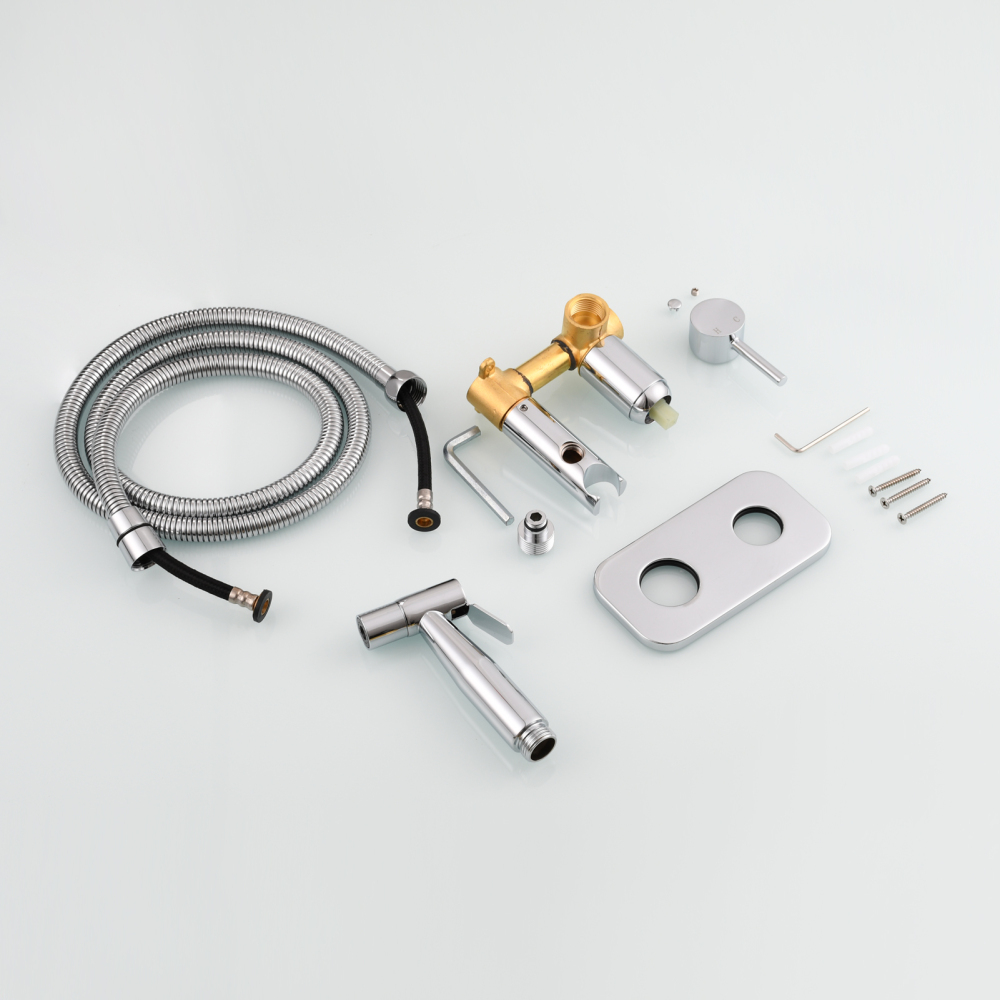

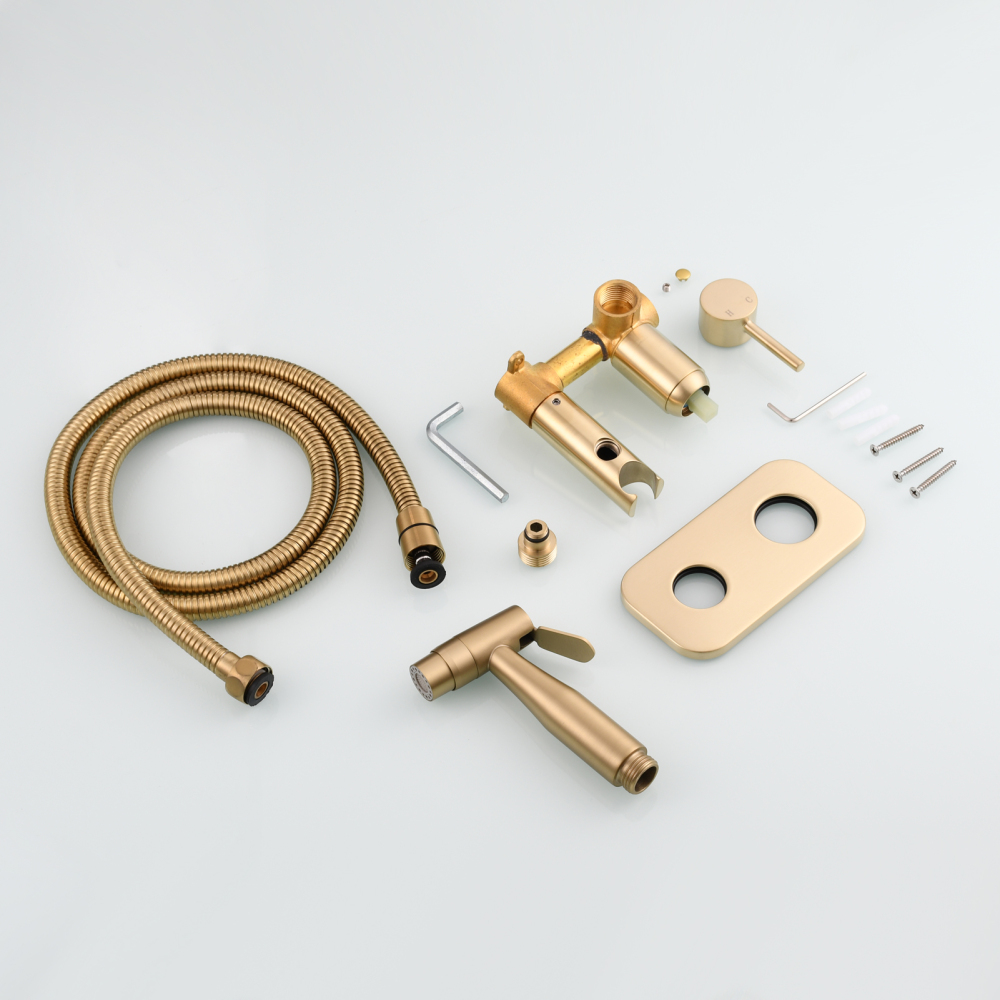

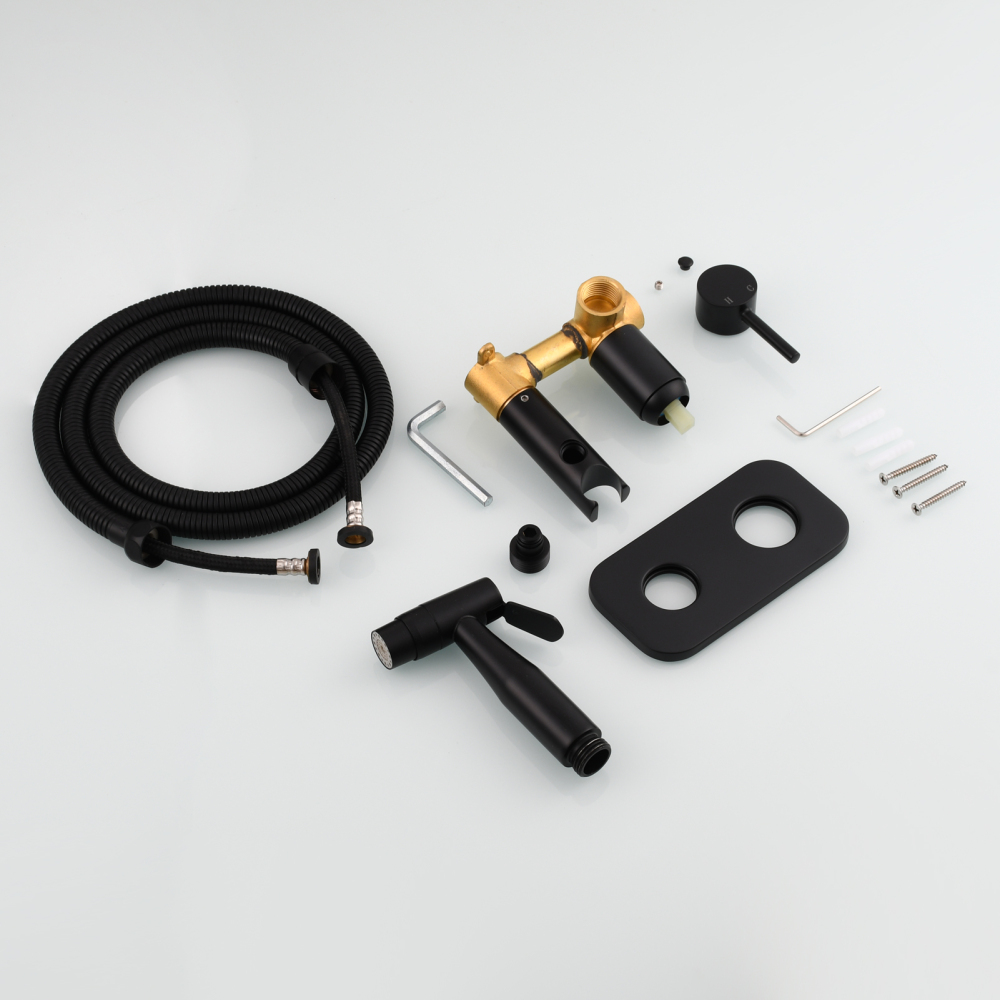

Package Includes

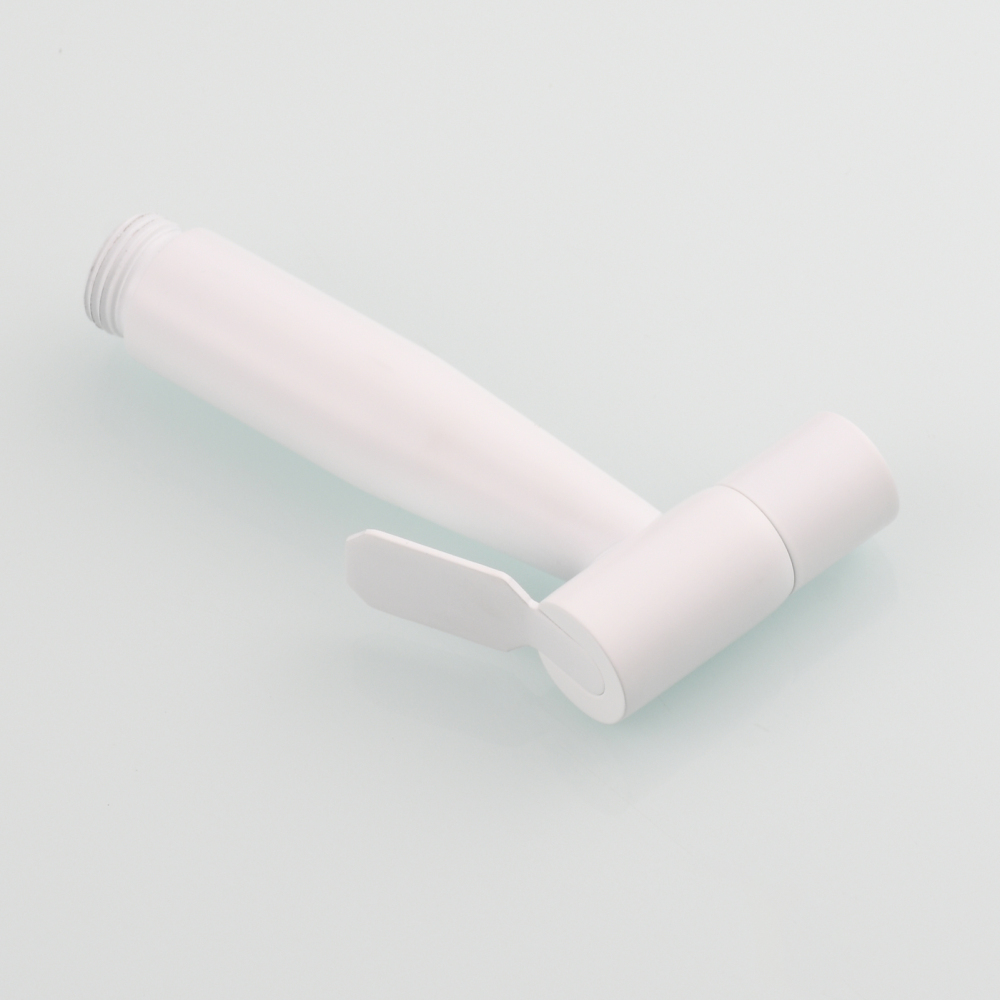

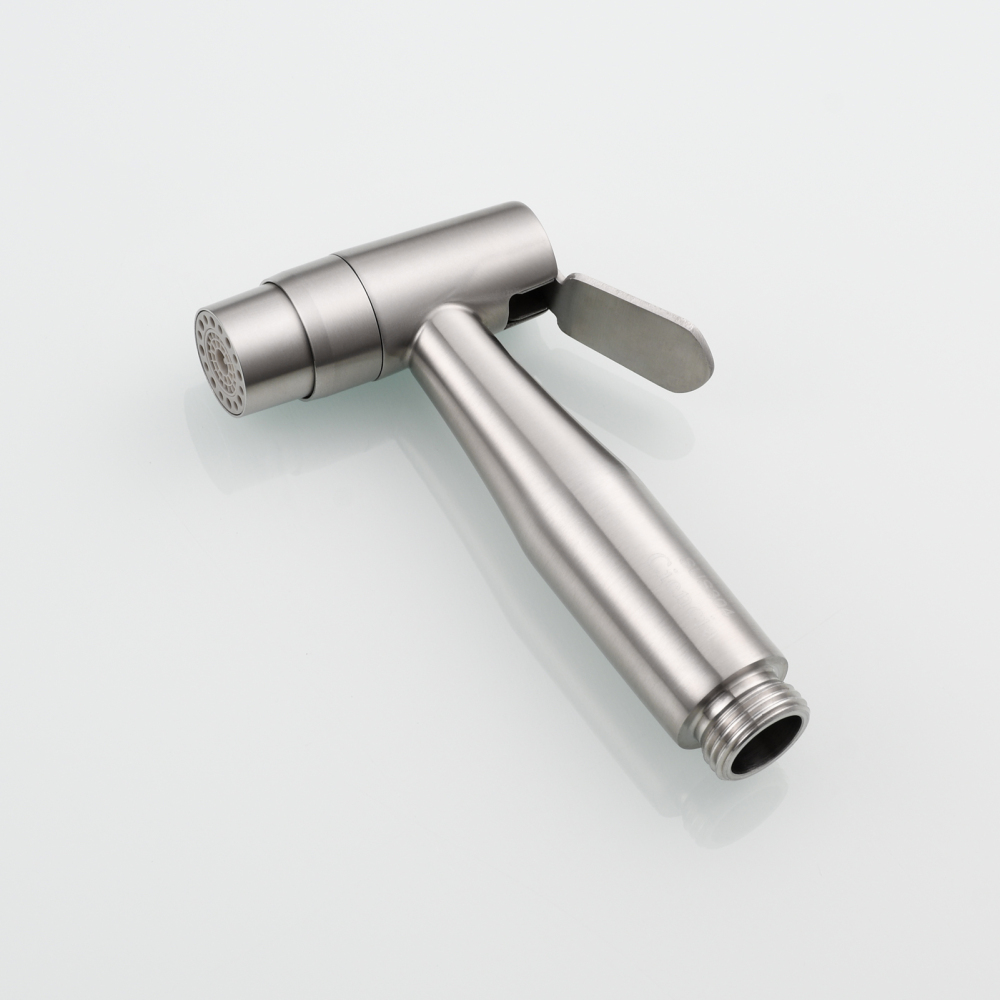

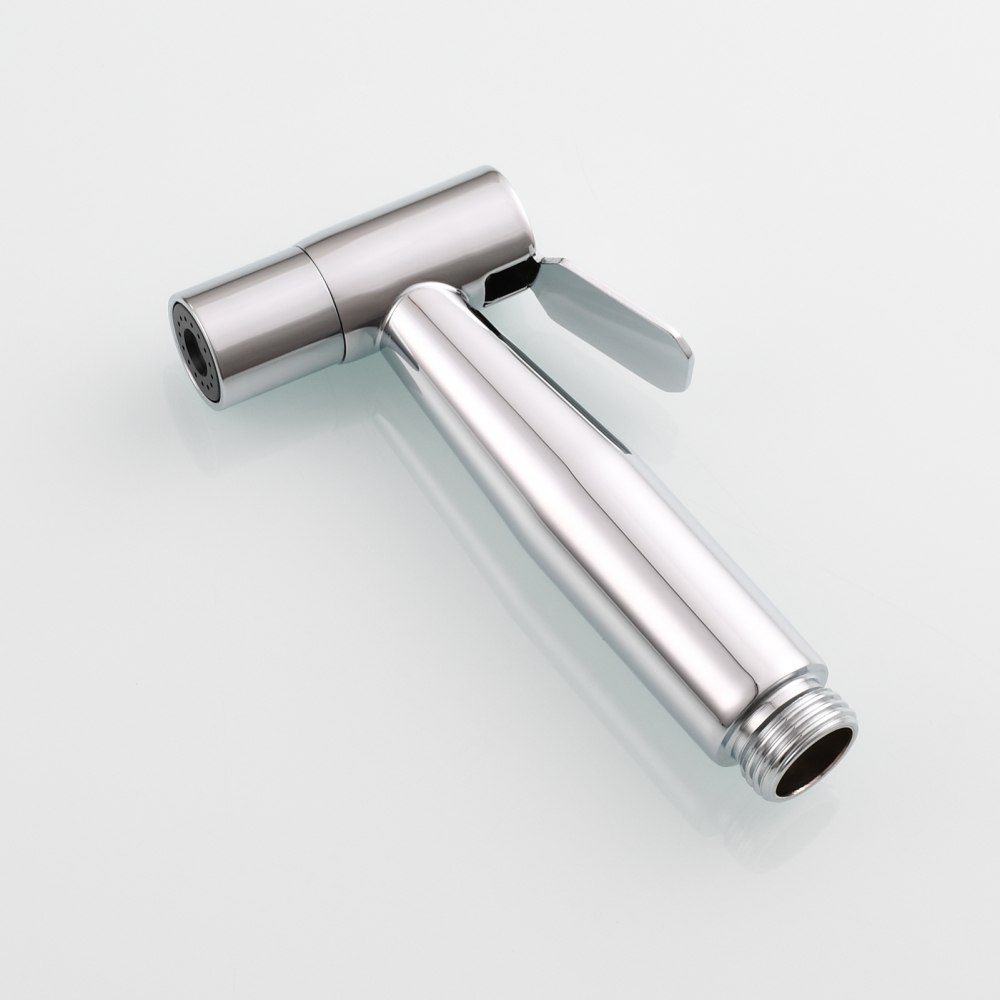

1 x Hand Held Bidet Sprayer Head
1 x Shower Hose 1.5m
1 x Thermostatic Shower Control Valve

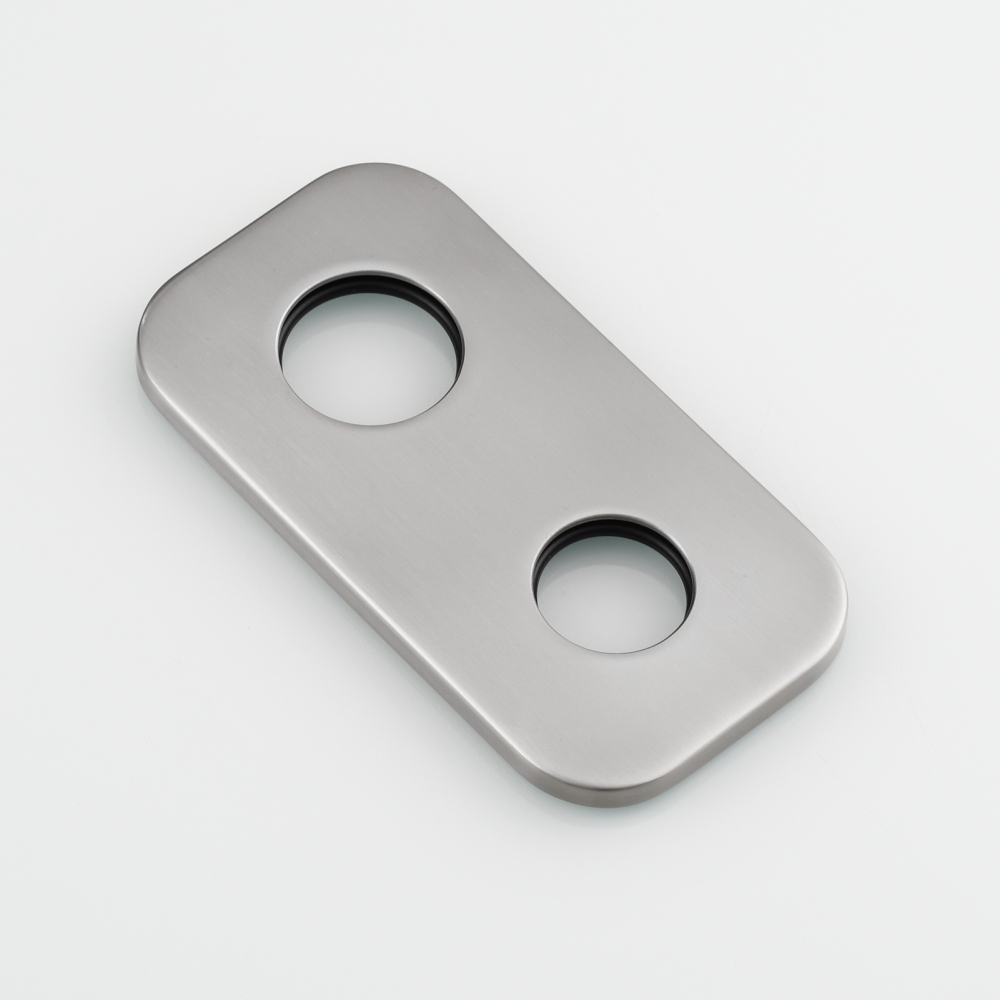

1 x Valve Trim

Install Method:

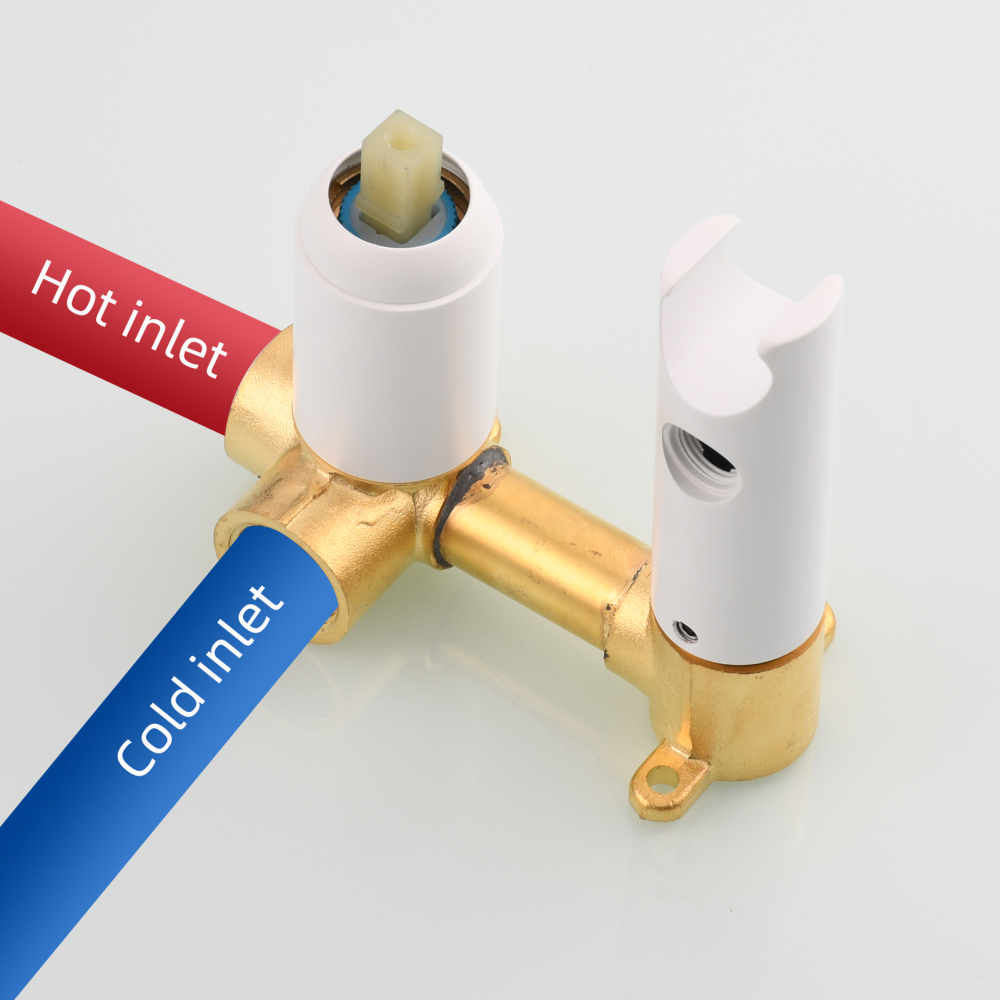

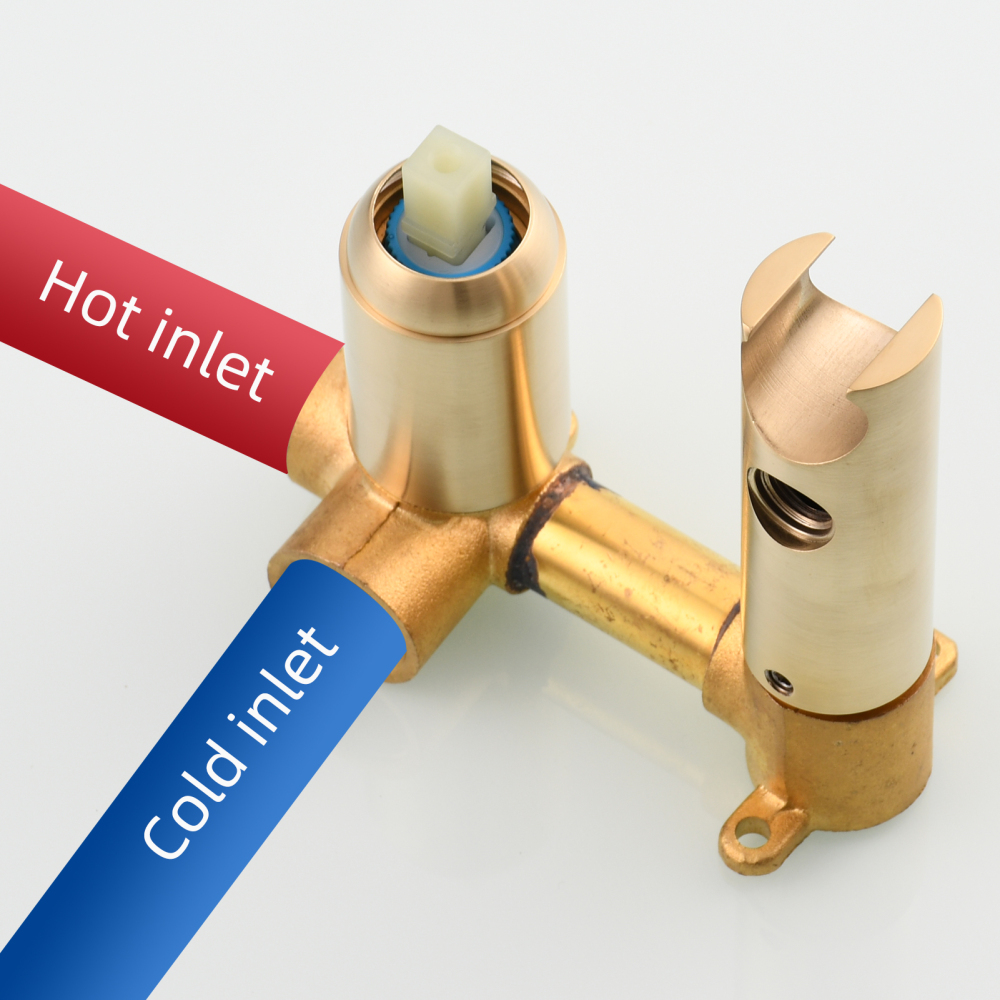

1.Connect the hot and cold pipe, then fix the body on wall
2.Put the cover through the body
3.Connect the joint to the body screw
4.Put the handle on the cartridge, fix the hexagon screw with socket spanner then put the plug in

Warm and Sweet Reminders:
1. When spraying very hot water, please put a rag on it or a rubber insulated handle to use avoid the risk of scalding.
2. When your hands are wet/soapy, you can dry your hands with a towel to avoid the sprayer is a little slippery.
SKU:WS024F9 Nickel (click to download)                Click to visit 1688

SKU:WS024CF3 Black (click to download)                Click to visit 1688
Bidet Sprayer Set Installation


Installation Video

►Video of Replace Cartridge


►Before You Begin
1. Shut off the main water supply.
2. Do not disassemble the main body, as it has been intalled & commissioned correcly & precisely belore loaving the factoary.
3. To avoid the faucet from jamming, Do flush the water pipe before installation.
4. After installation, make sure every joint is safely sealed (NO LEAKAGE).

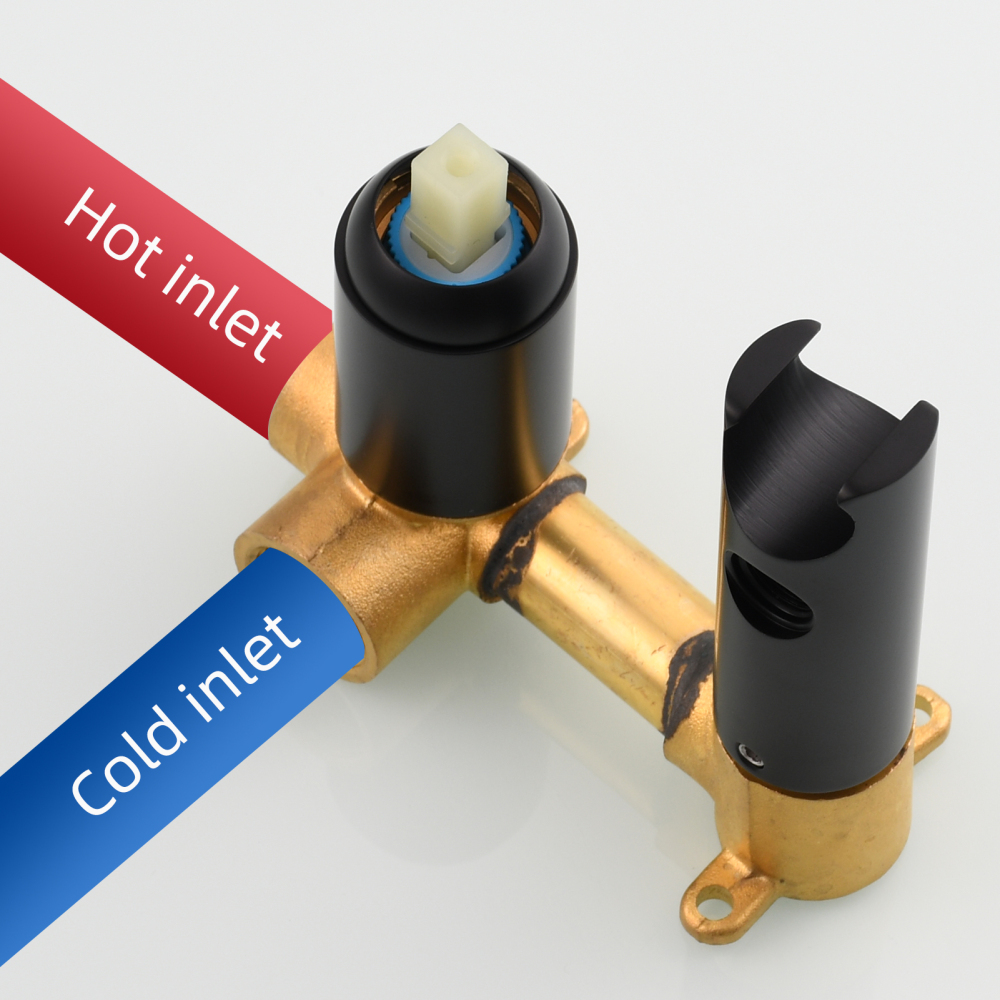

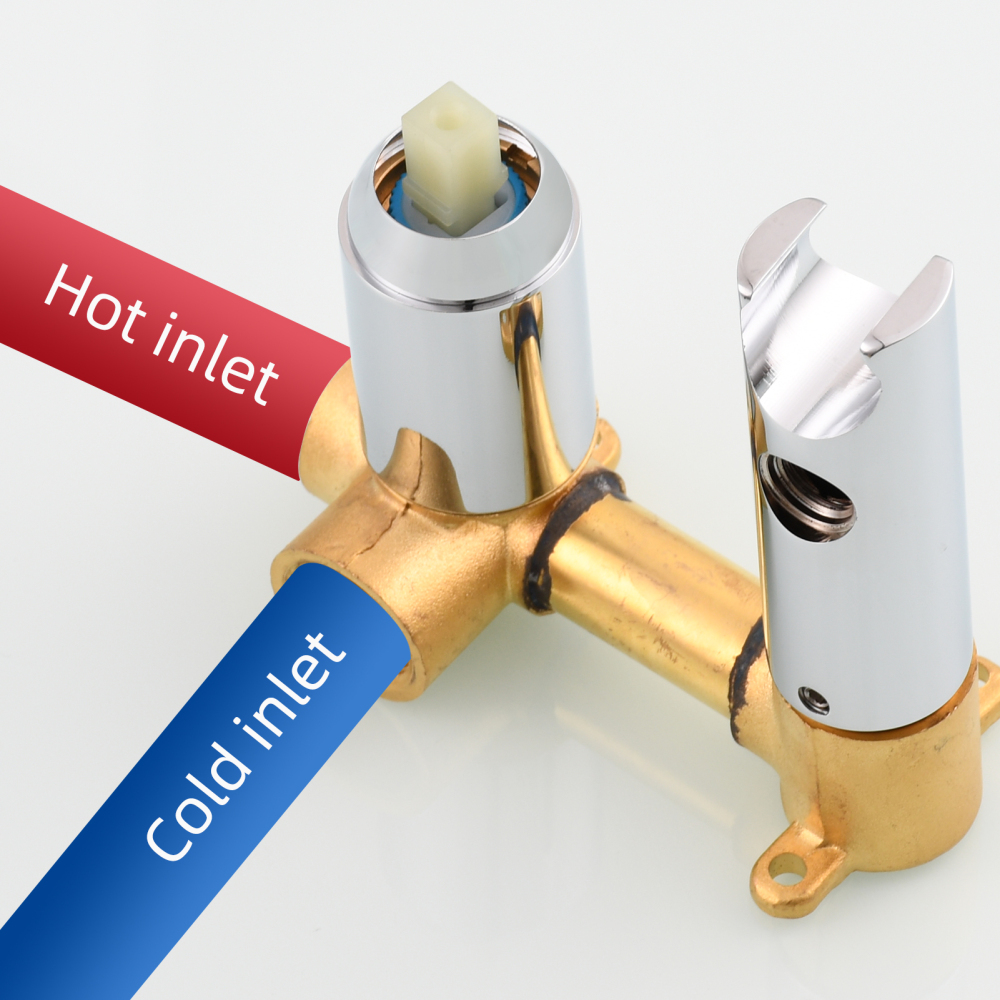

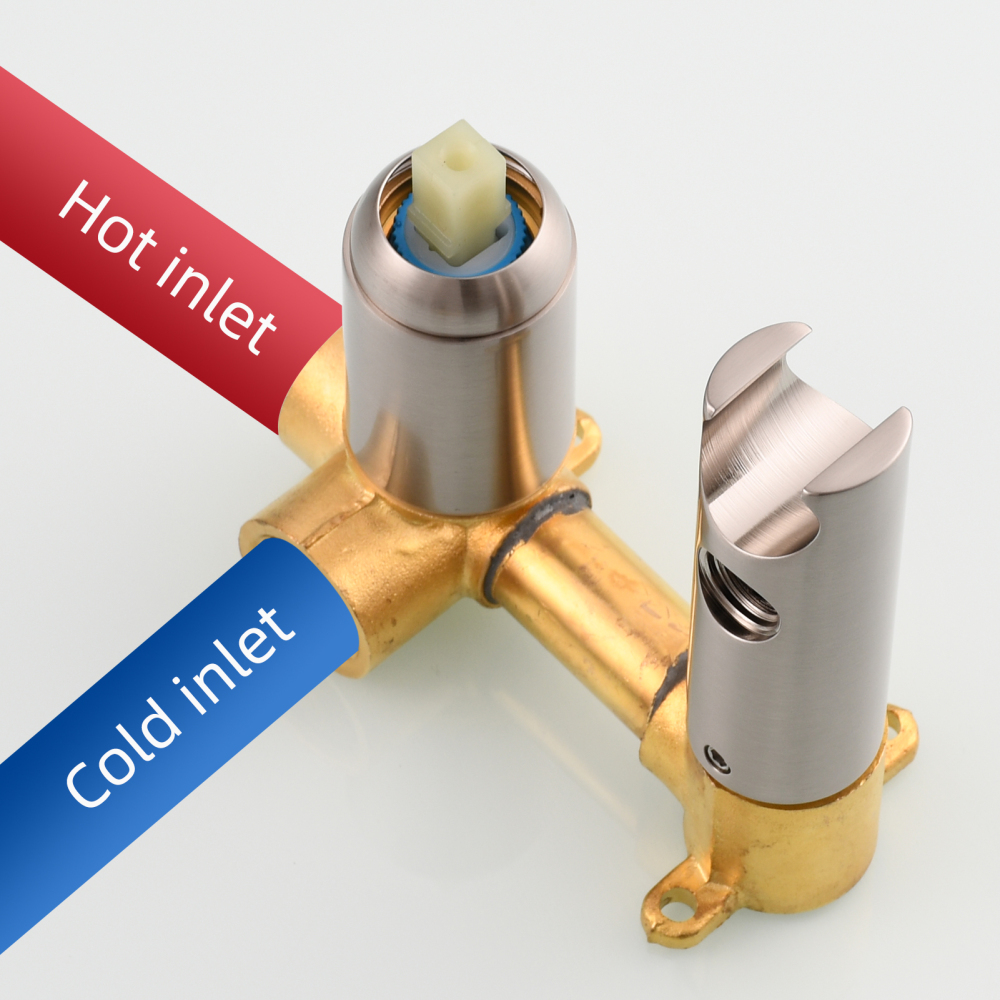

5. Make sure to connect the hotcold inlet pipe correcty, if standing in front, hot water pipe connecting to the leftand cold water pipe connecting to the down.
6. lt is recommended that installation of the product be done by a professional plumber.

Cleaning & Maintenance
To keep product clean and shiny follow the instruction below.
1. Flush with clean water and dry with soft cloth only.
2. Do not use any detergent, polisher, sane-cloth, or a scraper.
3. Do not use acid detergent.

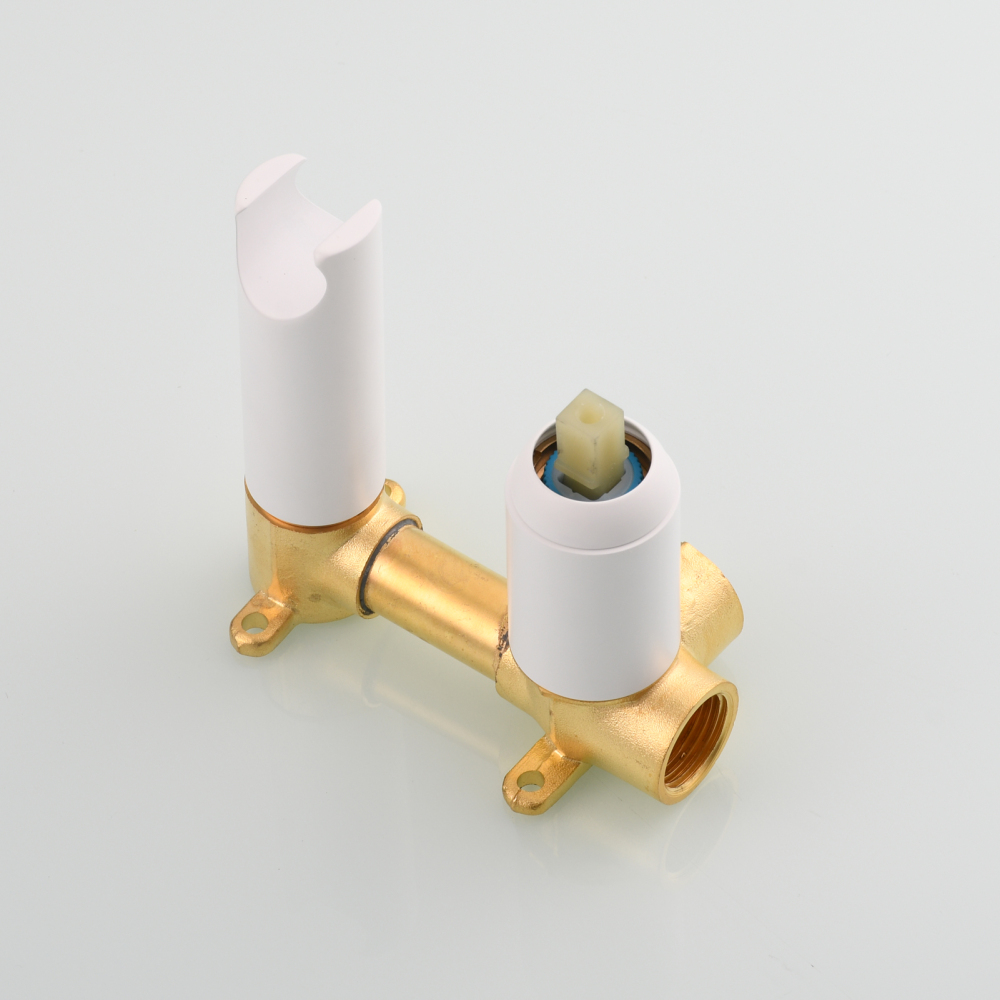

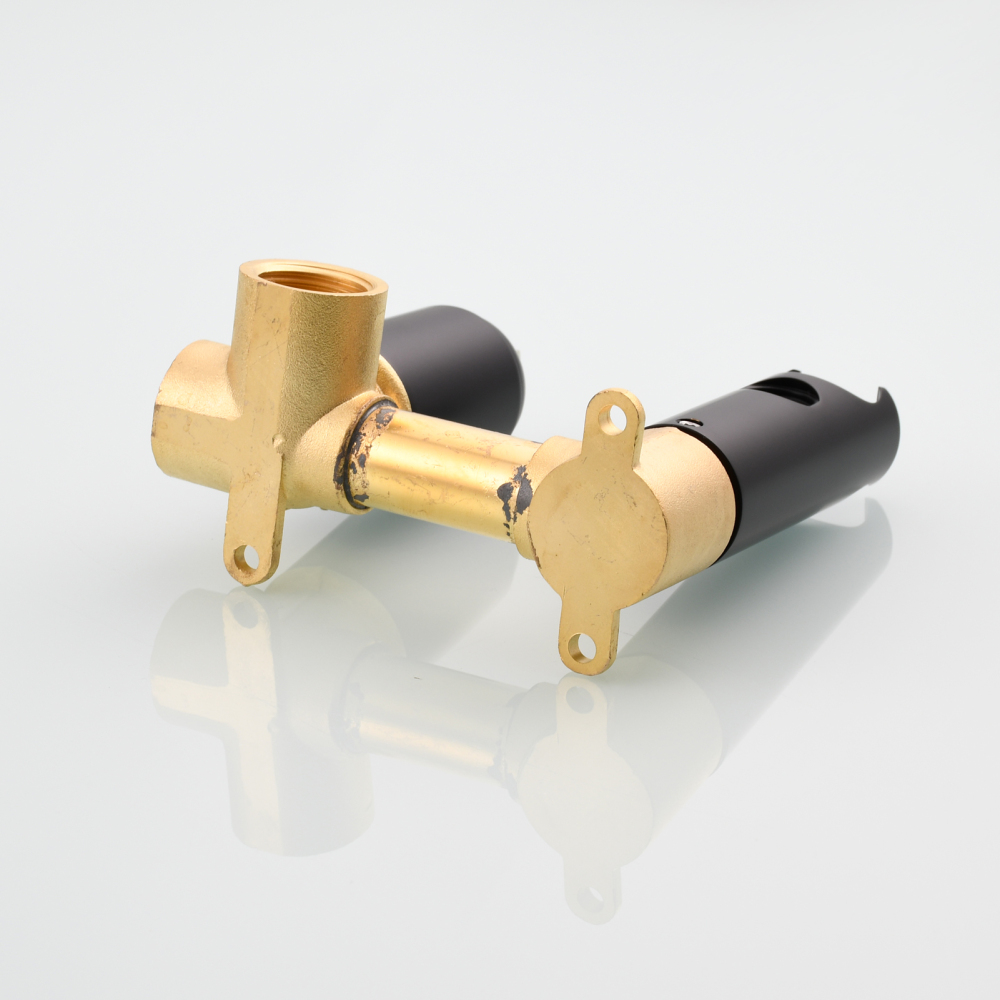

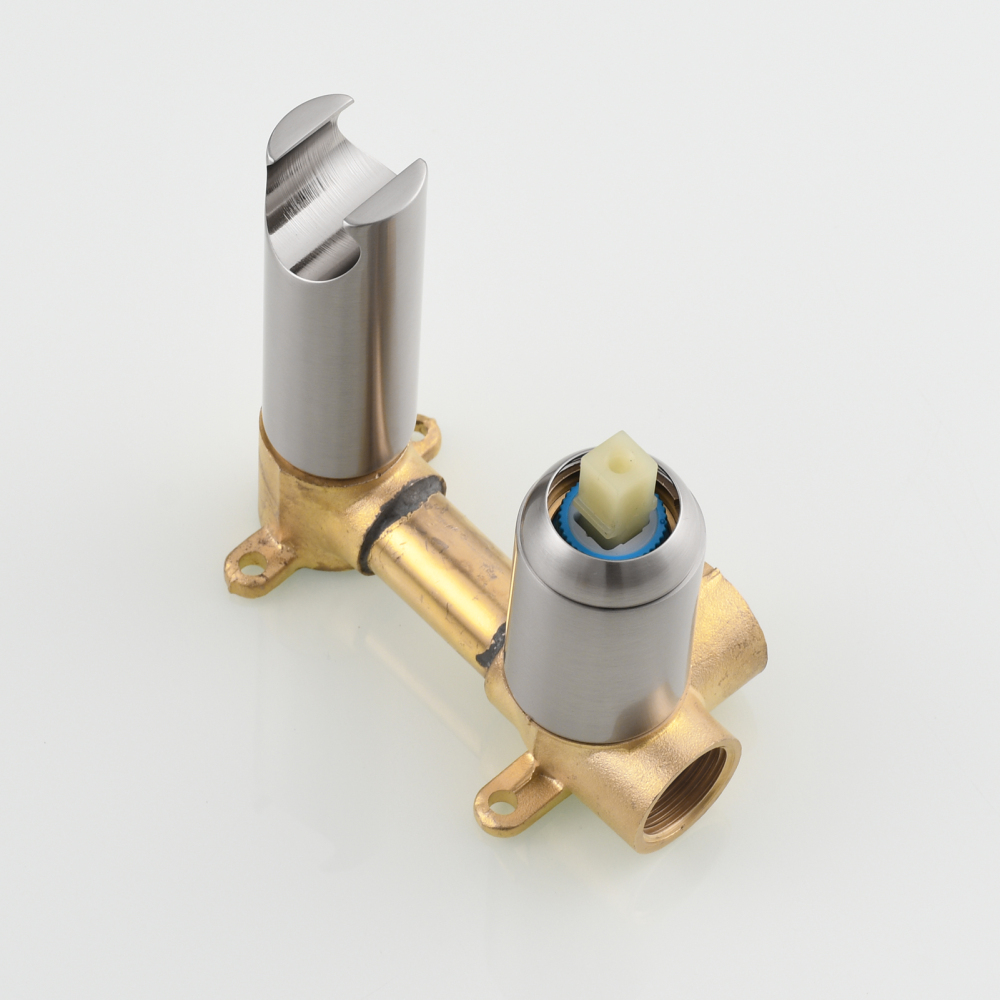

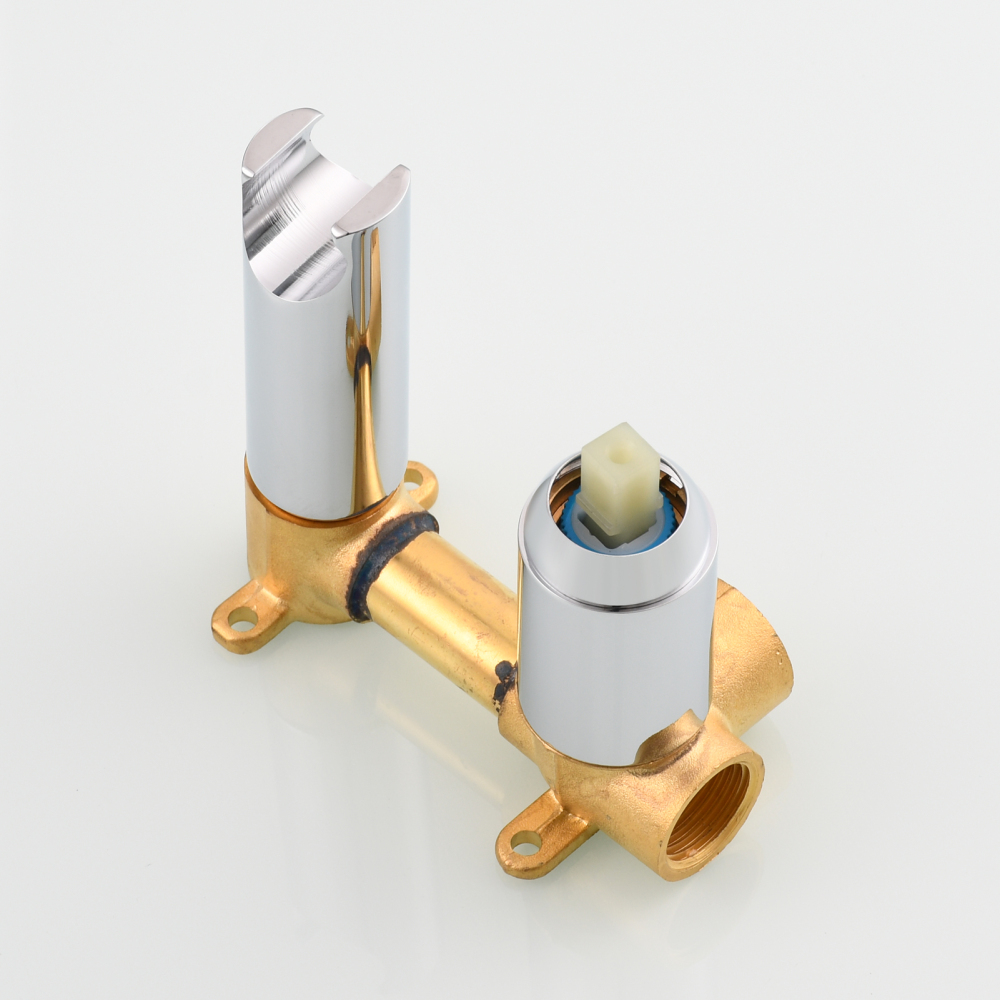

1. Position and fix the valve body into the wall. Make sure the valve body is completely level.
2. Connect hot and cold water inlets of the valve body to the main water supply. (Solid copper pipes are recommended for the connection)

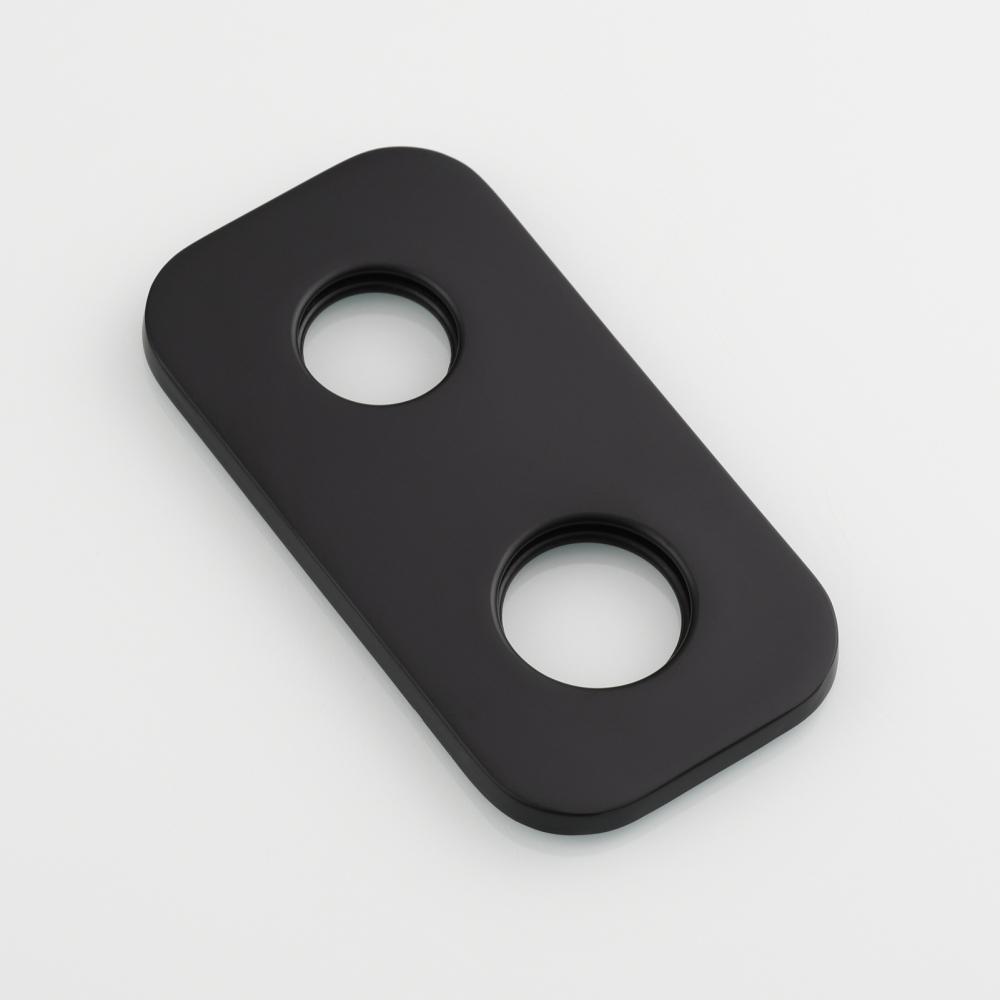

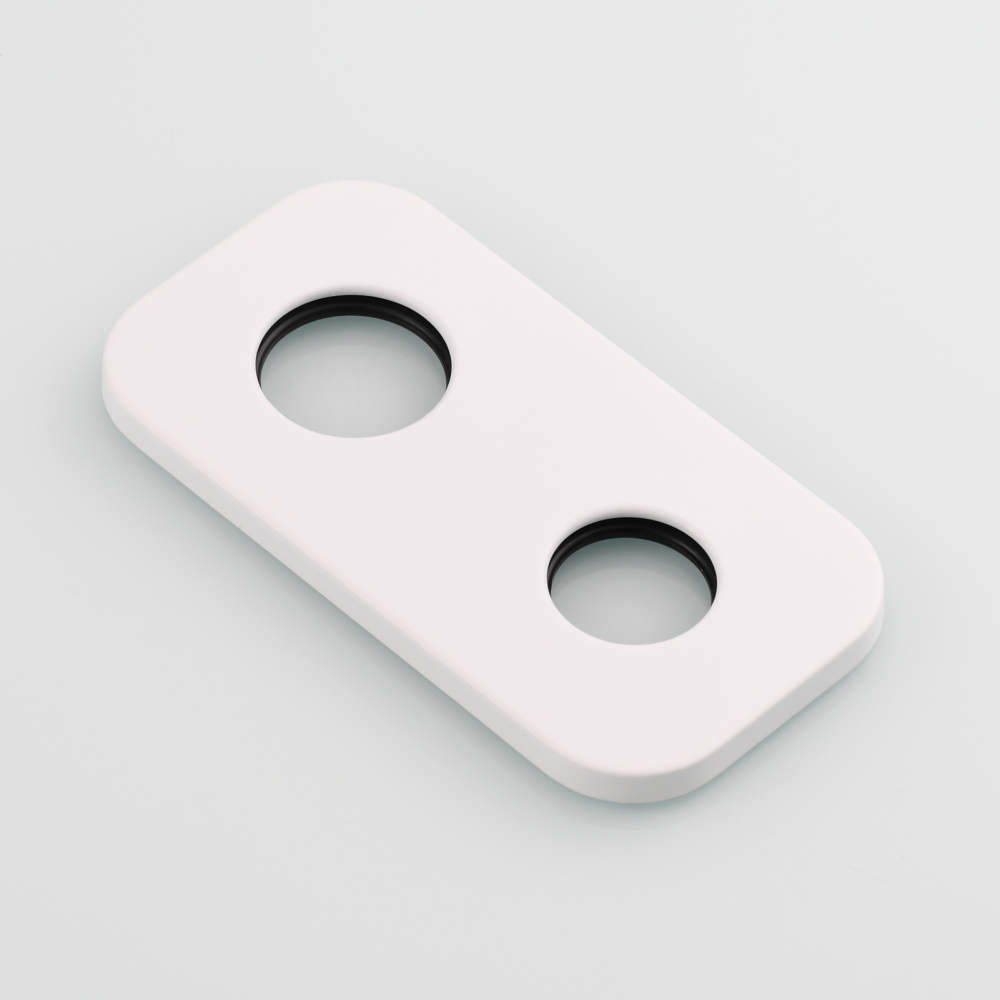

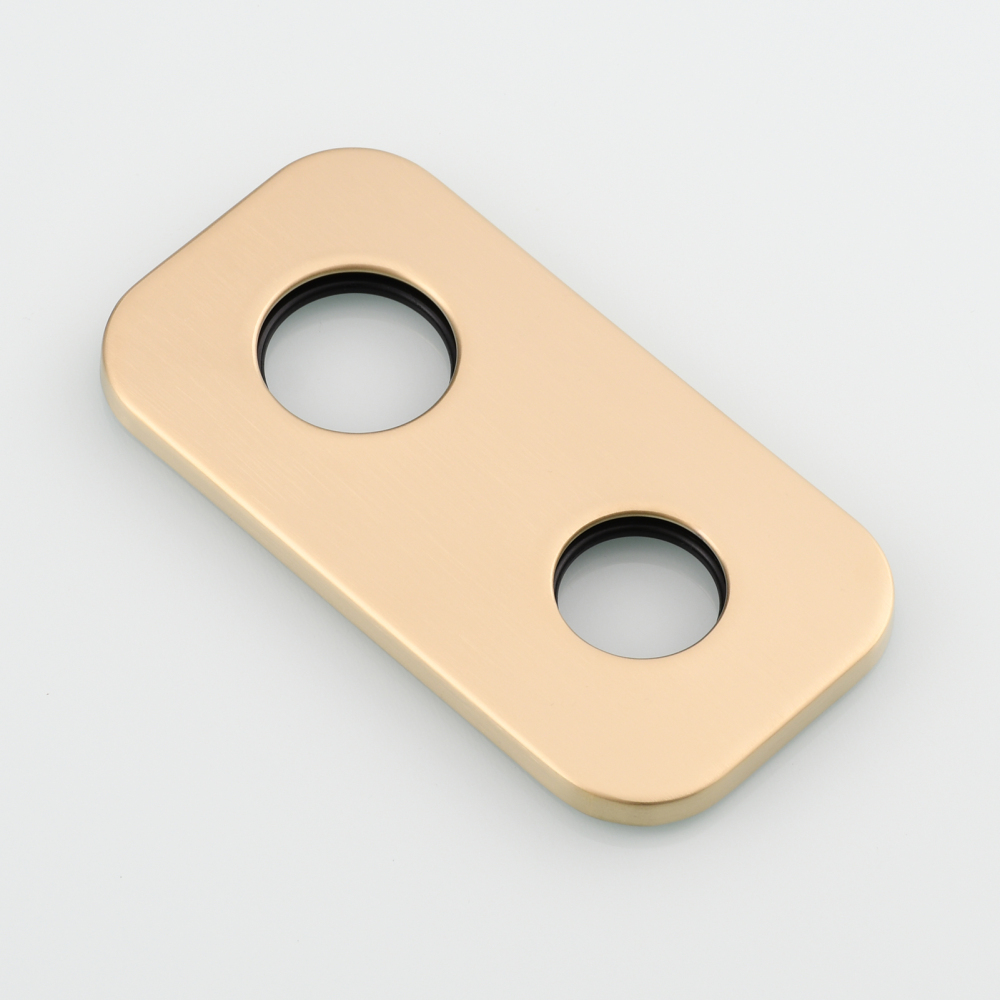

3. lnstall the escutcheons onto the valve body against the finished wall.
4. Place the handle and fix the set screw with Allen key, then put on indication button. Apply Teflon tape to the thread of the spout. Then screw the spout into the valve tightly.
