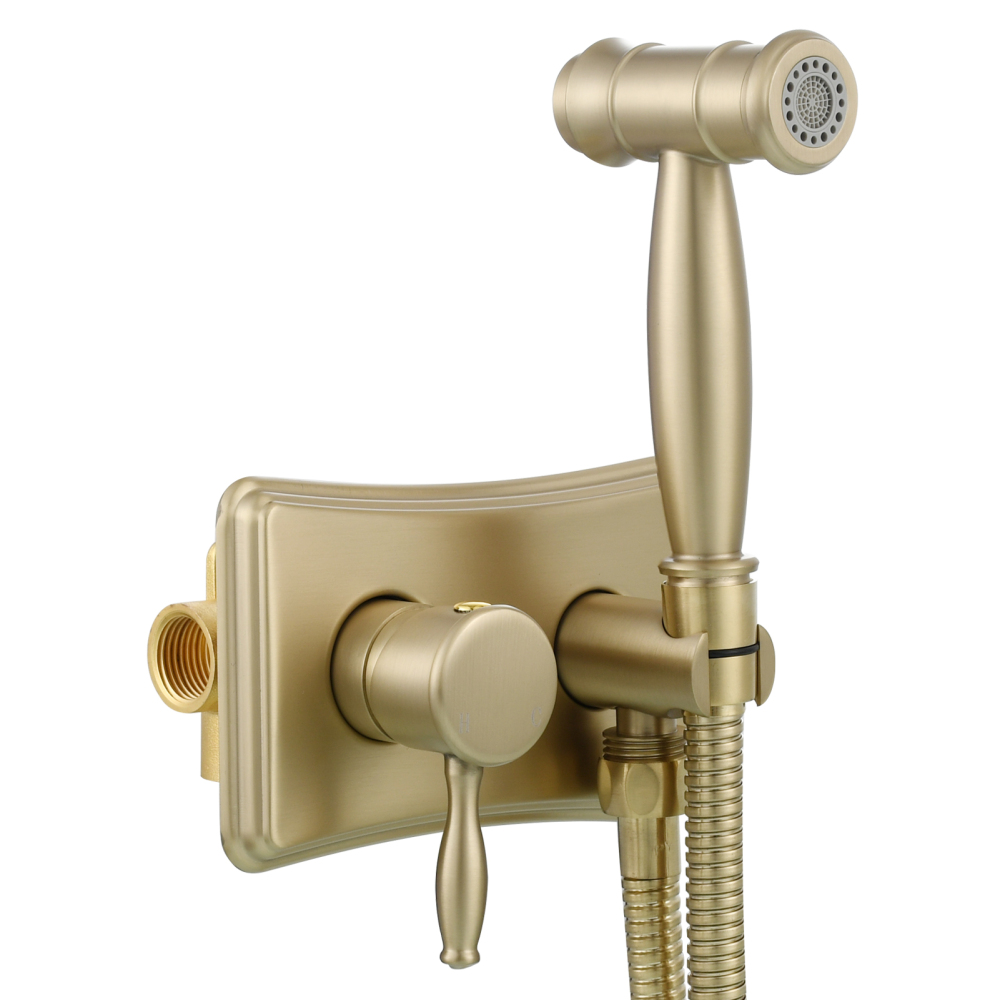

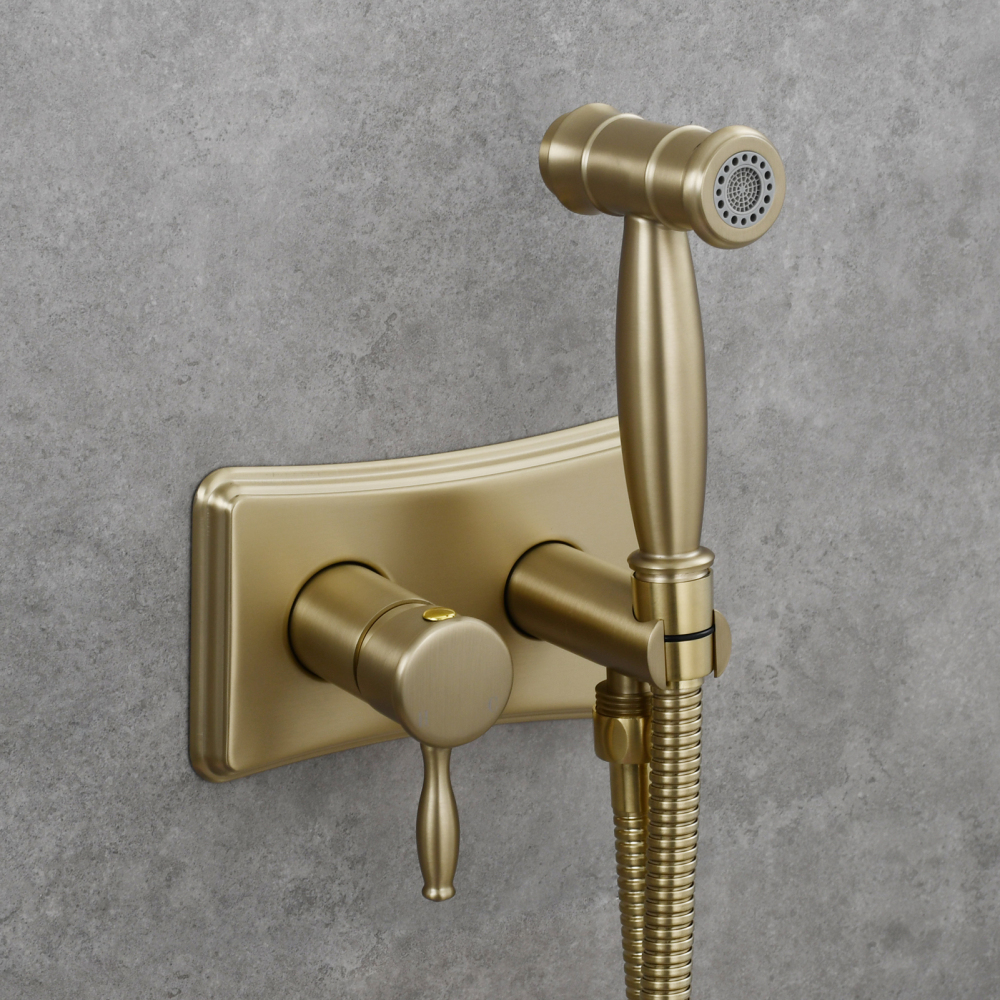

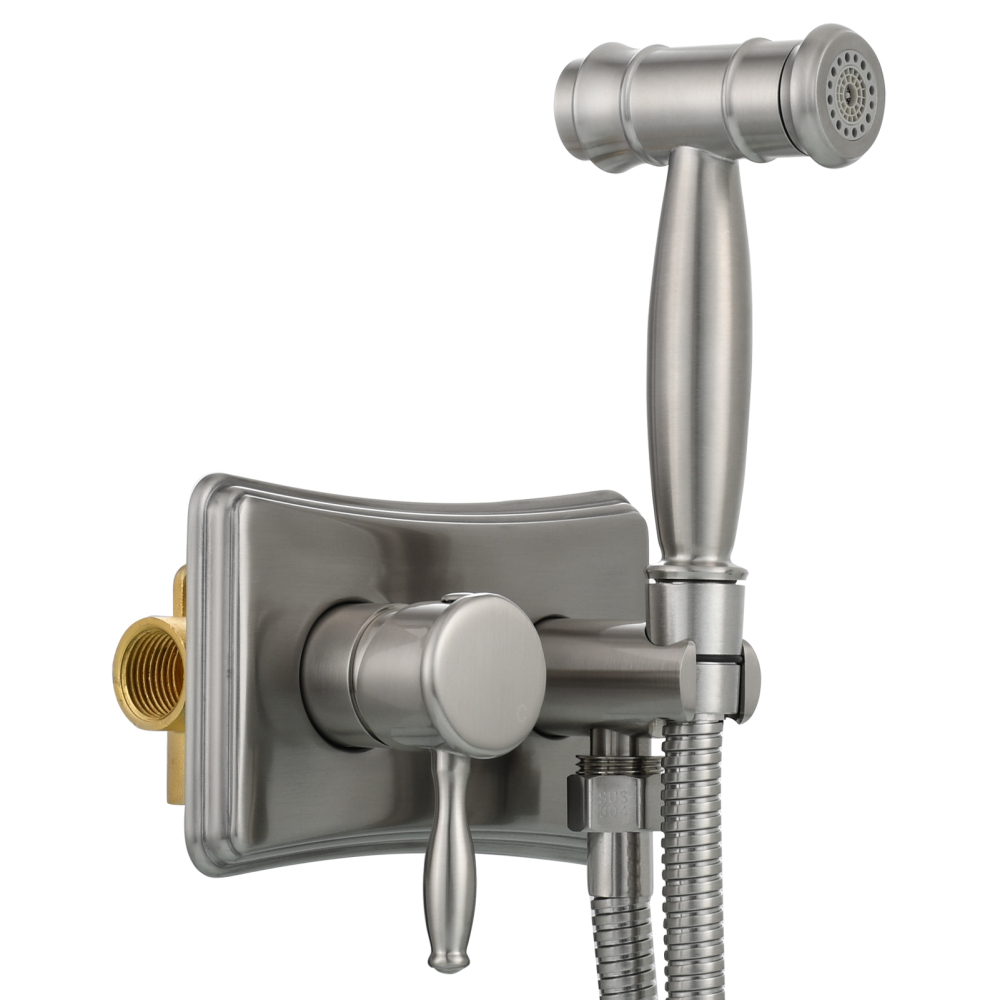

Tecmolog Handheld Bidet Sprayer Set Stainless Steel Bathroom Cloth Diaper Sprayer Shattaf for Toilet Warm Water, Black/Brushed Nickel

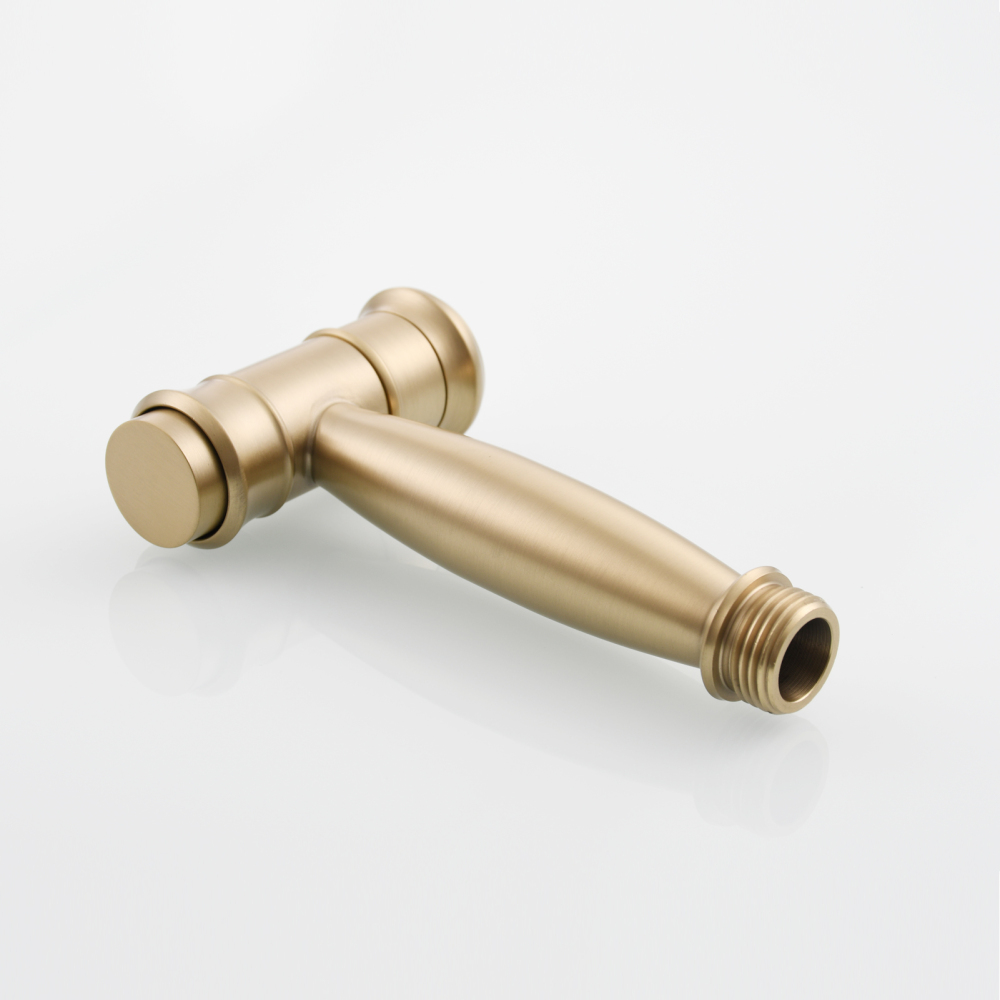

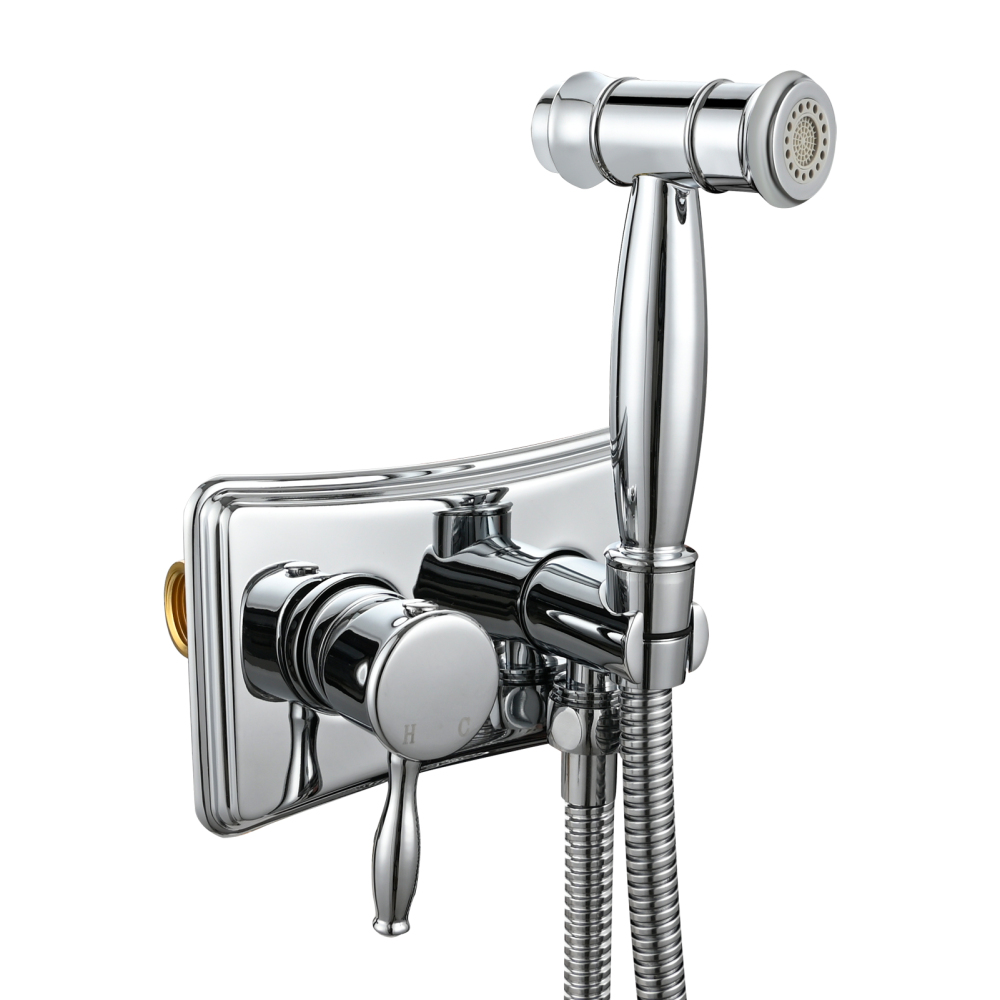

Antique style bidet sprayer set

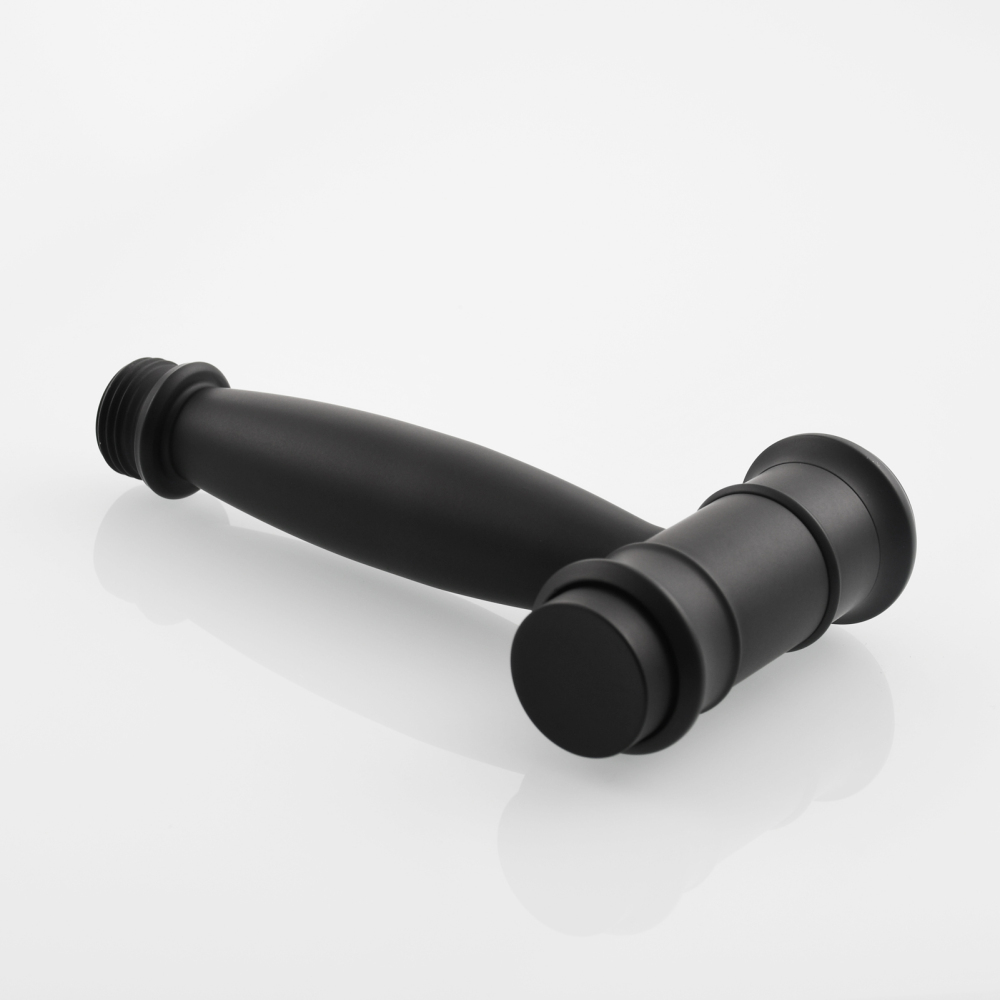

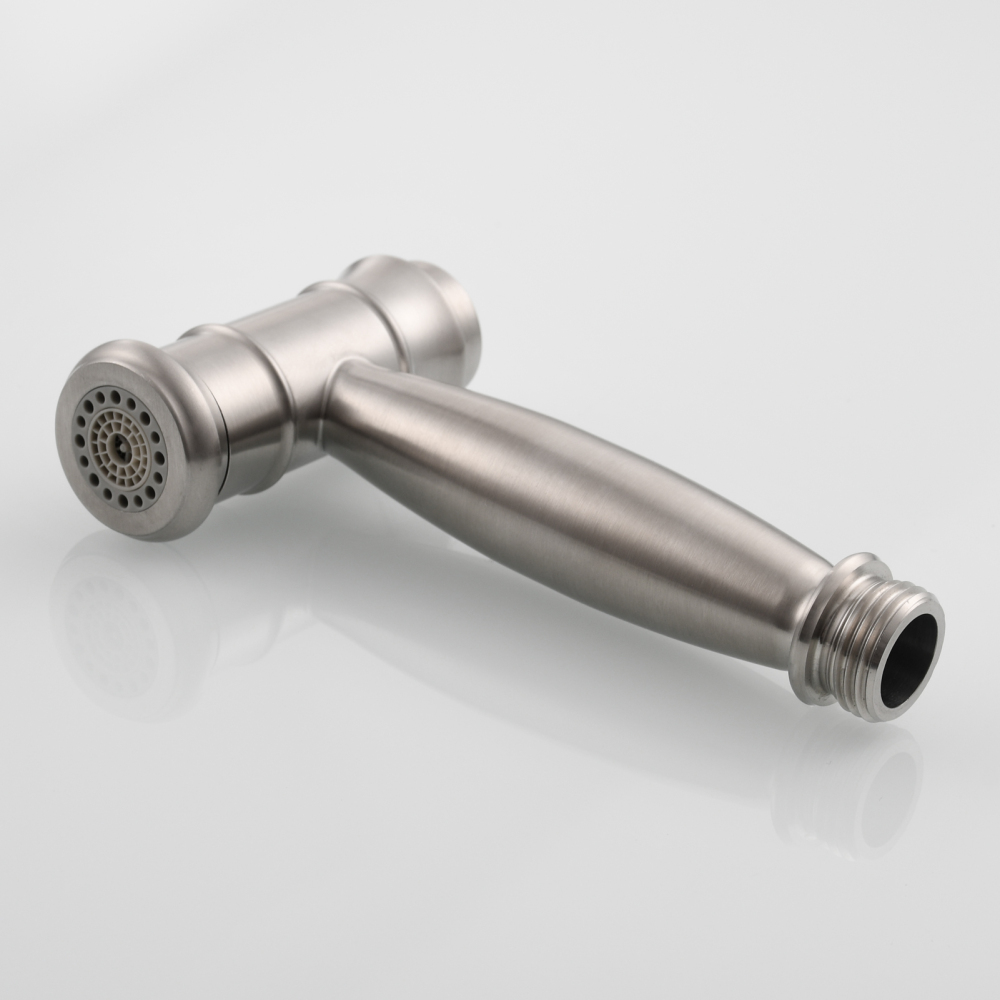

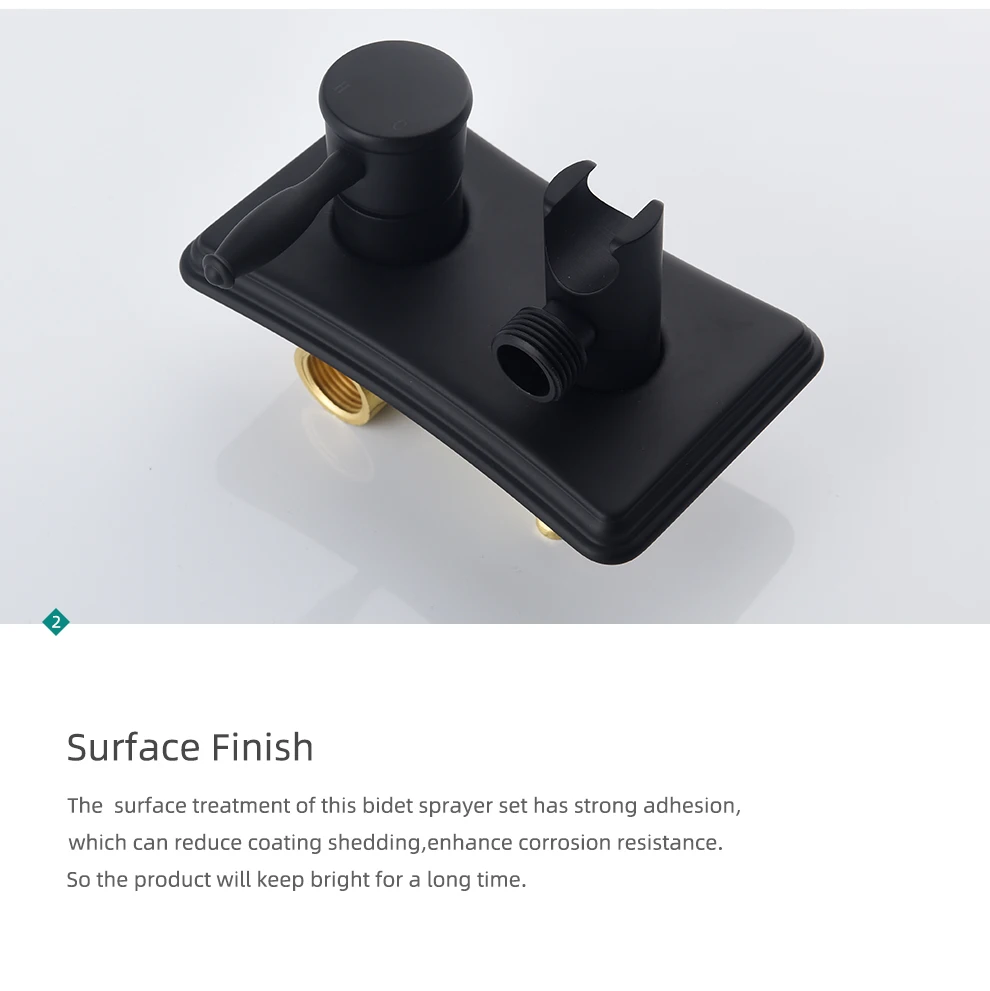

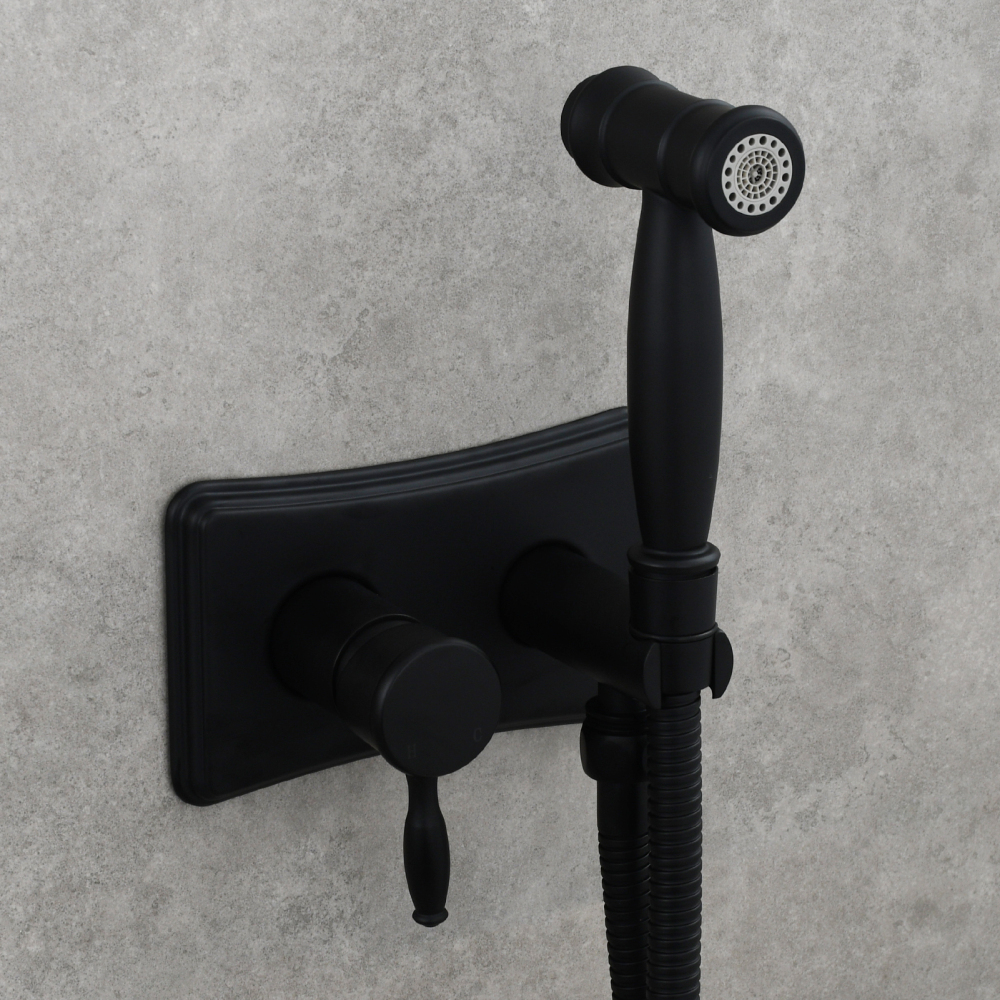

Two surface finishes: black and brushed nickel
  • Style:
    Nickel gold
  • Ships From:
(10000 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Specification
  • Installation
  • Dropshipping
  • Reviews

Five Highlights:

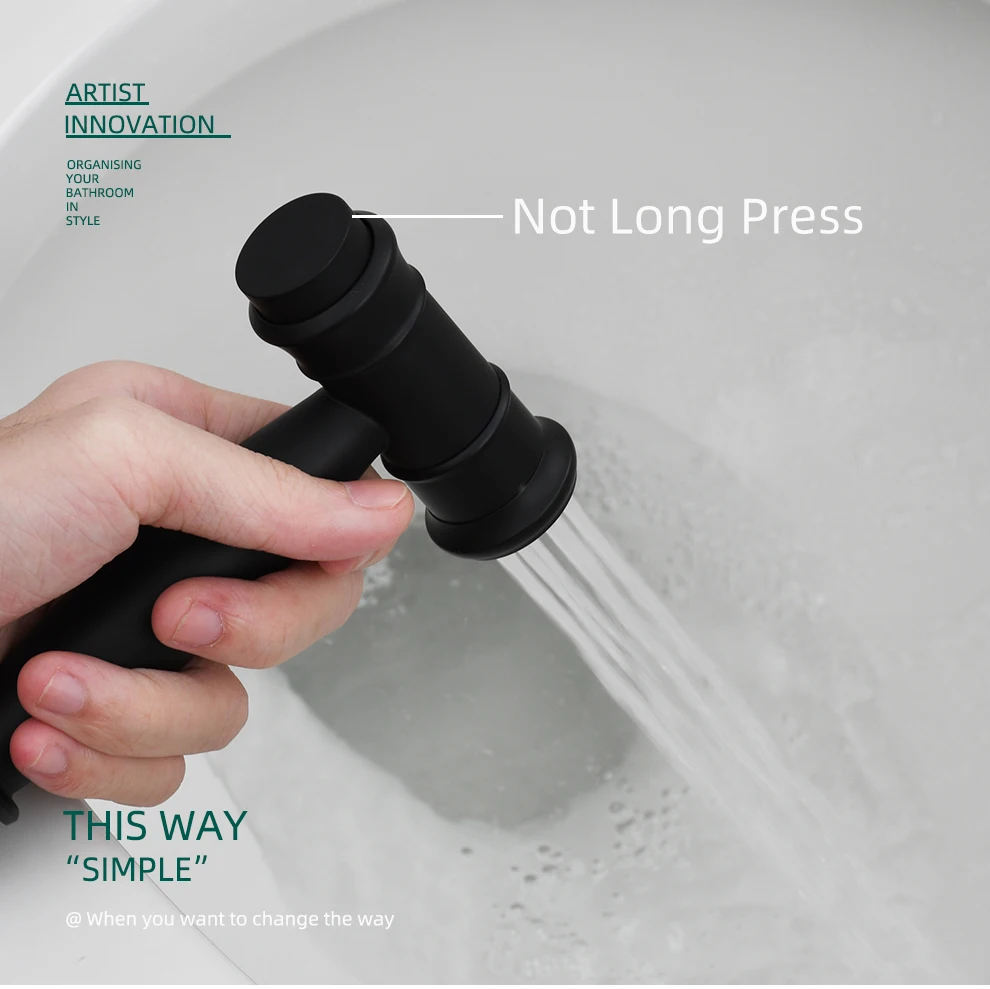

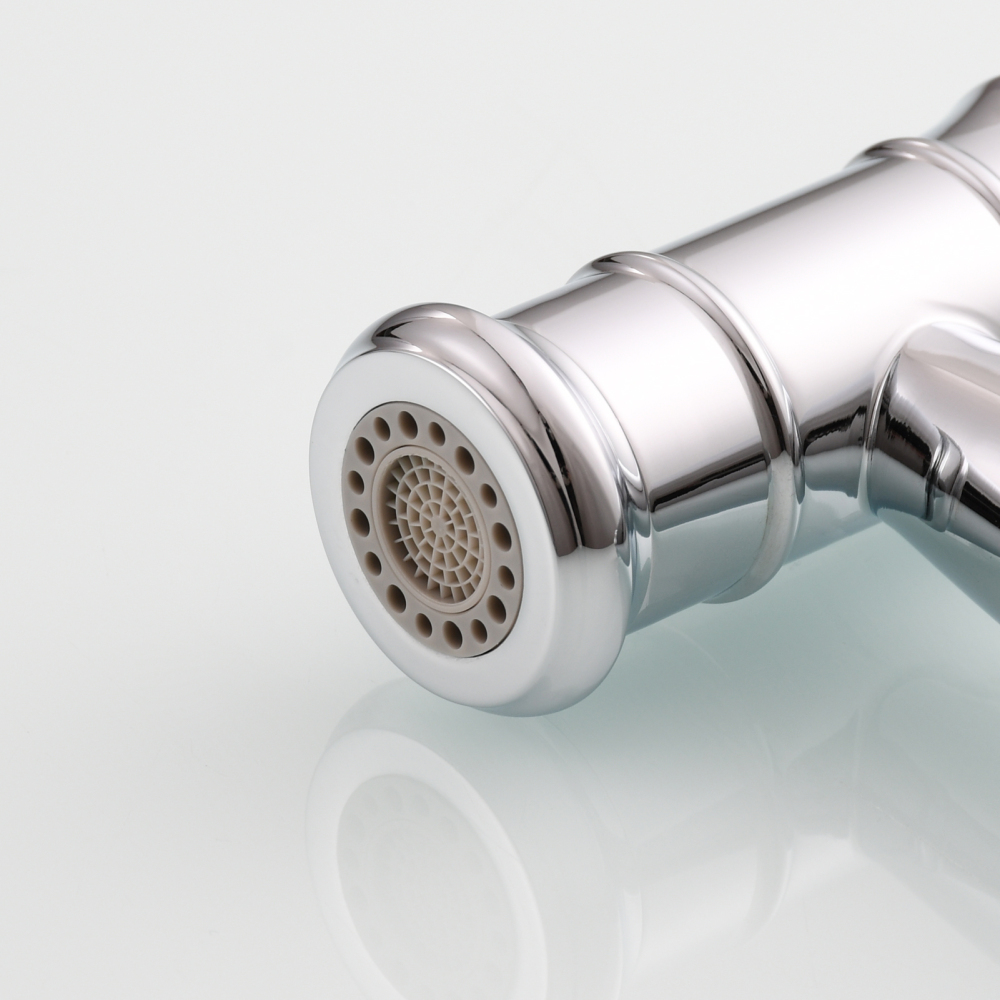

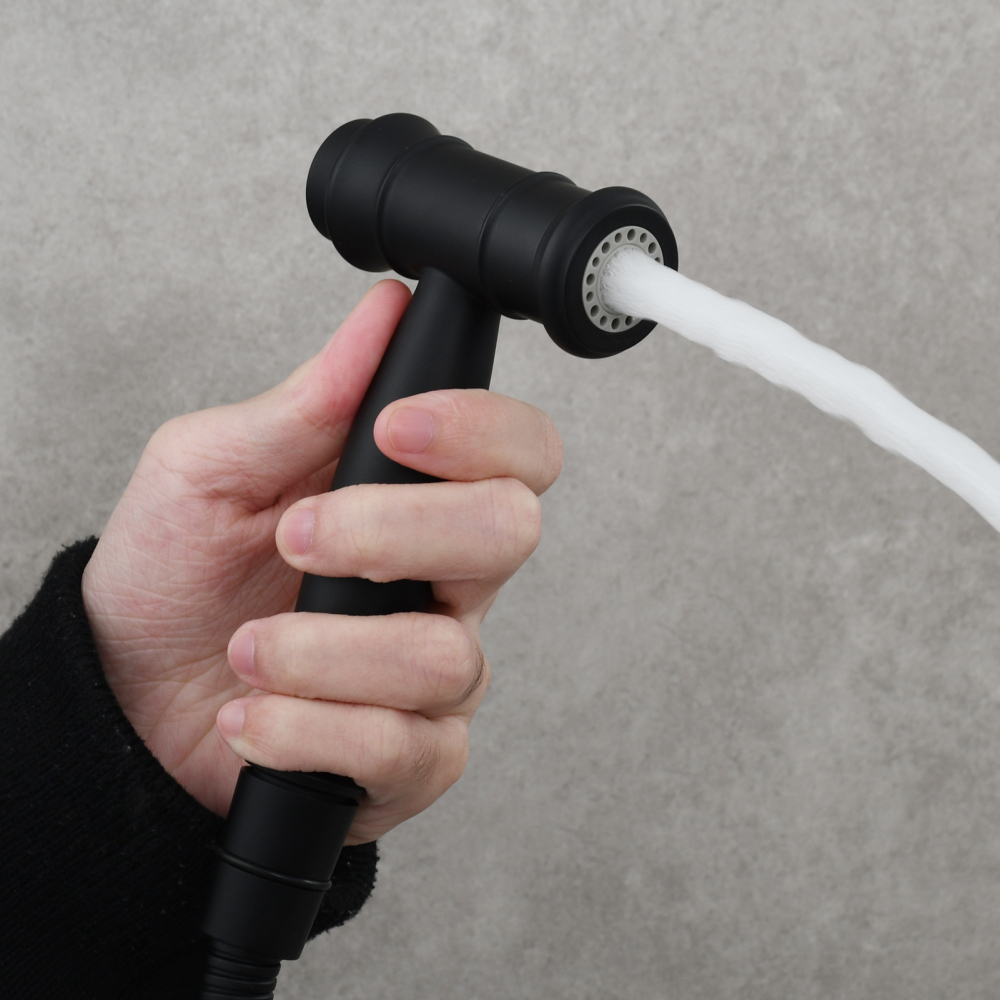

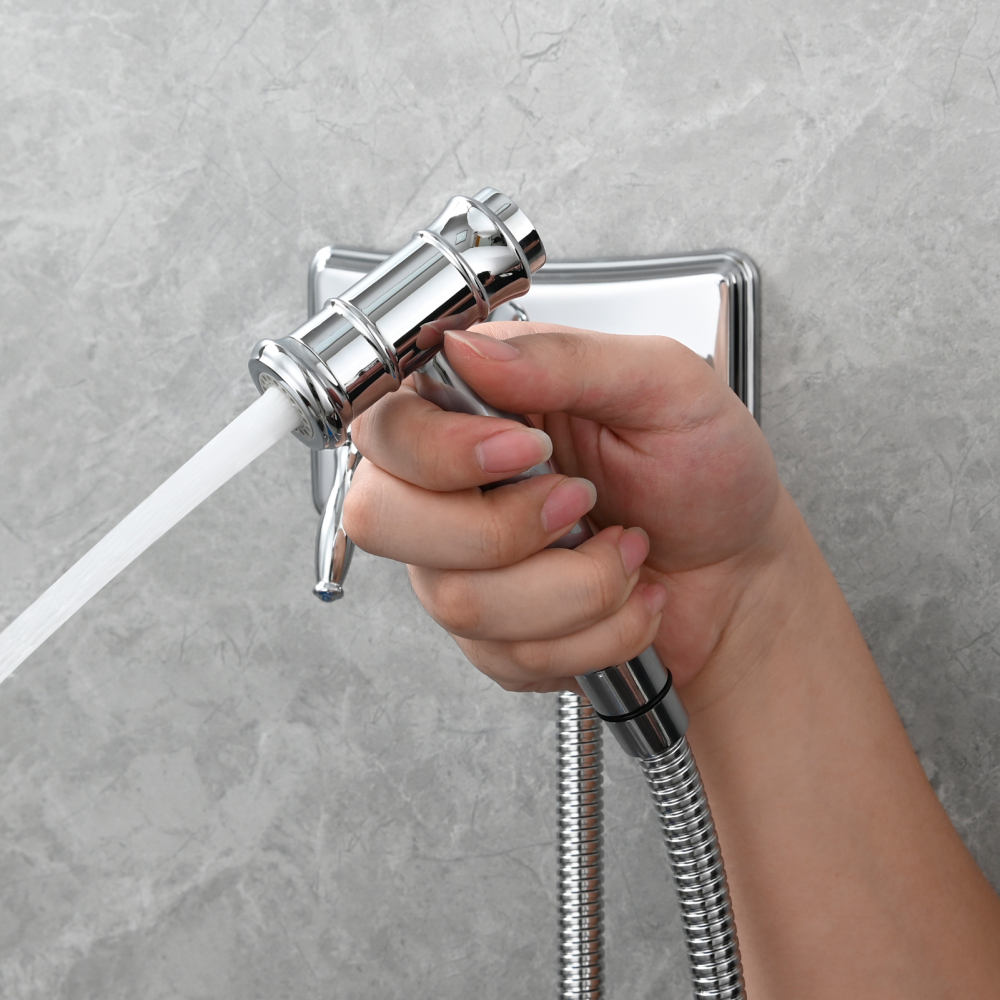

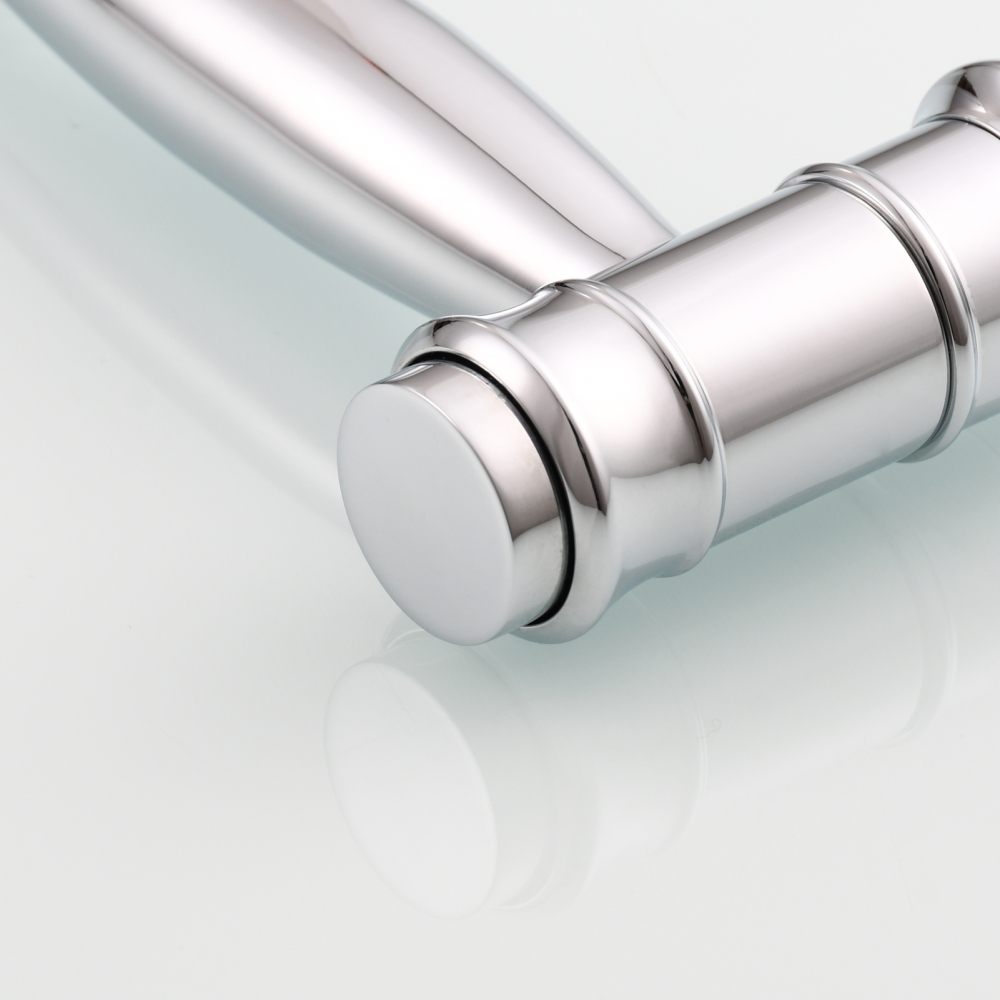

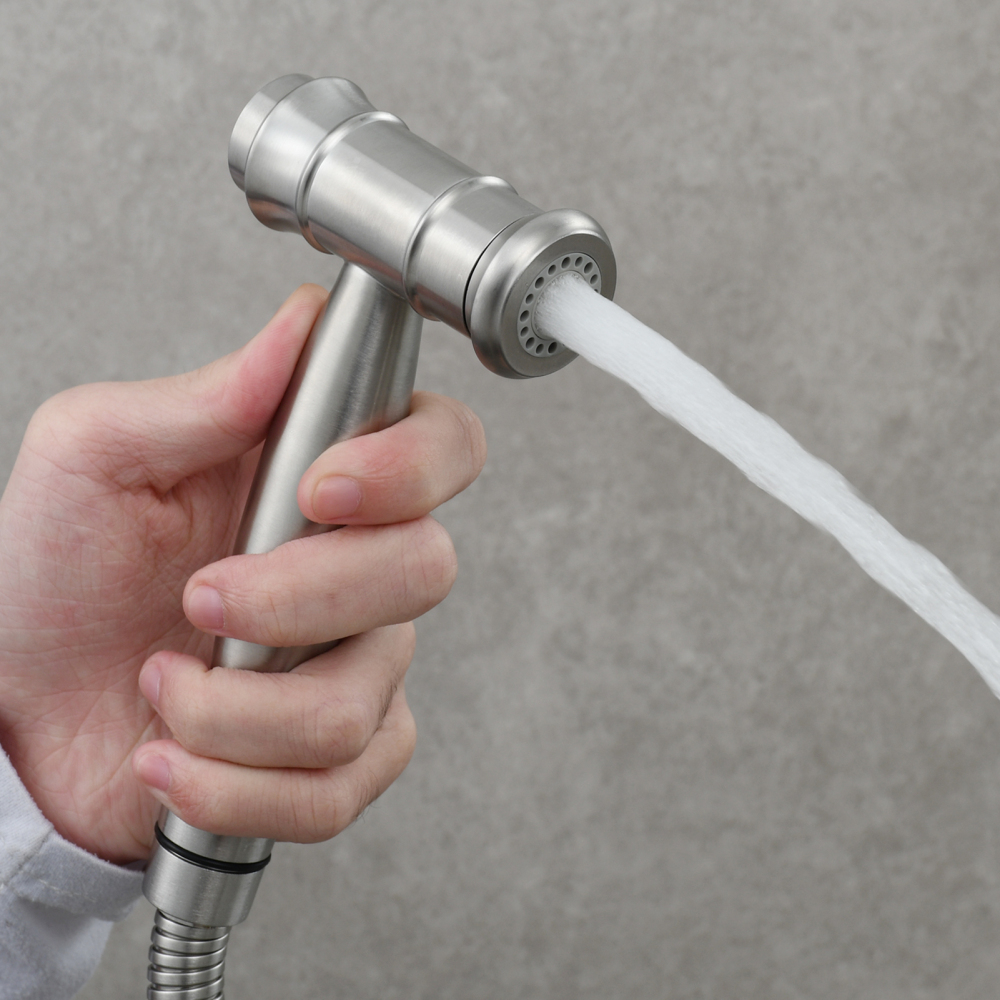

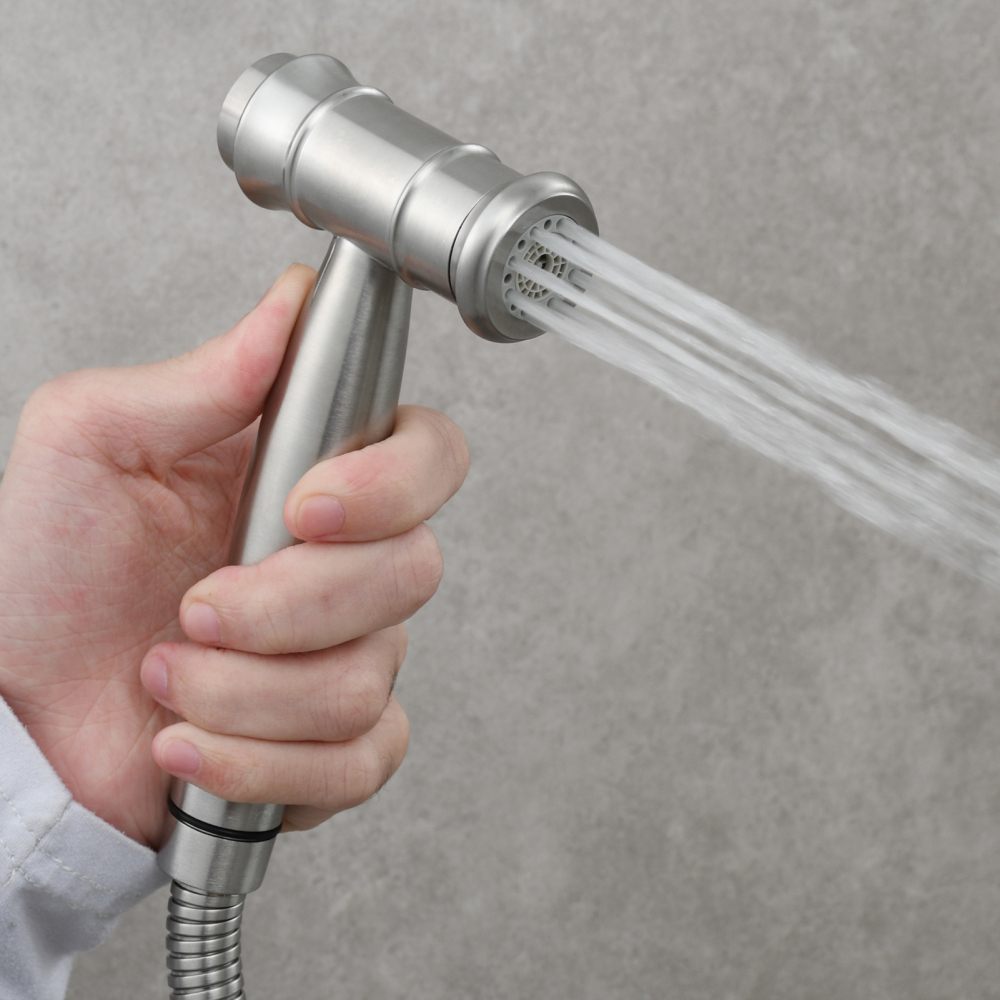

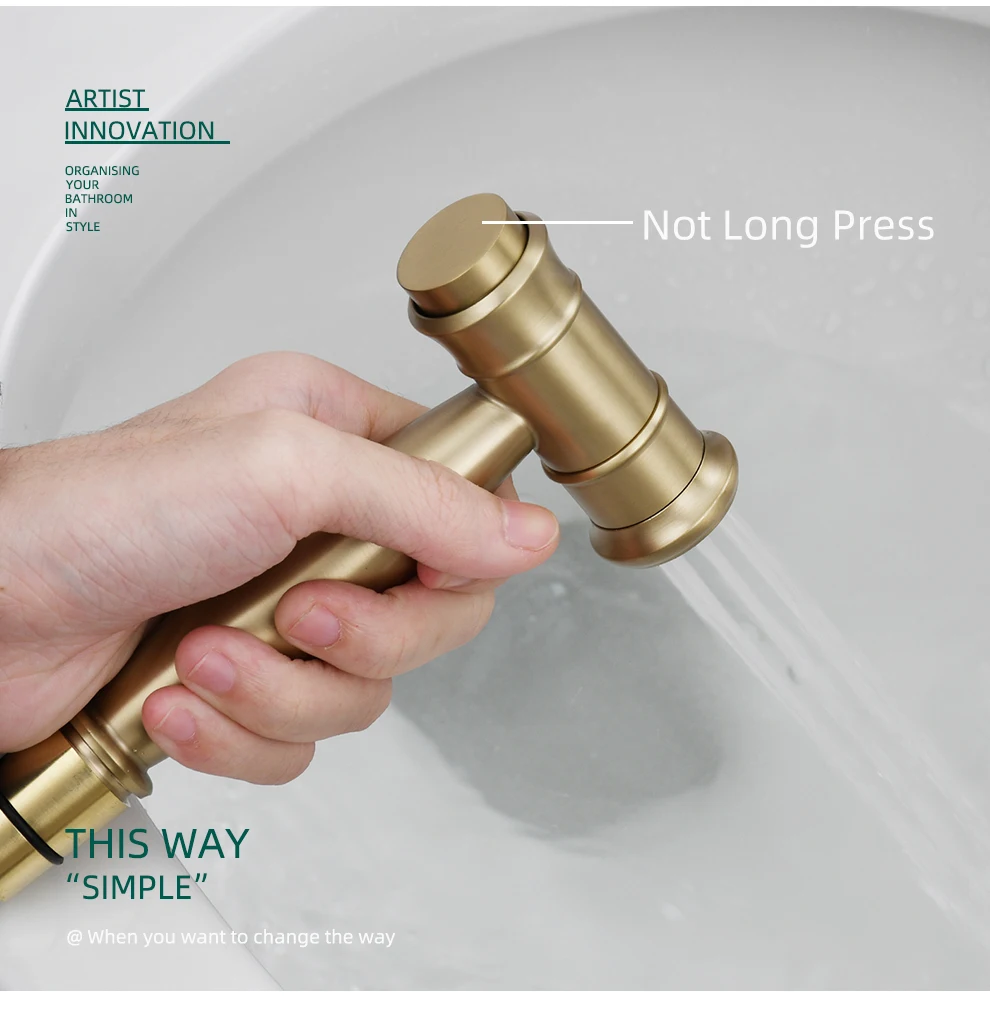

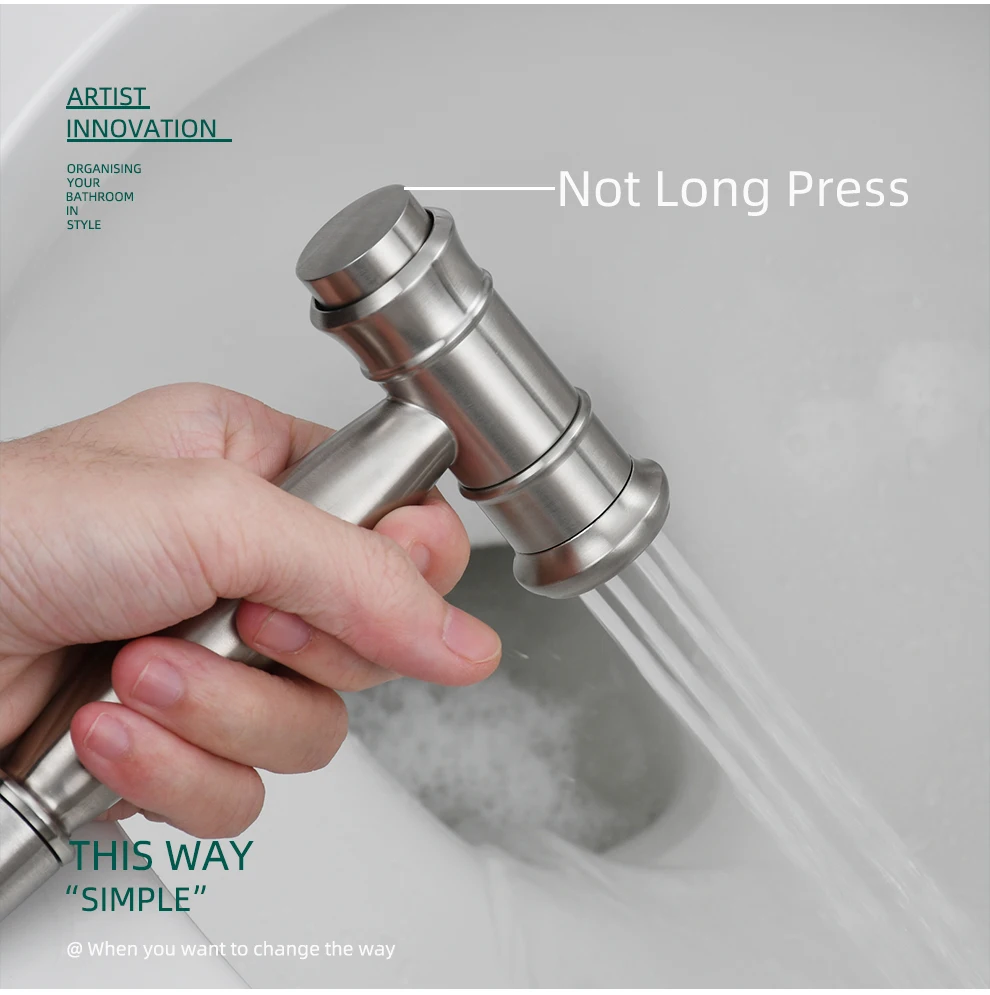

① Portable Bidet Sprayer: This is push on-off button-type bidet sprayer and it is easy to use and release your hand without keeping press when you open it

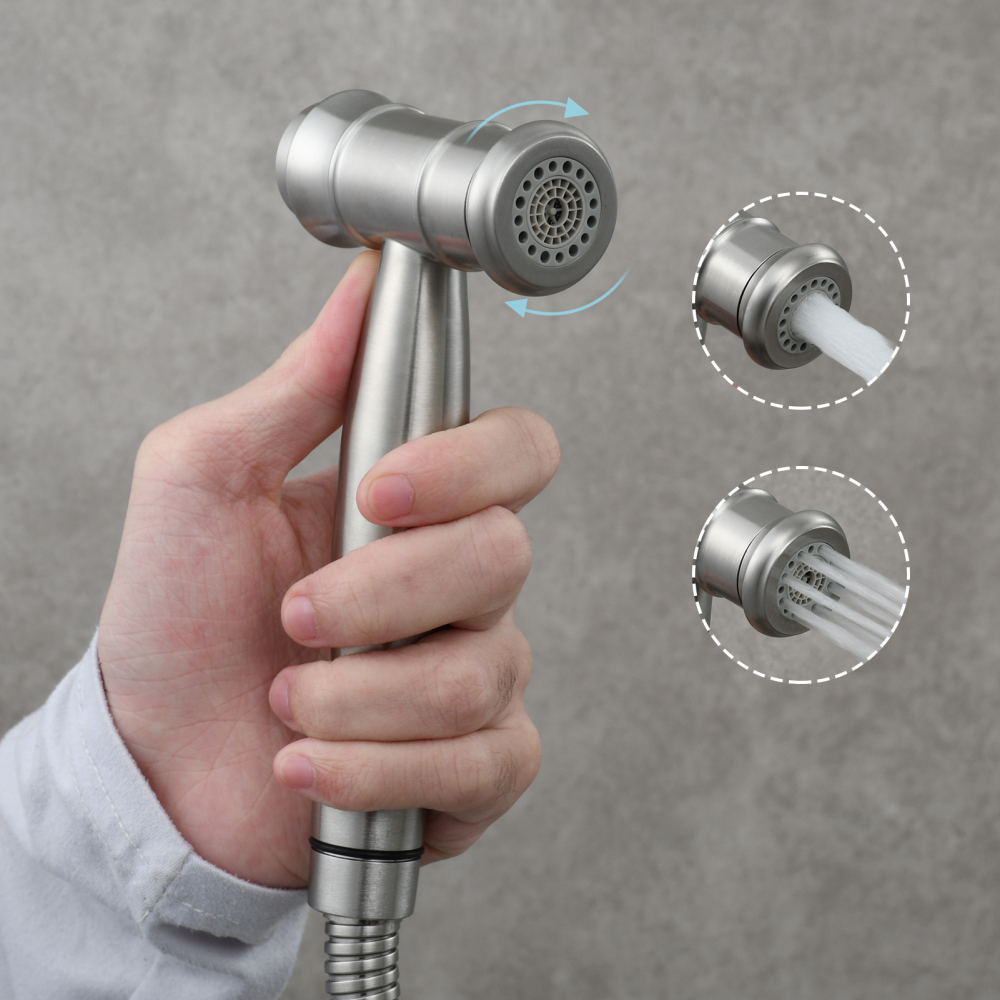

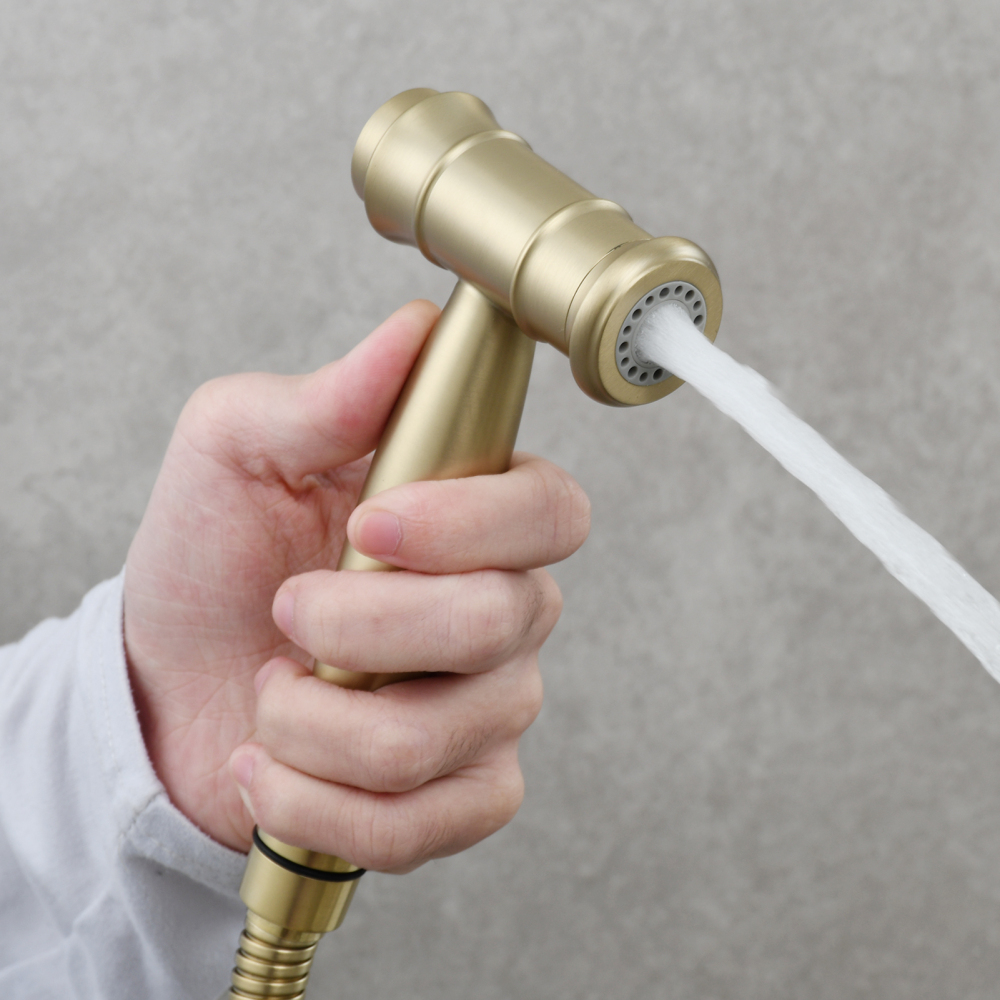

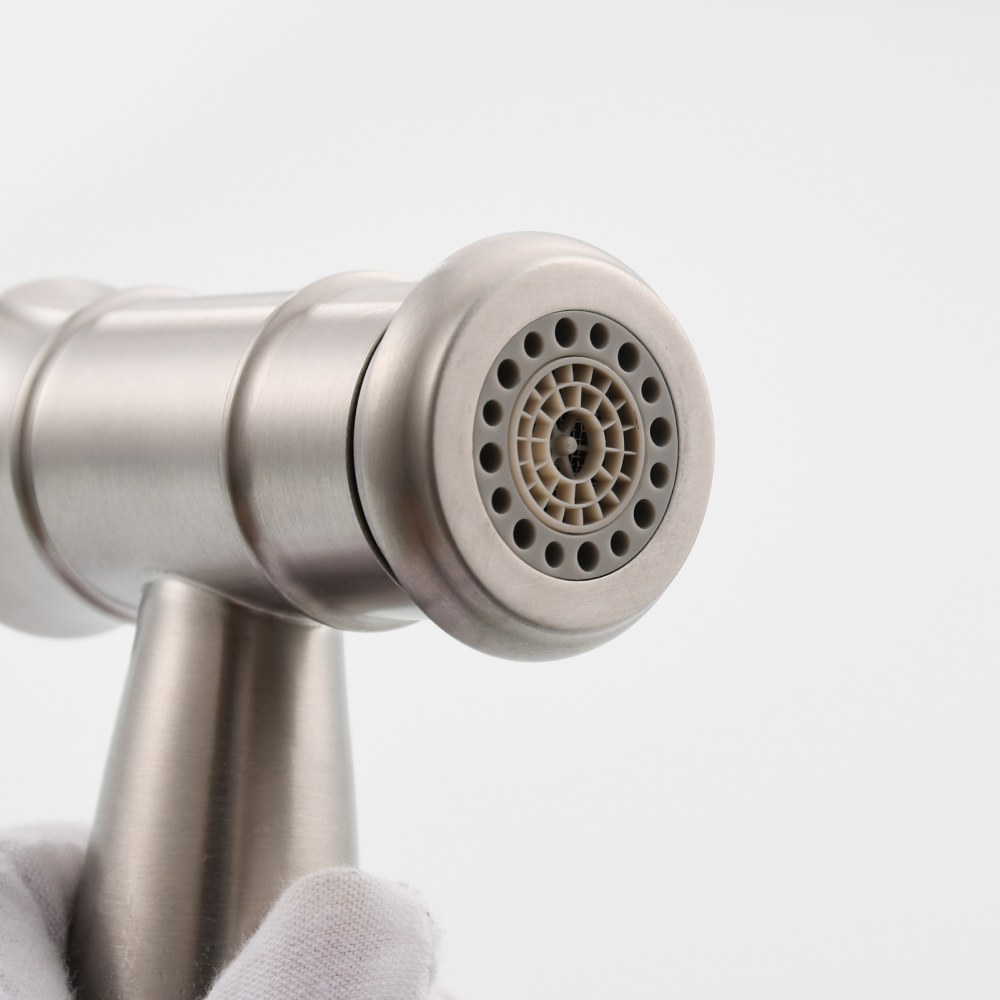

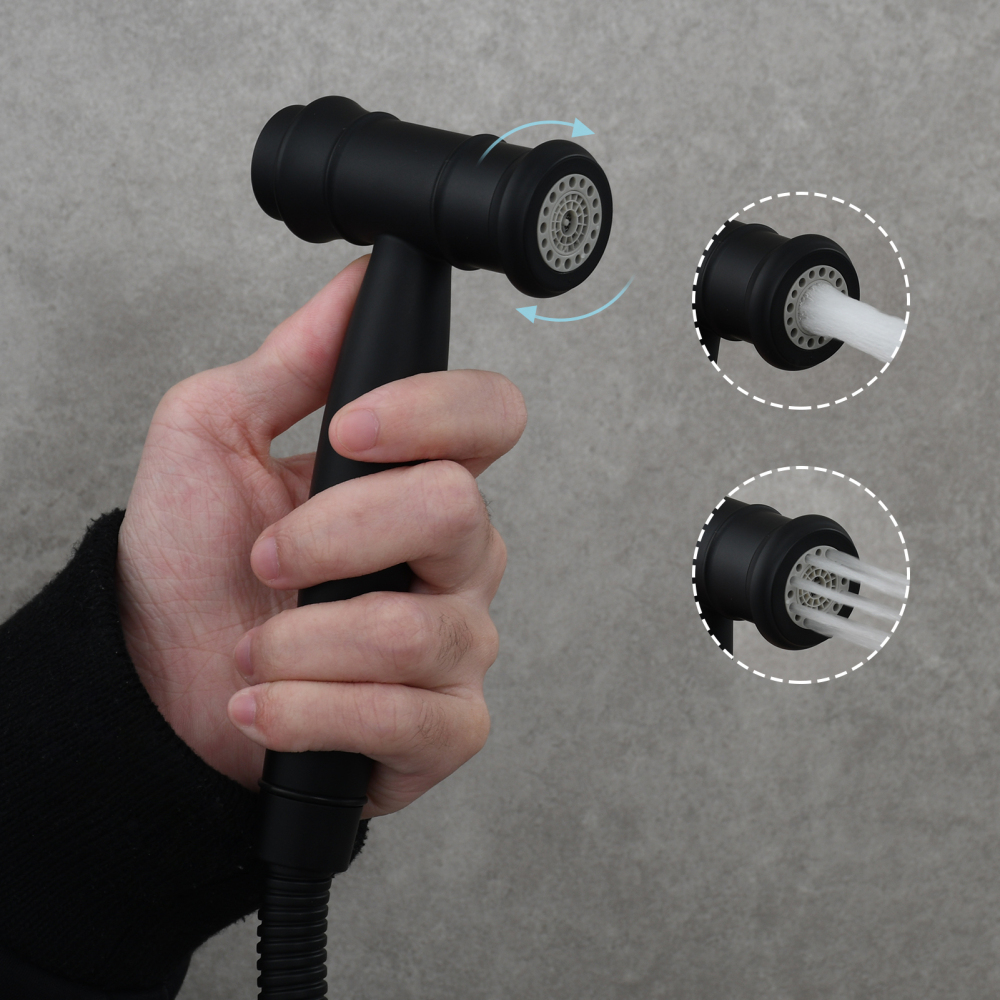

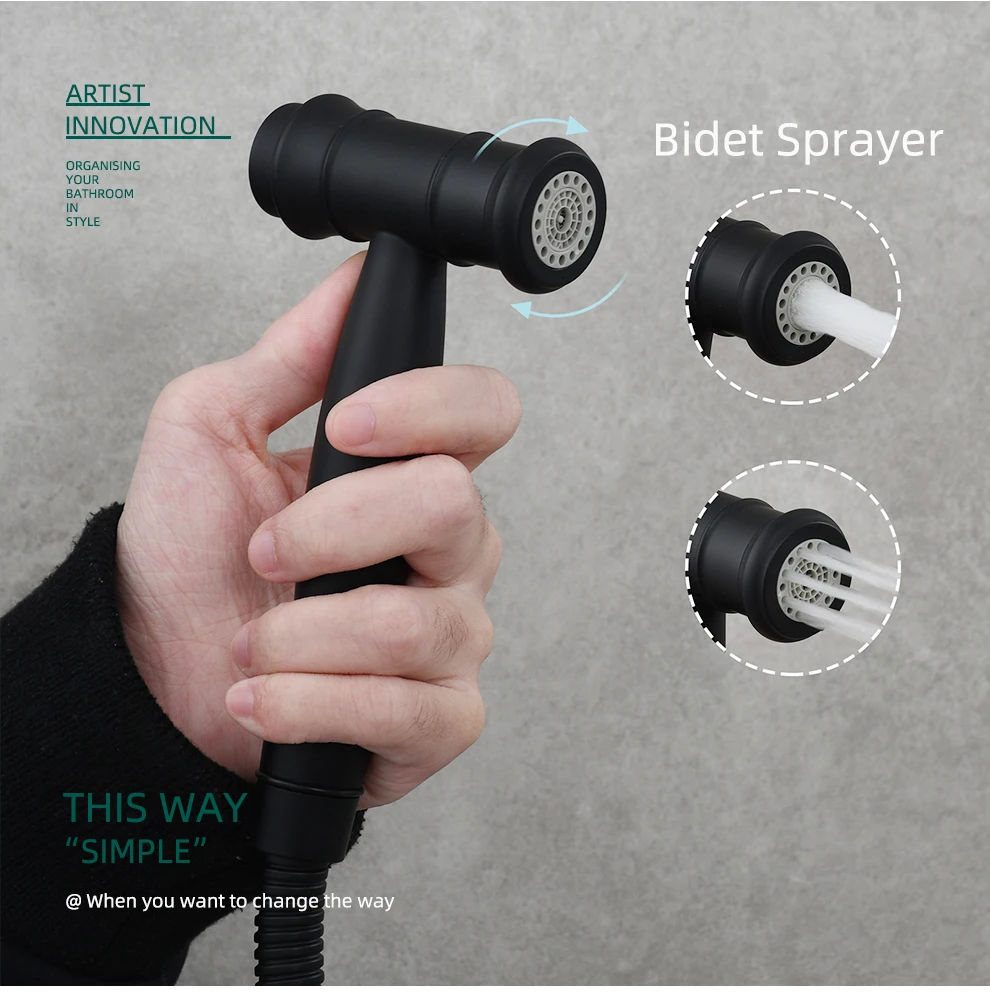

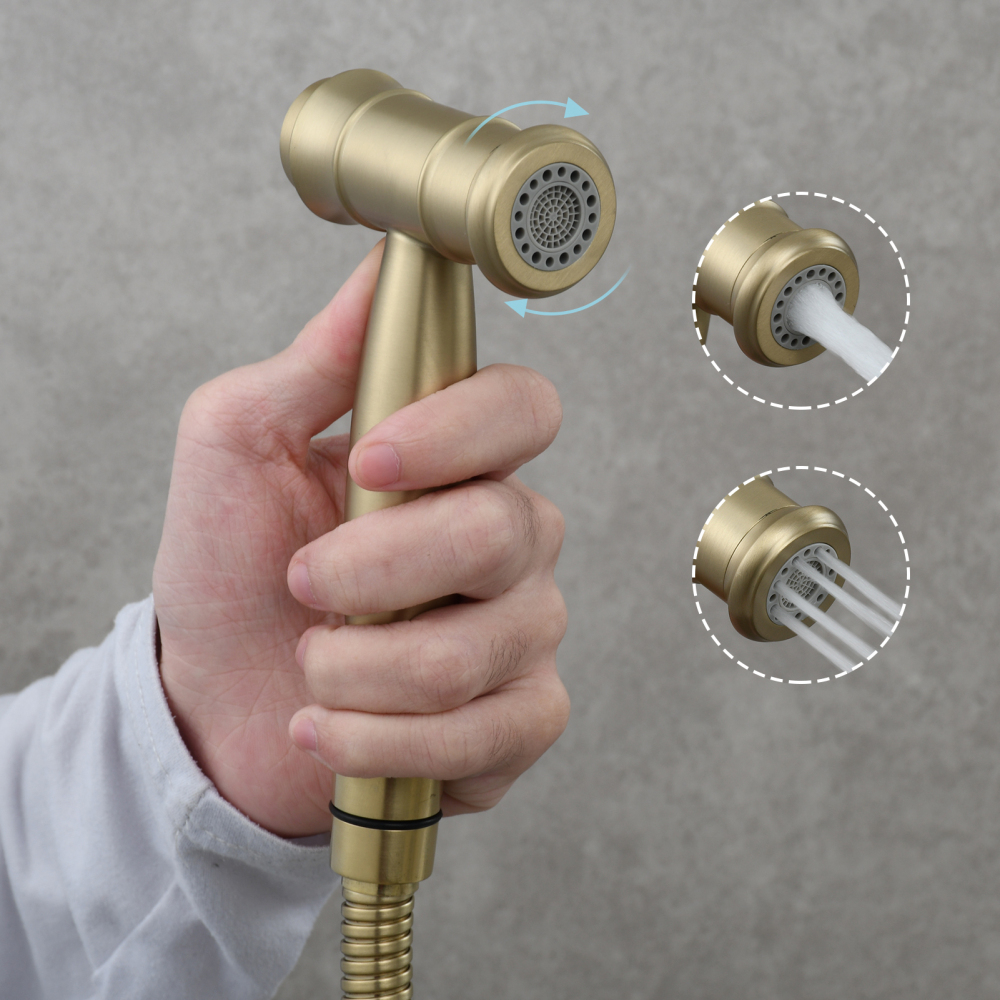

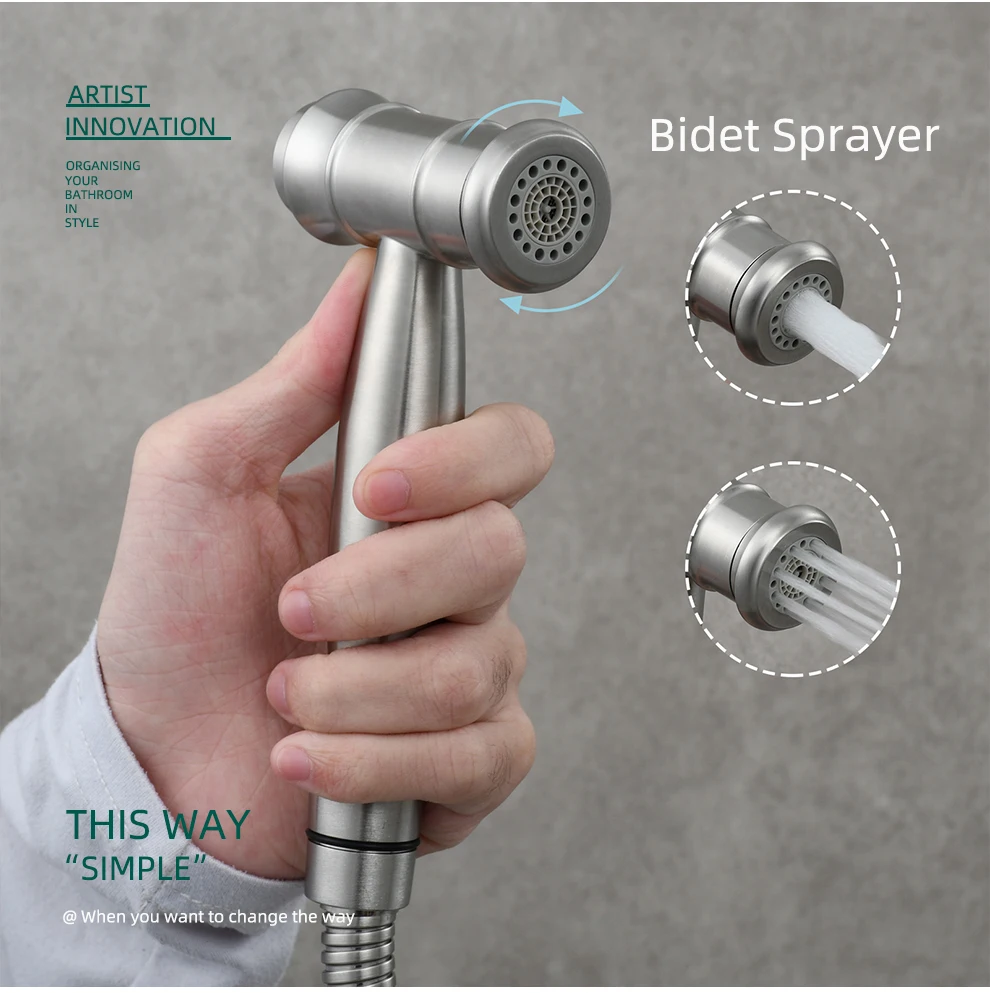

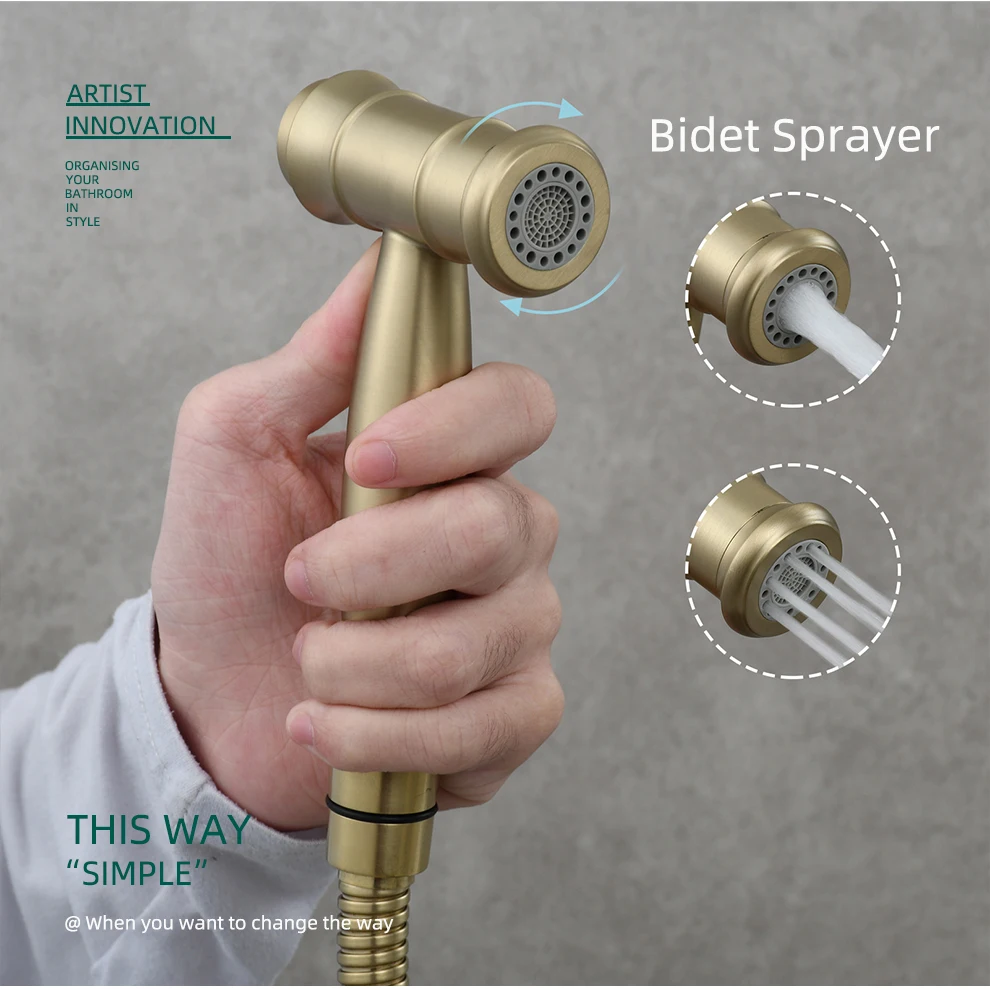

② 2 Function Cloth Diaper Sprayer: Soft and jet spray modes supported, you can switch by turning sprayer spout

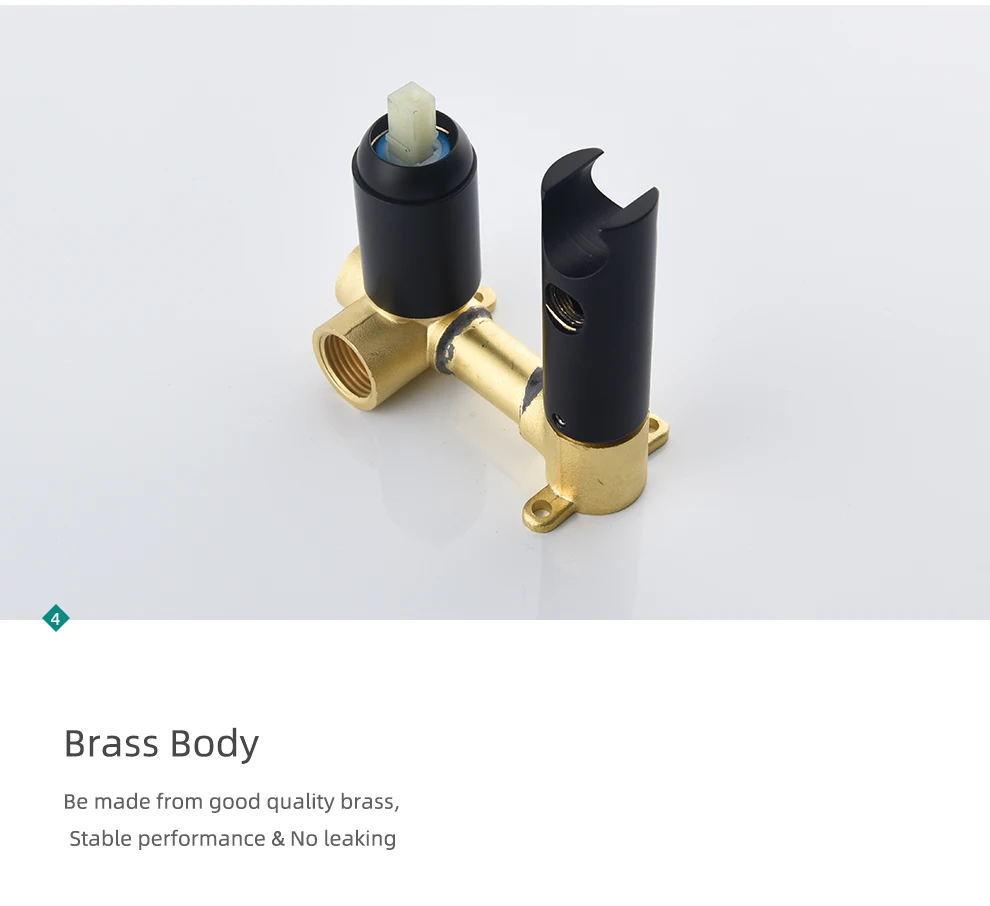

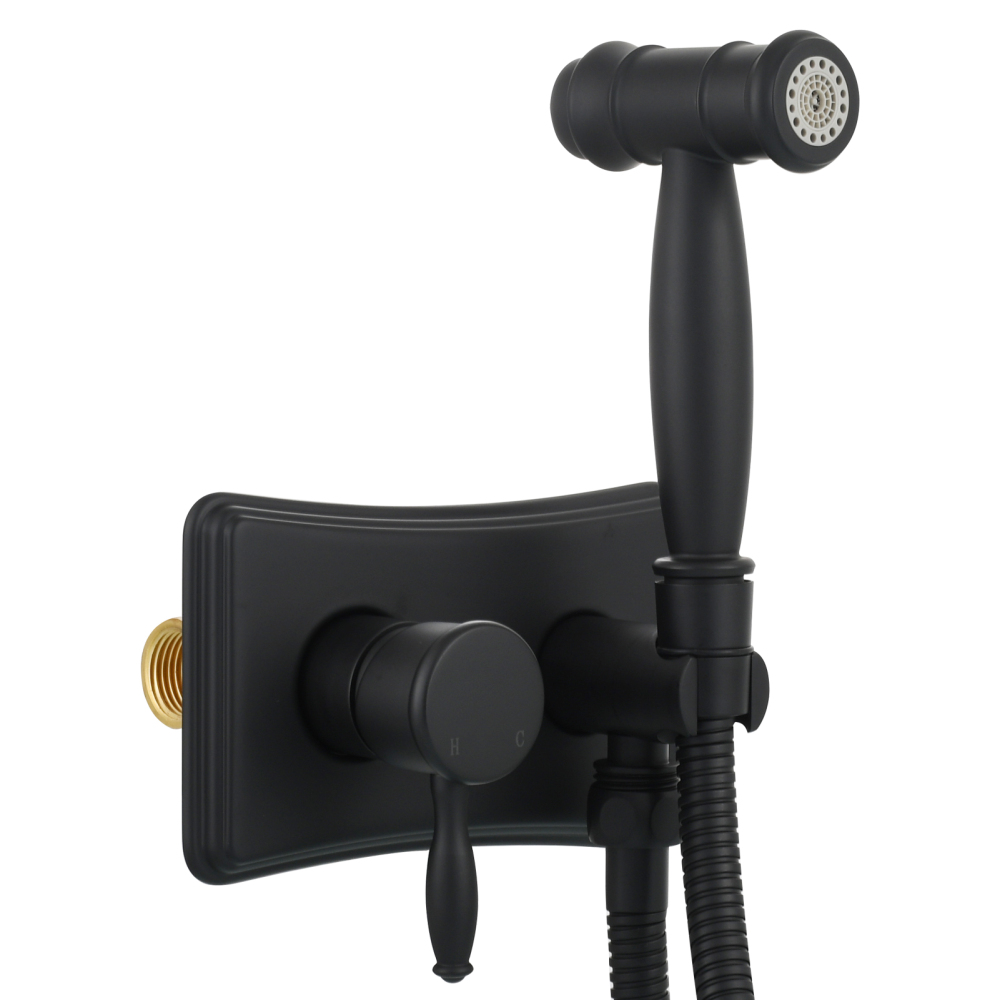

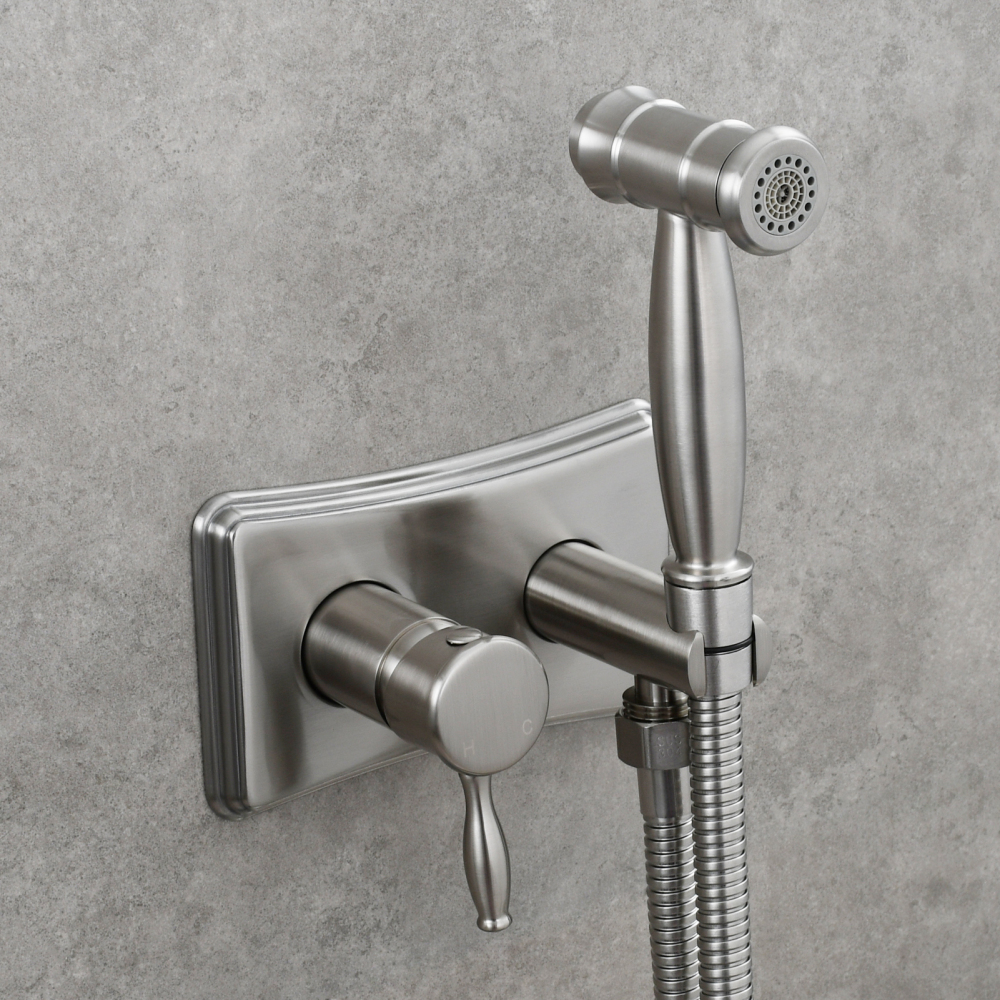

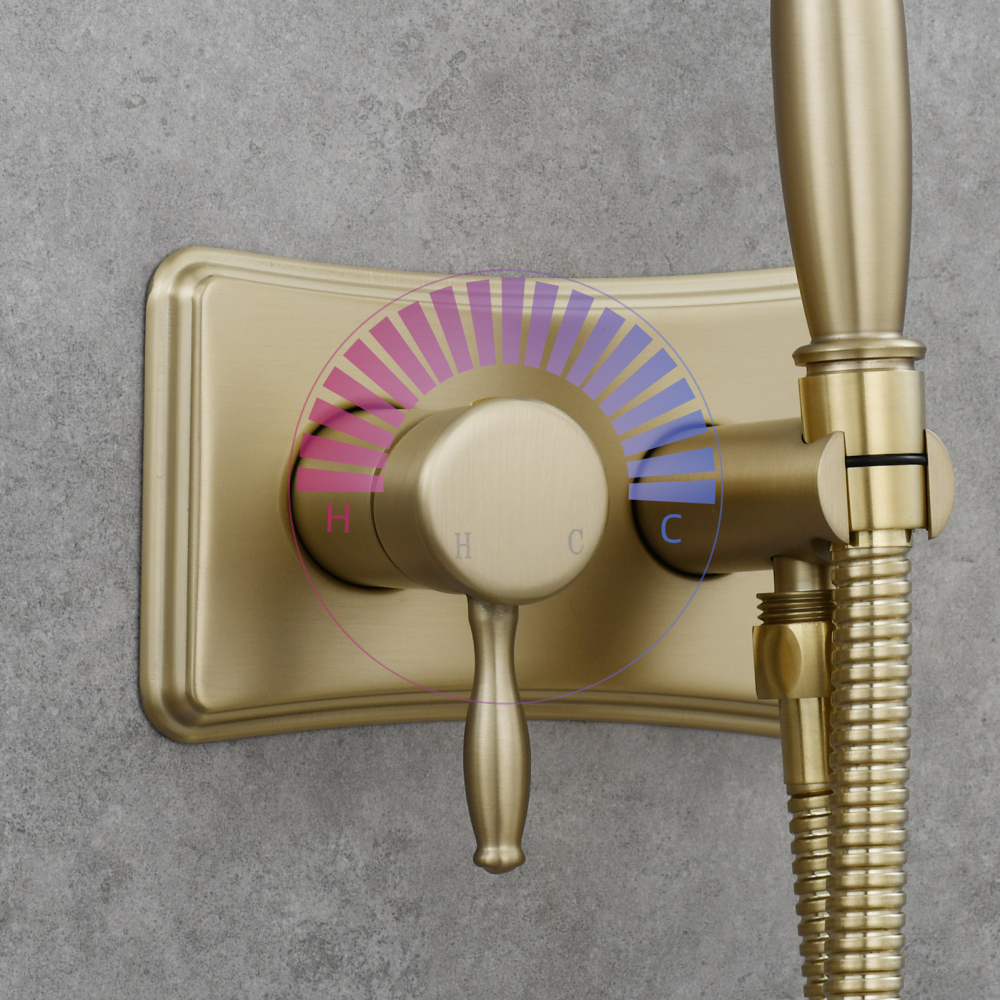

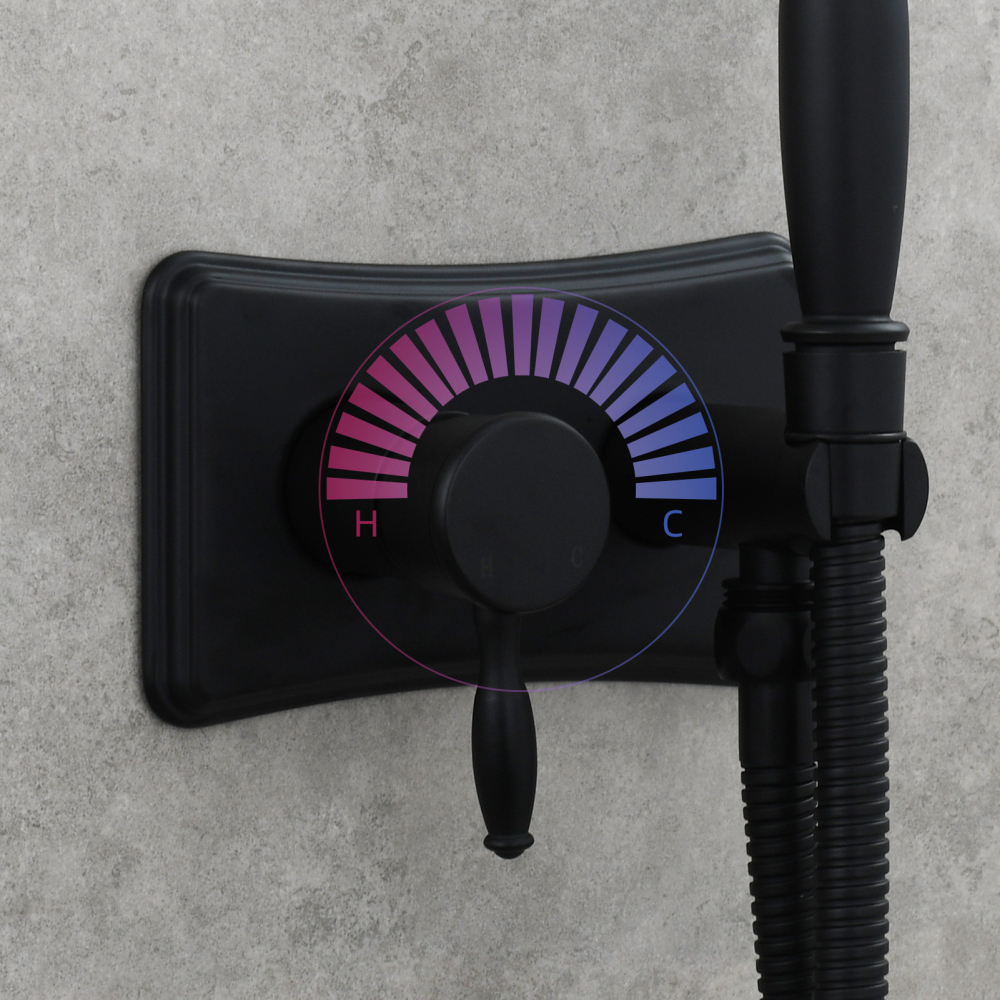

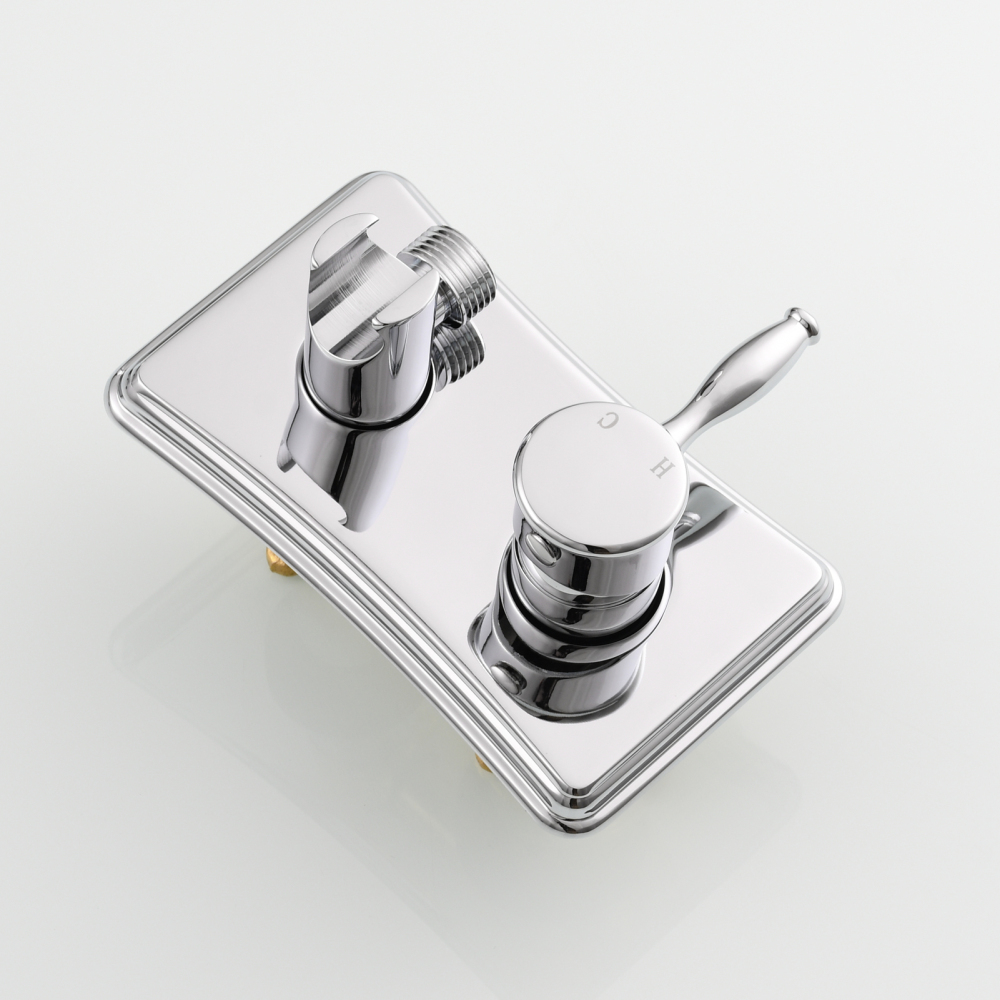

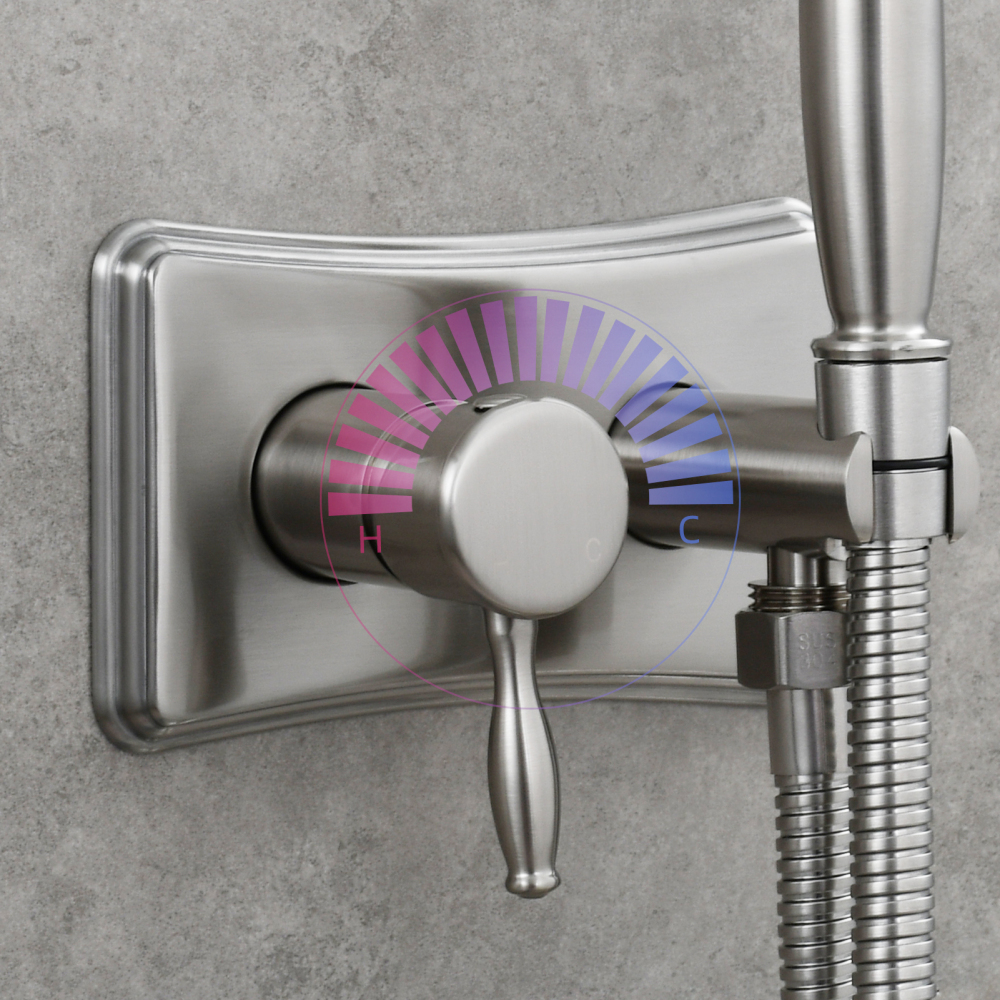

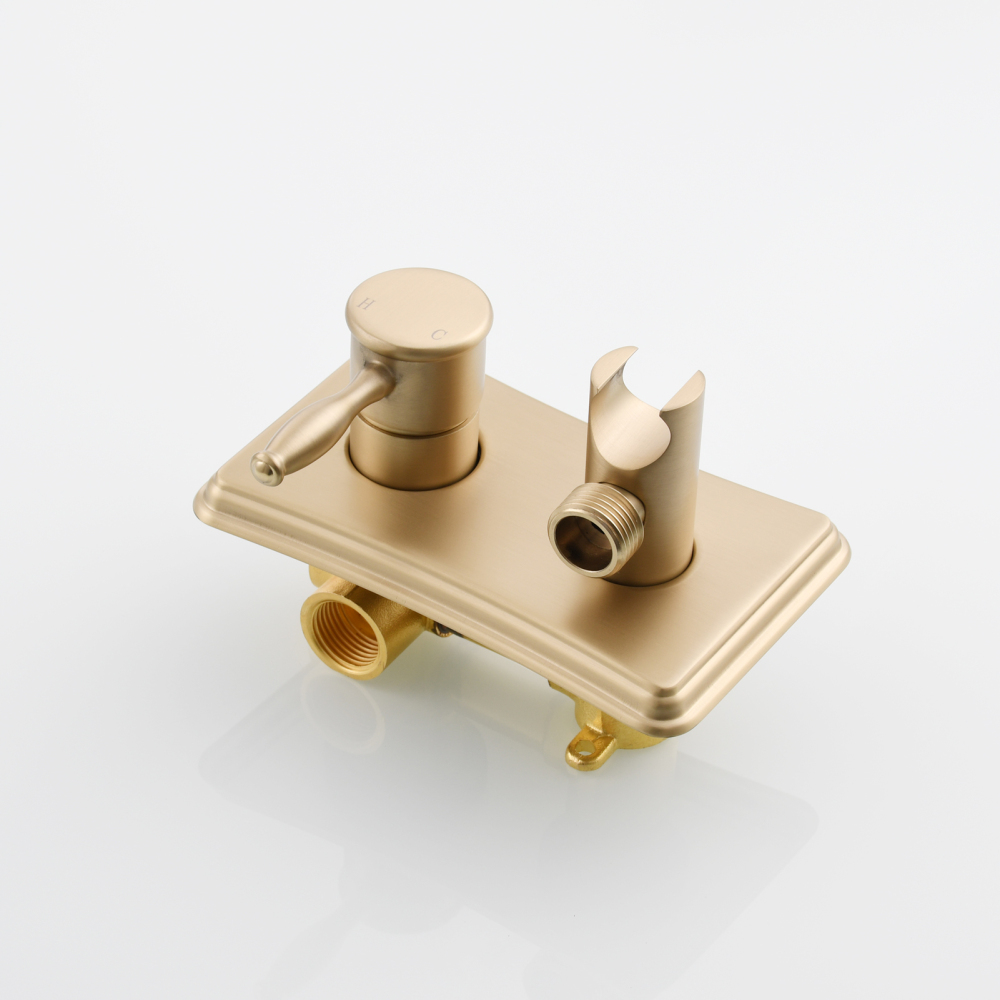

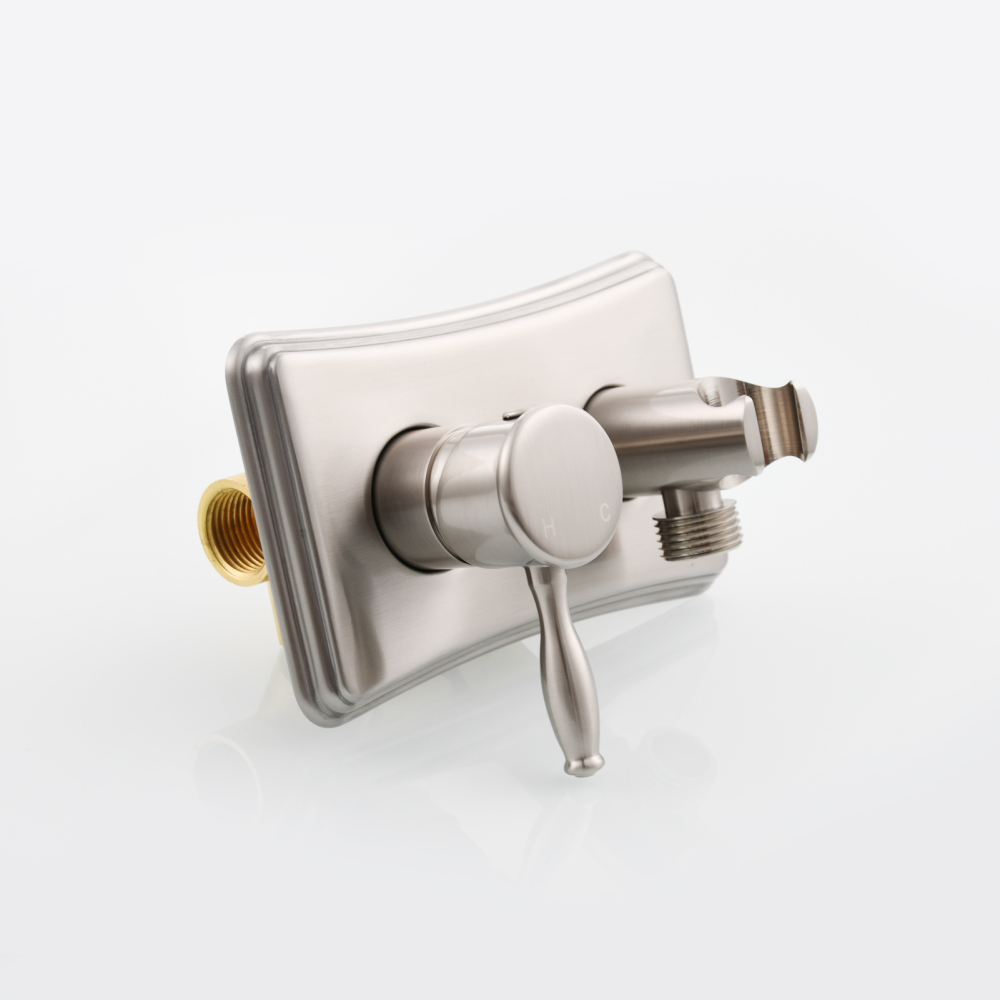

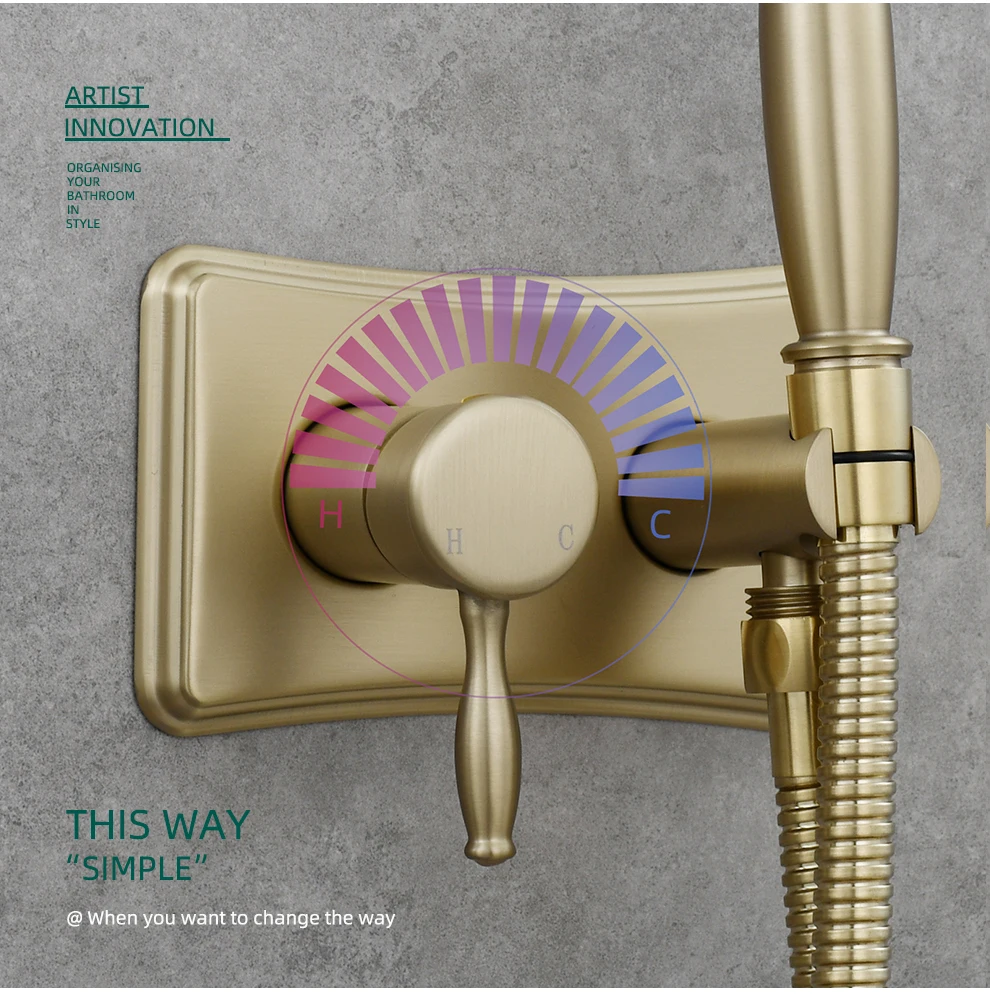

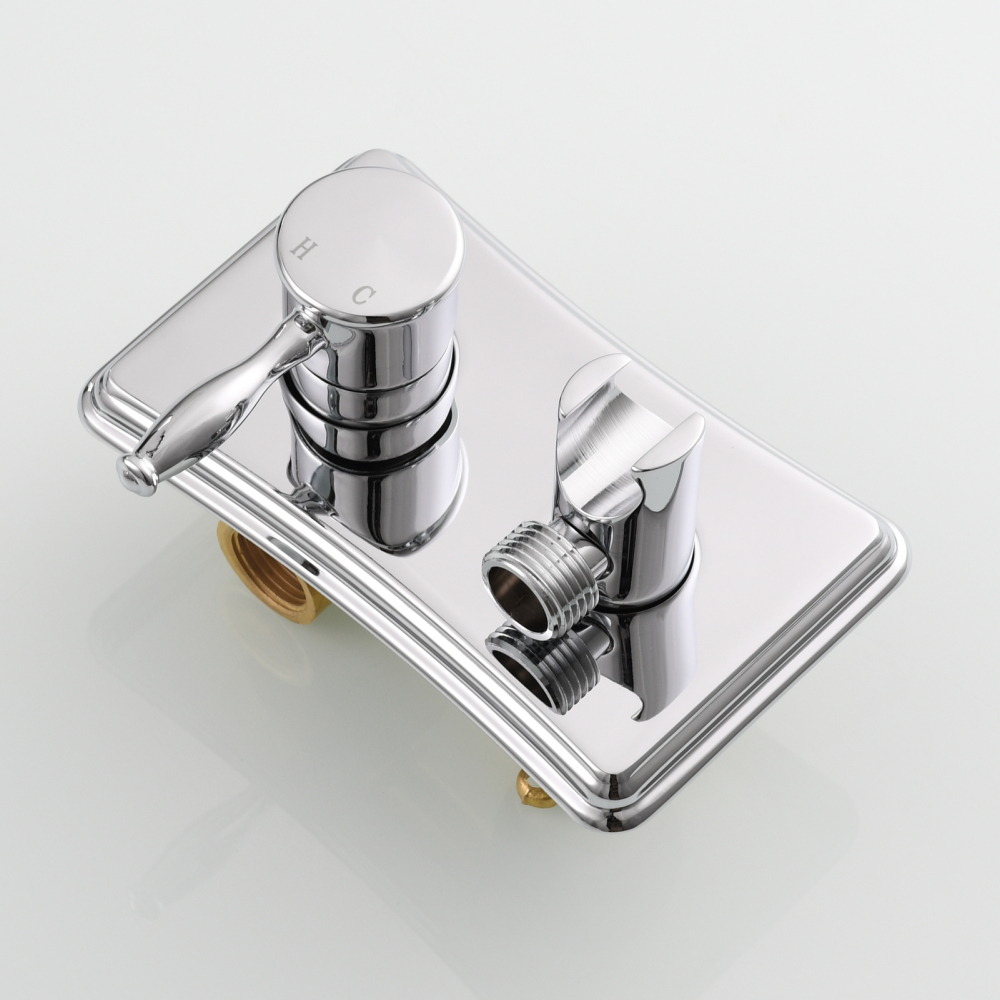

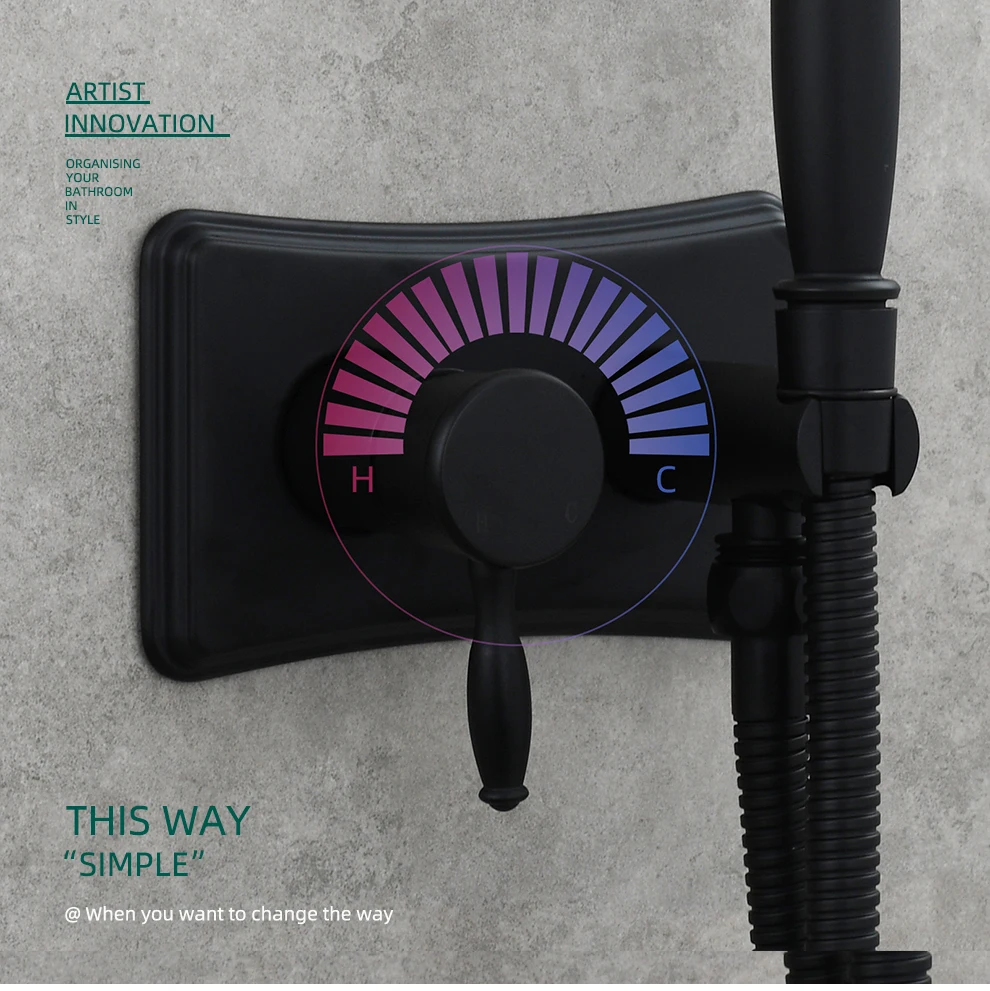

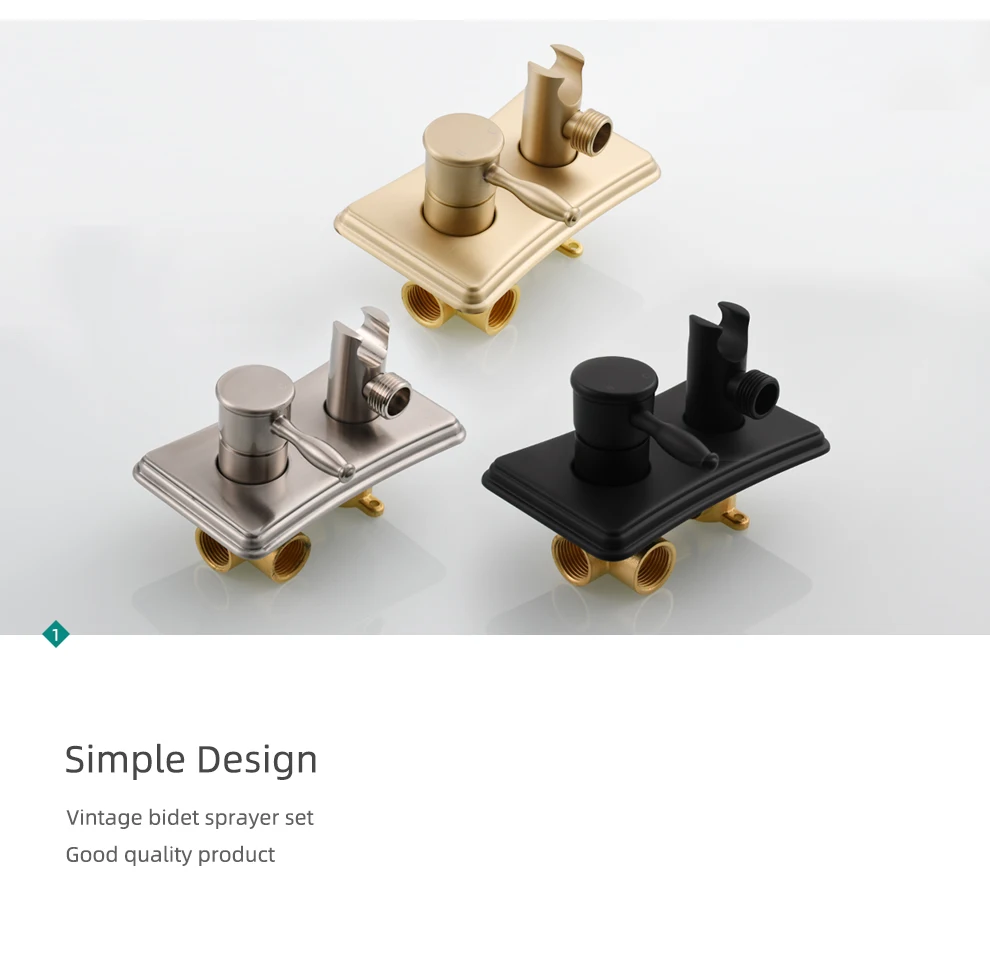

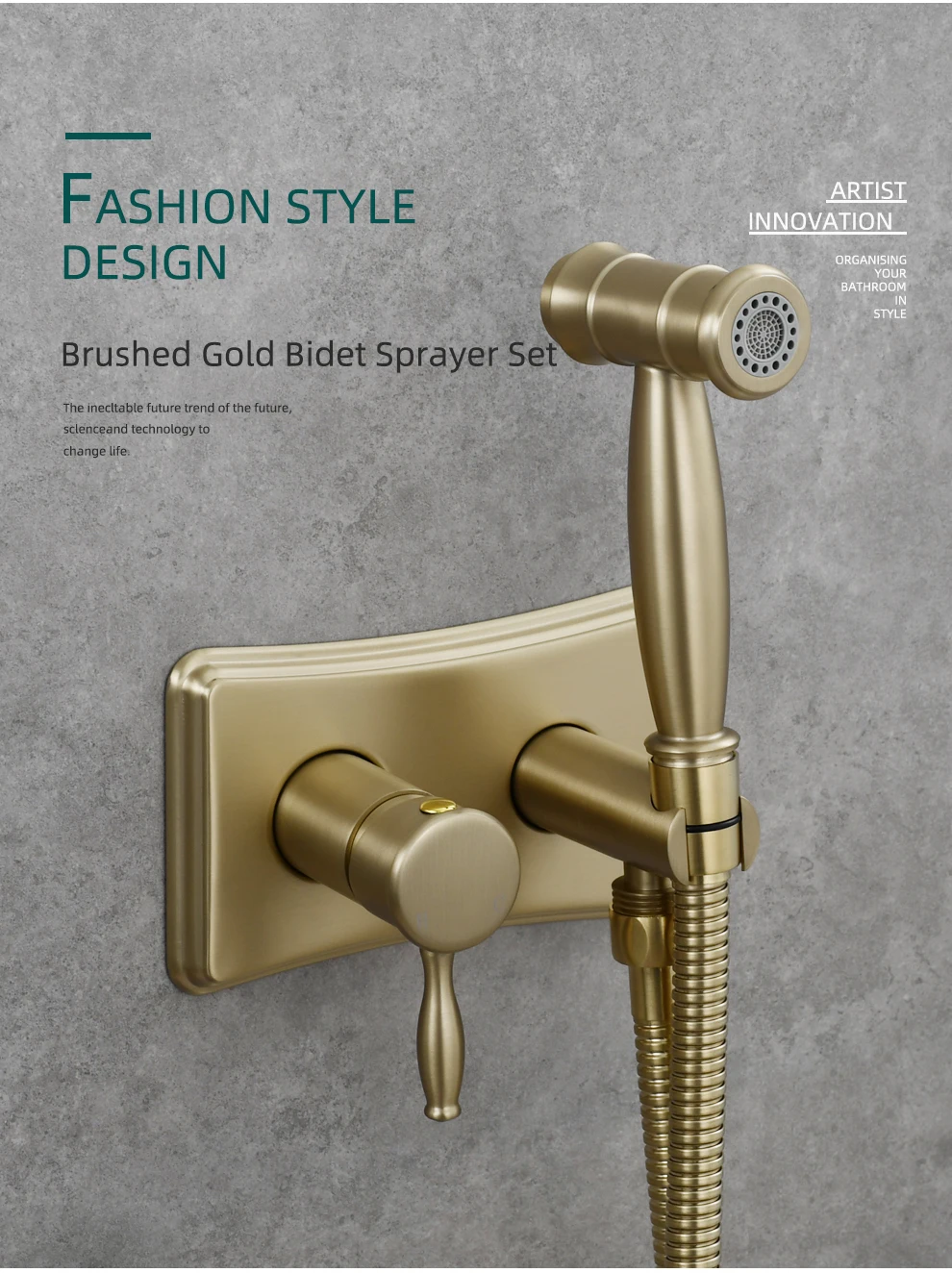

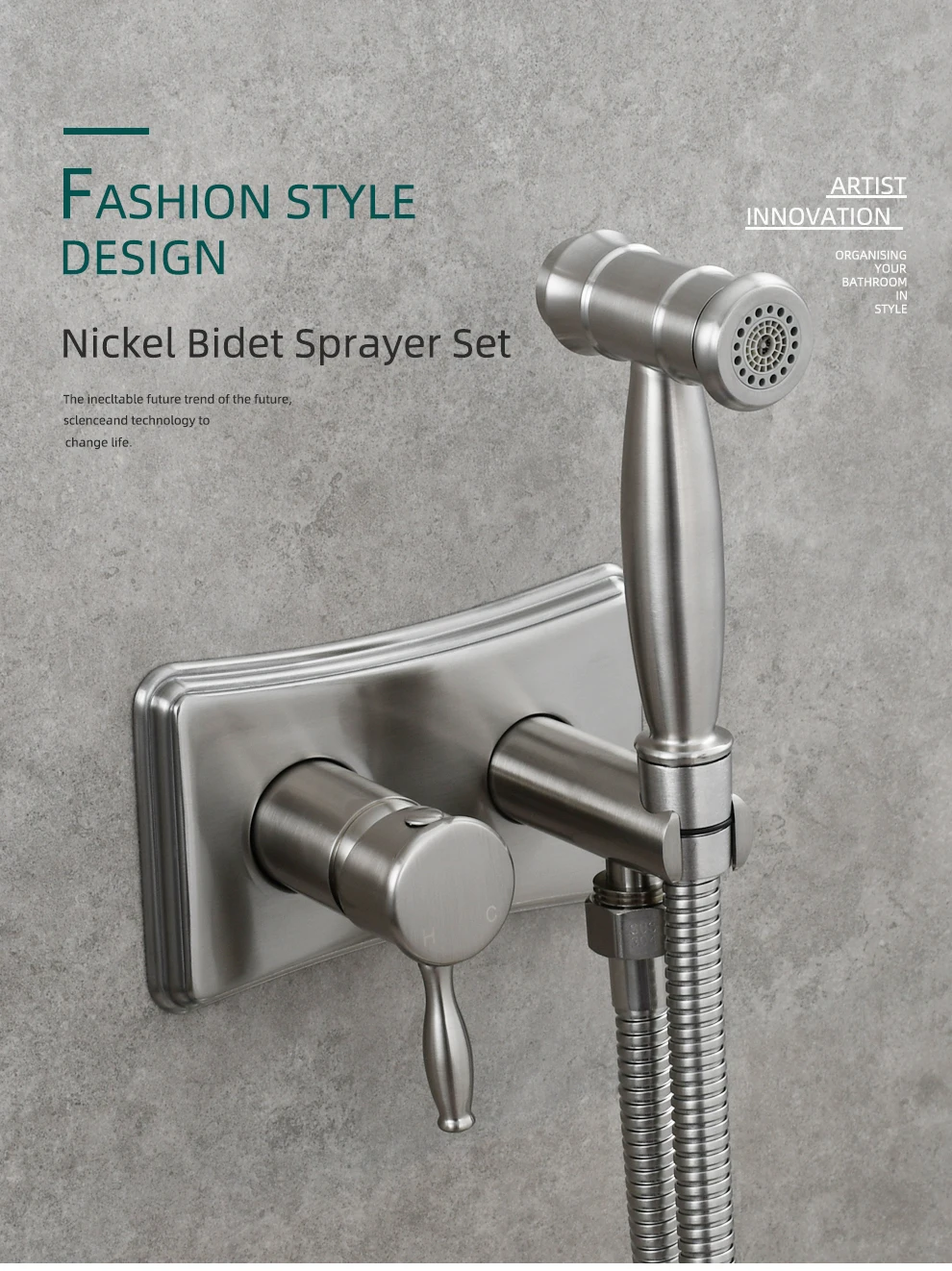

③ Concealed Bidet Spray Set: Toilet bidet sprayer set with hot and cold mixing valve, in wall mounted, space saving and integrated design
④ Standard 1/2" Female Connector: Bidet shower tap water pipe thread is standard 1/2" connector, suit for most water lines and easy to install
⑤ Handheld Sprayer Complete Set: Perfect solution for daily personal hygiene, and even can be used for shattaf, muslim shower, baby cloth diaper sprayer set in toilet, dog shower and so on

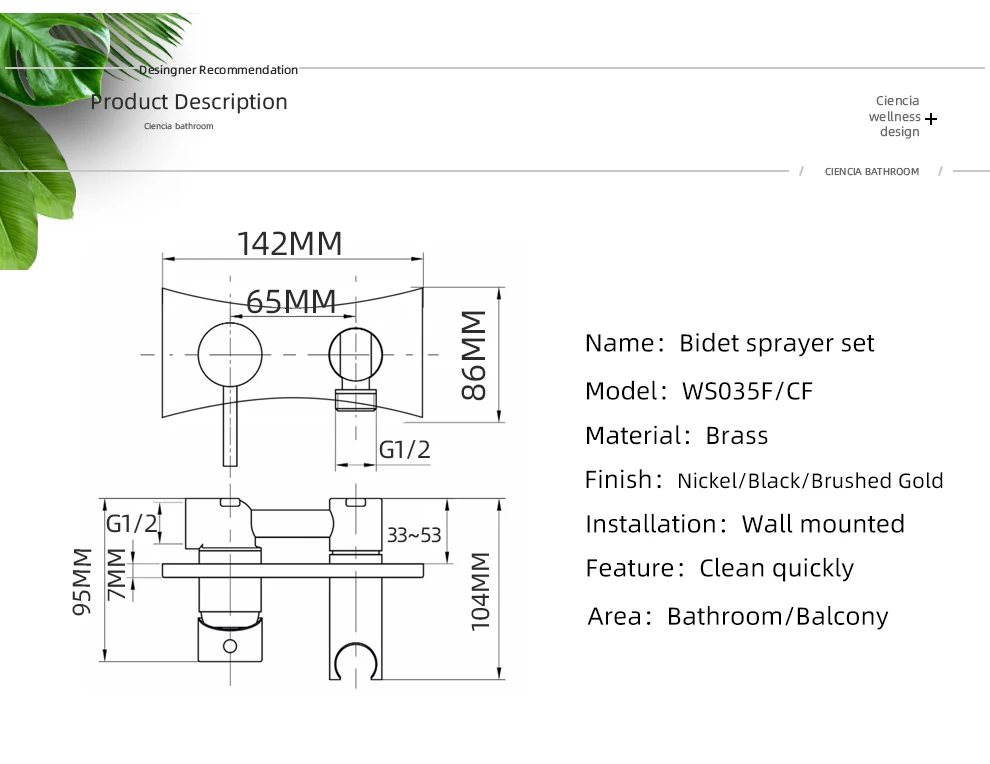

Product Specification
Name: Toilet Bidet Sprayer Set

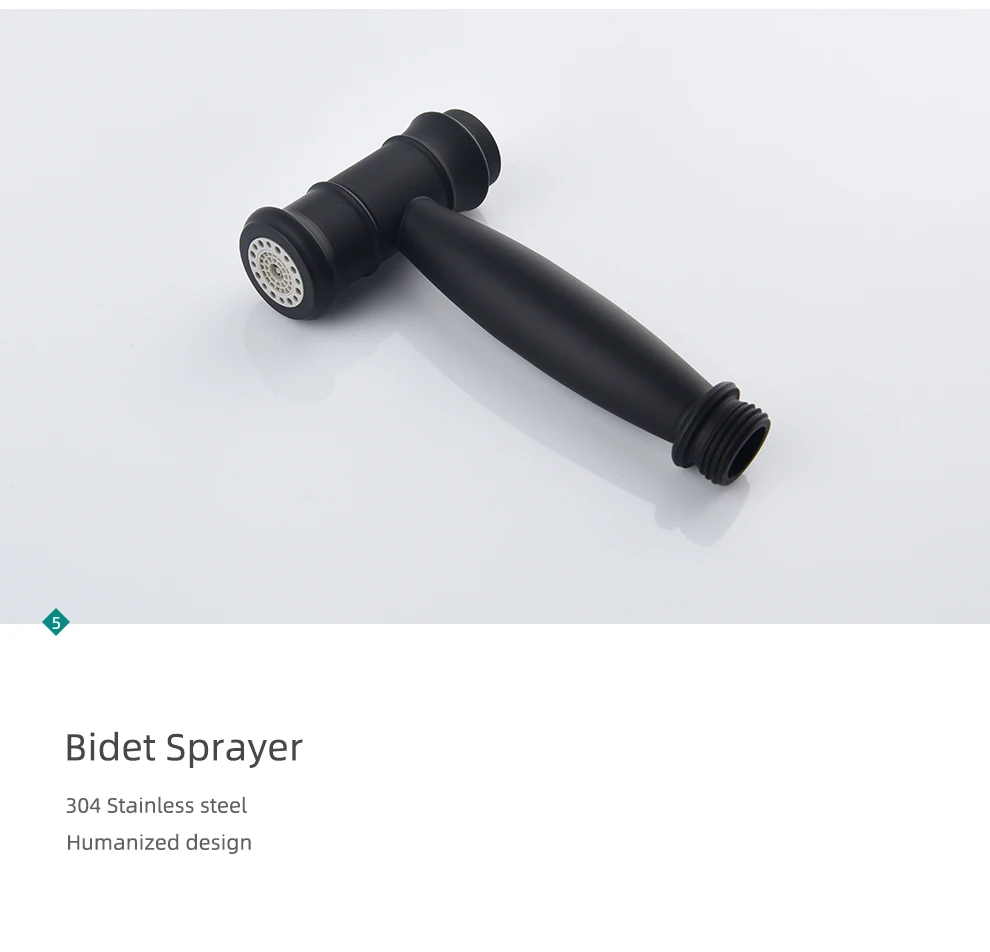

Toilet Sprayer Material: SUS304 Stainless Steel
Finish: Black/Brushed Nickel

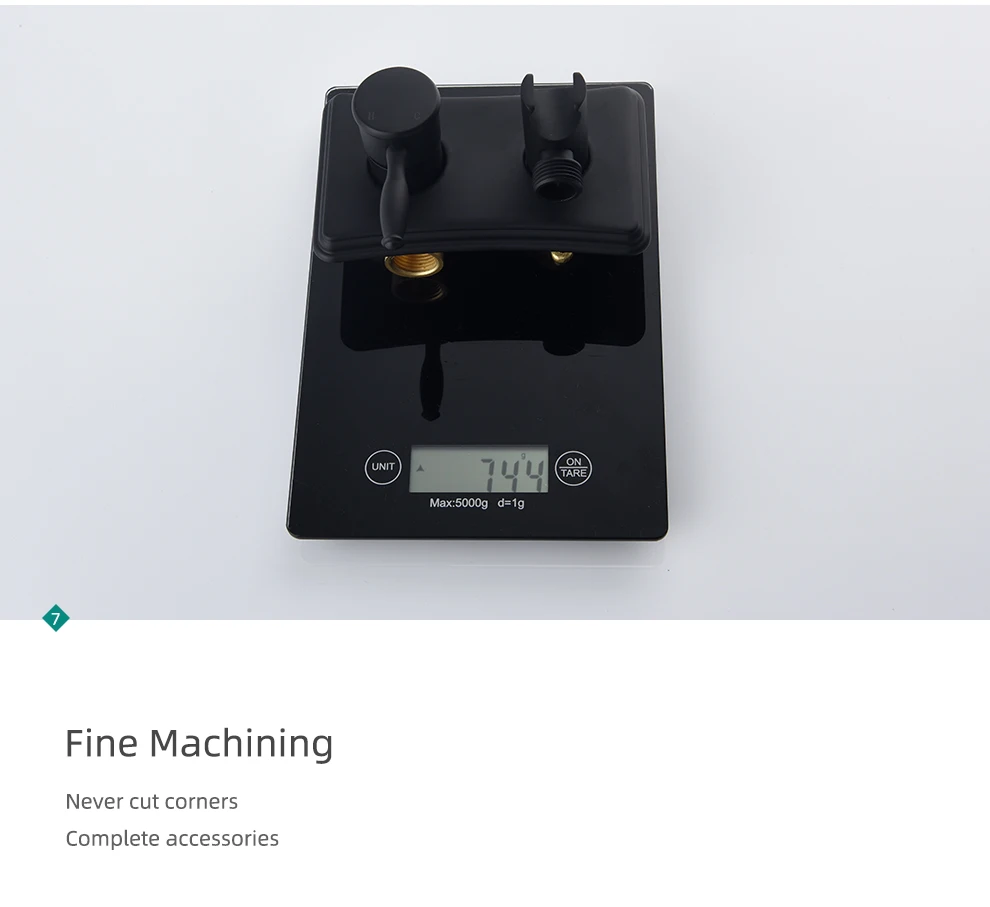

Bidet Sprayer Set Shipping Weight: 1.4kg
Water Pressure: 0.6-0.9MPA

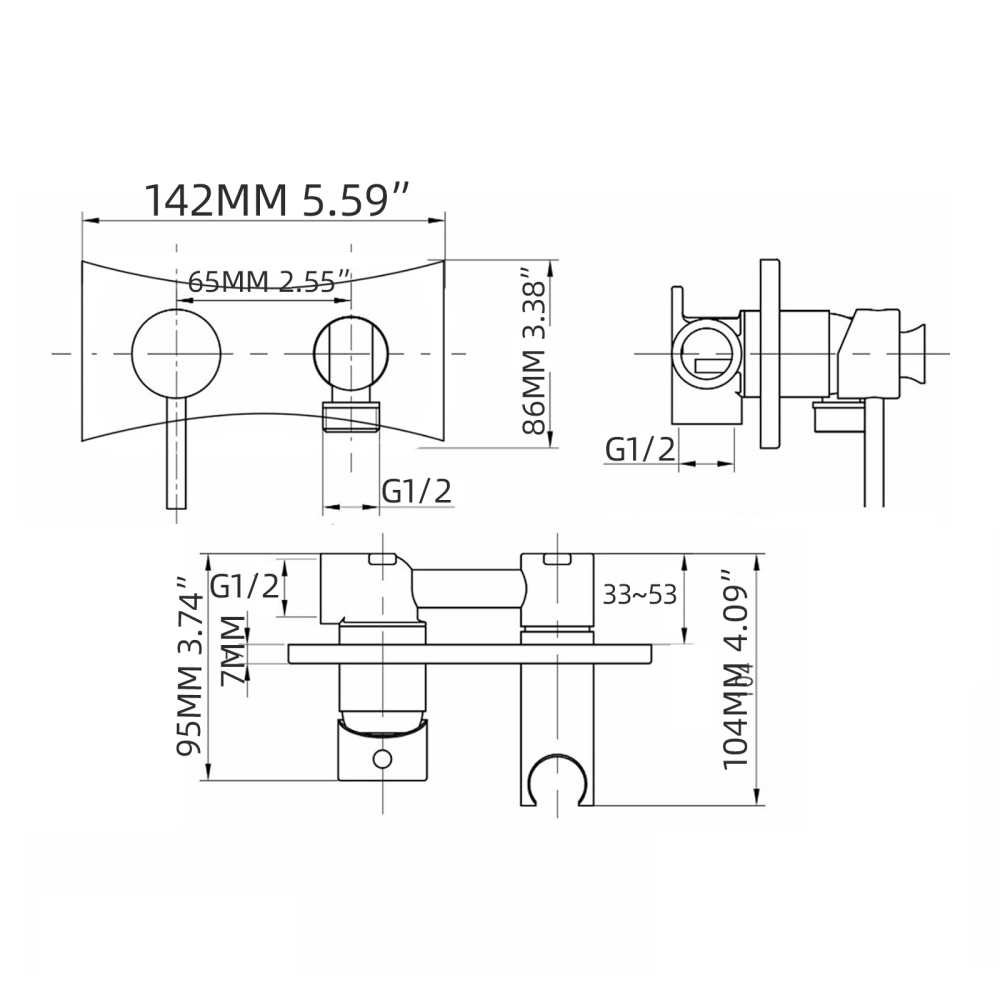

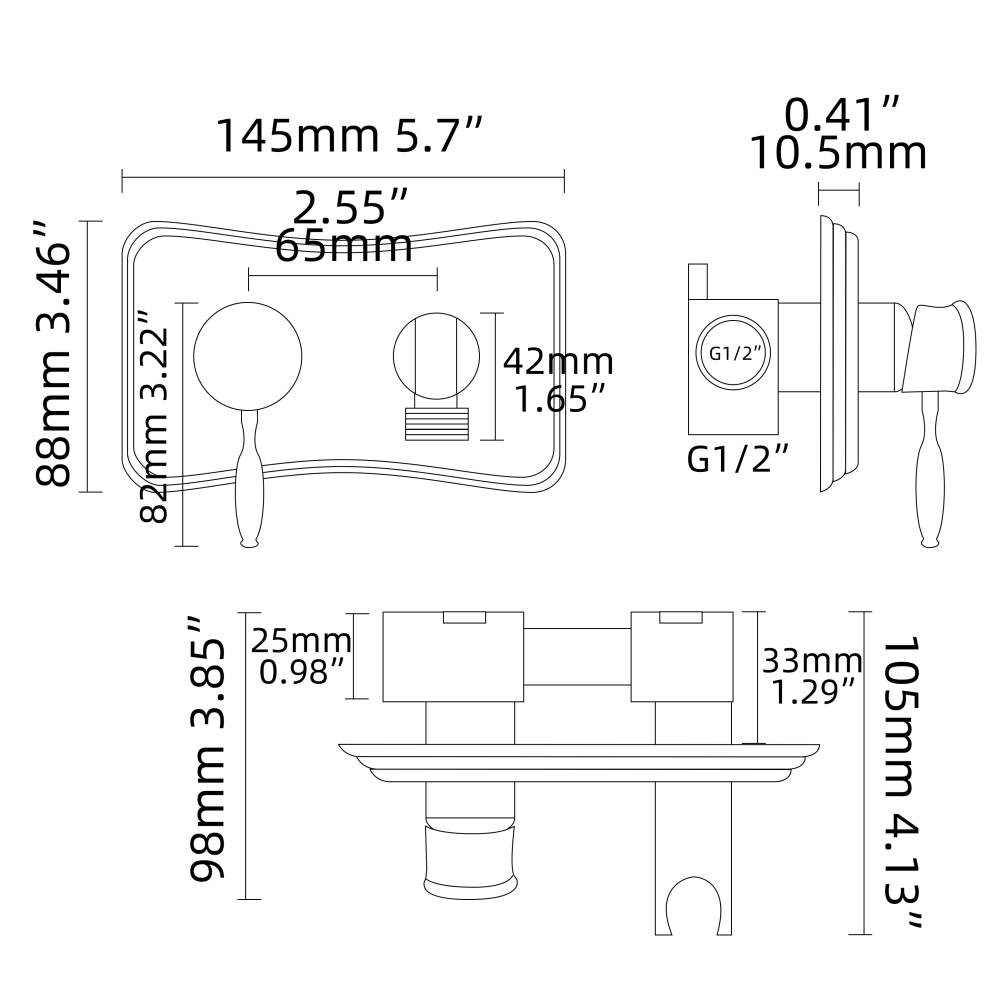

Screw Thread Diameter: G1/2 (about 20mm)

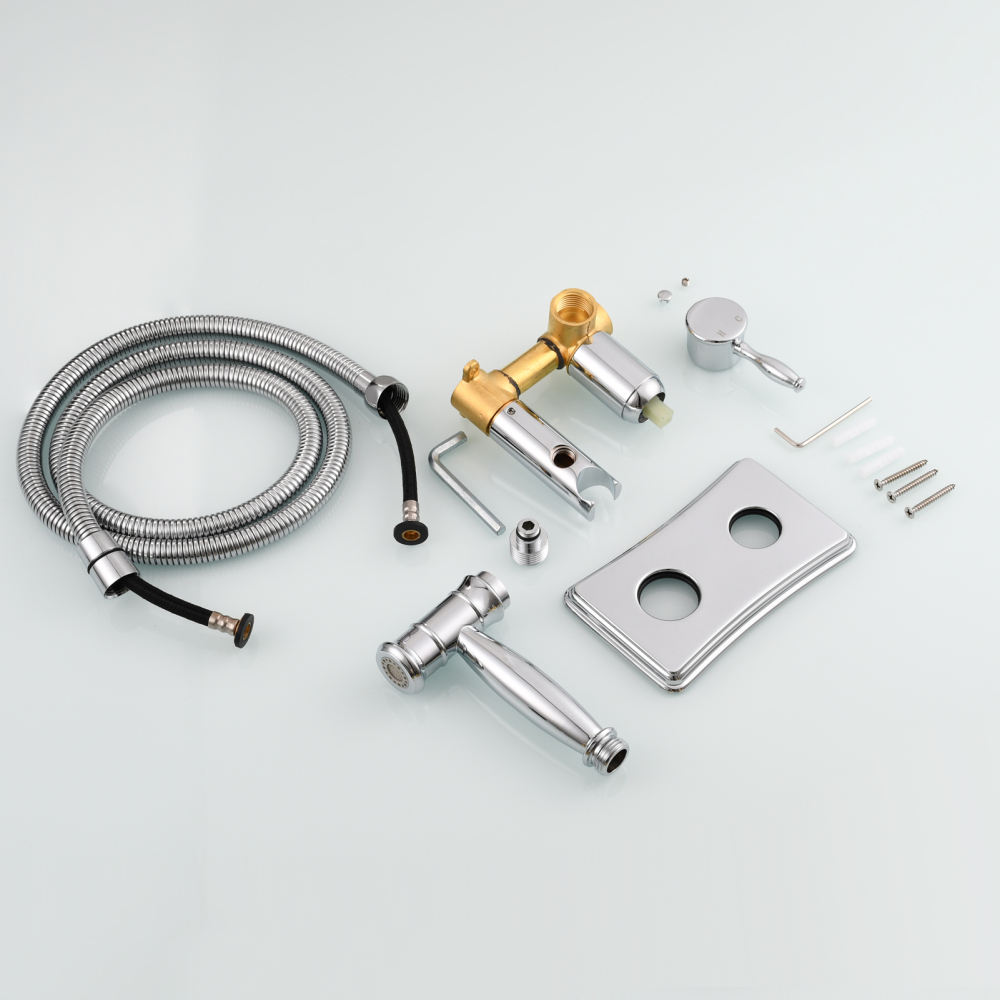

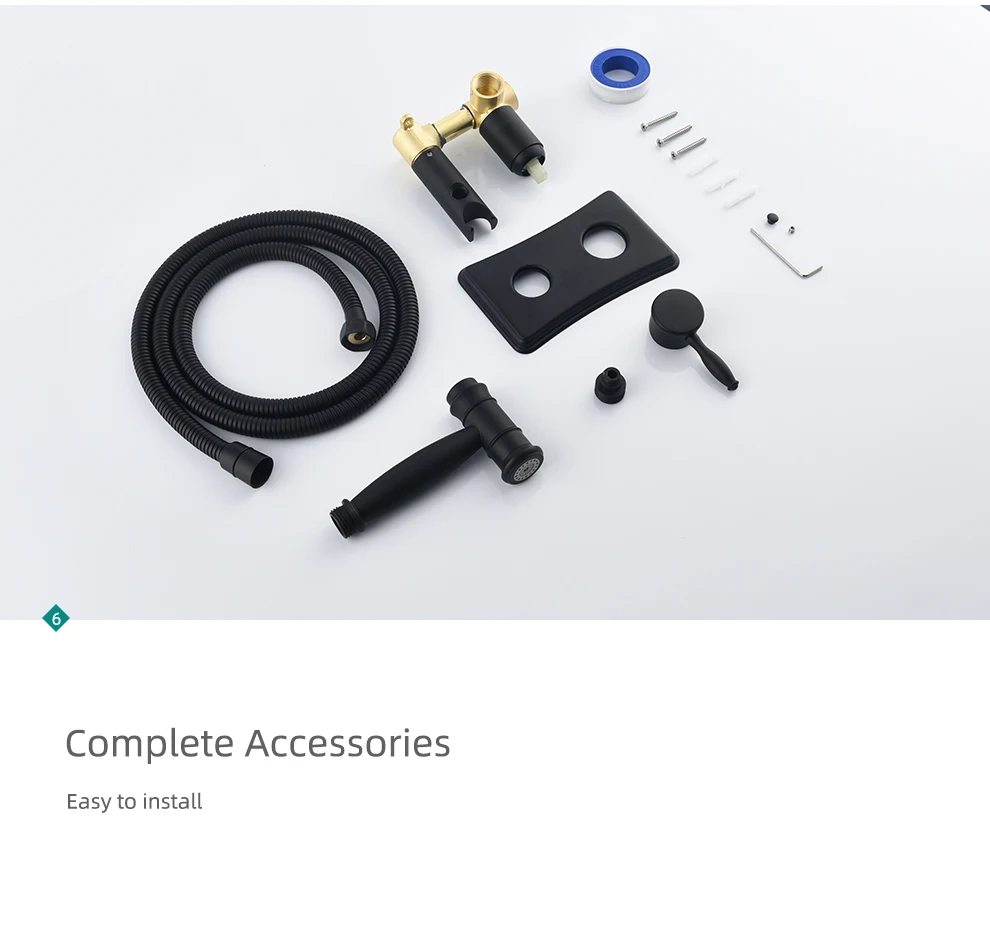

Package Includes

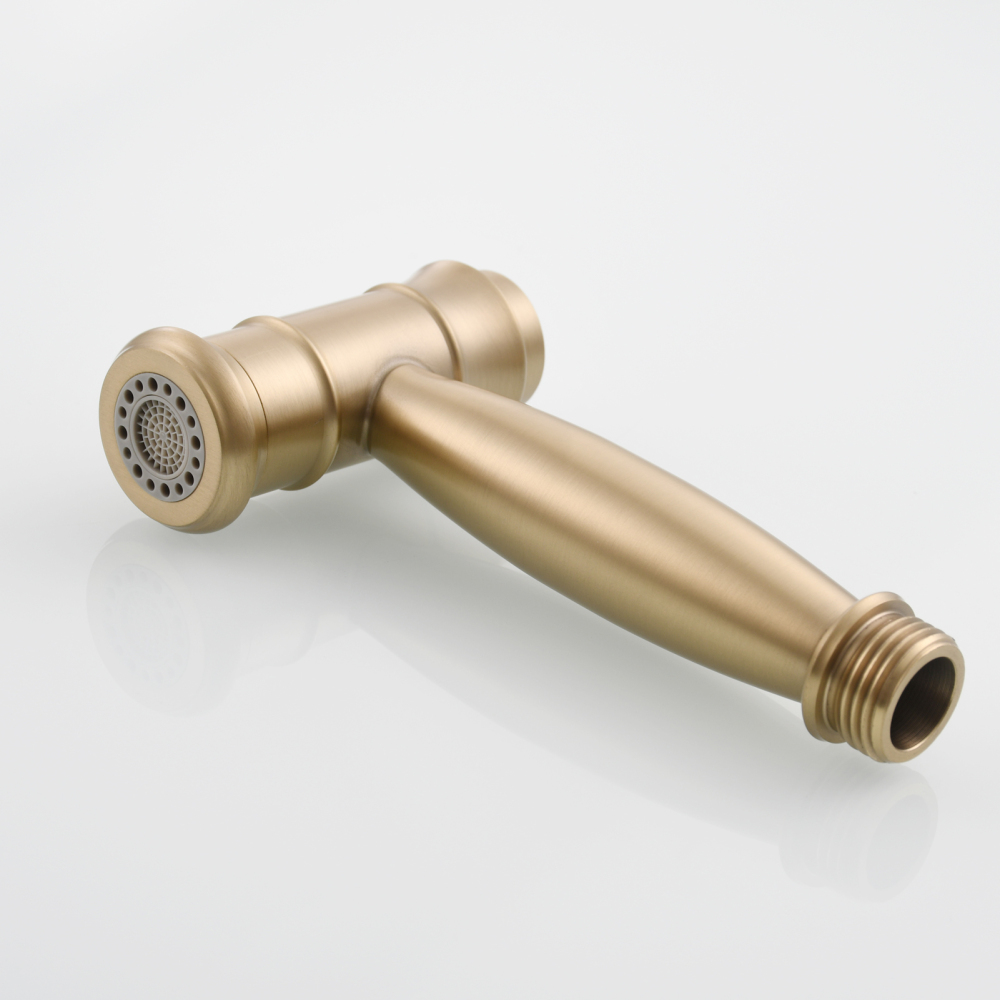

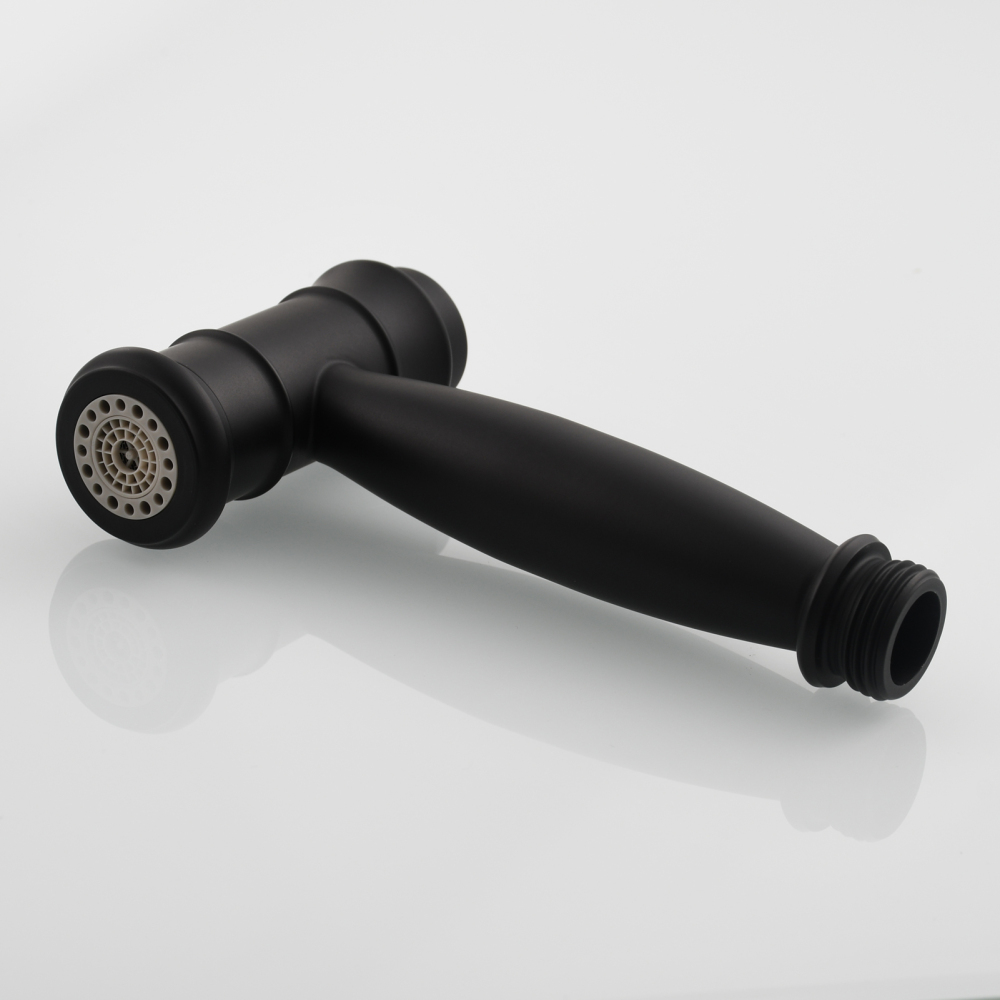

1x Hand Held Bidet Sprayer Head
1x Shower Hose 1.5m

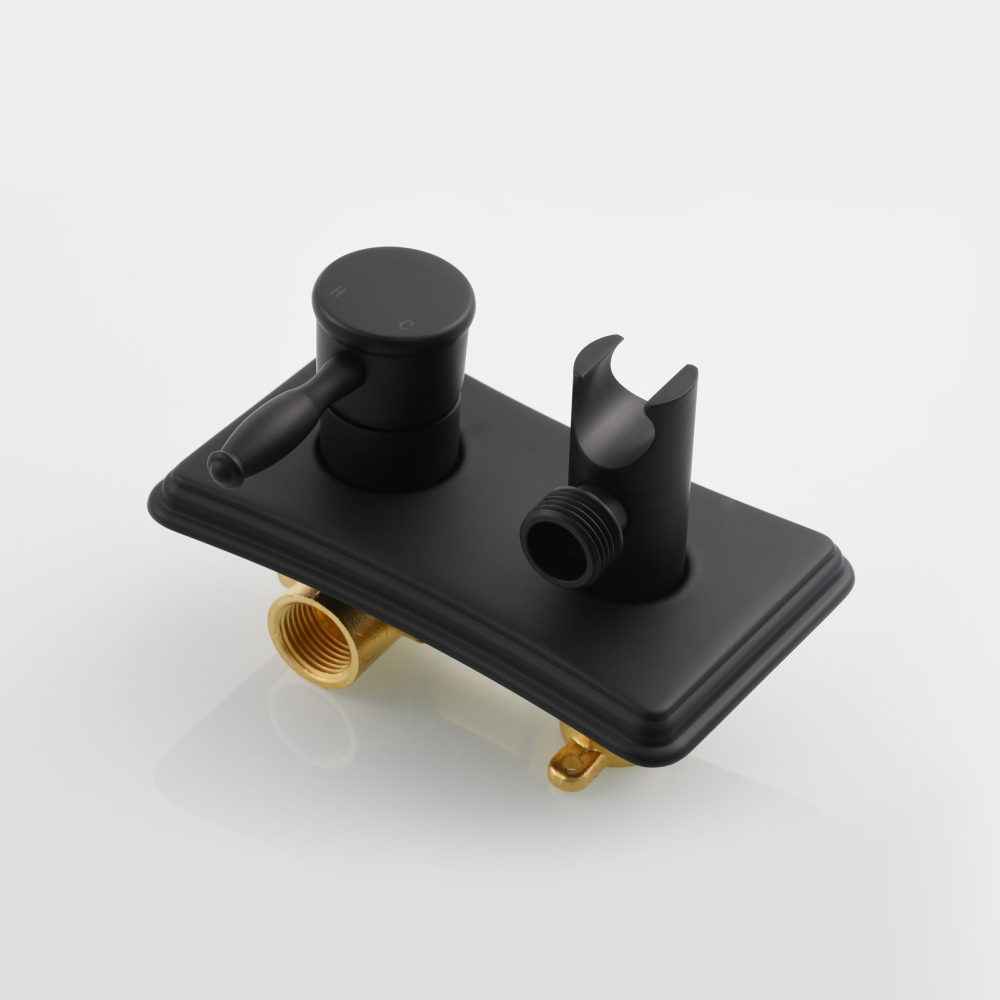

1x Thermostatic Shower Control Valve
1x Valve Trim

Install Method:
1.Connect the hot and cold pipe, then fix the body on wall
2.Put the cover through the body
3.Connect the joint to the body screw

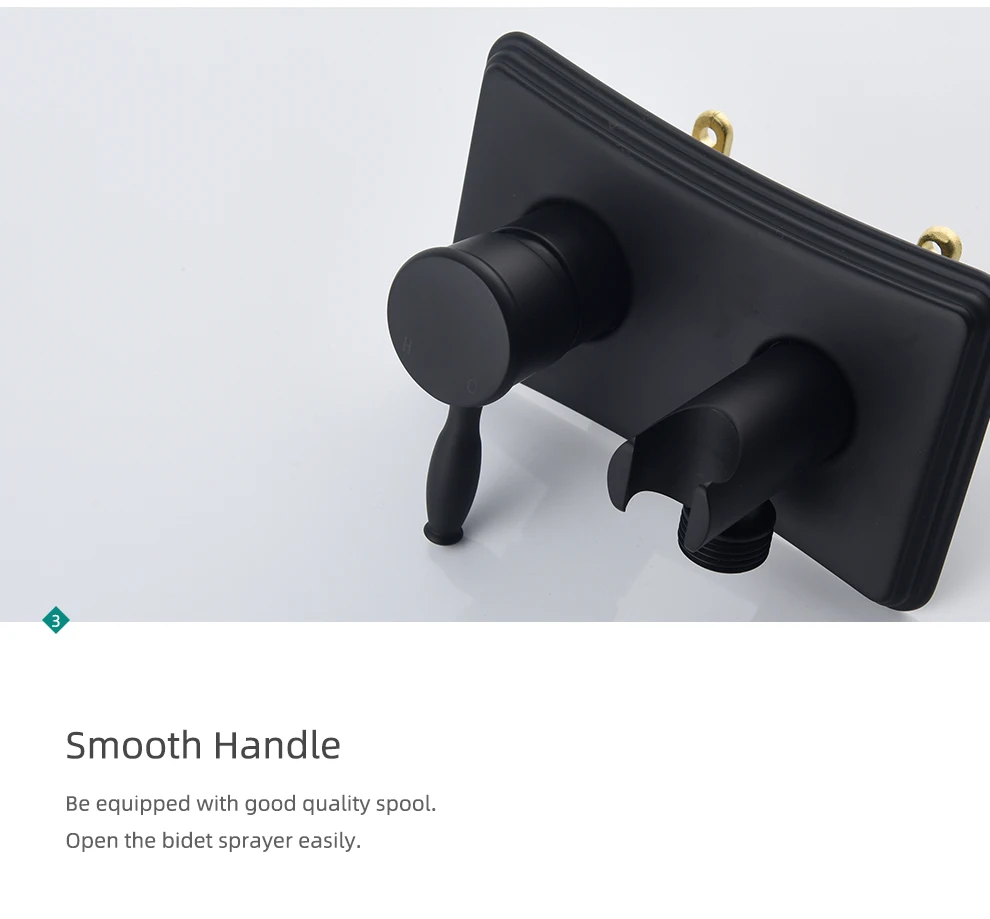

4.Put the handle on the cartridge, fix the hexagon screw with socket spanner then put the plug in

When spraying very hot water, please put a rag on it or a rubber insulated handle to use avoid the risk of scalding.

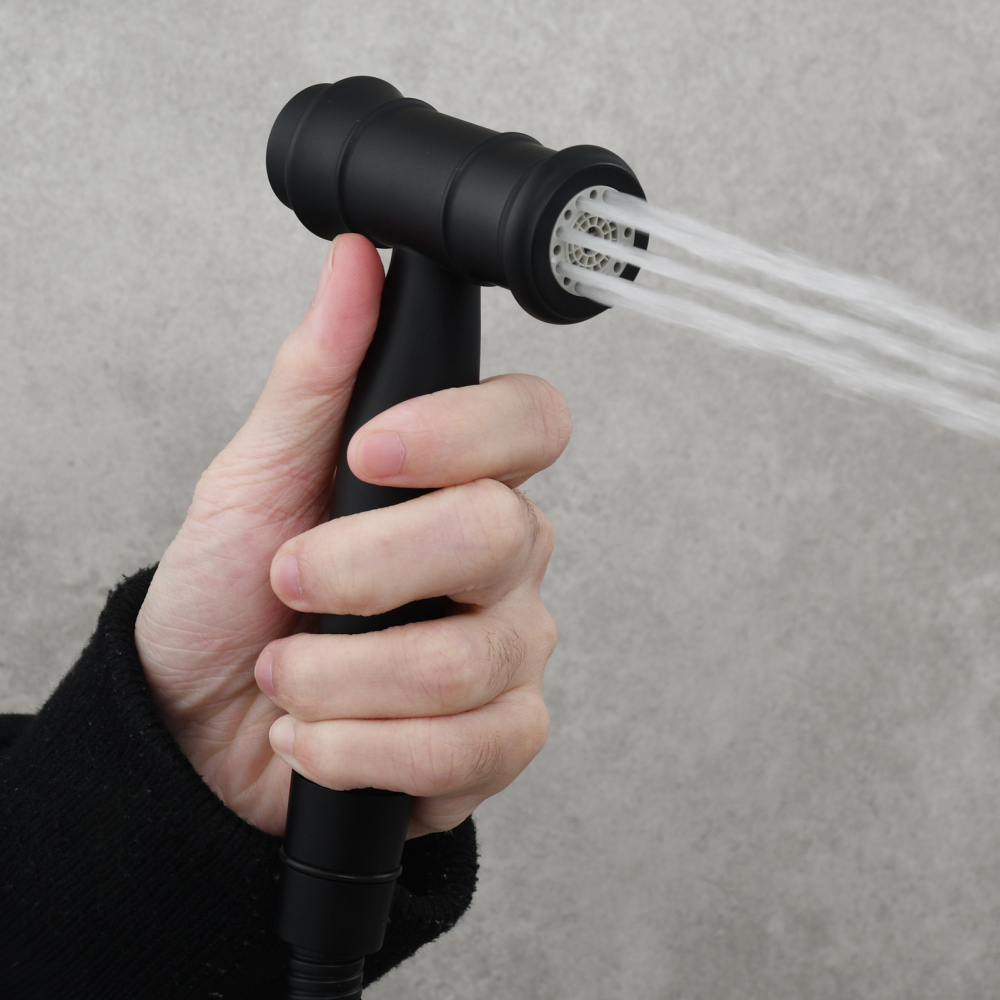

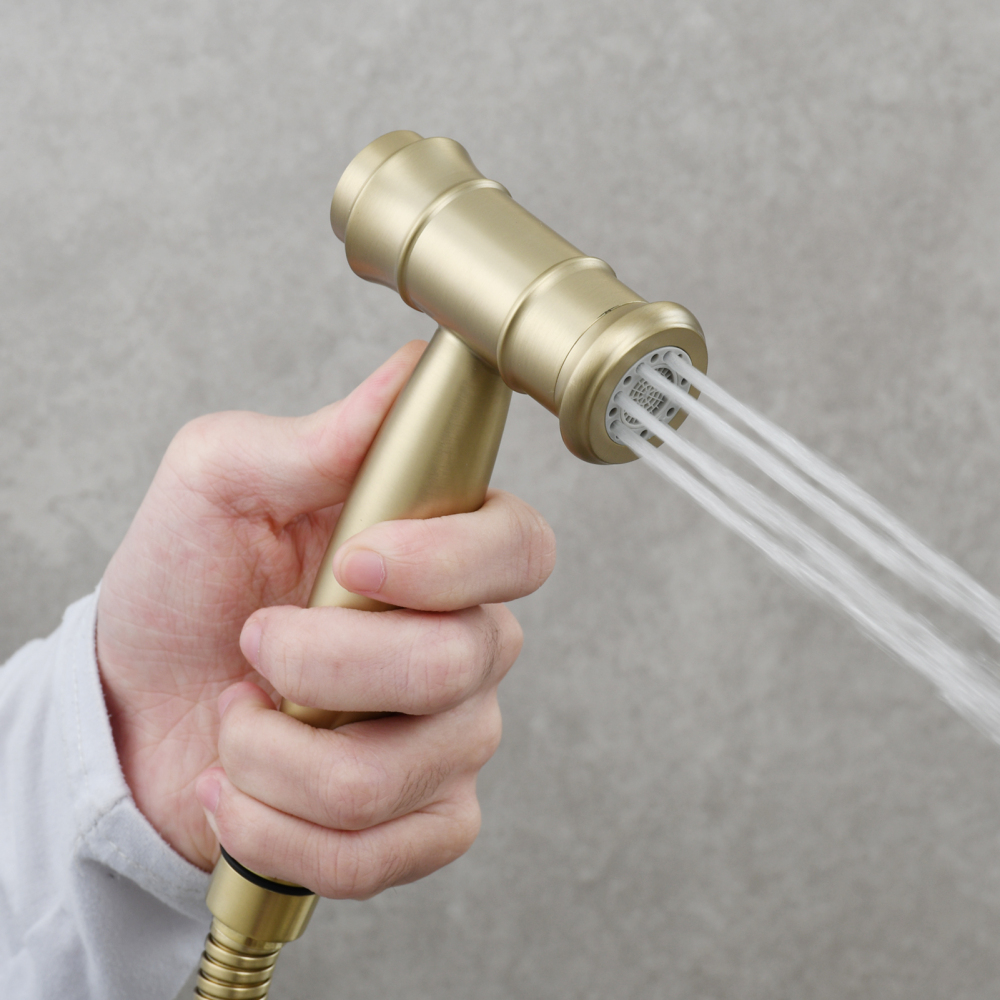

Two spray modes supported, you can use the strong mode to clean the dirty floor while the weak mode to bath your pets by rotating the spray head.
Bidet Sprayer Set Installation


Installation Video


►Video of Replace Cartridge


►Before You Begin
1. Shut off the main water supply.
2. Do not disassemble the main body, as it has been intalled & commissioned correcly & precisely belore loaving the factoary.
3. To avoid the faucet from jamming, Do flush the water pipe before installation.
4. After installation, make sure every joint is safely sealed (NO LEAKAGE).

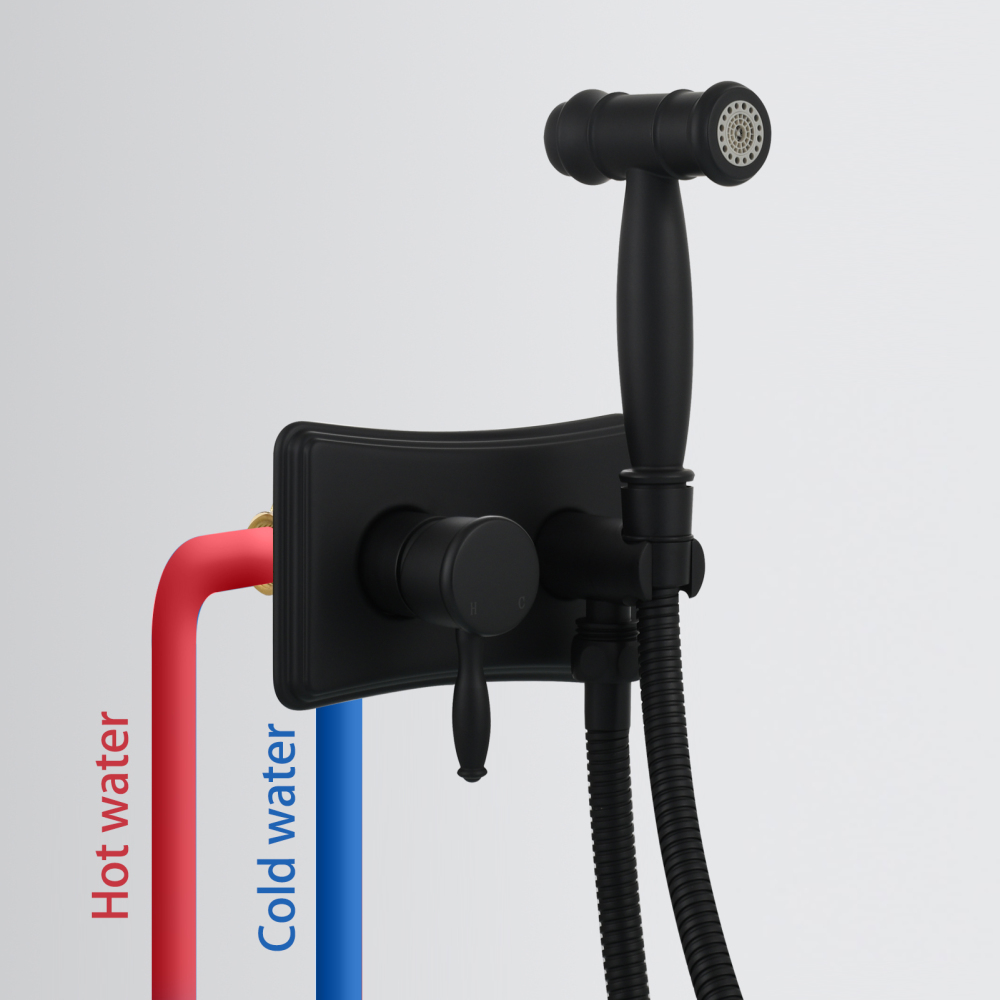

5. Make sure to connect the hotcold inlet pipe correcty, if standing in front, hot water pipe connecting to the leftand cold water pipe connecting to the down.
6. lt is recommended that installation of the product be done by a professional plumber.

Cleaning & Maintenance
To keep product clean and shiny follow the instruction below.
1. Flush with clean water and dry with soft cloth only.
2. Do not use any detergent, polisher, sane-cloth, or a scraper.
3. Do not use acid detergent.

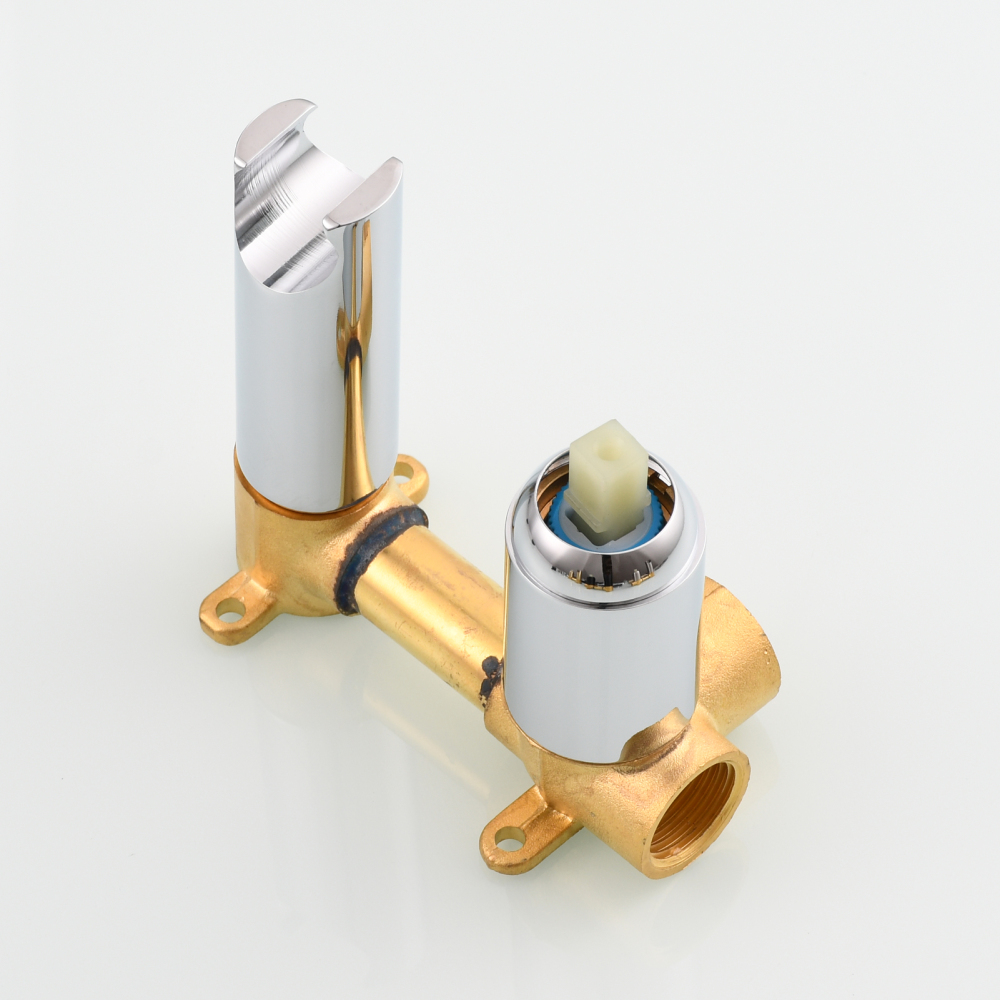

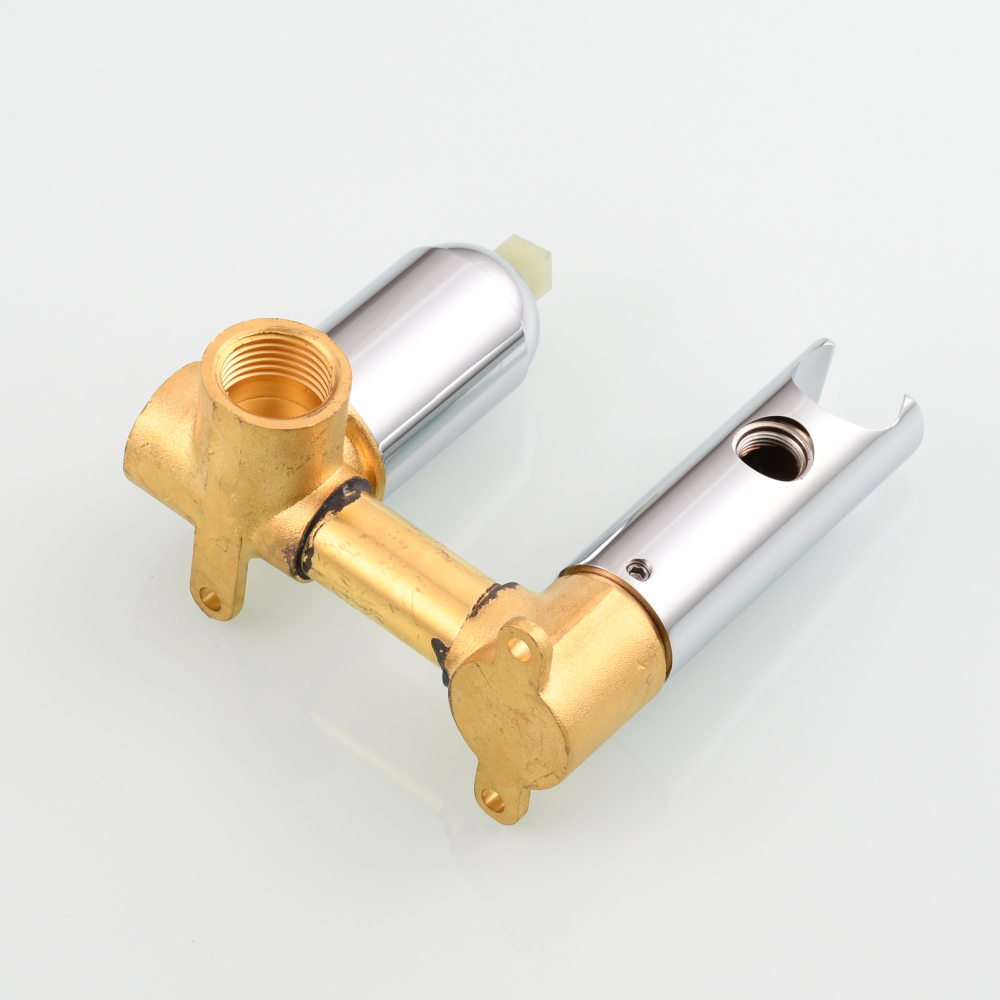

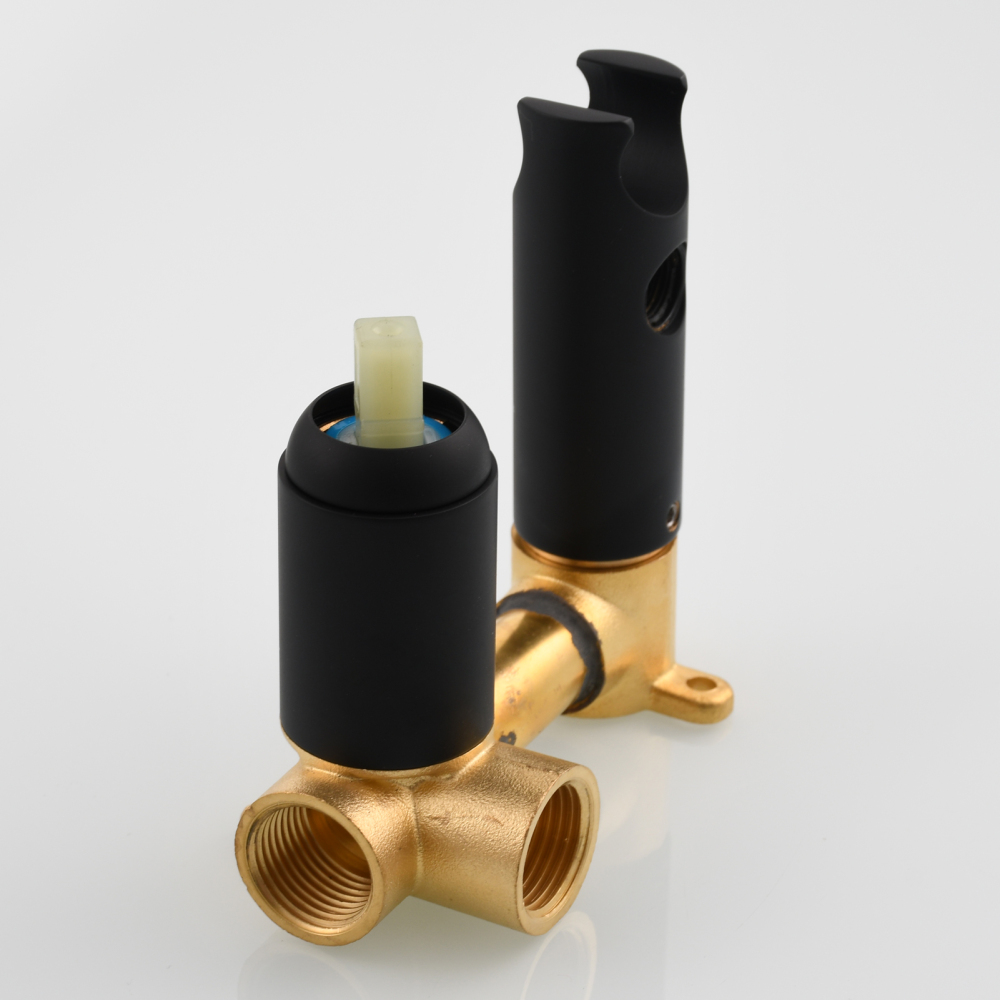

1. Position and fix the valve body into the wall. Make sure the valve body is completely level.
2. Connect hot and cold water inlets of the valve body to the main water supply. (Solid copper pipes are recommended for the connection)

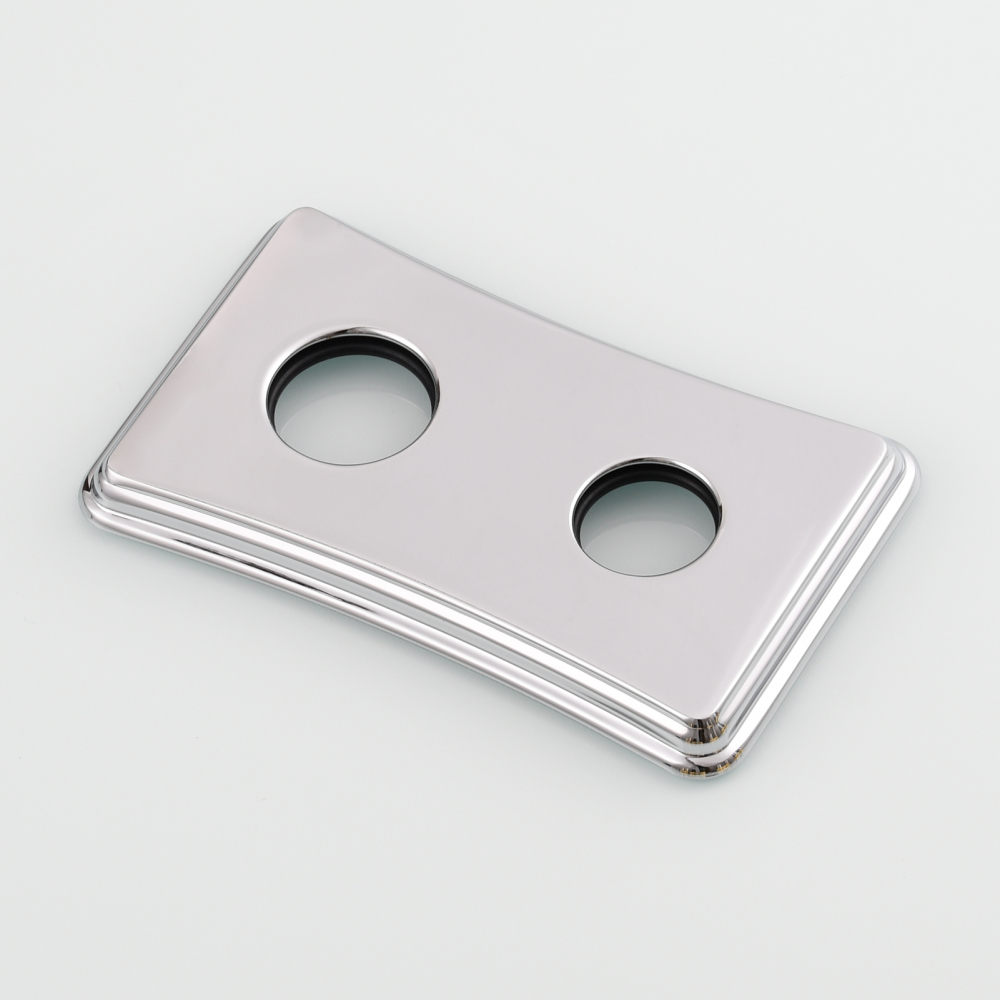

3. lnstall the escutcheons onto the valve body against the finished wall.
4. Place the handle and fix the set screw with Allen key, then put on indication button. Apply Teflon tape to the thread of the spout. Then screw the spout into the valve tightly.


SKU:WS035CF Black(click to download)              Click to visit 1688            Click to visit US warehouse

SKU:WS035F Nickle(click to download)              Click to visit 1688           Click to visit US warehouse
